     DD Type 380v New High Precision Cold Room Evaporator

    1. Blue Fins/Hydrophilic Aluminum Foil:

       - Surface with Anti-corrosion Material

       - Excellent Anti-corrosion Performance

    2. Wavy Fins:

       - Promotes Air Flow

       - Speeds up Air Circulation

    3. Stainless Steel Screws:

       - Superior Anti-corrosion Performance

       - Ideal for Evaporator Environments

       - Long-lasting Durability and Aesthetically Pleasing

    4. Wall-Hanging Type:

       - Easy Installation

       - Space-Saving Design

       - Reduced Installation Costs

    5. Acceptable OEM:

       - Time and Effort Savings

       - Convenient for Brand Promotion

    ModelDD15
    		DD22DD30DD40DD60DD80
    Refrige-Rating Capacity2.6KW3.9KW5.3KW7.0KW10.5KW14.0KW
    Cooling Area15㎡22㎡30㎡40㎡60㎡80㎡
    Diameter of Feed Inlet12mm12mm16mm16mm19mm19mm
    Diameter of Tail Pipe16mm16mm25mm25mm32mm32mm
    Wind Rate2450*2m³/h2450*2m³/h3950*2m³/h3950*2m³/h5400*2m³/h5400*2m³/h
    Quantity2N2N2N2N2N2N
    Fan Blade350mm350mm400mm400mm450mm450mm
    Voltage380v380v380v380v380v380v
    Power2*150W2*150W2*180W2*180W2*180W2*180W
    Air Throw8m8m10m10m15m15m
    Coil Unit1.8KW2.4KW2.0KW2.4KW4.2KW7.0KW
    Drain Pan0.9KW1.2KW1.0KW1.2KW1.4KW1.4KW

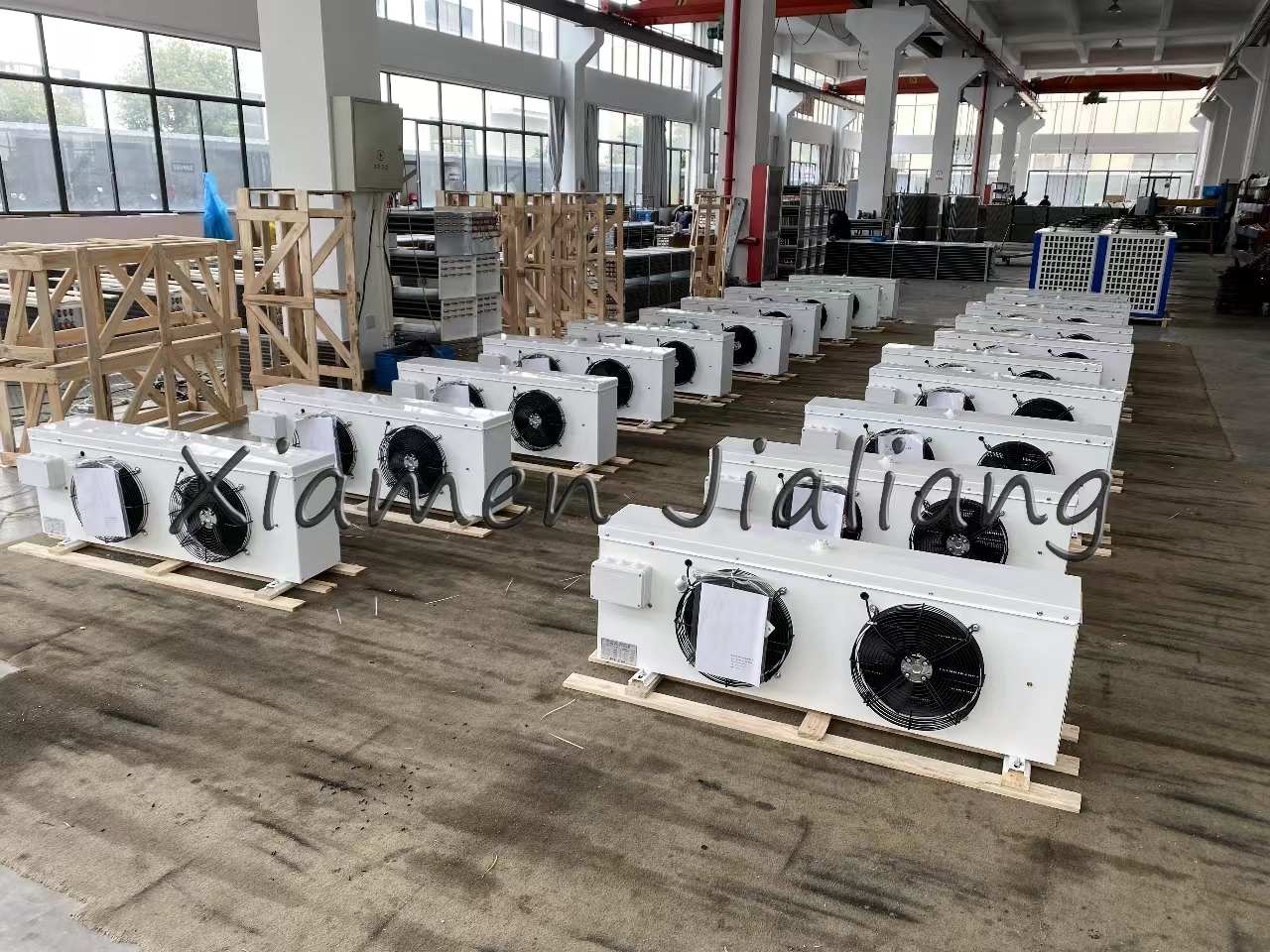

    On site factory

    With two decades of experience in the refrigeration field, we bring a wealth of knowledge and a youthful, energetic, innovative, and confident spirit to our work. Our products have reached customers in various countries across South America, Asia, the Middle East, Europe, Oceania, and Africa.

    Our success is built upon the foundation of stable quality, competitive pricing, and responsive customer service, enabling us to continually expand our customer base.

    Looking ahead, we envision a future where our industry can enhance the quality of life by providing fresher and higher-quality products. We eagerly anticipate the opportunity to collaborate with you to turn this vision into reality and to help more people enjoy a high-quality life. Together, we'll shape a brighter future in our industry.

    FAQ

    Q1: What are the current export markets DD Evaporator?
    A1: We have exported to more than 112 countries so far, our market is not limited to regions with hot weather, Russia and other regions where the temperature is too low will also use our Cold Room to preserve vegetables and fruits in the cold winter.
    Q2: Is a sample available DD Evaporator?
    A2: Samples are available that require the sample fee
