Different Types of Refrigeration Condensing Units: A Complete Guide
What Is a Refrigeration Condensing Unit?
A refrigeration condensing unit is one of the most important components in a refrigeration system. It is designed to compress refrigerant and release heat from the refrigeration cycle through the condenser.
A typical refrigeration condensing unit consists of a compressor, condenser, condenser fan (for air-cooled models), receiver, electrical control components, and other accessories depending on the system design.
Condensing units are widely used in commercial refrigeration, industrial cooling, cold storage, supermarkets, food processing facilities, restaurants, and pharmaceutical storage.
Different applications require different types of condensing units. Understanding their structures, cooling methods, and performance characteristics can help customers select the most suitable refrigeration equipment.
Different Types of Refrigeration Condensing Units
Refrigeration condensing units can be classified according to their cooling methods, compressor types, and installation structures.
1.Air-Cooled Condensing Units
Air-cooled condensing units use ambient air to remove heat from the refrigerant. A condenser fan circulates air through the condenser coil, allowing the high-temperature refrigerant gas to release heat and condense into liquid refrigerant.
Main Features:
Easy installation and maintenance.
No cooling tower or circulating cooling water required.
Flexible installation options.
Suitable for outdoor applications.
Relatively simple system design.
Air-cooled condensing units are a popular choice for commercial refrigeration projects because of their convenient installation and straightforward operation.
2.Water-Cooled Condensing Units
Water-cooled condensing units use circulating water to remove heat from the refrigerant through a water-cooled heat exchanger.
The system generally requires a cooling water circuit and may work with a cooling tower or another suitable heat-rejection arrangement.
Main Features:
Effective heat rejection.
Suitable for installations where outdoor airflow is limited.
Can be used in larger refrigeration systems.
Requires water circulation and water treatment.
Regular maintenance of the water circuit is necessary.
Water-cooled systems can be a suitable solution for projects with high cooling loads and appropriate water infrastructure.

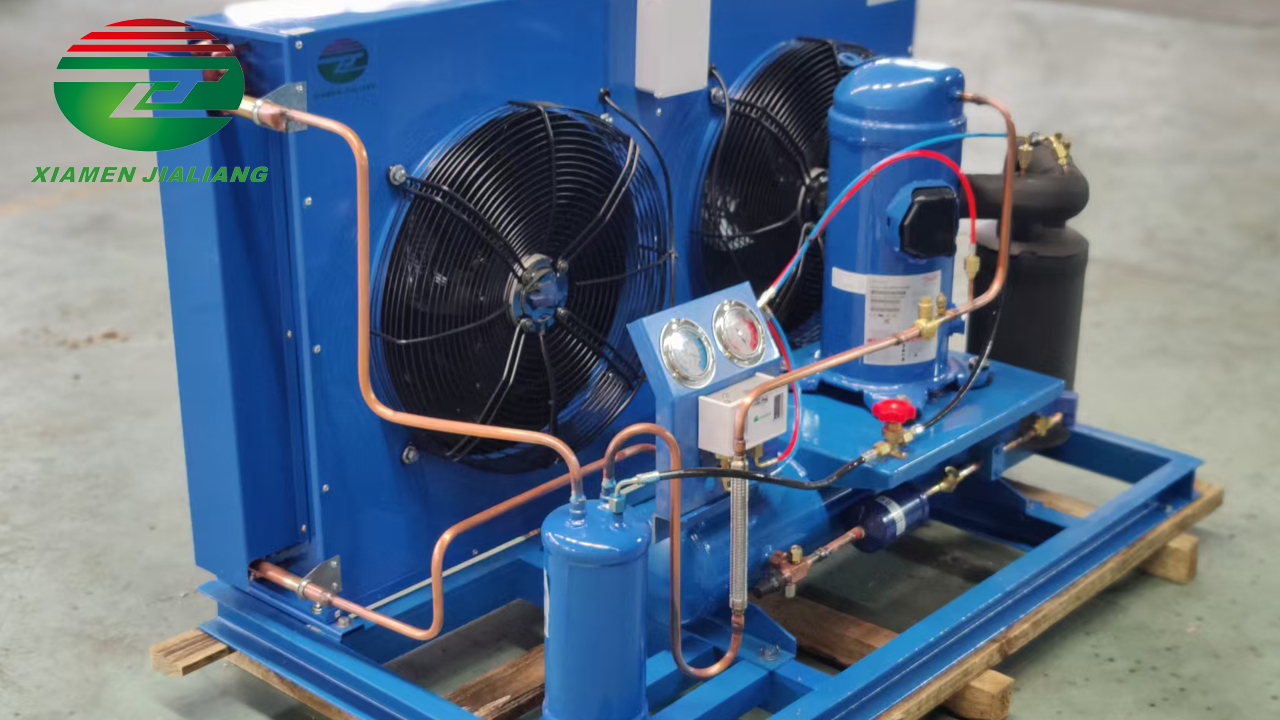

3.Scroll Compressor Condensing Units
Scroll compressor condensing units use scroll compressors to compress refrigerant. Two intermeshing scroll elements create compression chambers that gradually reduce the refrigerant volume.
Main Features:
Compact design.
Smooth operation.
Relatively low vibration.
Suitable for many commercial refrigeration applications.
Available in different capacities and configurations.
Scroll condensing units are often selected for commercial refrigeration systems that require compact equipment and reliable operation.

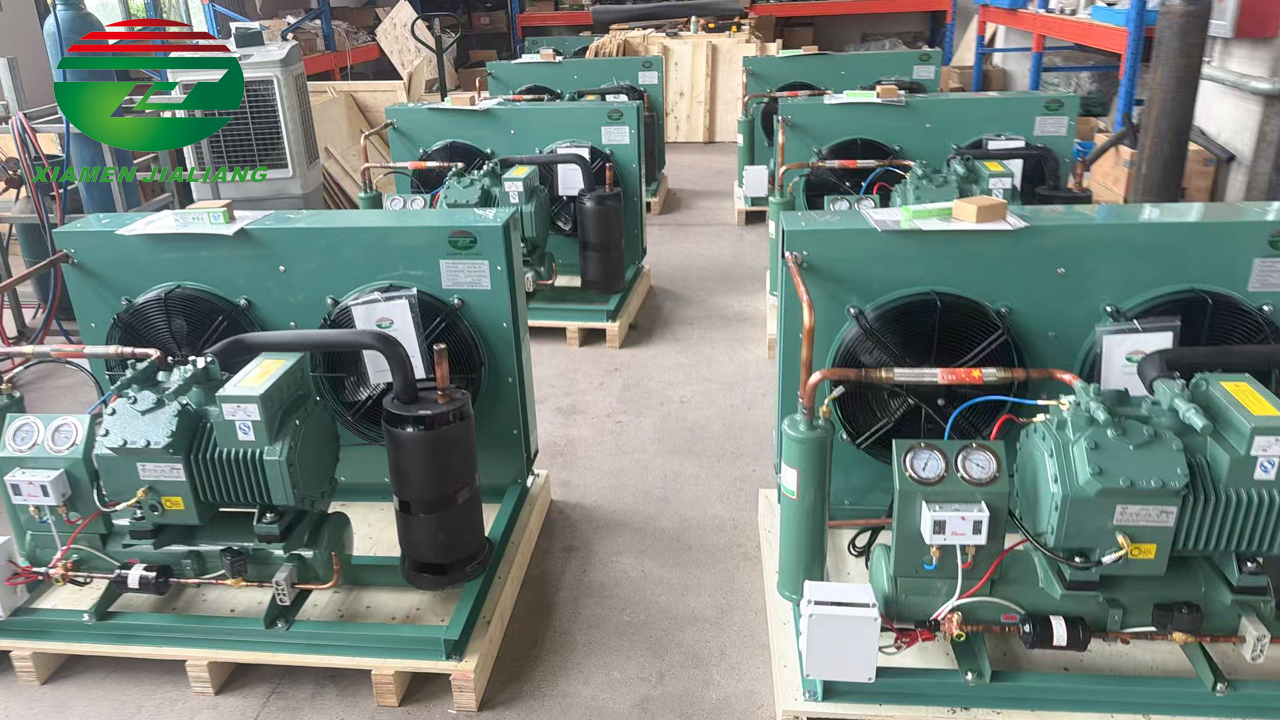

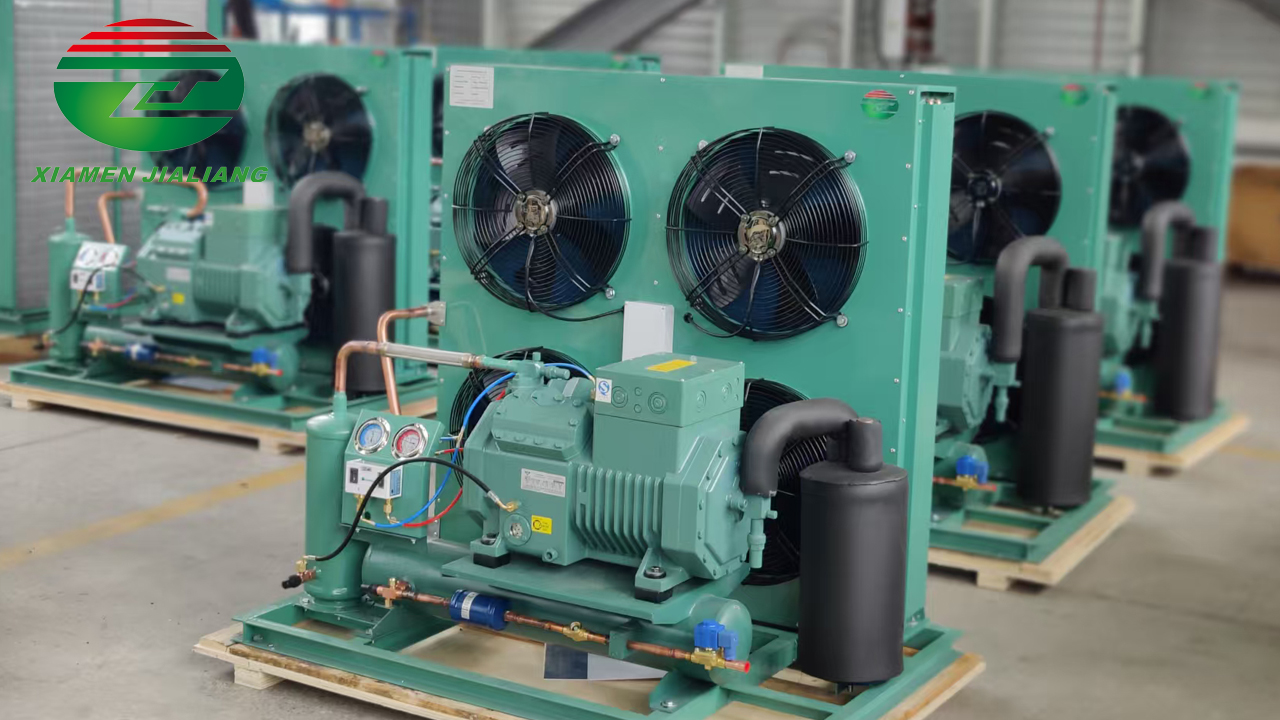

4.Semi-Hermetic Compressor Condensing Units
Semi-hermetic condensing units use semi-hermetic compressors. The compressor motor and compression mechanism are housed in a bolted enclosure that can be opened for maintenance and repair.
Main Features:
Serviceable compressor structure.
Suitable for a wide range of refrigeration capacities.
Flexible system configurations.
Available for medium- and low-temperature applications.
Commonly used in commercial and industrial refrigeration.
Semi-hermetic condensing units are widely used when serviceability, flexibility, and refrigeration capacity are important considerations.
5. Hermetic Compressor Condensing Units
Hermetic condensing units use fully sealed compressors. The motor and compressor mechanism are enclosed in a sealed housing.
Main Features:
Compact and integrated structure.
Fully sealed compressor design.
Convenient installation.
Suitable for selected small and medium refrigeration applications.
Hermetic units are a practical option for refrigeration systems where compact size and simple installation are priorities.
How to Choose the Right Refrigeration Condensing Unit?
Selecting the right refrigeration condensing unit is essential for system performance, energy consumption, and long-term operating costs.
Consider the following factors before purchasing:
1. Cooling Capacity
Determine the required refrigeration capacity based on the room dimensions, insulation, product load, ambient temperature, door openings, and target temperature.
2. Operating Temperature
Different applications require different temperature ranges.
Medium-temperature applications: Chillers, cool rooms, and food storage.
Low-temperature applications: Freezer rooms and frozen food storage.
3. Cooling Method
Choose between air-cooled, water-cooled, or evaporative cooling according to installation conditions, available utilities, maintenance requirements, and operating environment.
4. Compressor Type
Select a suitable compressor according to cooling capacity, operating conditions, maintenance requirements, and project budget.
5. Refrigerant
Consider refrigerant compatibility, environmental regulations, safety requirements, and local service availability.
6. Energy Efficiency
Compare equipment performance under the actual design conditions rather than relying only on nominal horsepower or compressor size.
Conclusion
Different types of refrigeration condensing units have different advantages and application requirements. Air-cooled, water-cooled, and evaporative units are selected according to heat-rejection conditions, while scroll, hermetic, and semi-hermetic units are classified by compressor design.
Choosing the right refrigeration condensing unit requires careful consideration of cooling capacity, operating temperature, refrigerant, installation environment, energy efficiency, and maintenance requirements.
Whether you need a commercial cold room condensing unit or an industrial refrigeration solution, selecting properly matched equipment is essential for reliable and efficient operation.
