Monoblock Cold Room: An Efficient All-in-One Refrigeration Solution
All-in-One Refrigeration Solution
Monoblock Cold Room: An Efficient All-in-One Refrigeration Solution

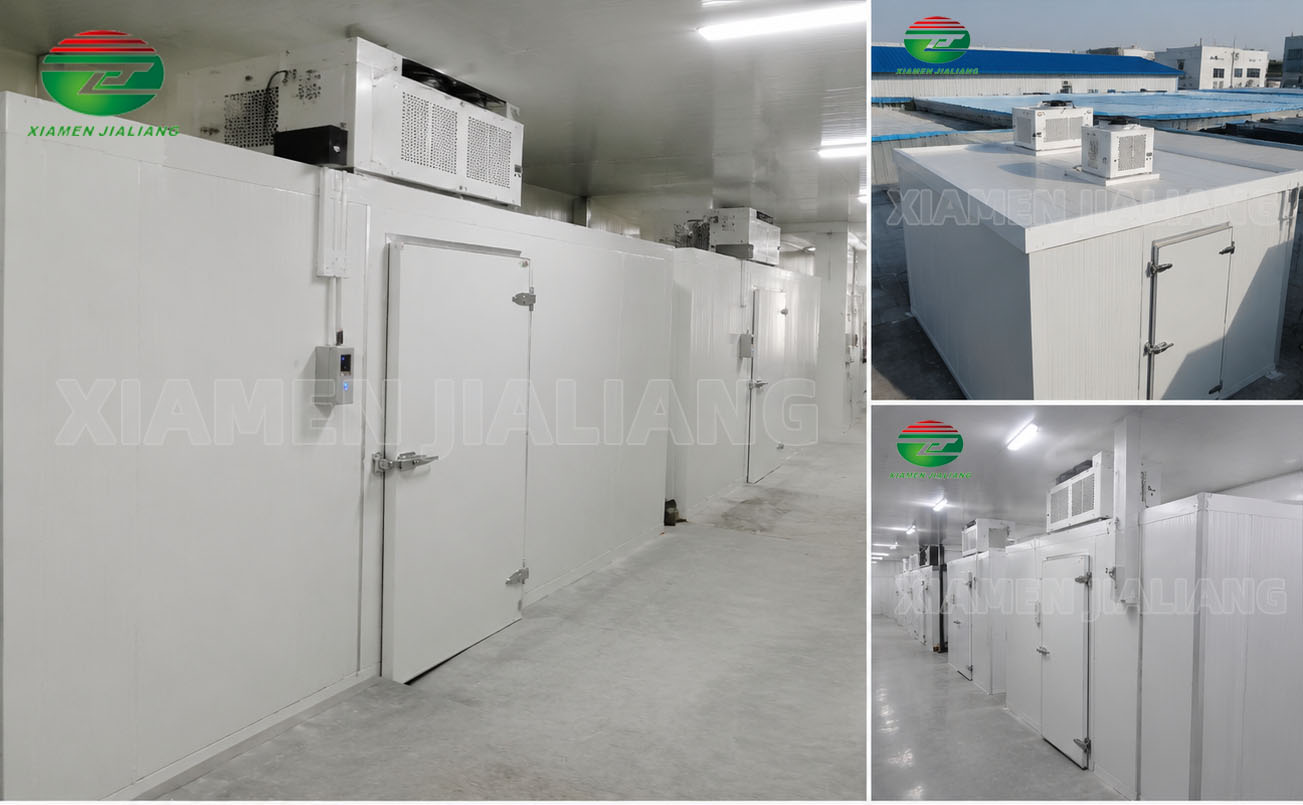

What Is a Monoblock Cold Room?
A monoblock cold room is a compact cold storage solution that uses an integrated refrigeration unit to maintain the required storage temperature. Unlike conventional split refrigeration systems, a monoblock refrigeration unit combines the main refrigeration components into a single housing, simplifying system installation and reducing the need for extensive on-site refrigerant piping.
Depending on the model, the integrated components may include a compressor, condenser, evaporator, expansion device, fans, and an electrical control system.
Monoblock refrigeration units are commonly used in small and medium-sized cold rooms where space efficiency, convenient installation, and reliable temperature control are important.
Whether you need a chilled storage room for fresh produce or a freezer room for frozen food, the right monoblock refrigeration system can provide a practical solution for commercial cold storage applications.
Key Benefits of a Monoblock Cold Room
1. Easy and Convenient Installation
One of the main advantages of a monoblock refrigeration unit is its integrated design. Factory-assembled components reduce the amount of refrigeration piping and assembly work required on site.
Depending on the unit design and installation conditions, the system can be mounted on a suitable cold room wall, ceiling, or designated panel opening.
This makes monoblock systems a convenient option for new cold room projects, commercial renovations, and businesses that need a straightforward refrigeration installation.
2. Compact Design and Space Saving
A monoblock unit integrates the main refrigeration components into one compact structure. This helps reduce equipment footprint and simplifies the overall system layout.
For restaurants, supermarkets, convenience stores, hotels, and small food processing facilities, efficient use of available space is often an important consideration.

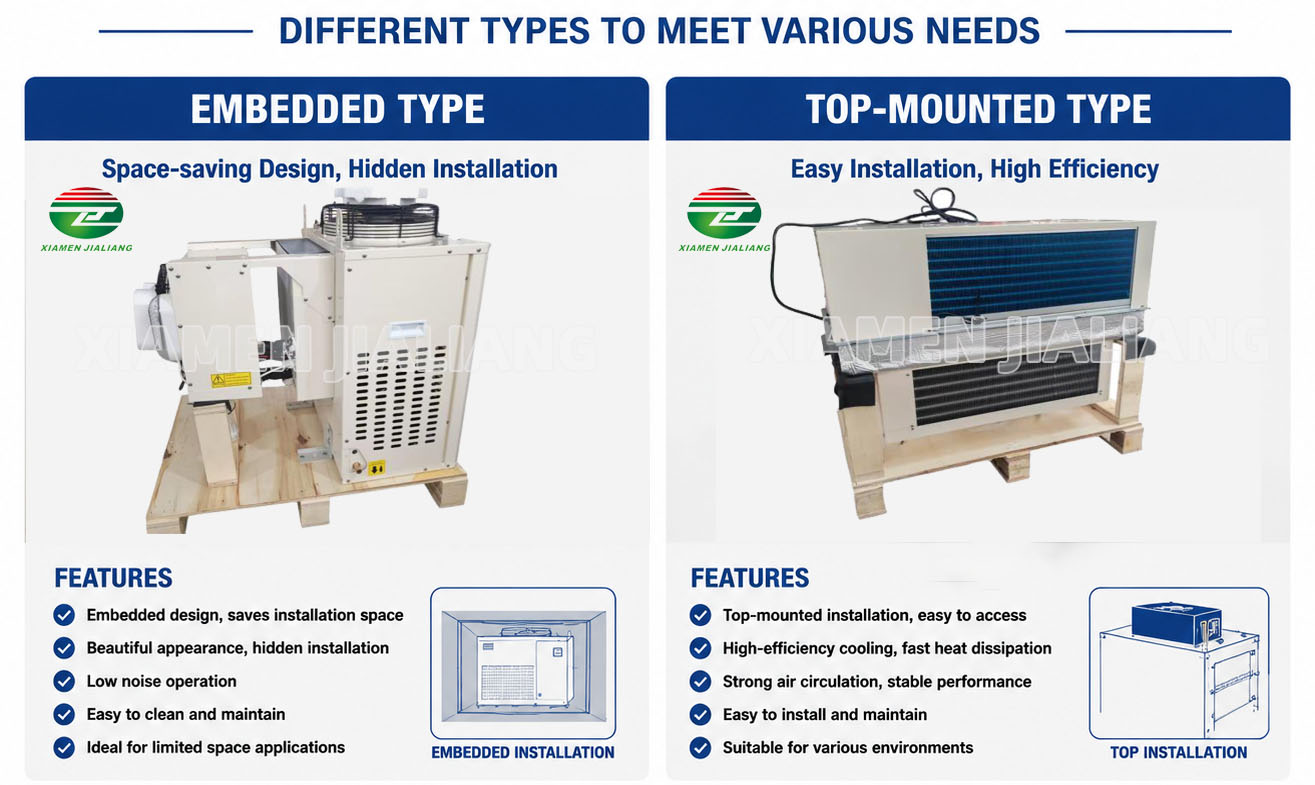

The appropriate mounting configuration should be selected according to the cold room layout, ventilation requirements, and available installation space.
3. Reliable Temperature Control
A properly selected monoblock refrigeration unit helps maintain the target temperature required for different storage applications.
Chilled storage is commonly used for fresh food, dairy products, beverages, and vegetables, while freezer applications require lower temperatures for frozen meat, seafood, and other frozen products.
Actual temperature performance depends on the refrigeration capacity, room insulation, ambient temperature, door-opening frequency, stored product load, and other operating conditions.
4. Simplified Maintenance
Because the main refrigeration components are integrated into one unit, inspection and routine maintenance can be more convenient.
Regular maintenance should include cleaning the condenser, checking evaporator airflow, inspecting electrical connections, monitoring operating temperatures, and maintaining the condensate drainage system.
Following the manufacturer's maintenance recommendations helps support reliable operation and extend equipment service life.
5. Flexible Applications
Monoblock cold room systems can be configured for various commercial refrigeration requirements, including different room dimensions, temperature ranges, installation positions, and electrical supplies.
Available configurations vary by manufacturer and model. Cooling capacity and refrigerant selection should always be confirmed against the actual project requirements.

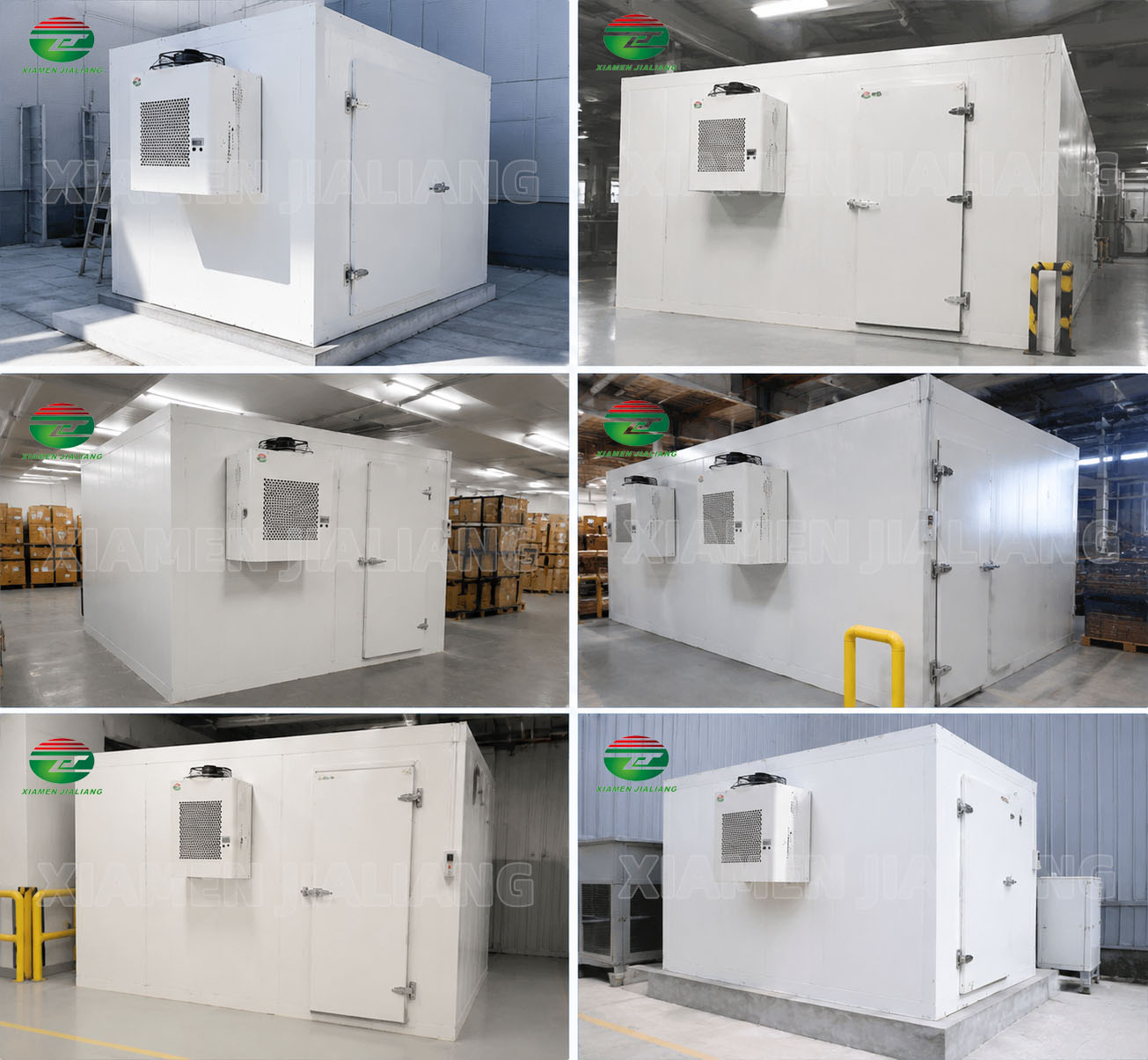

Applications of Monoblock Cold Room Systems
Monoblock refrigeration units are suitable for a range of small and medium-sized cold storage applications.
Food and Beverage Storage
Suitable for restaurants, hotels, catering kitchens, and food retailers that need controlled-temperature storage for fresh ingredients, beverages, and prepared foods.
Fruit and Vegetable Storage
Can be used in chilled storage rooms for fresh produce when the temperature and humidity requirements are matched to the specific products.
Meat and Seafood Storage
Appropriate refrigeration configurations can support chilled or frozen storage for meat, poultry, fish, and seafood products.
Supermarkets and Convenience Stores
Compact refrigeration systems can provide convenient cold storage for retail backrooms and food preparation areas.
Monoblock Cold Room vs Split Refrigeration System
Both systems can provide reliable cold storage when correctly designed. The best choice depends on the project scale and operating requirements.
| Comparison | Monoblock System | Split Refrigeration System |
| System design | Main components integrated into one unit | Components installed as separate units |
| Installation | Generally simpler for suitable small rooms | Requires coordination between separate components |
| Refrigerant piping | Reduced on-site piping in many configurations | Requires interconnecting refrigerant piping |
| Space planning | Compact integrated arrangement | Greater flexibility in locating equipment |
| Typical applications | Small and medium-sized cold rooms | Small to large projects, depending on system design |
| Selection priority | Installation simplicity and compactness | Layout flexibility and project-specific engineering |
A monoblock unit is often a practical choice when straightforward installation and a compact design are priorities. A split system may be more appropriate when the room is large, the heat load is high, or the project requires greater flexibility in equipment placement.
The final decision should be based on a proper refrigeration load calculation and site assessment.
Why Work with a Professional Cold Room Supplier?
Choosing a suitable refrigeration unit is only one part of a successful cold storage project. The insulated enclosure, cold room door, refrigeration capacity, electrical controls, drainage, and ventilation must work together as a complete system.
A professional supplier can help evaluate room dimensions, target temperature, stored products, ambient conditions, installation requirements, and local electrical standards.
For customized projects, request a technical proposal that includes the recommended refrigeration capacity, unit configuration, insulation specifications, control options, and installation requirements.
Conclusion
A monoblock cold room offers a compact and practical refrigeration solution for many small and medium-sized commercial cold storage applications. Its integrated design can simplify installation, reduce on-site piping work, and make routine maintenance more convenient.
The key to reliable performance is selecting a unit with the correct cooling capacity, temperature range, electrical configuration, and installation design.
If you are planning a new cold room or upgrading an existing storage facility, consult a professional refrigeration supplier to identify the most suitable monoblock cold room solution for your application.
Contact our team to discuss your cold room dimensions, required temperature, and refrigeration needs.
