Industrial Axial Flow Fan
    • Cooling System 450mm 220v Fan Axial Flow

    • Axial Blower Fan 220v Blade Industrial Axial Flow Fan

      • 5000mm5500mm630mm
    • Get A Quote
    • Description
    • Features

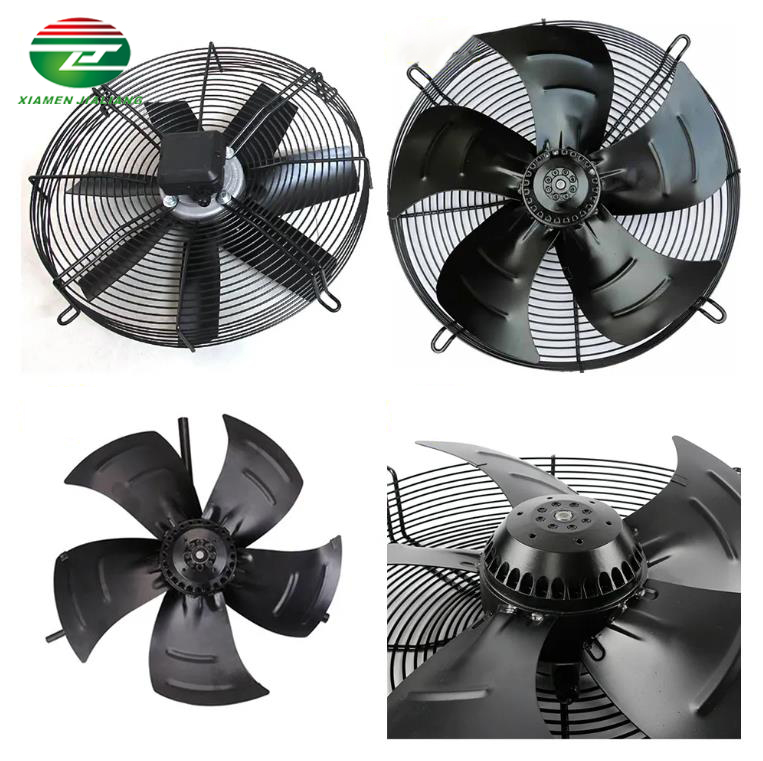

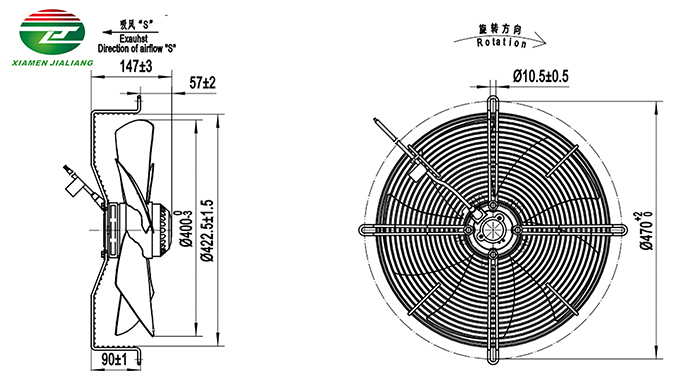

    Cooling System 450mm 220v Fan Axial Flow


    Product Introduction

    1）The fan rotor is directly welded by rotor and blade, it adopts double-sided dynamic balance.
    2）The fan blade, rotor and grid are all powder sprayed, the surface is smooth, bright and corrosion-resistant.
    3）The motor cover is also special handled, which helps the cover free from oxidized.Fan normal ambient temperature:-25°C~+60°C.



    Axial Fan Parameter
    ModelDiameter(mm)Voltage（Ｖ）InputPow（W）Air Volume Max(m³/h)Speed(RPM)
    YWF4E-200-E5Z200mm380V35W3851465
    YWF4D-200-E5Z200mm220V22W3851400
    YWF4E-250 -E5L250mm380V50W9151450
    YWF4D-250 -E5L250mm220V50W9001430
    YWF4E-300-E5L300mm380V100W19201325
    YWF4D-300-E5L300mm220V100W19501360
    YWF4E-350 -E5L350mm380V150W23501380
    YWF4D-350 -E5L350mm220V150W24701380

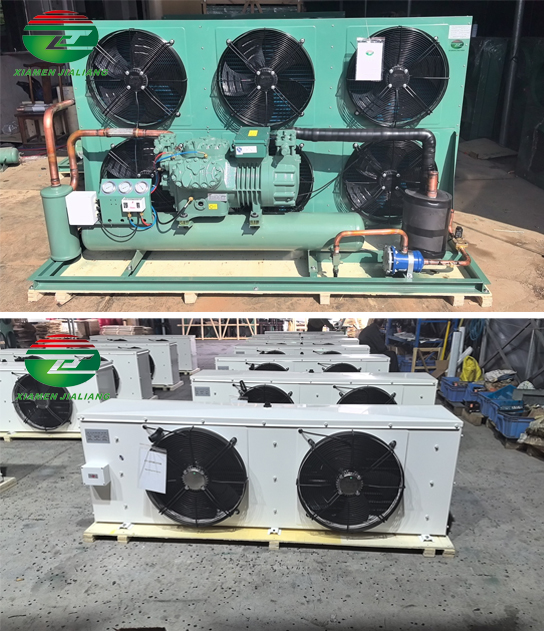

    Project Show

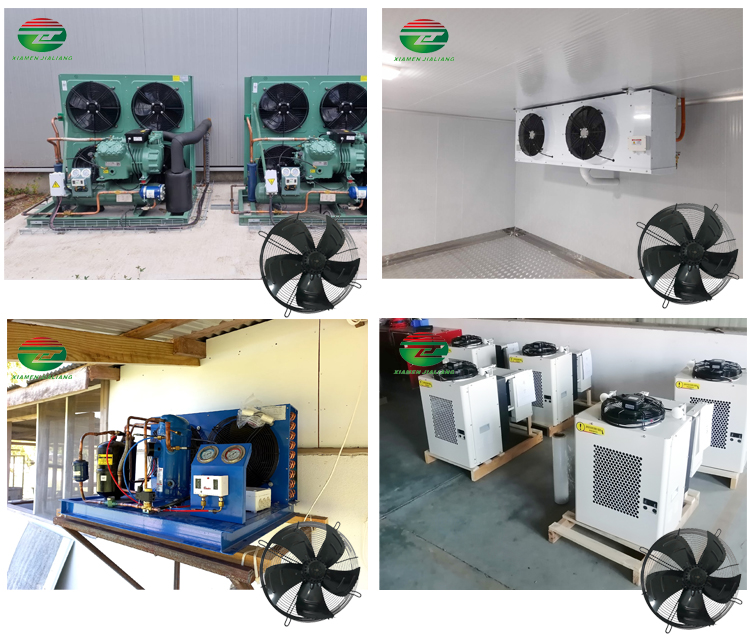

    Application Scenarios

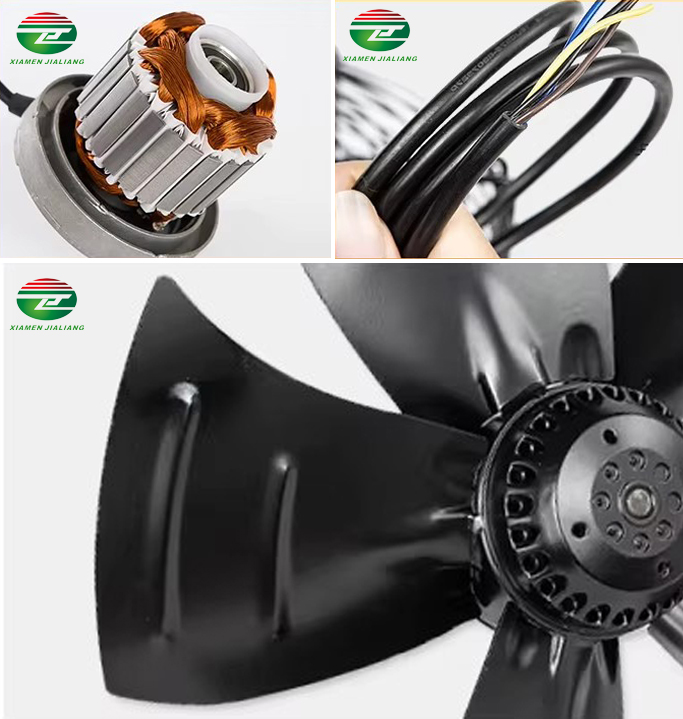

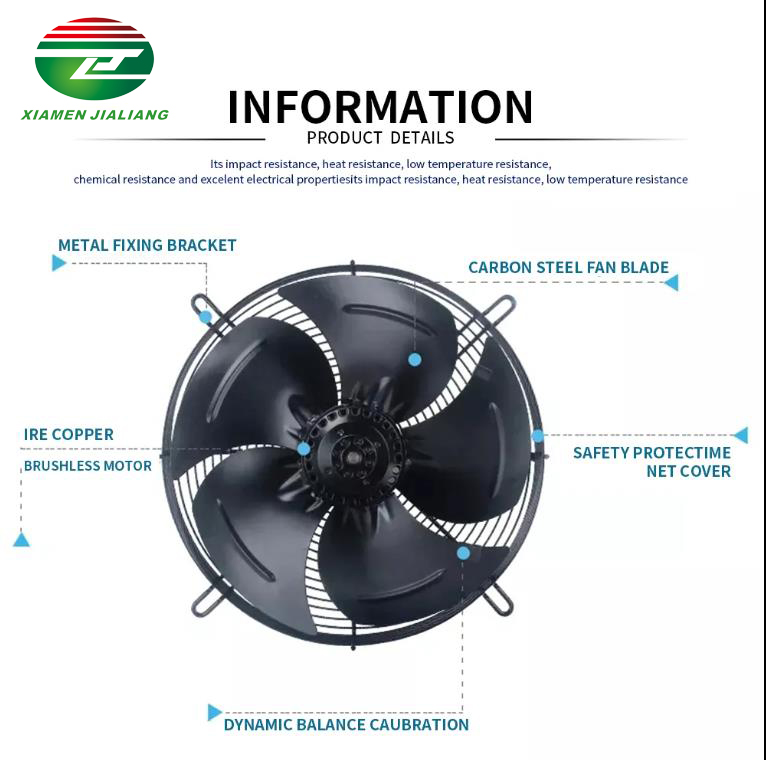

    Quality Details


    1.PURE COPPER WIREOUTER ROTOR MOTOR

    100% pure copper wire.Low energy consumptionand durable Strong security

    and stability.


    2.MOISTURE-PROOFAND WATERPROOF

    machine runs stablyin harsh and humidenvironment.


    3.METAL FAN BLADE

    Streamlined wind design,small booster, anti-rustSpray corrosion resistantand easy to clean.




    Voltage (V)Frequency (Hz)Capacitor [uF](±5%)Current Draw

    [A](±10%)

    Power input[W](±10%)

    		Speed

    [r/min](±10%)

    Air Flow @ 0 Pa

     [m'/h](±10%)

    Noise Level

    [Lp dB(A) Max

    2205060.901901350350060
    2206061.222701580380065

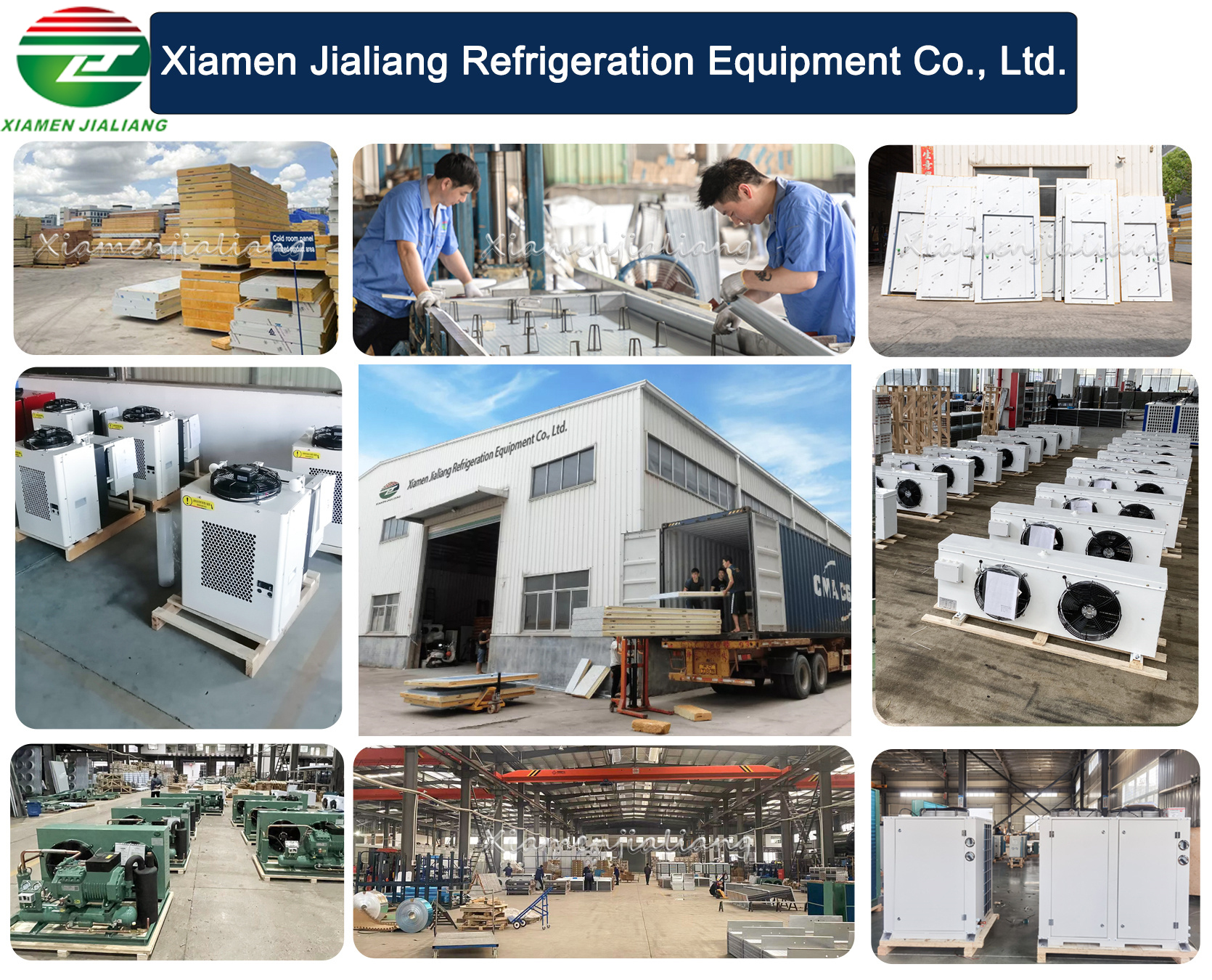

    Factory Workshop


    Jialiang is a Xiamen, China headquartered high growth cold chain company that designs, installs, and commissions refrigeration solutions for industrial and commercial clients. Jialiang has 25 years experience in the cold room market. With an end-to-end, turnkey solution, customers can easily implement refrigeration and cold room solutions into their business processes. Whether you are looking for cold room, refrigeration condensing units, PU panels, evaporator.

    Jialiang is the go-to professional manufacturer. True to our brand promise, at "Jialiang- we make sure you are cool". Jialiang prides itself on having excellent technical professionals. This includes licensed architects, highly trained factory staff, research and development experts, and technical sales and support teams. We serve both local and global customers from the US, Canada, South Asia among other regions. You are welcome to have a chat with our technical sales team if you want to make any inquiries or purchases.




    FAQ


    Q1: What's your products MOQ?
    A1: We provide you small MOQ for each item, it depends your specific order
    Q2: What are kinds of information provided by the customer before inquiry?
    A2: Please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
