    High Stretched Stable Operation Cold Room Evaporator For Lab

    Here are some key features of our product:

    1. Blue Fins/Hydrophilic Aluminum Foil: The surface of our product is coated with anti-corrosion material, ensuring excellent anti-corrosion performance.

    2. Wavy Fins: Our fins are designed with a wavy pattern that promotes efficient airflow and accelerates air circulation.

    3. Stainless Steel Screws: We use stainless steel screws for enhanced corrosion resistance, making our product more suitable for evaporator environments. These screws not only offer superior anti-corrosion performance but also provide long-lasting durability and an attractive appearance.

    4. **Wall-Hanging Type: Our product is designed for easy installation, saving valuable space and reducing installation costs.

    5. **Acceptable OEM: We offer OEM services, allowing for efficient branding and customization, ultimately saving time and effort for our customers while facilitating brand promotion.

    Discover the advantages of our product and how it can meet your specific needs.


    ModelDD15DD22DD30DD40DD60DD80
    Refrige-Rating Capacity2.6KW3.9KW5.3KW7.0KW10.5KW14.0KW
    Cooling Area15㎡22㎡30㎡40㎡60㎡80㎡
    Diameter of Feed Inlet12mm12mm16mm16mm19mm19mm
    Diameter of Tail Pipe16mm16mm25mm25mm32mm32mm
    Wind Rate2450*2m³/h2450*2m³/h3950*2m³/h3950*2m³/h5400*2m³/h5400*2m³/h
    Quantity2N2N2N2N2N2N
    Fan Blade350mm350mm400mm400mm450mm450mm
    Voltage380v380v380v380v380v380v
    Power2*150W2*150W2*180W2*180W2*180W2*180W
    Air Throw8m8m10m10m15m15m
    Coil Unit1.8KW2.4KW2.0KW2.4KW4.2KW7.0KW
    Drain Pan0.9KW1.2KW1.0KW1.2KW1.4KW1.4KW


    ModelDL55DL80DL105DD40DD60DD80
    Refrige-Rating Capacity11.616.823.27.010.514.0
    Cooling Area ㎡5580105406080
    Diameter of Feed Inlet  mm161919161919
    diameter of tail pipe mm253232253232
    Wind Rate(m³/h)3950*25400*25400*23950*25400*25400*2
    Quantity222222
    Fan Blade400450450400450450
    Voltage380V380V380V380V380V380V
    Power2*180W2*180W2*180W2*180W2*180W2*180W
    Air Throw10m15m15m10m15m15m
    Coil Unit1.52.43.62.44.27.0
    Drain Pan1.51.21.21.21.41.4

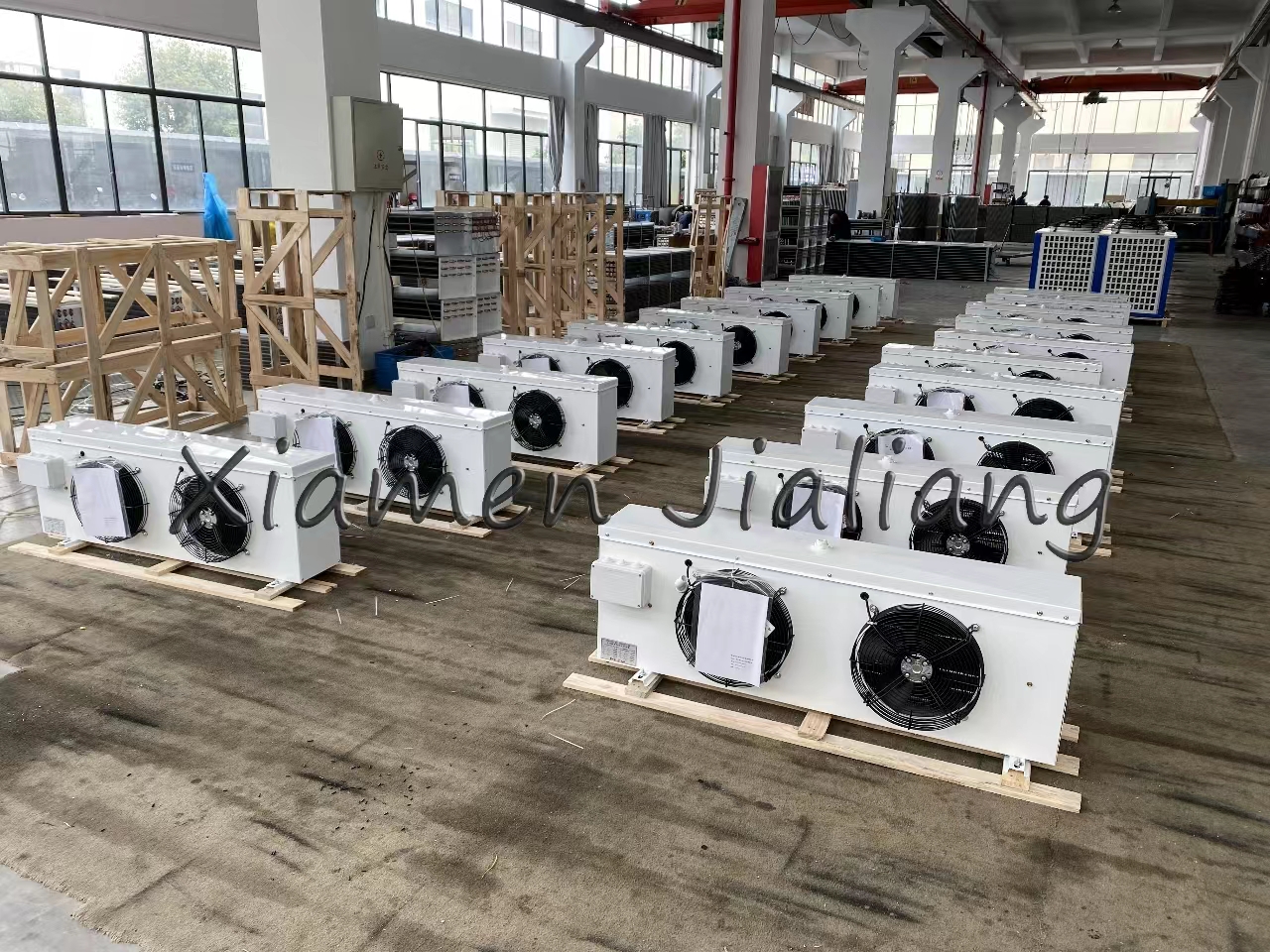

    On site factory

    With over two decades of experience in the refrigeration industry, we bring a wealth of knowledge and a youthful, innovative, and confident spirit to our work. Our products have already made their mark in several countries across South America, Asia, the Middle East, Europe, Oceania, and Africa.

    Our success is driven by the stability and quality of our products, competitive pricing, and rapid customer service. We're dedicated to providing you with the best.

    In the future, we envision a world where everyone can enjoy a fresher, higher-quality life through our industry. We're excited to partner with you to turn this vision into reality, making a positive impact on people's lives everywhere. Together, we'll create a better, fresher future.

    FAQ

    Q1: What are the current export markets DD Evaporator?
    A1: We have exported to more than 112 countries so far, our market is not limited to regions with hot weather, Russia and other regions where the temperature is too low will also use our Cold Room to preserve vegetables and fruits in the cold winter.
    Q2: Is a sample available DD Evaporator?
    A2: Samples are available that require the sample fee
