    High Performance DJ Series Cold Room Evaporator

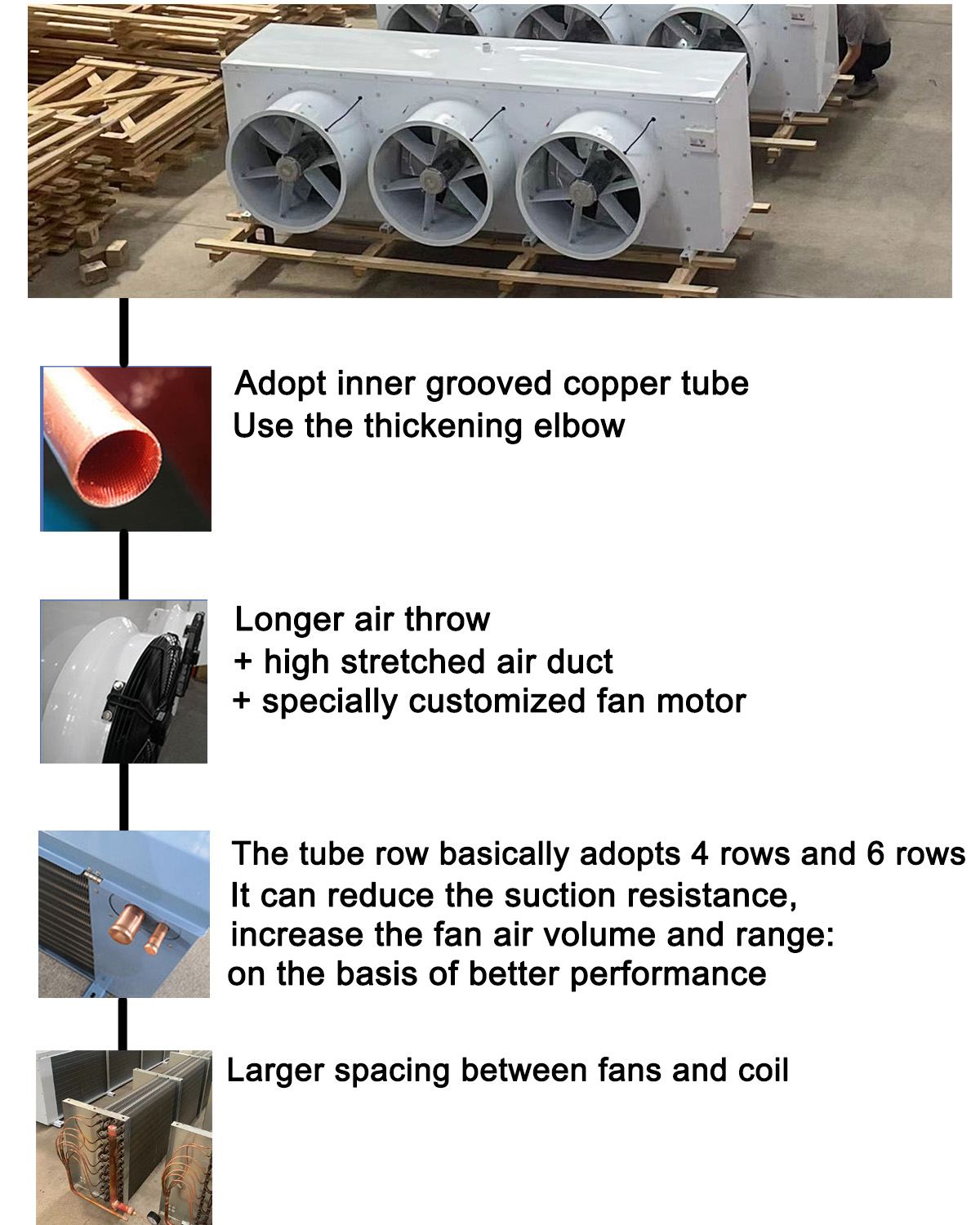

    1. Adopting the most famous brand axial flow fan, high efficiency, low noise, suitable for different temperature and different voltage requirements, reasonable matching of blade and air ring gap, hyperbolic air duct design, to achieve the best effect.

    2. Product quality control runs through the whole process. Before leaving the factory after 24 hours sealing test, all products accept custom.


    ModelDJ140DJ170DJ210DJ250DJ300
    Refrige-Rating Capacity21.7KW26.4KW32.6KW38.8KW46.5KW
    Cooling Area140㎡170㎡210㎡250㎡300㎡
    Diameter of Feed Inlet25mm25mm25mm25mm28mm
    Diameter of Tail Pipe50mm50mm50mm50mm50mm
    Wind Rate12000*2m³/h12000*3m³/h12000*3m³/h12000*3m³/h12000*4m³/h
    Quantity2N3N3N3N4N
    Fan Blade600mm600mm600mm600mm600mm
    Voltage380v380v380v380v380v
    Power2*1500W3*1500W3*1500W3*1500W4*1500W
    Air Throw20m20m20m20m20m
    Coil Unit11.0KW17.6KW17.6KW20.0KW22.0KW
    Drain Pan2.2KW2.2KW2.2KW2.0KW2.2KW


    Fin Pitch: 6mm

    Fan with Air Duct Motor: 4X 750W 550 blades

    Air Volume: 4X 8000m³/h

    Electric Heating Tube Power: 9X 2.8KW

    Inlet Pipe: φ 25

    Return Steam Pipe: φ 50

    Shell Material: Galvanized Sheet with Plastic Coating

    Inlet Position: Right Side

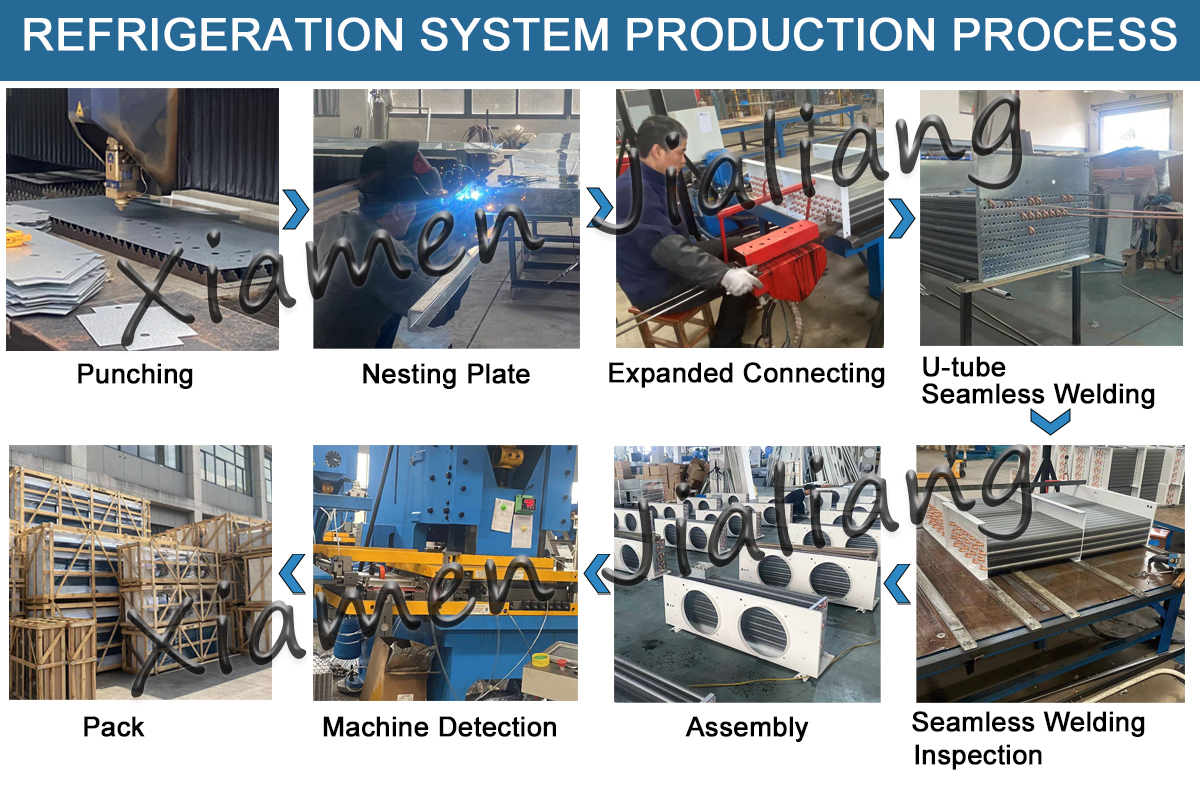

    On site factory

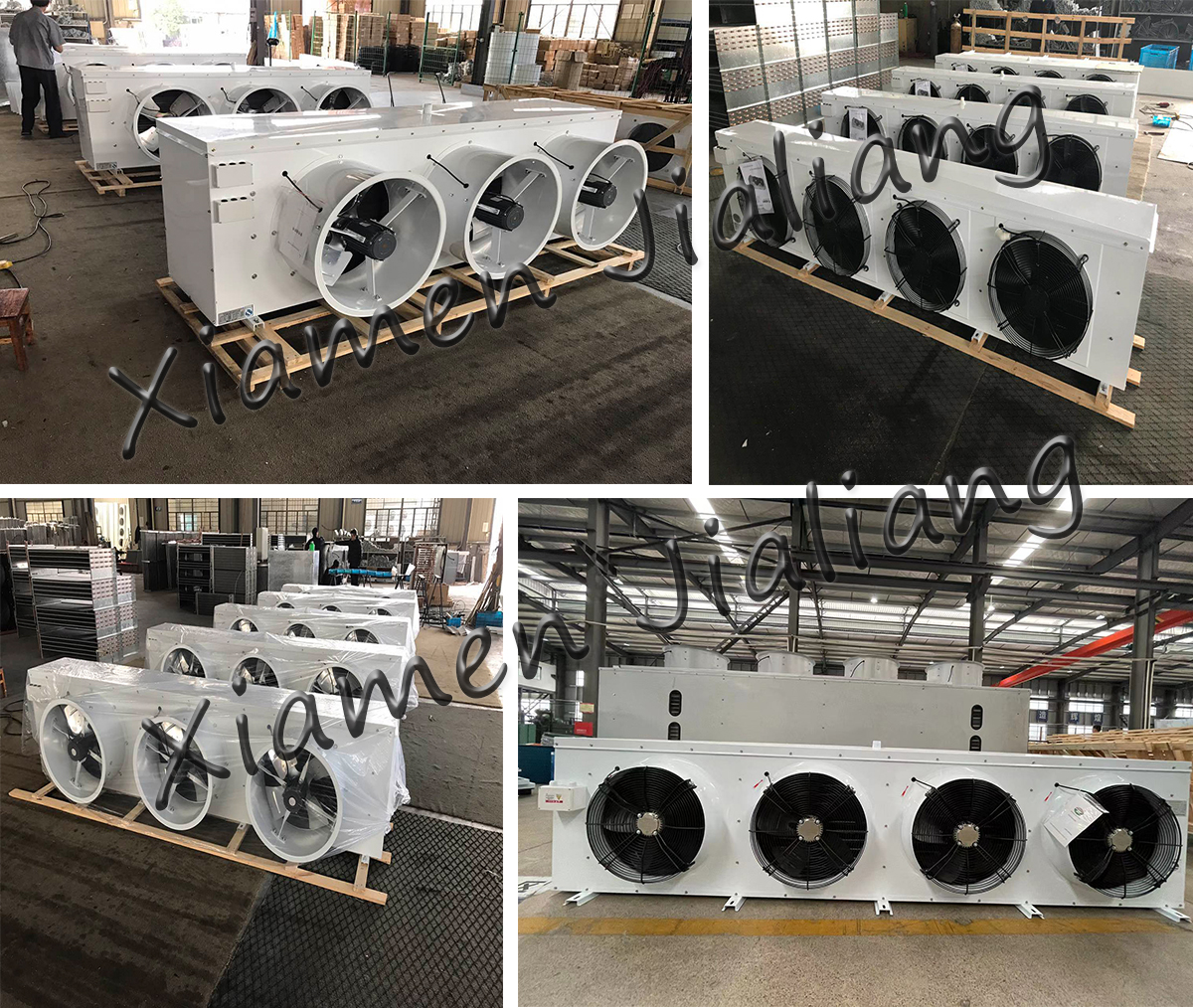

    Our factory

    Complete Production Equipment + Professional Production Team + Superb Production Technology = Xiamen Jialiang

    FAQ

    Q1:I want to buy DJ evaporator I want to know are you a manufacturer or a trading company?
    A1: We have our own factory and are a company integrating industry and trade.
    Q2: I want to know where is your DJ evaporator factory located?
    A2: Factory built in Xiamen, Fujian
