    Large Air Volume Electrochemical Frost Cold Room Evaporation


    Product Description

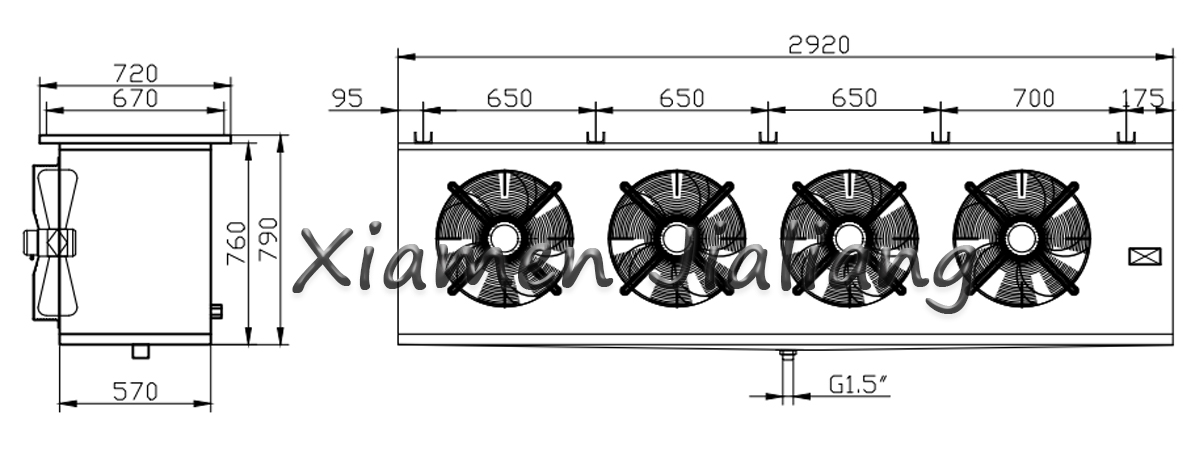

    ModelDD200DD250DD310DD360DD440
    Refrige-Rating Capacity35.0KW43.8KW54.3KW63.0KW
    		77.0KW
    Cooling Area200㎡250㎡310㎡360㎡440㎡
    Diameter of Feed Inlet25mm25mm25mm25mm
    		28mm
    Diameter of Tail Pipe50mm50mm50mm50mm50mm
    Wind Rate12000*2m³/h12000*3m³/h12000*3m³/h12000*3m³/h12000*4m³/h
    Quantity2N3N3N3N4N
    Fan Blade600mm600mm600mm600mm600mm
    Voltage380v380v380v380v380v
    Power2*1500W3*1500W3*1500W3*1500W4*1500W
    Air Throw20m20m20m20m20m
    Coil Unit11.0KW17.6KW17.6KW20.0KW22.0KW
    Drain Pan2.2KW2.2KW2.2KW2.0KW2.2KW


    Cold room evaporator is a wall mounted evaporator, which is easy to install, saves space, and installation costs



    Customized Services


    We are a factory for refrigeration equipment. All of our products can accept customization and OEM, and the accessories of our products are qualified and certified. Our products undergo strict quality inspection during the processing process and before delivery. If necessary, we can send every step of the shooting process to the customer.






    FAQ


    Q1: How about quality control in your factory DD series evaporator?
    A1: We strictly operate Full QC process during production ,and each machine will be tasted before delivery.
    Q2: What is leading time  DD series evaporator?
    A2: 30 working days.
    Q3: Can the product be customized according to specifications DD series evaporator?
    A3: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made.
