Home / Evaporator
evaporator
    • Competitive price portable Long Finned High Efficiency Cold Room Evaporator For Hospital

    • Silent Operation for Comfortable Spaces

      • DJ12DJ15DJ20DJ30DJ40DJ55DJ70DJ85DJ100DJ115DJ140DJ170DJ210DJ250DJ300Xiamen Jialiang-20℃
    • Get A Quote
    • Description
    • Features

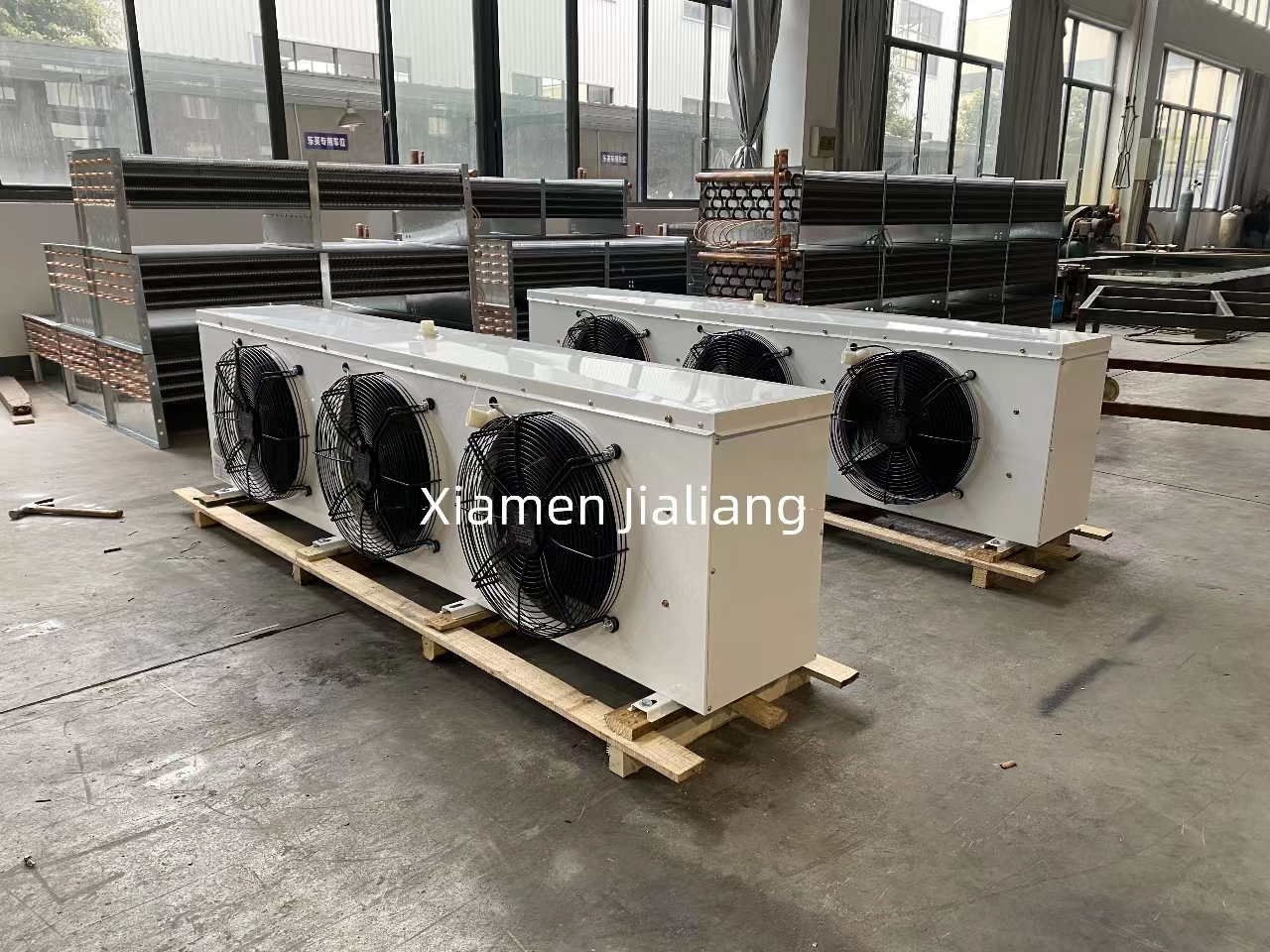

    Long Finned High Efficiency Cold Room Evaporator For Hospital


    ModelDJ12DJ15DJ20DJ30DJ40DJ55
    Refrige-Rating Capacity1.9KW2.3KW3.1KW4.7KW6.2KW8.5KW
    Cooling Area12㎡15㎡20㎡30㎡40㎡5㎡
    Diameter of Feed Inlet12mm12mm16mm16mm19mm19mm
    Diameter of Tail Pipe16mm16mm25mm25mm32mm32mm
    Wind Rate2450*2m³/h2450*2m³/h3950*2m³/h3950*2m³/h5400*2m³/h5400*2m³/h
    Quantity2N2N2N2N2N2N
    Fan Blade350mm350mm400mm400mm450mm450mm
    Voltage380v380v380v380v380v380v
    Power2*150W2*150W2*180W2*180W2*280W2*280W
    Air Throw 8m8m10m10m15m15m
    Coil Unit1.8KW2.4KW2.6KW3.0KW3.6KW6KW
    Drain Pan0.9KW1.2KW1.3KW1.5KW1.2KW1.2KW



    ModelDJ70DJ85DJ100DJ115
    Refrige-Rating Capacity10.9KW13.2KW15.5KW17.8KW
    Cooling Area70㎡85㎡100㎡115㎡
    Diameter of Feed Inlet19mm19mm25mm25mm
    Diameter of Tail Pipe38mm38mm42mm42mm
    Wind Rate 5400*3m³/h 5400*3m³/h5400*4m³/h5400*4m³/h
    Quantity3N3N4N4N
    Fan Blade450mm450mm450mm450mm
    Voltage380v380v380v380v
    Power3*280W3*280W4*280W4*280W
    Air Throw 15m15m15m15m
    Coil Unit8.0KW8.5KW10.0KW11.0KW
    Drain Pan1.6KW1.7KW2.0KW2.2KW


    ModelDJ140DJ170DJ210DJ250DJ300
    Refrige-Rating Capacity21.7KW26.4KW32.6KW38.8KW46.5KW
    Cooling Area140㎡170㎡210㎡250㎡300㎡
    Diameter of Feed Inlet25mm25mm25mm25mm28mm
    Diameter of Tail Pipe50mm50mm50mm50mm50mm
    Wind Rate12000*2m³/h12000*3m³/h12000*3m³/h12000*3m³/h12000*4m³/h
    Quantity2N3N3N3N4N
    Fan Blade600mm600mm600mm600mm600mm
    Voltage380v380v380v380v380v
    Power2*1500W3*1500W3*1500W3*1500W4*1500W
    Air Throw 20m20m20m20m20m
    Coil Unit11.0KW17.6KW17.6KW20.0KW22.0KW
    Drain Pan2.2KW2.2KW2.2KW2.0KW2.0KW

    Our  factory

    With over two decades of experience in the refrigeration industry, we bring a wealth of knowledge and a youthful, energetic, innovative, and confident approach to our work. Our product reach extends across countries in South America, Asia, the Middle East, Europe, Oceania, and Africa.

    Our success is attributed to the stability and quality of our products, competitive pricing, and prompt customer service, allowing us to continually expand our customer base.

    Looking ahead, we envision a future where you can experience a fresher and higher-quality life through our industry. We're eager to collaborate with you to turn this vision into a reality and help more people enjoy an improved quality of life. Together, we'll shape a brighter future in our industry.

    FAQ

    A1: 1）Our products are covered by a one-year warranty, allowing for free exchange of damaged parts during the warranty period.

    2）We are open to discussing any special requests you may have.

    3）Our salesmen are available 24 hours a day for after-sales support; feel free to contact us with any queries.


    Q1: Could you provide details about the warranty period and what it covers?

    Q2: What sets your company apart from other suppliers and makes you a better choice?

    A2: Our products are of high quality and competitively priced. Additionally, we provide excellent pre-purchase service, and our after-sales support is responsive to any questions regarding our products.
