high performance cold Standard Ceiling Type Regenerative Cold Room Evaporator
    • high performance cold Standard Ceiling Type Regenerative Cold Room Evaporator

    • High-Performance Axial Fans

      • DD15DD22DD30DD60DD80DD100DD120DD140DD160DD200DD250DD310DD360DD440Xiamen Jialiang0~-18℃-20℃
    • Get A Quote
    • Description
    • Features

    Standard Ceiling Type Regenerative Cold Room Evaporator

    Here are some key product features:

    1. Blue Fins/Hydrophilic Aluminum Foil: Our product incorporates anti-corrosion material on its surface, providing excellent resistance to corrosion.

    2. Wavy Fins: The wavy fin design facilitates airflow and accelerates air circulation.

    3. Stainless Steel Screws: We use stainless steel screws for superior anti-corrosion performance, making it especially suitable for evaporator environments. These screws not only offer enhanced corrosion resistance but also ensure long-term durability and an aesthetically pleasing appearance.

    4. Wall-Hanging Design: Our product is designed for easy installation, saving space and reducing installation costs.

    5. Acceptable OEM: We offer OEM services, streamlining branding and customization efforts, ultimately saving time and effort for our customers while facilitating brand promotion.

    ModelDD15DD22 DD30 DD40 DD60 DD80
    Refrige-Rating Capacity2.6KW3.9KW5.3KW7.0KW10.5KW14.0KW
    Cooling Area15㎡22㎡30㎡40㎡60㎡80㎡
    Diameter of Feed Inlet12mm12mm16mm16mm19mm19mm
    Diameter of Tail Pipe16mm16mm25mm25mm32mm32mm
    Wind Rate2450*2m³/h2450*2m³/h3950*2m³/h3950*2m³/h5400*2m³/h5400*2m³/h
    Quantity2N2N2N2N2N2N
    Fan Blade350mm350mm400mm400mm450mm450mm
    Voltage380v380v380v380v380v380v
    Power2*150W2*150W2*180W2*180W2*180W2*180W
    Air Throw8m8m10m10m15m15m
    Coil Unit1.8KW2.4KW2.0KW2.4KW4.2KW7.0KW
    Drain Pan0.9KW1.2KW1.0KW1.2KW1.4KW1.4KW


    Model

    DD100

    		DD120 DD140 DD160
    Refrige-Rating Capacity17.5KW 21KW 24.5KW 28.0KW
    Cooling Area100㎡ 120㎡ 140㎡ 160㎡
    Diameter of Feed Inlet19mm 19mm 25mm 25mm
    Diameter of Tail Pipe38mm 38mm 42mm 42mm
    Wind Rate5400*3m³/h 5400*3m³/h 5400*4m³/h 5400*4m³/h
    Quantity3N 3N 4N 4N
    Fan Blade450mm 450mm 450mm 450mm
    Voltage380v380v380v380v
    Power3*280W 3*280W 4*280W 4*280W
    Air Throw15m15m15m15m
    Coil Unit8.0KW 8.5KW 10.0KW 11.0KW
    Drain Pan1.6KW 1.7KW 2.0KW 2.2KW


    ModelDD200 DD250 DD310 DD360 DD440
    Refrige-Rating Capacity35.0KW

    43.8KW

    		54.3KW 63.0KW77.0KW
    Cooling Area200㎡ 250㎡ 310㎡ 360㎡ 440㎡
    Diameter of Feed Inlet25mm 25mm25mm25mm28mm
    Diameter of Tail Pipe50mm50mm50mm50mm50mm
    Wind Rate12000*2m³/h12000*3m³/h12000*3m³/h12000*3m³/h12000*4m³/h
    Quantity2N3N3N3N4N
    Fan Blade600mm600mm600mm600mm600mm
    Voltage380v380v380v380v380v
    Power2*1500W 3*1500W 3*1500W 3*1500W 4*1500W
    Air Throw20m20m20m20m20m
    Coil Unit11.0KW17.6KW 17.6KW 20.0KW 22.0KW
    Drain Pan2.2KW 2.2KW 2.2KW 2.0KW 2.2KW

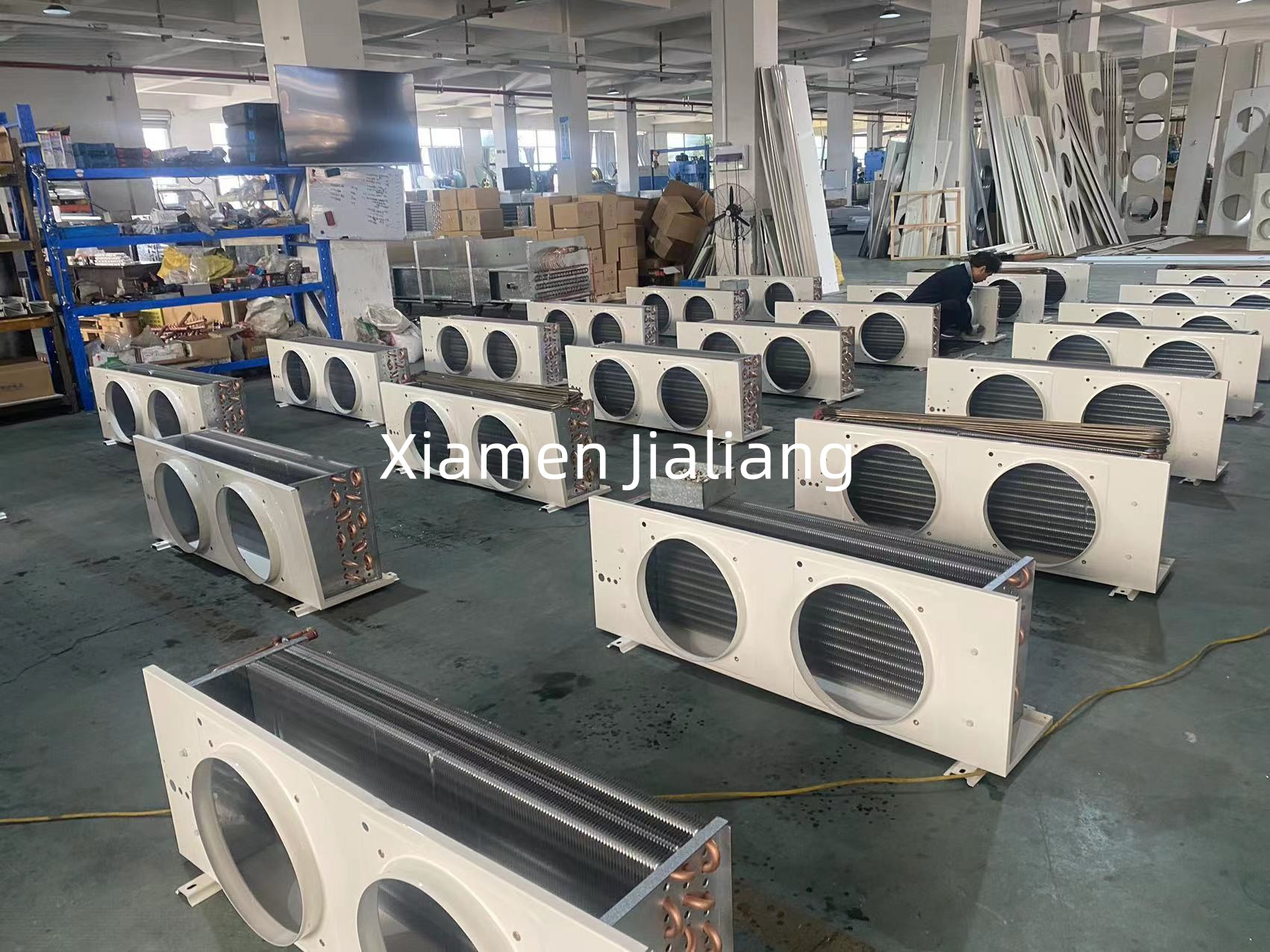

    On Site Factory

    With over two decades of experience in the refrigeration industry, we bring a wealth of knowledge and a youthful, energetic, innovative, and confident approach to our work. Our products have made their mark in countries across South America, Asia, the Middle East, Europe, Oceania, and Africa.

    Our success is driven by the stability and quality of our products, competitive pricing, and rapid customer service, helping us expand our customer base continuously.

    Looking ahead, we envision a future where you can experience a fresher and higher-quality life through our industry. We eagerly anticipate collaborating with you to turn this vision into a reality and to help more people enjoy an improved quality of life. Together, we'll shape a brighter future in our industry.

    FAQ

    Q1: Can you provide insights about the current export markets for evaporators?

    A1: Our Evaporators are currently being supplied to more than 112 countries, showcasing their strong global demand. It's worth noting that these markets are not limited to regions with warm climates; even colder areas like Russia are adopting our Cold Room solutions to protect their produce during harsh winter conditions.

    Q2: Is it feasible to obtain a sample of the DD evaporator for evaluation?

    A2: Certainly, we offer the option of acquiring samples of our DD evaporator products. However, please be informed that a modest sample fee is associated with this service.
