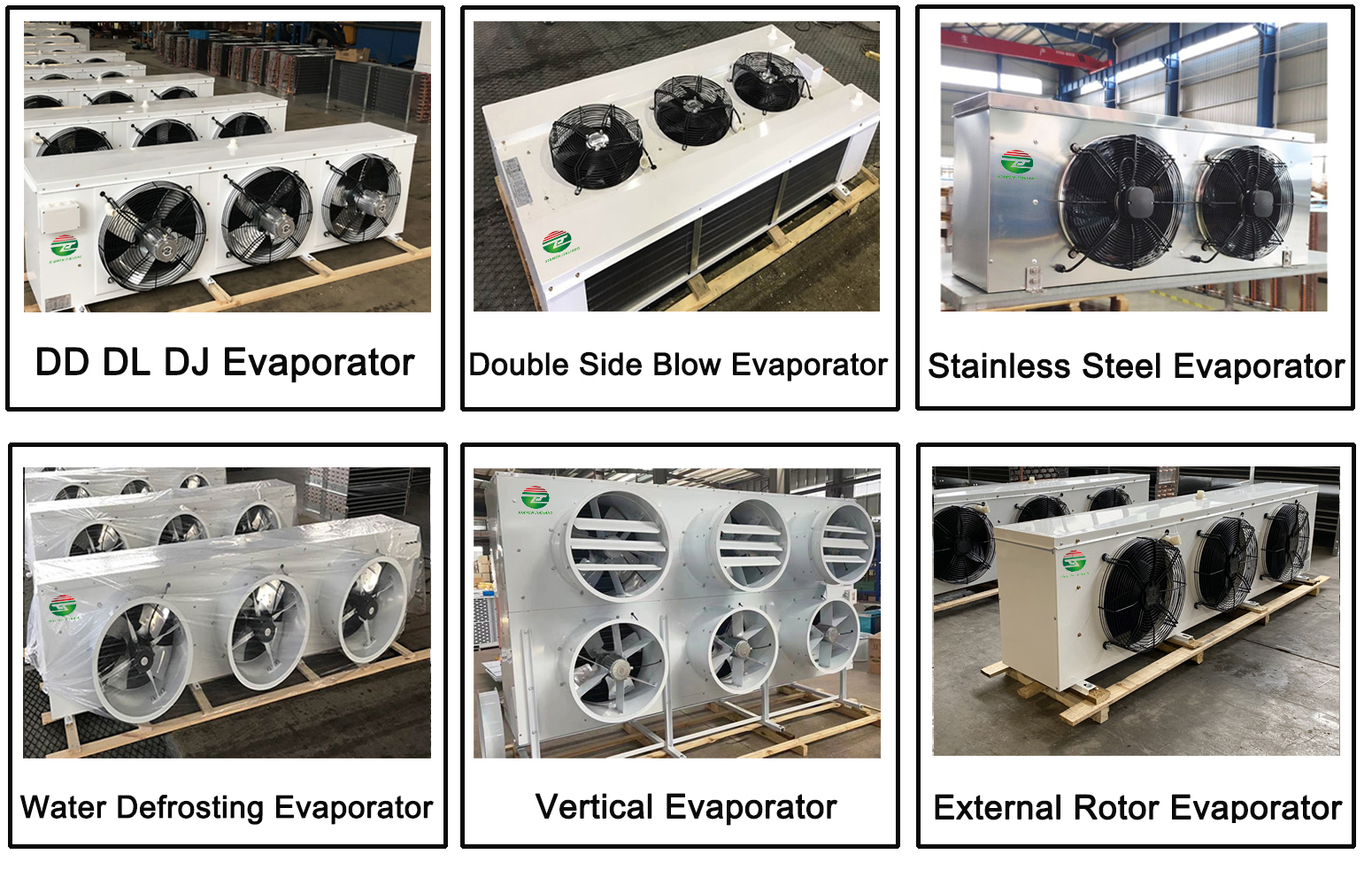

Evaporator Type

Cold storage evaporator is an evaporator used in refrigeration equipment such as cold storage. It is a wall heat exchange device. The principle is that the low-temperature and low-pressure liquid refrigerant vaporizes and absorbs heat on one side of the heat transfer wall of the evaporator, thereby cooling the medium on the other side of the heat transfer wall.

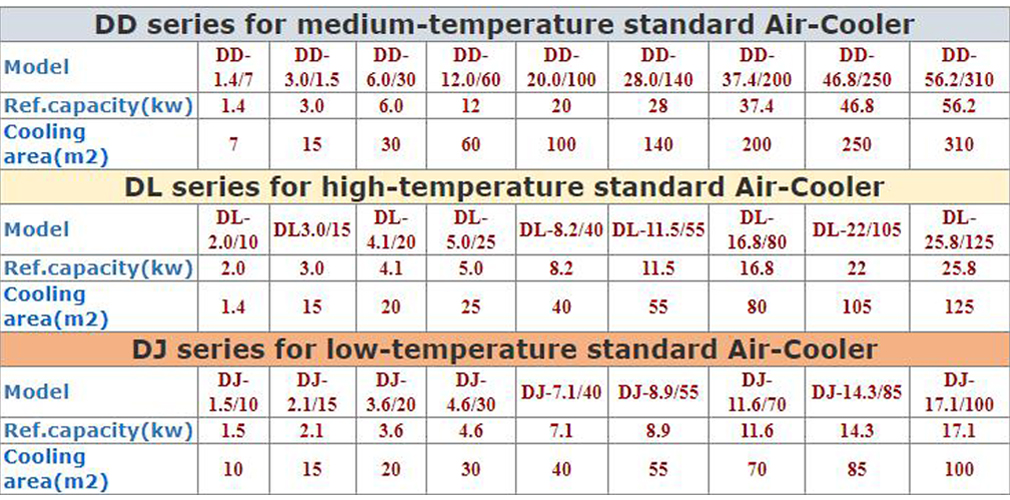

DJ freezer special evaporator
DD evaporator is mainly used in freezer compartments

DL evaporator is mainly used in freezer compartments

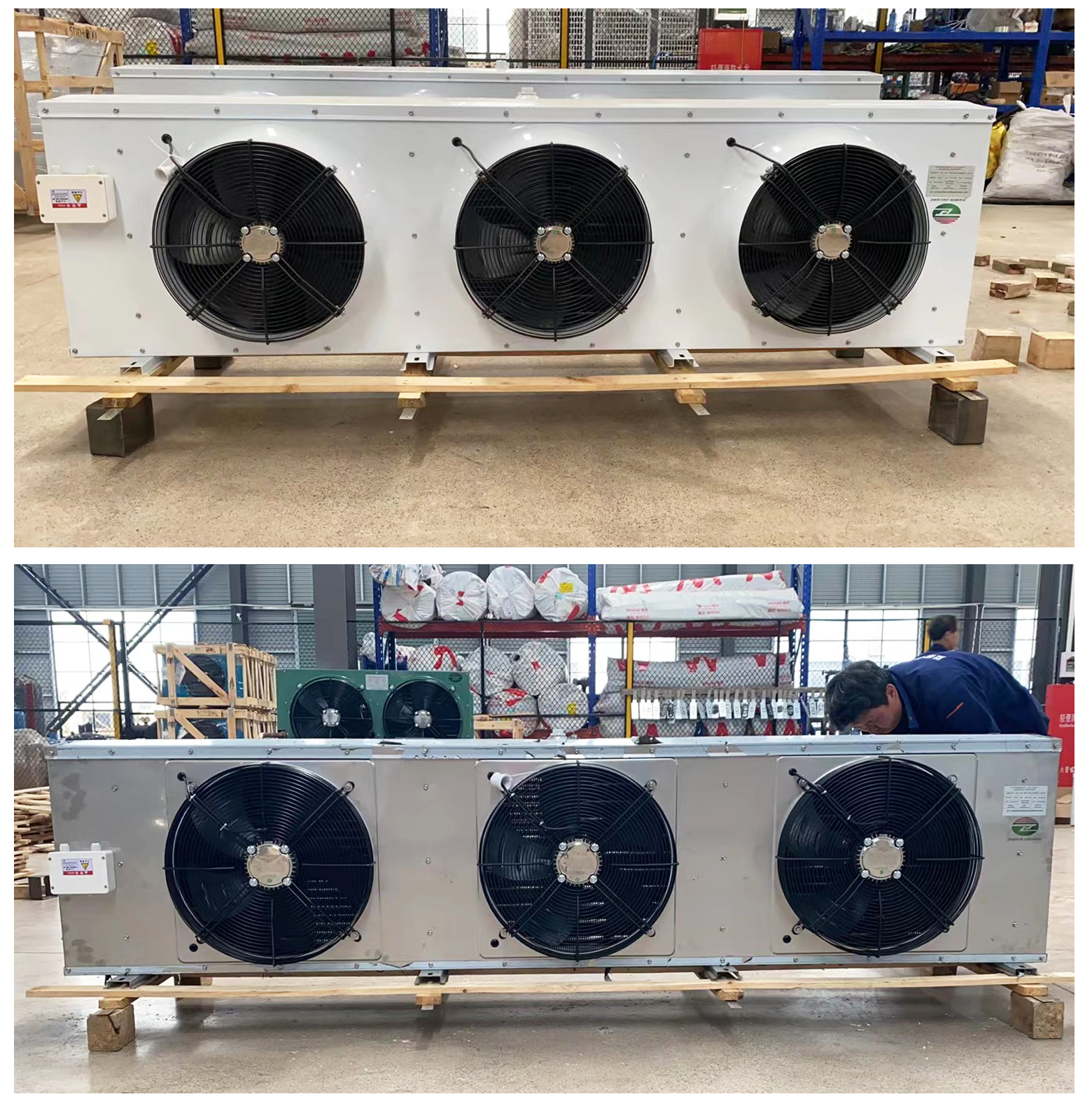

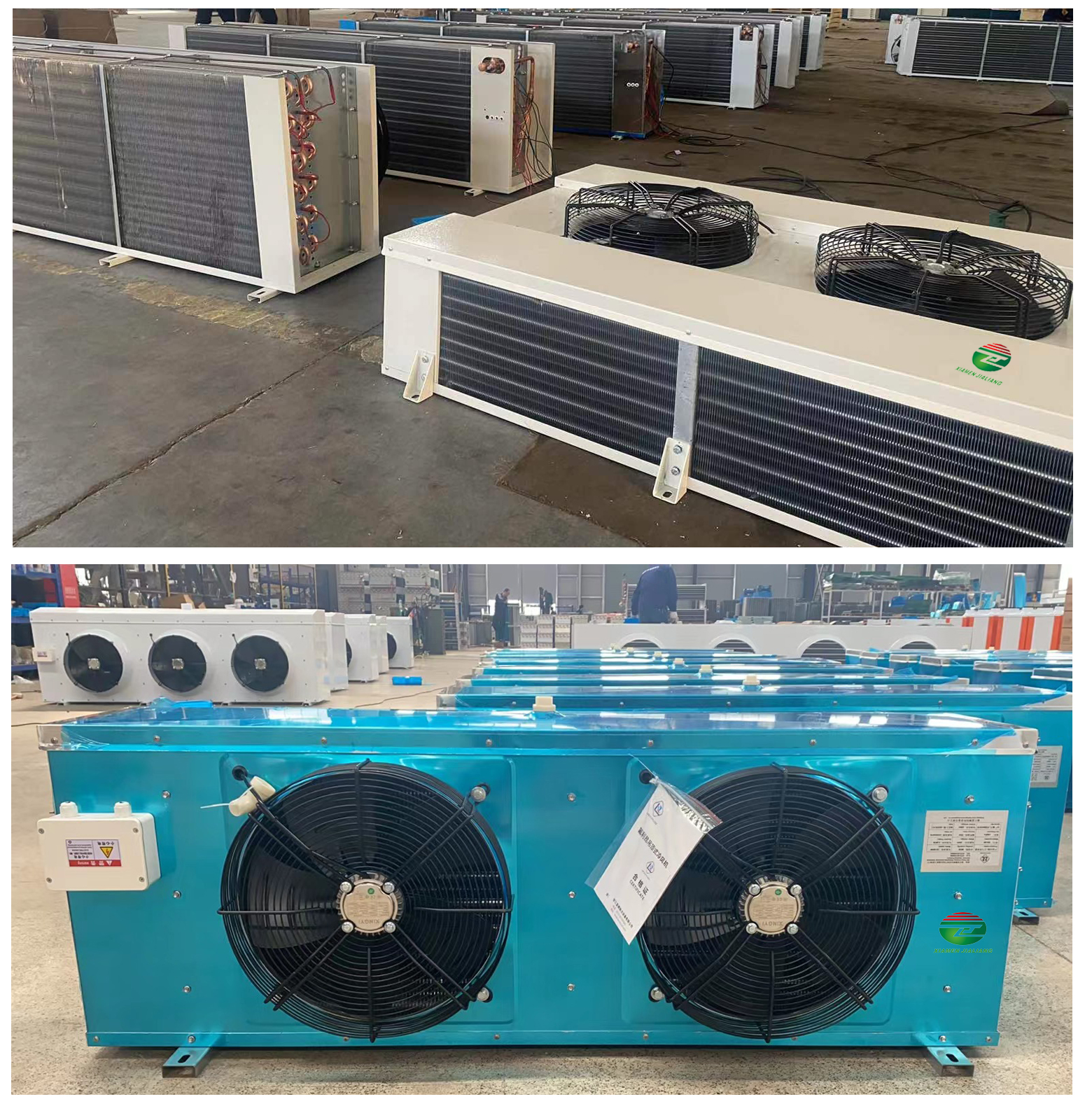

Detailed Image

feature:

1. The evaporator heat exchange is based on the most popular compressor design on the market and is suitable for different types of condensing units.

2. The shell is made of special galvanized steel plate, which has high strength, corrosion resistance, impact resistance and bright luster. Materials such as aluminum and stainless steel can also be used according to customer needs.

3. The design of the drain pan makes the sewage face the drain outlet, effectively reducing water accumulation in the drain pan.

4. Use high-quality copper tubes and special aluminum fins. The copper pipe has multi-tooth internal threads and is highly efficient. The copper content is as high as 99.9%, which increases the surface area and heat transfer efficiency.

Things to note when installing an air cooler in a cold storage:

1. The distance between the back of the cooling fan in the cold storage and the cold storage insulation board should be at least 300MM, which is conducive to air circulation in the cold storage and facilitates future maintenance.

2. A U-shaped oil return elbow should be installed at the return air outlet of the cold storage fan to facilitate the return of refrigerated oil to the cold storage compressor.

3. The air outlet duct of the cooling fan in the cold storage should be equipped with a U-shaped bend to form a liquid seal to prevent air circulation inside and outside the storage.

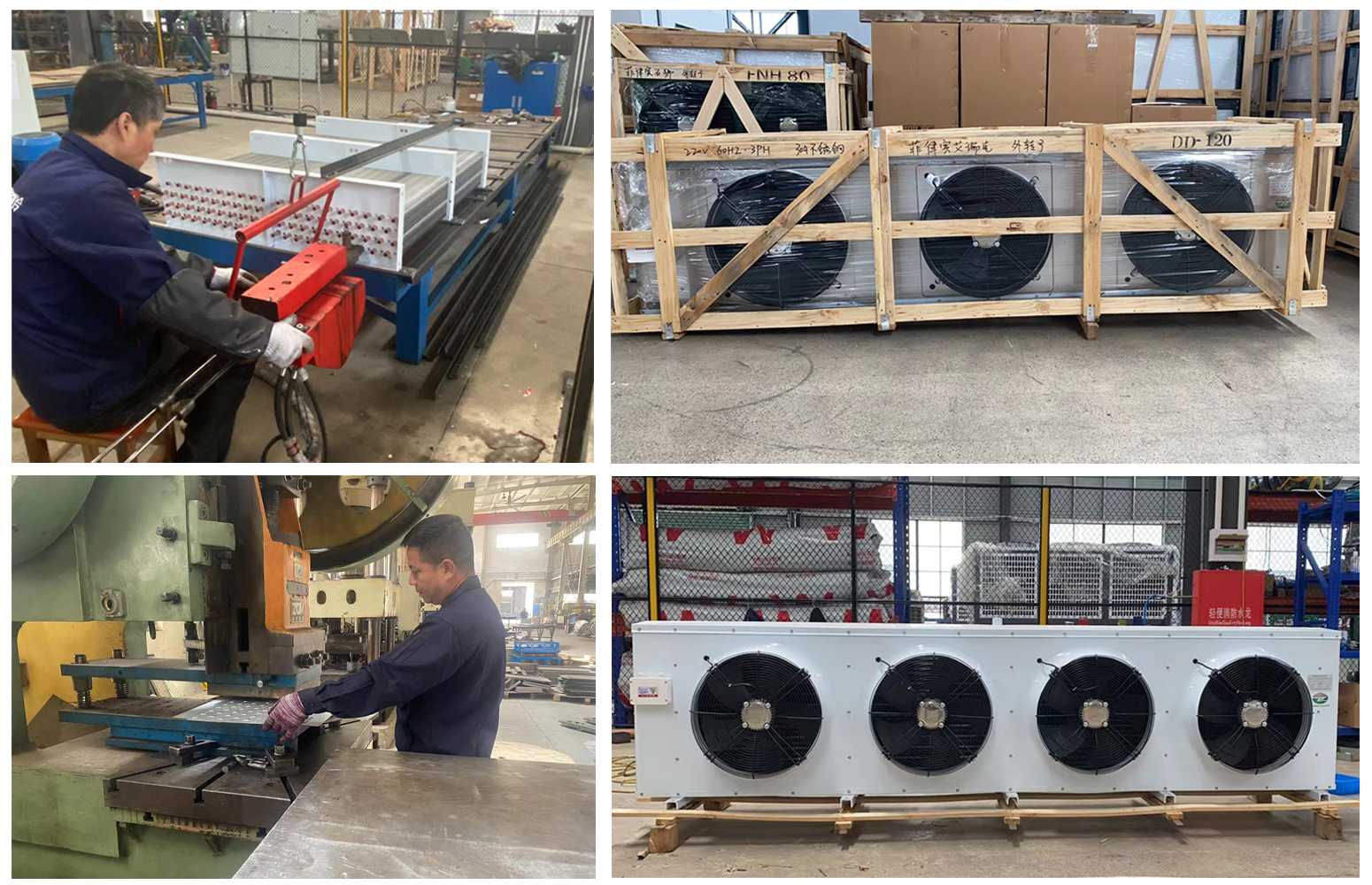

Our Factory

Xiamen Jialiang is a company just established in 1999. We have over 24 years of experience in the refrigeration field. We are young, energetic, innovative and confident!

The company's business philosophy is: first-class products, first-class quality, first-class service, to create a series of Jialiang brand products, which are exported to more than 112 countries and become a satisfactory brand in the minds of customers

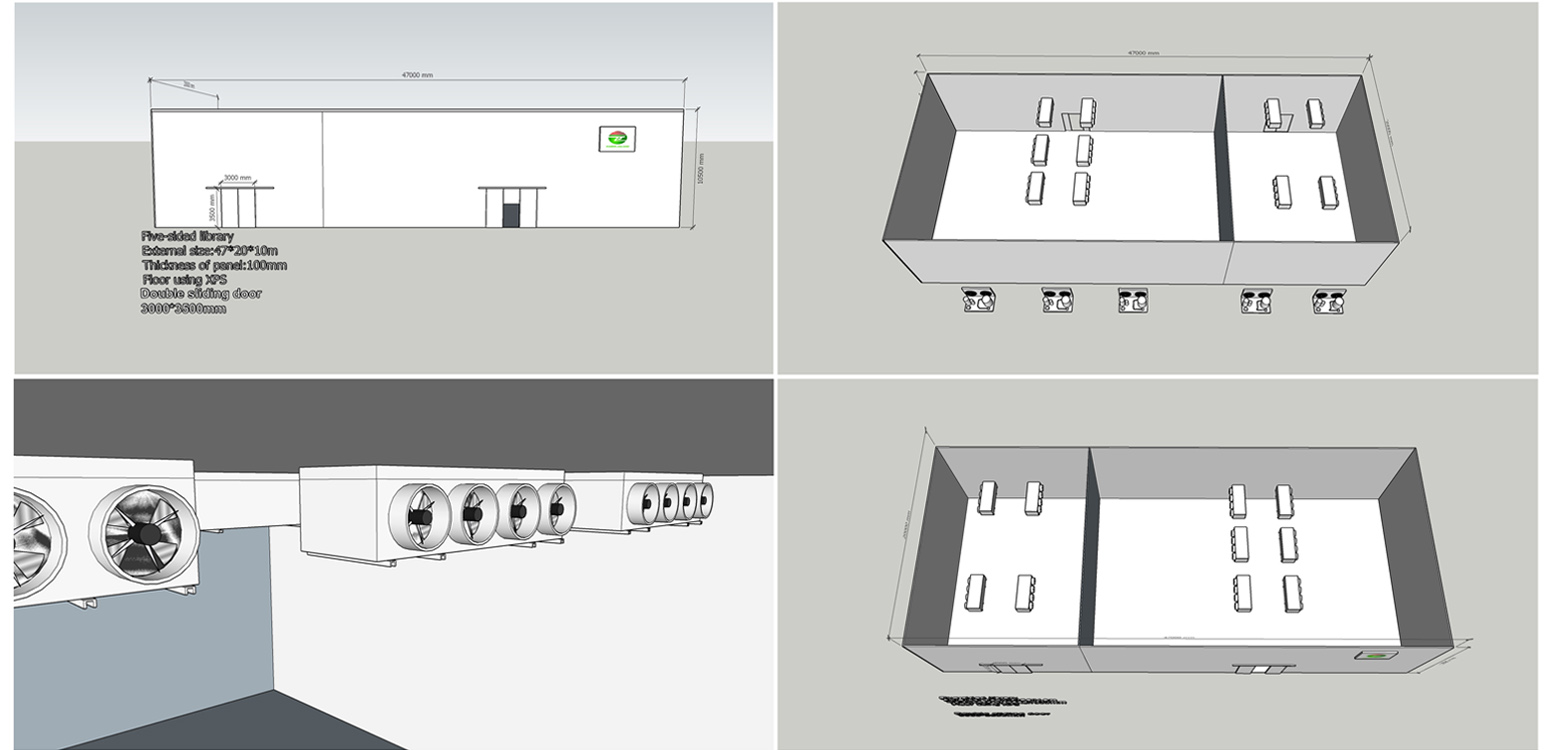

Stereoscopic Diagram

Evaporator For Cold Room

Refrigeration condensing unit suitable for cold storage.

Hotels, hospitals, blood stations, poultry slaughtering and processing, aquaculture and processing, edible fungi cultivation, agricultural product processing, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics and warehousing, chemical product cooling, leather manufacturing, injection molding , machine cooling, steel cooling, communication equipment, ship manufacturing, etc.
