    Factory Outlet Easy To Assemble Cold Room Evaporator

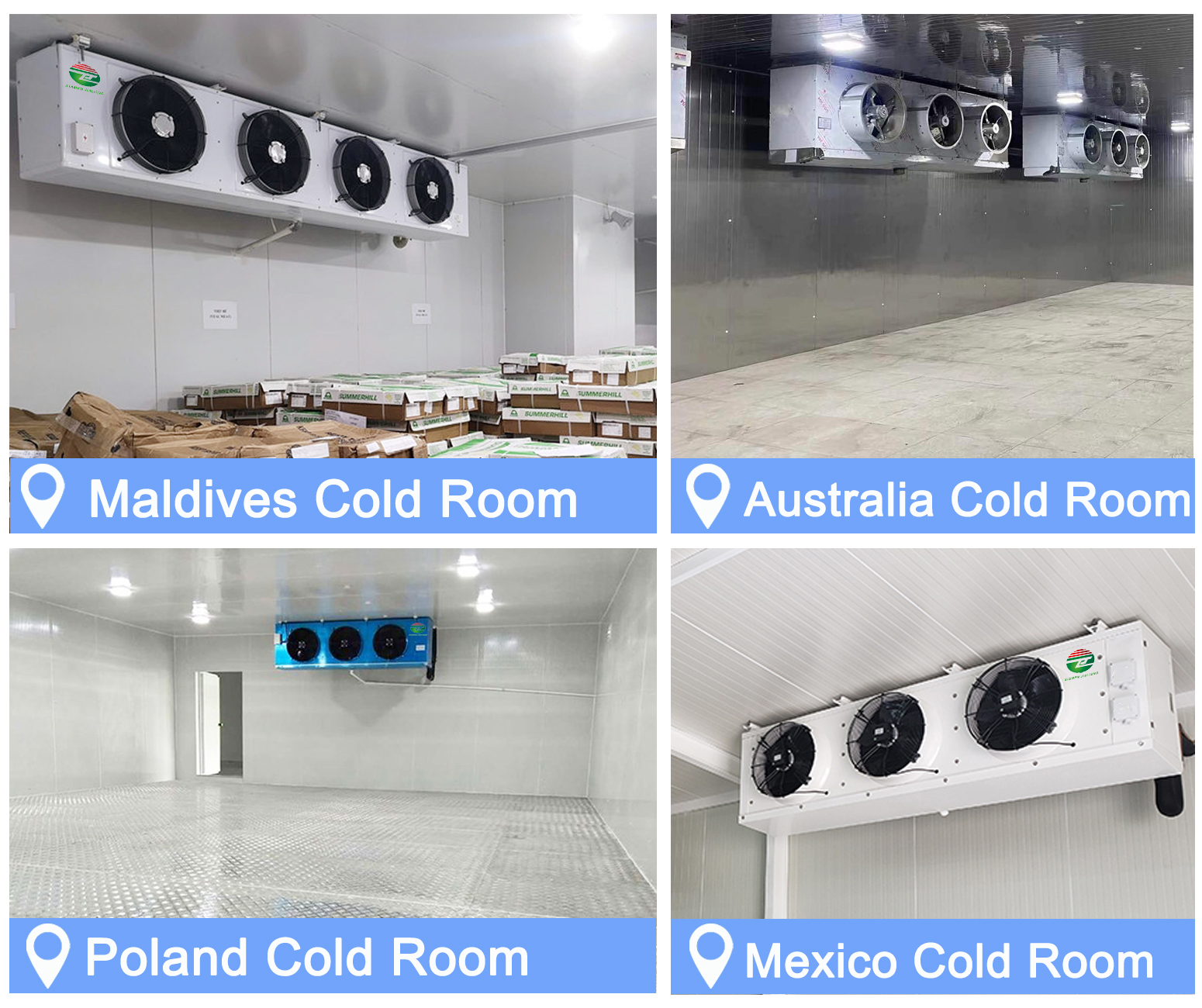

    Cold room evaporator is widely applied to food processing, oil and energy industry, logistics & warehousing. It can be installed in cold room, warehouse, supermarket, workshop, airport , machine room etc.

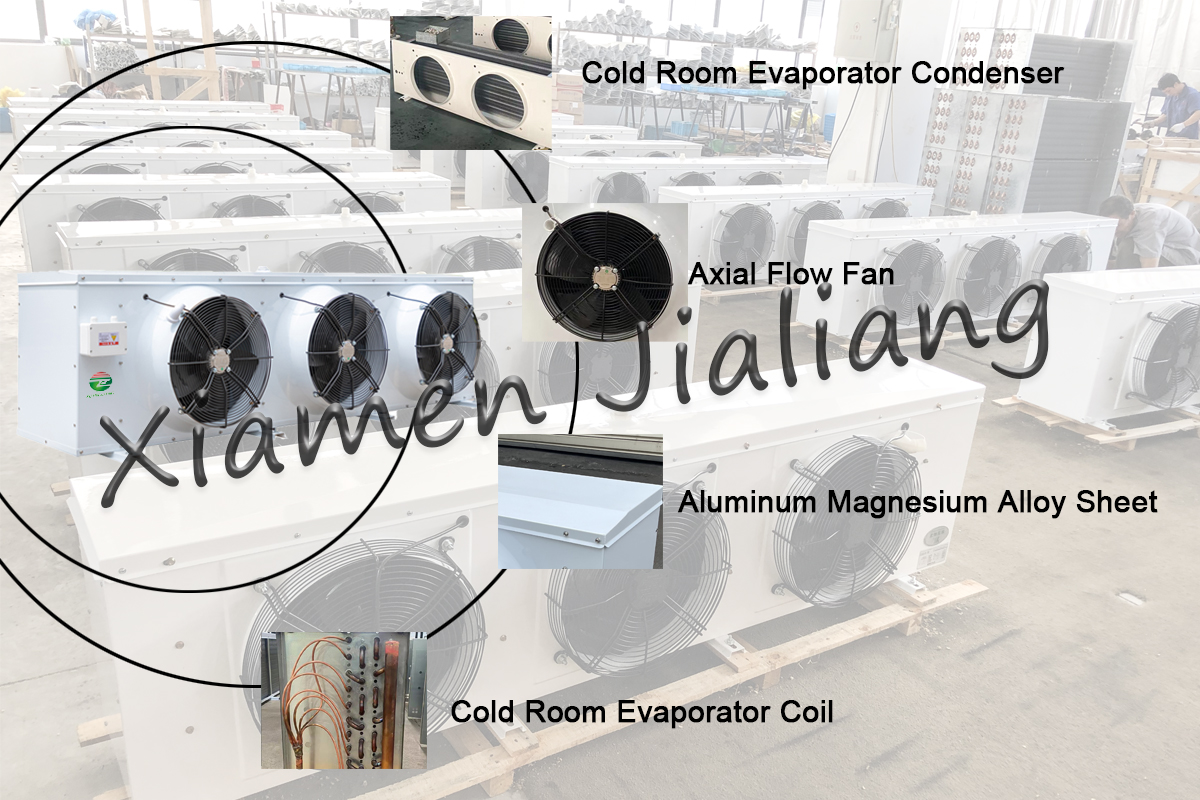

    Cold room evaporator
    ModelDJ70DJ85DJ100DJ115
    Refrige-Rating Capacity10.9KW13.2KW15.5KW17.8KW
    Cooling Area70㎡85㎡100㎡115㎡
    Diameter of Feed Inlet19mm19mm25mm25mm
    Diameter of Tail Pipe38mm38mm42mm42mm
    Wind Rate5400*3m³/h5400*3m³/h5400*4m³/h5400*4m³/h
    Quantity3N3N4N4N
    Fan Blade450mm450mm450mm450mm
    Voltage380v380v380v380v
    Power3*280W3*280W4*280W4*280W
    Air Throw15m15m15m15m
    Coil Unit8.0KW8.5KW10.0KW11.0KW
    Drain Pan1.6KW1.7KW2.0KW2.2KW

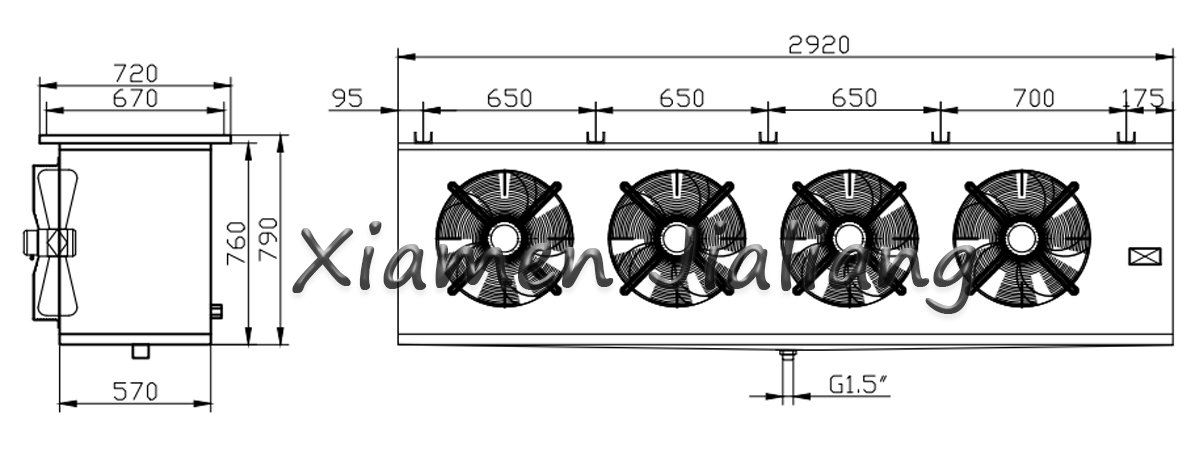

    old room evaporator

    - Fin Pitch: 9.0mm

    - Fan Type: Equipped with external rotor fans (4X4D500)

    - Air Volume: 4X6700 cubic meters per hour

    - Electric Heating Tube Power: 8X2.6KW

    - Inlet Pipe Diameter: Φ 25

    - Return Steam Pipe Diameter: Φ 50

    - Outer Frame: Made of galvanized sheet and coated with plastic

    - Liquid Inlet: Located on the right side

    These specifications provide details about the key components and characteristics of the equipment, including the fin pitch, fan type, air volume, heating tube power, and pipe diameters. The outer frame material and the location of the liquid inlet are also noted.

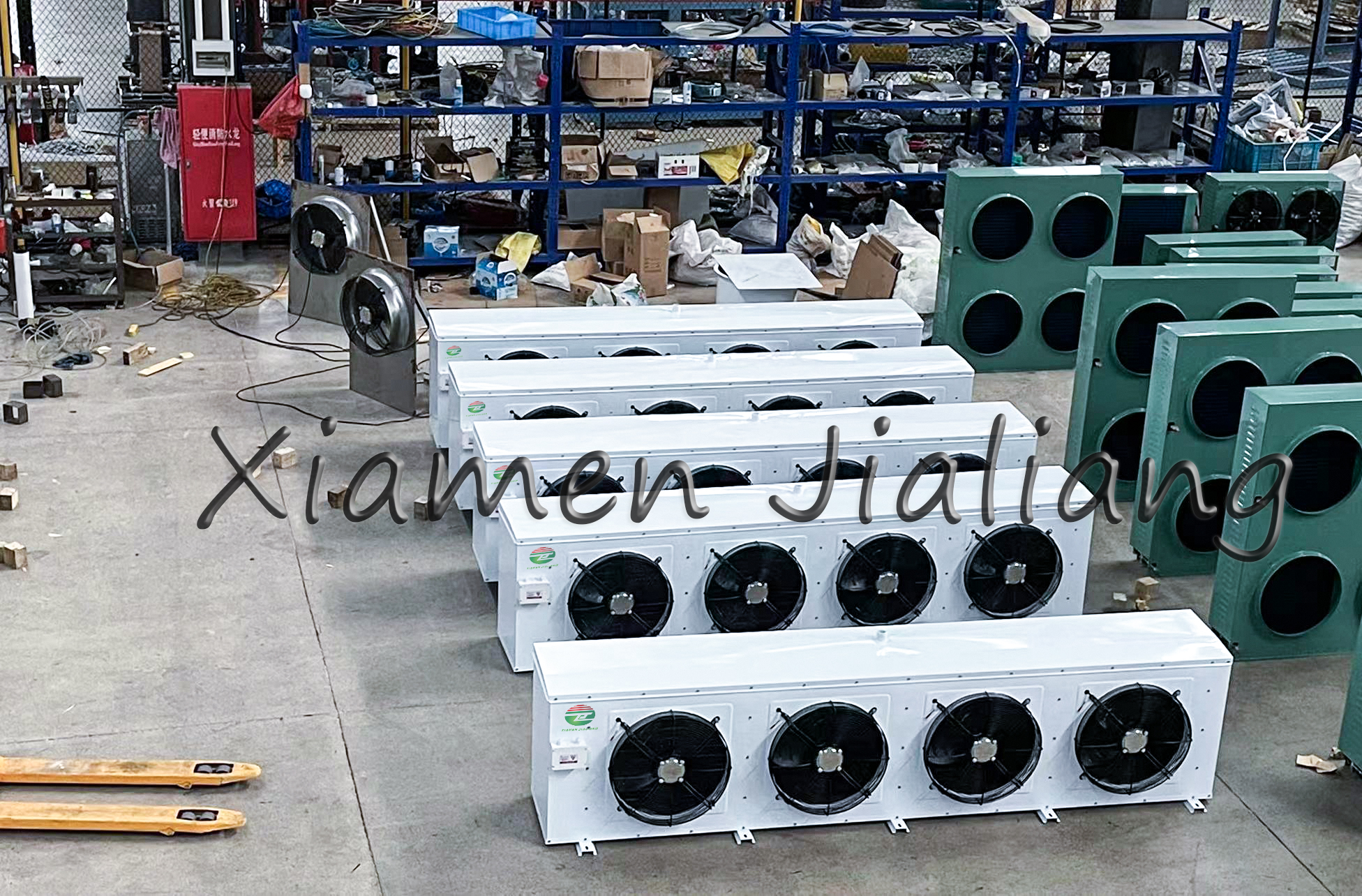

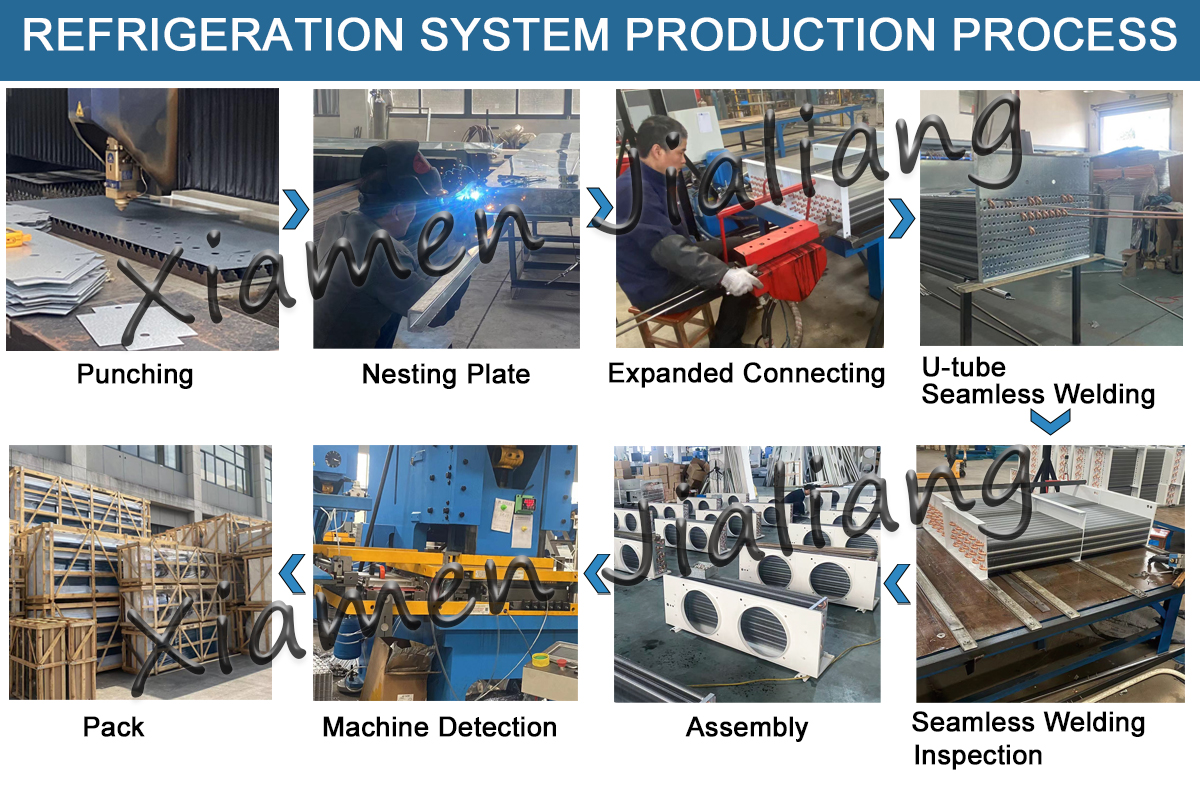

    On site factory

    A. Individuation & Customization

    In the refrigeration industry and cold storage engineering, as well as within sectors like agriculture, food, restaurants, and the chemical industry, we specialize in offering tailored solutions. Our commitment lies in creating designs that align precisely with our customers' unique requirements and specifications.


    B. Excellent Warranty

    At Xiamen Jialiang, we stand behind the quality of our products. We offer an impressive one-year warranty period to provide you with peace of mind. If any product quality issues arise during this time, rest assured that we are dedicated to delivering excellent service to address your concerns promptly and effectively. Your satisfaction and confidence in our products are paramount to us.



    FAQ

    Q1: I was wondering how can I get a DJ cold room evaporator that I want?

    A1: Because the express cost varies greatly, send us an inquiry and we will check the shipping cost and stock

    Immediately so that you can get the product quickly.

    Q2: I want to know what is the warranty period of the cold storage DJ evaporator you want to buy?
    A2: One year warranty: non-artificial damage we give warranty
