High Energy Efficiency Fast Refrigeration Cold Room Evaporator

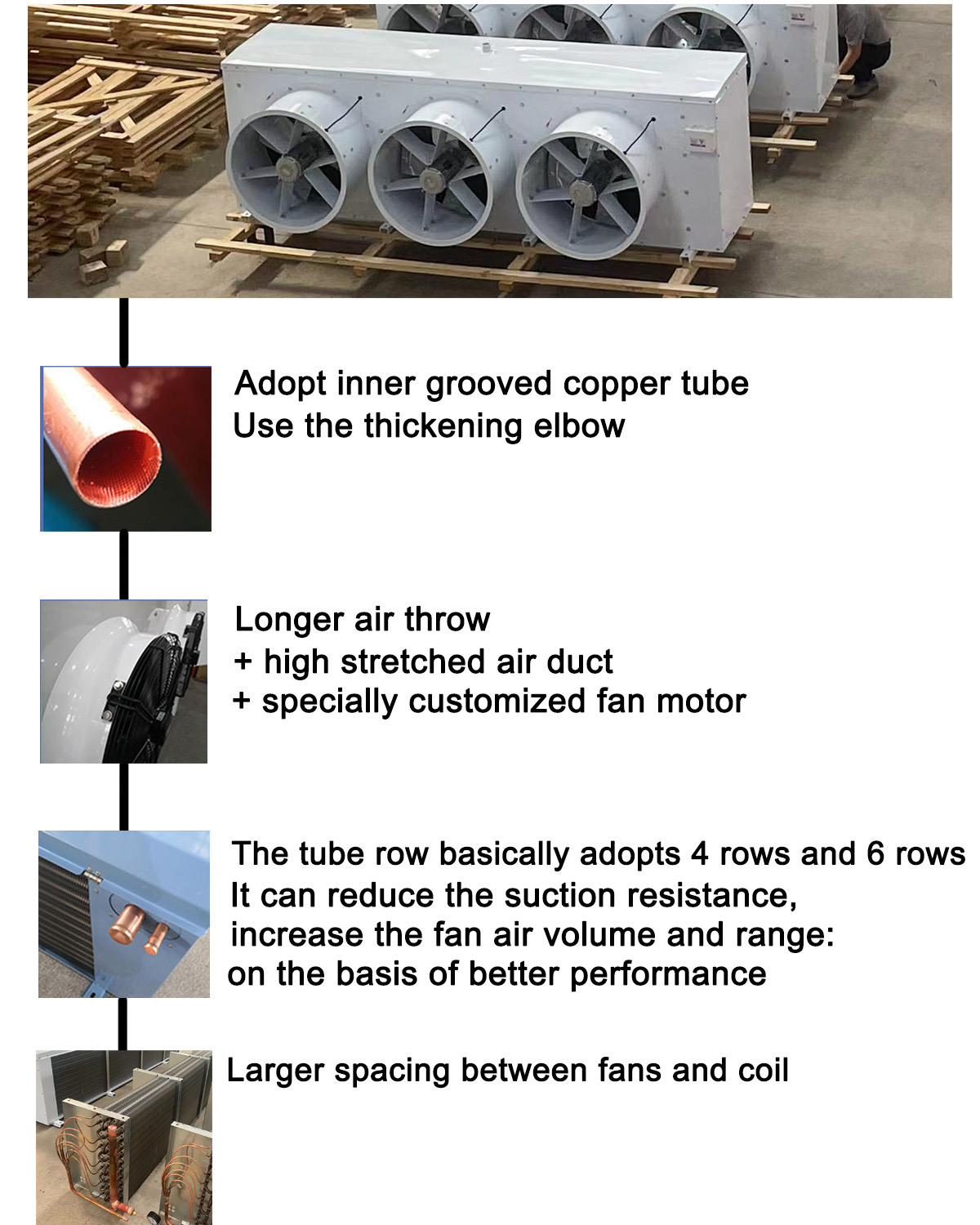

1. Use a well-known brand of axial flow fan with high efficiency and low noise, suitable for different temperatures and different voltage requirements. The gap between the blades and the wind ring is reasonably matched, and the hyperbolic air duct design is used to achieve the best effect.
2. Product quality control runs through the entire process. They undergo a 24-hour sealing test before leaving the factory, and all products are customizable.
| Model | DL260 | DL330 | DL410 | DL470 | DL580 |
| Refrige-Rating Capacity | 52.0KW | 66.0KW | 82.0KW | 94.0KW | 116.0KW |
| Cooling Area | 260㎡ | 330㎡ | 410㎡ | 470㎡ | 580㎡ |
| Diameter of Feed Inlet | 25mm | 25mm | 25mm | 25mm | 28mm |
| Diameter of Tail Pipe | 50mm | 50mm | 50mm | 50mm | 50mm |
| Wind Rate | 12000*2m³/h | 12000*3m³/h | 12000*3m³/h | 12000*3m³/h | 12000*4m³/h |
| Quantity | 2N | 3N | 3N | 3N | 4N |
| Fan Blade | 600mm | 600mm | 600mm | 600mm | 600mm |
| Voltage | 380v | 380v | 380v | 380v | 380v |
| Power | 2*1500W | 3*1500W | 3*1500W | 3*1500W | 4*1500W |
| Air Throw | 20m | 20m | 20m | 20m | 20m |
| Coil Unit | 6.6KW | 11.0KW | 11.0KW | 16.0KW | 17.6KW |
| Drain Pan | 2.2KW | 2.2KW | 2.2KW | 2.0KW | 2.0KW |
Fin spacing: 6mm;
Duct Motor Fan: 4X 750W550 Blades
Air volume: 4X8000m3/h
Electric heating tube power: 9X2.8KW
Water inlet pipe: φ25,
Return steam pipe: φ50;
The shell is made of galvanized sheet spray-molded
right entrance
On site factory

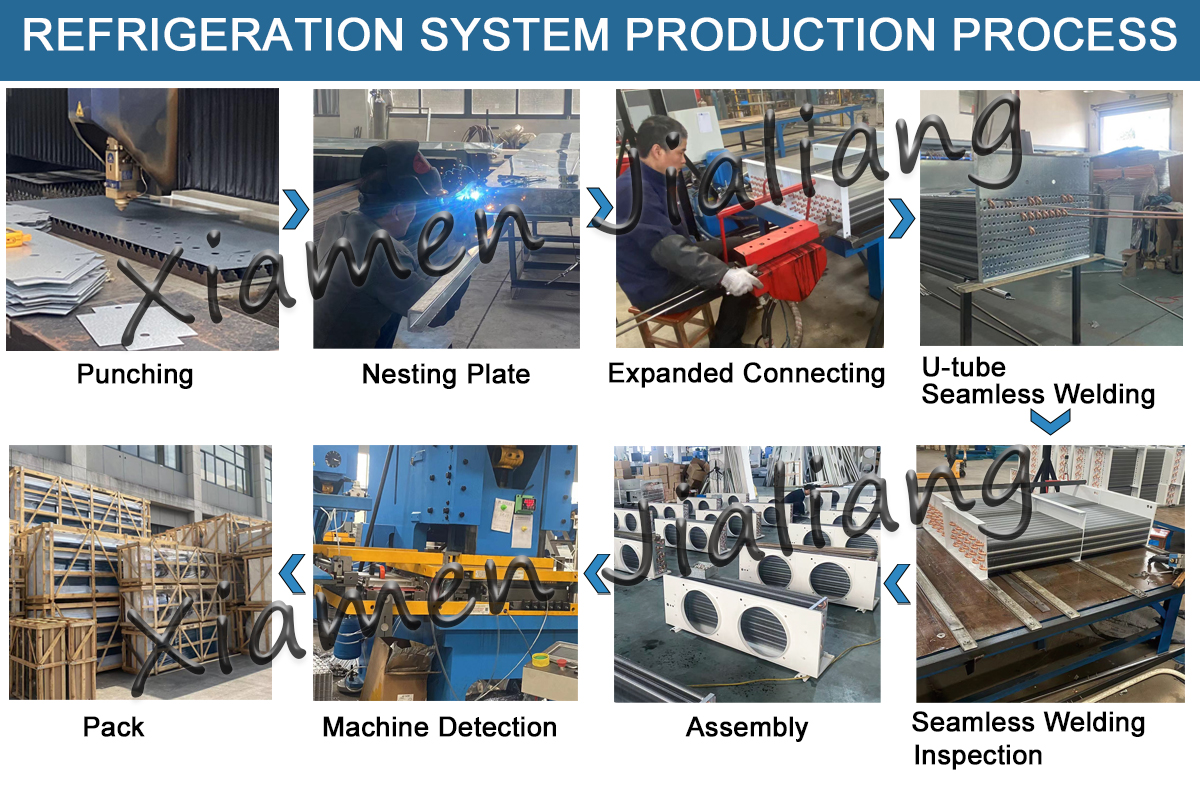

Our factory
Complete production equipment + professional production team + superb production technology = Xiamen Jialiang
