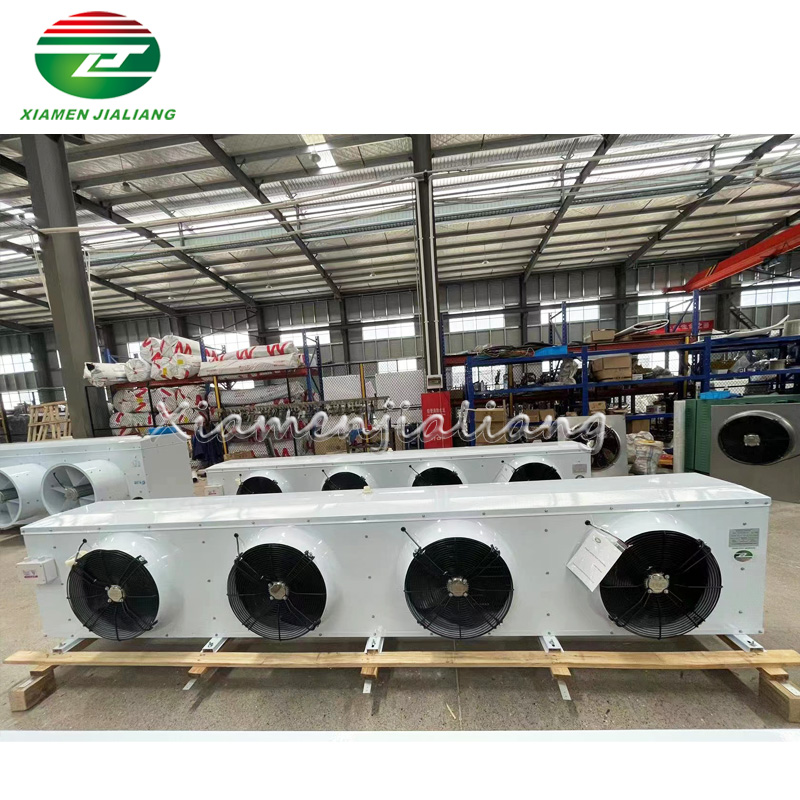

Cheap price Customized Beautiful Appearance Air Cooled Cold Room Evaporator
Product Description
| Model | DL125 | DL160 | DL185 | DL210 |
| Refrige-Rating Capacity | 27.6KW | 34.6KW | 40.3KW | 46.1KW |
| Cooling Area | 125㎡ | 160㎡ | 185㎡ | 210㎡ |
| Diameter of Feed Inlet | 19mm | 19mm | 25mm | 25mm |
| Diameter of Tail Pipe | 38mm | 38mm | 42mm | 42mm |
| Wind Rate | 5400*3m³/h | 5400*3m³/h | 5400*4m³/h | 5400*4m³/h |
| Quantity | 3N | 3N | 4N | 4N |
| Fan Blade | 450mm | 450mm | 450mm | 450mm |
| Voltage | 380v | 380v | 380v | 380v |
| Power | 3*280W | 3*280W | 4*280W | 4*280W |
| Air Throw | 15m | 15m | 15m | 15m |
| Coil Unit | 4.8KW | 5.1KW | 6.0KW | 6.6KW |
| Drain Pan | 1.6KW | 1.7KW | 2.0KW | 2.2KW |
Fin pitch: 6.0mm;
Fan equipped with external rotor: 3X4D500:
Air volume: 3X 7300 cubic meters/hour
Electric heating tube power: 5X1.6KW
Inlet pipe: φ 19. Return steam pipe: φ thirty-eight
The shell is made of galvanized sheet and sprayed with plastic: liquid inlet on the right side.
On Site Factory

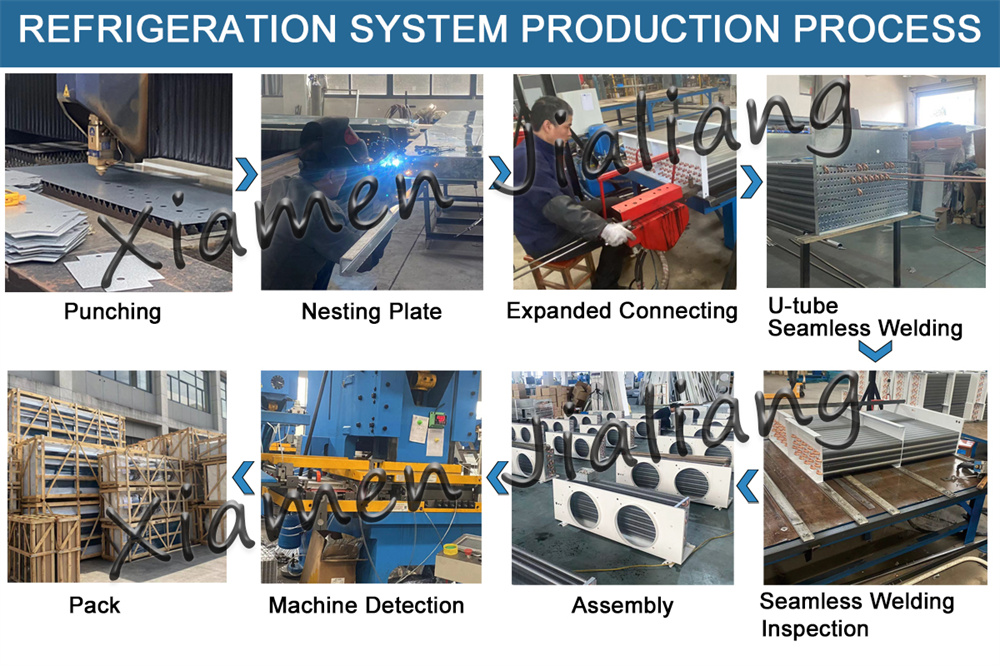

All of our cold room evaporators can be customized, and the components have been qualified and certified. Our products undergo strict quality inspection during the processing process before delivery. We will take photos of each step of the process and send them to the customer as needed.
FAQ
| Q1: What is the minimum order DL series evaporator? |
| A1: For customized products, we accept a set of cold storage |
| Q2: How can I get a sample to check your quality? How long can I get the sample DL series evaporator? |
| A2: After price confirmed, will be sent to you via express and arrive in 180 days. |
| Q3: What payment methods your company accept DL series evaporator? |
| A3: We can accept TT/credit card/Apple pay/Google Pay/PayPal |
