    CSH8593-180Y 180HP Stable Operation Industrial Water Chiller Unit


    Product Description


    Product name: Chiller

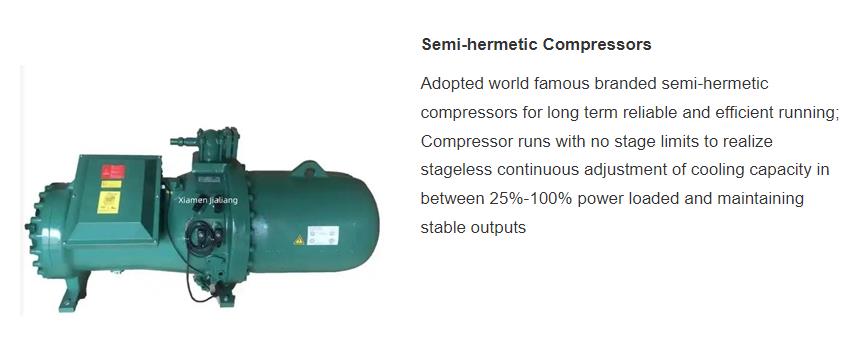

    Compressor : hanbell/bitzer (optional)
    Product Category :
    1.Double Stage series
    Inlet water temperature : -50°C~-35°C; outlet water temperature: -55°C~-40°C
    2.Low temperature series
    Water inlet temperature : -35°C~-10°C; outlet water temperature: -40°C~-15°C
    3.High temperature series
    Inlet water temperature : -15℃~12℃; outlet water temperature: -20℃~7℃






    Model

    CSH8593-180Y

    Horse Power

    180HP

    Power(kW)

    440V/3P/60Hz

    Refrigerant

    R134a

    Cooling Method

    Water-Cooling

    Outlet/Return Water Temperature

    7/12℃

    Evaporating Temperature

    2℃

    Condensing Temperature

    40℃

    Refrigeration Capacity

    369kW

    317.3(103kcal/hr)

    Overall Size

    3400*1300*1740mm

    Noise Value

    73dB(A)

    Overall Weight

    2920kg

    Operating Weight

    3270kg

    Compressor

    Input Power

    87.7kW

    Operating Current

    142.9A

    Capacity Control

    25%-50%-75%-100%

    Condenser

    Water Pipe Connection

    DN125mm

    Water Flow

    78m³/h

    Water Pressure Drop

    44kPa

    Evaporator

    Water Pipe Connection

    DN125mm

    Water Flow

    63m³/h

    Water Pressure Drop

    39kPa

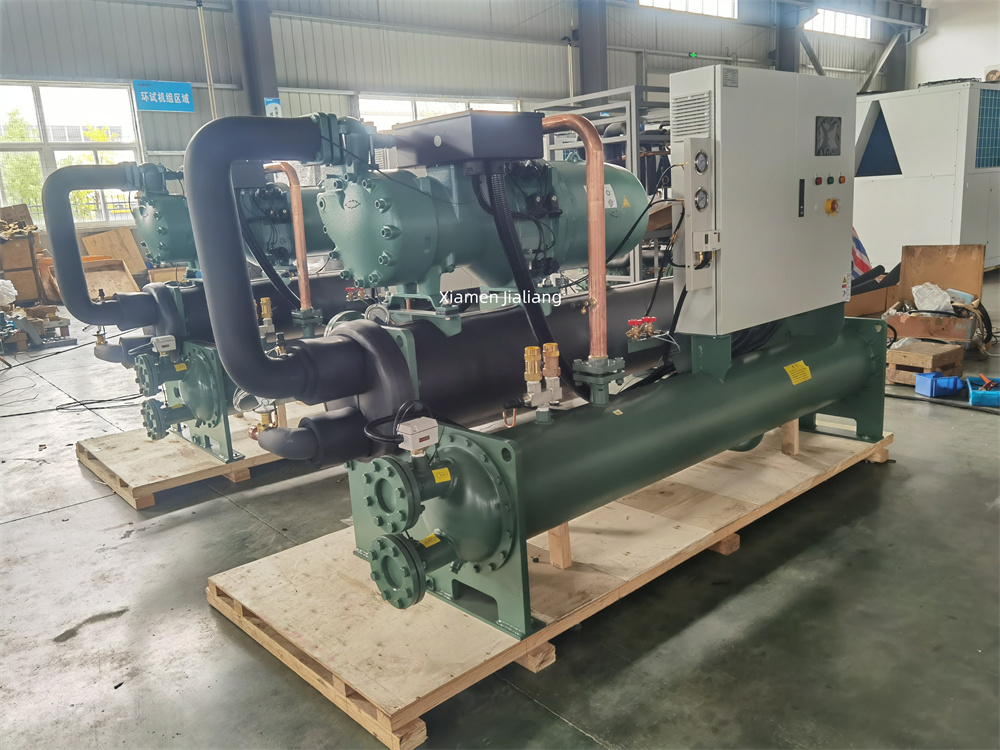

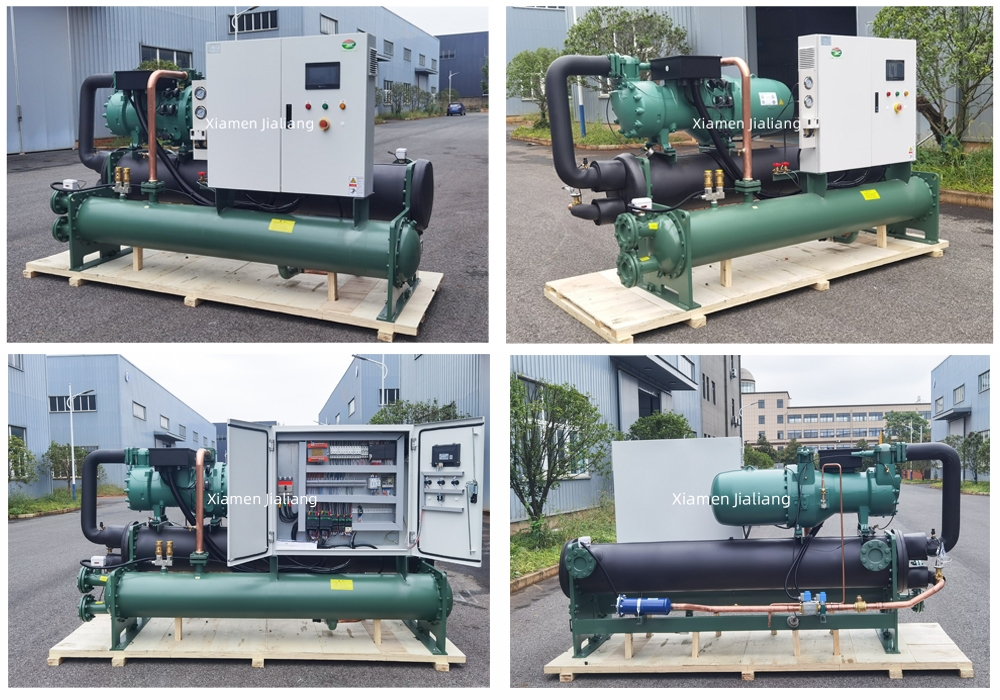

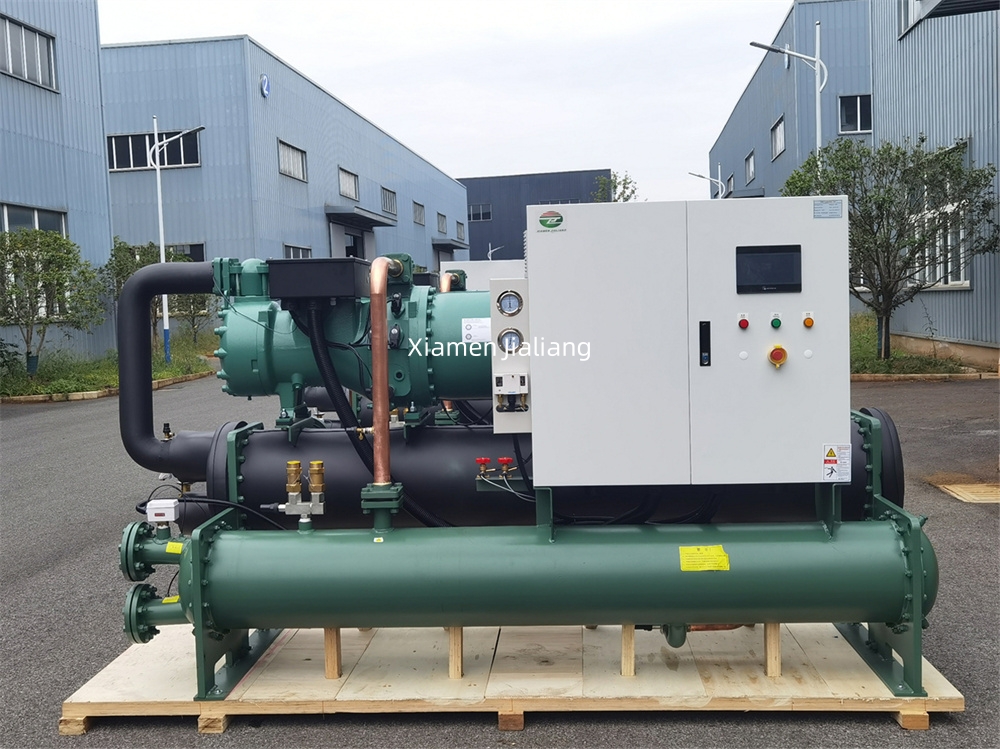

    Product Display

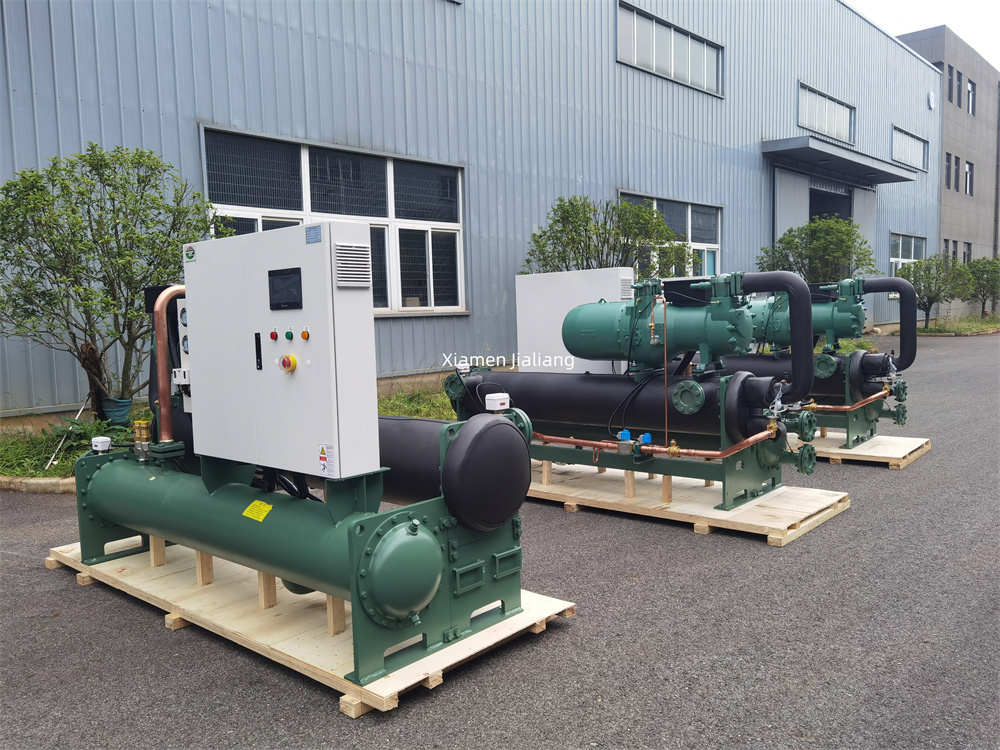

    Our Factory


    Whether it is in the chemical, food, metallurgical, or ice rink cold sources, medium and low temperature chillers are required. Shenzhou can provide you with the most ideal industrial medium and low temperature cold water solutions. We try to meeting your needs for energy efficiency and reliability.
