Home / Condensing Unit
condensing unit
    • China Made With 4DES-7Y 7HP Frozen Condensed Unit

    • Innovative Cold Chain Management

      • 4DES-7YR404aBitzer BandXiamen JialiangAir Cooled-10℃~15℃
    • Get A Quote
    • Description
    • Features

    4DES-7Y 7HP Frozen Condensed Unit

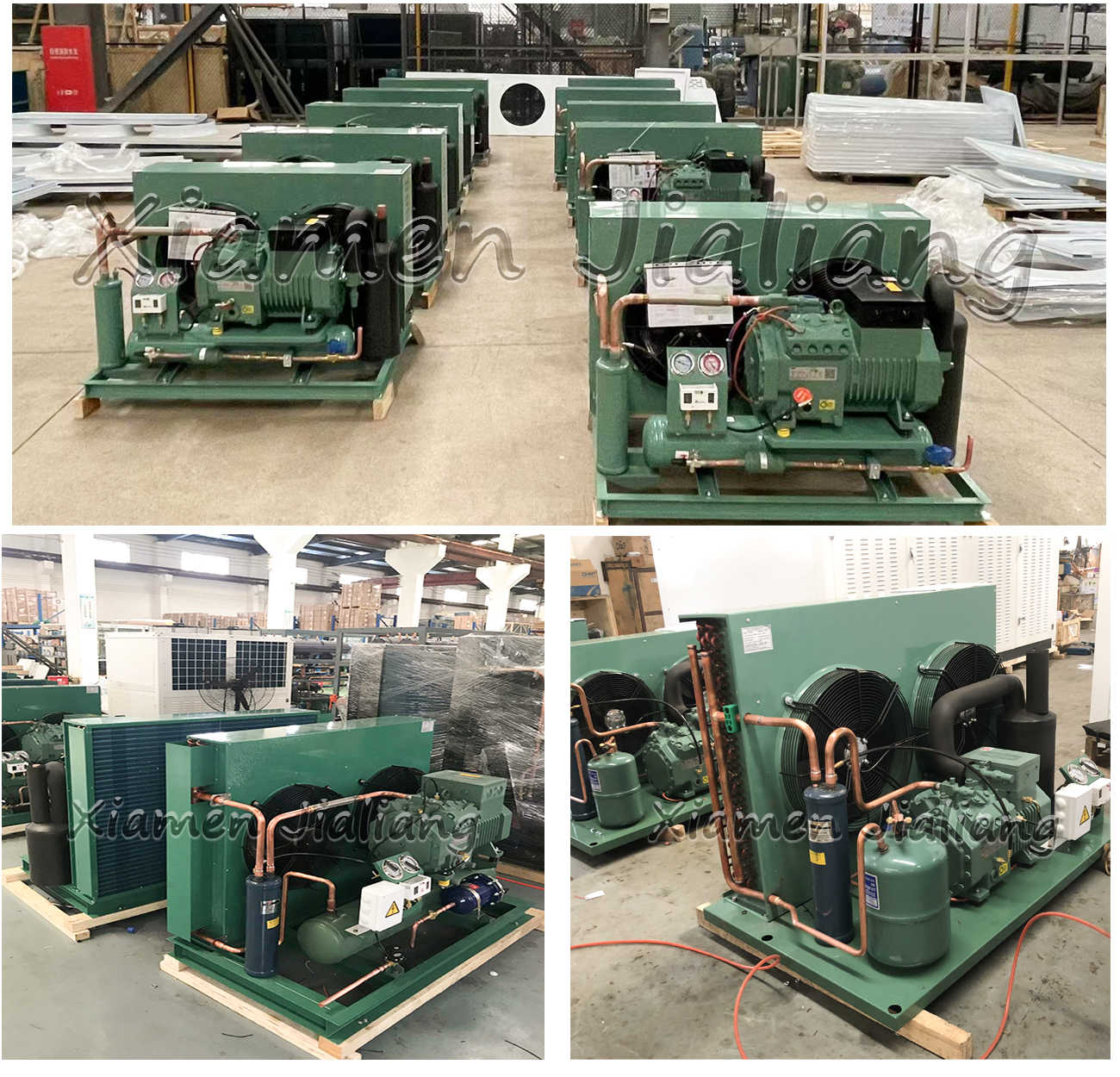

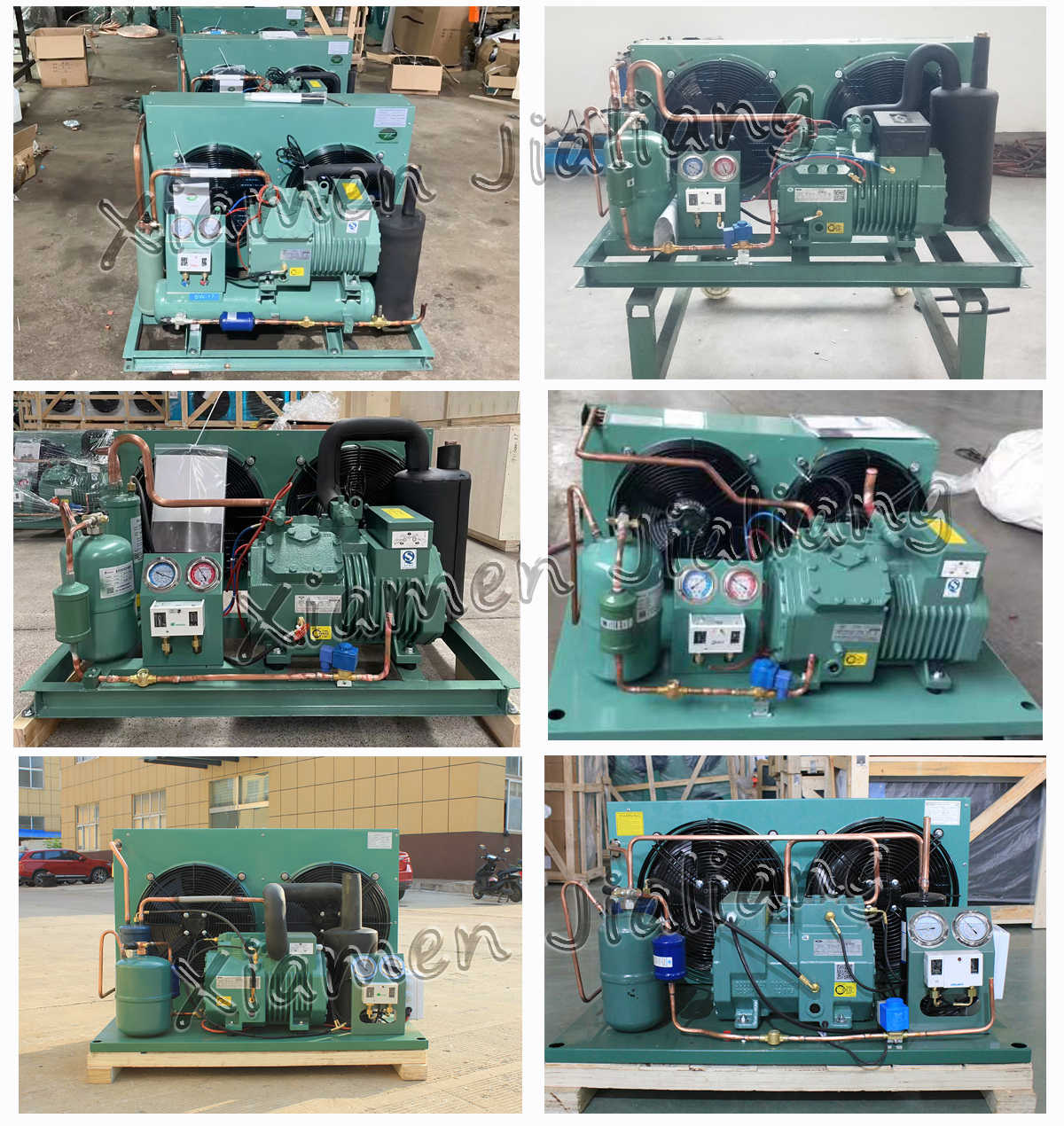

    The condensing unit is mainly assembled with Germany Bitzer semi-hermetic compressor.

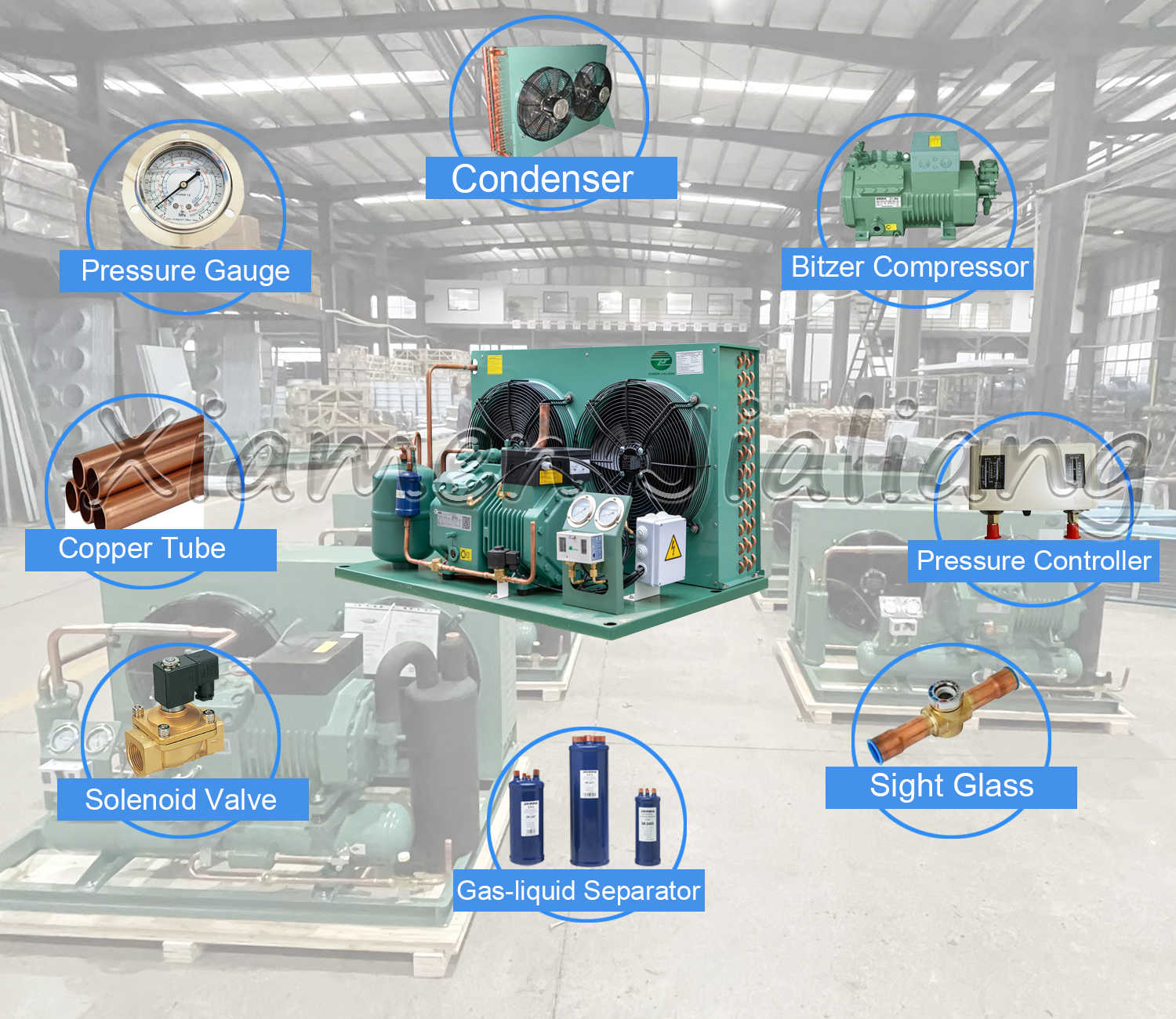

    1. Main components are Bitzer compressor, condenser, drier filter, solenoid valve, pressure controller, high and low pressure gauge. Gas separator and oil separator are optional.

    2. Open-type condending unit is easy to moving, installation and maintenance.

    3. Pressure controller are designed to protect the whole compressor system when the equipment breaks down or overloads.

    4.Refrigerant: R22, R404A

    5.Power supply:380V/50Hz/3phase,220V/60Hz/3phase,440V/60Hz/3 phase and other special voltage can be customzied.

    Brand NameXiamen Jialiang
    Compressor4DES-7Y
    Compressor BrandBitzer
    Capacity Steps100%
    Warranty1 Year
    Temperature Range- 10 °C ~ 15 °C
    Refrigeration Unit BrandXiamen Jialiang
    Cooling Capacity（The temperature is 0℃）15.14 KW
    Evaporator Capacity（The temperature is 0℃）15.14 KW
    Power Input（The temperature is 0℃）6.25 KW
    Current (400V)11.17 A
    Horse Power7 HP
    Voltage Range380-420V
    SizeCustomzised
    Compressor TypeSemi-hermitic Reciprocating Compressors
    RefrigerantR22/R404a/R447a/R448a/R449a/R507a
    Refrigeration TypeAir Cooled/Water Cooled/Evaporation Cooled

    Customized Services

    Our condensing unit supports customization, please let us know your requirements. You can get competitive prices from us in the shortest possible time!

    1. Provide various parameters of vortex or piston compressors

    2. Using a Bitzer compressor

    2. Installation instructions, videos, and online support.

    3. Power supply: 380V/50Hz/3-phase, 220V/60Hz/3-phase, 440V/60Hz/3-phase, and other special voltages can be customized.

    FAQ

    Q1: 4DES-7Y condensing unit How many fan blades there are?
    A1:  The 4DES-7Y condensing unit has two fan blades
    Q2: 4DES-7Y condensing unit How much horsepower he has?
    A2: The 4DES-7Y condensing unit is horsepower
