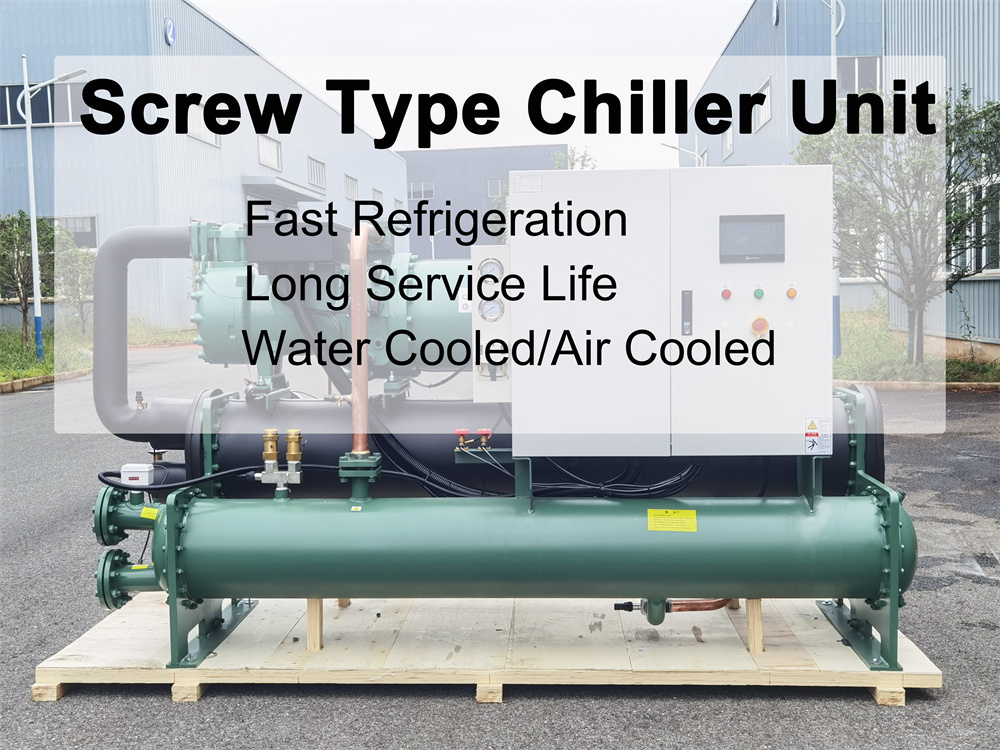

    CSH8593-140Y 140HP High Precision Chiller Unit


    Product Description

    Chiller unit are divided into two types in the industry: air-cooled chillers and water-cooled chillers. Chillers unit are divided into low-temperature chillers and normal-temperature chillers in terms of temperature control. The normal temperature is generally controlled within the range of 0℃~35℃. The temperature control of the cryogenic machine is generally in the range of 0℃~-45℃.



    Model

    CSH8593-140Y

    Horse Power

    140HP

    Power(kW)

    440V/3P/60Hz

    Refrigerant

    R134a

    Cooling Method

    Water-Cooling

    Outlet/Return Water Temperature

    7/12℃

    Evaporating Temperature

    2℃

    Condensing Temperature

    40℃

    Refrigeration Capacity

    369kW

    317.3(103kcal/hr)

    Overall Size

    3400*1300*1740mm

    Noise Value

    73dB(A)

    Overall Weight

    2900kg

    Operating Weight

    3250kg

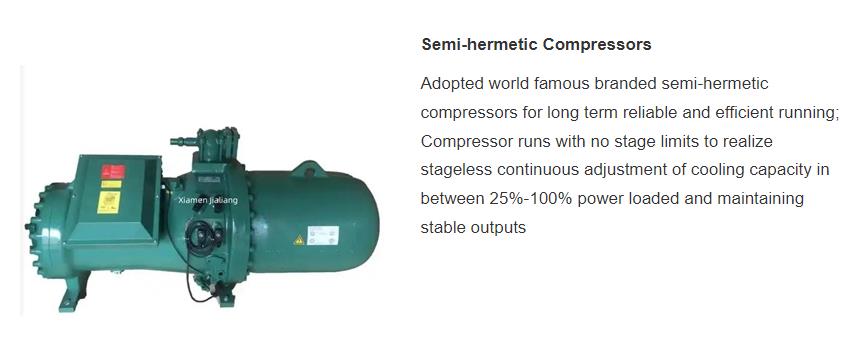

    Compressor

    Input Power

    87kW

    Operating Current

    127.5A

    Capacity Control

    25%-50%-75%-100%

    Condenser

    Water Pipe Connection

    DN125mm

    Water Flow

    78m³/h

    Water Pressure Drop

    44kPa

    Evaporator

    Water Pipe Connection

    DN125mm

    Water Flow

    42m³/h

    Water Pressure Drop

    39kPa

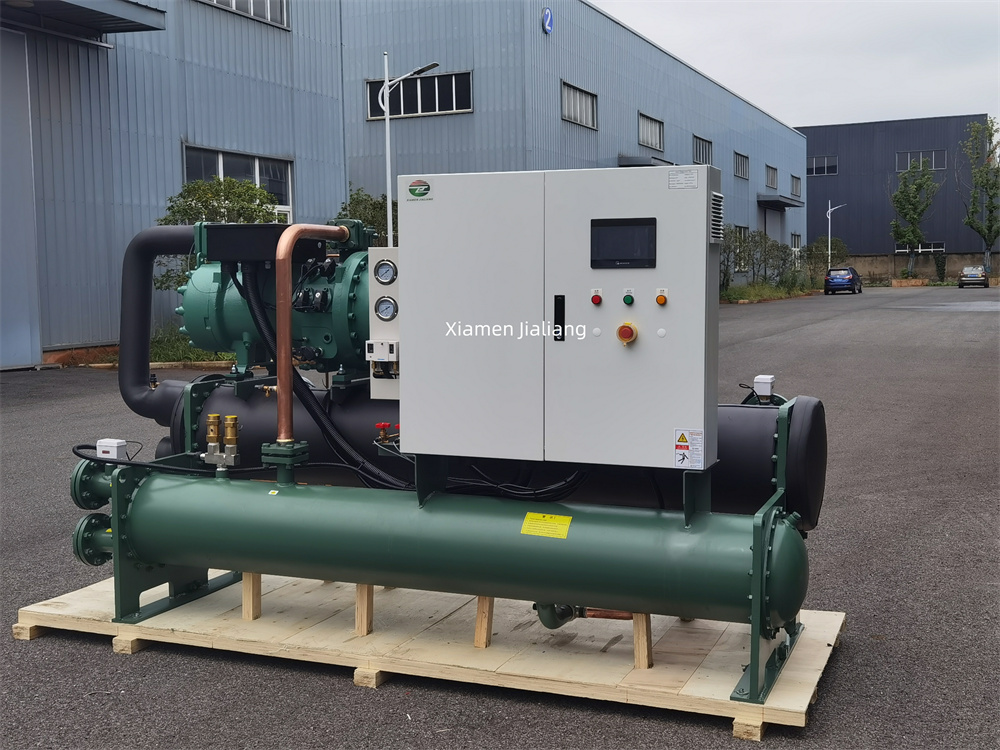

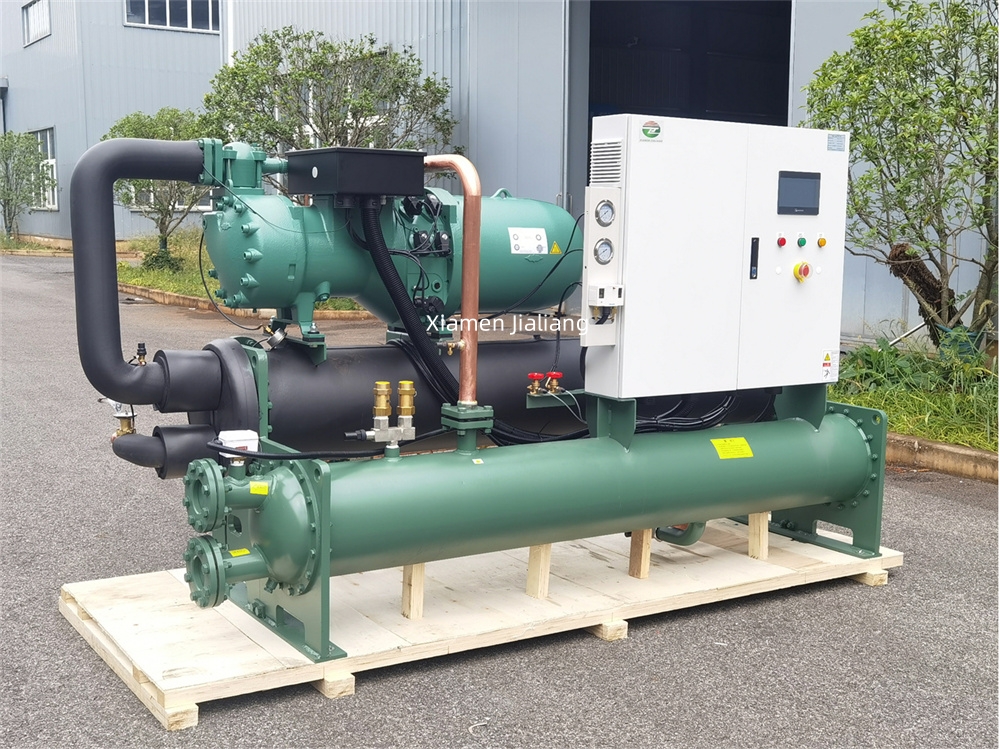

    Product Display

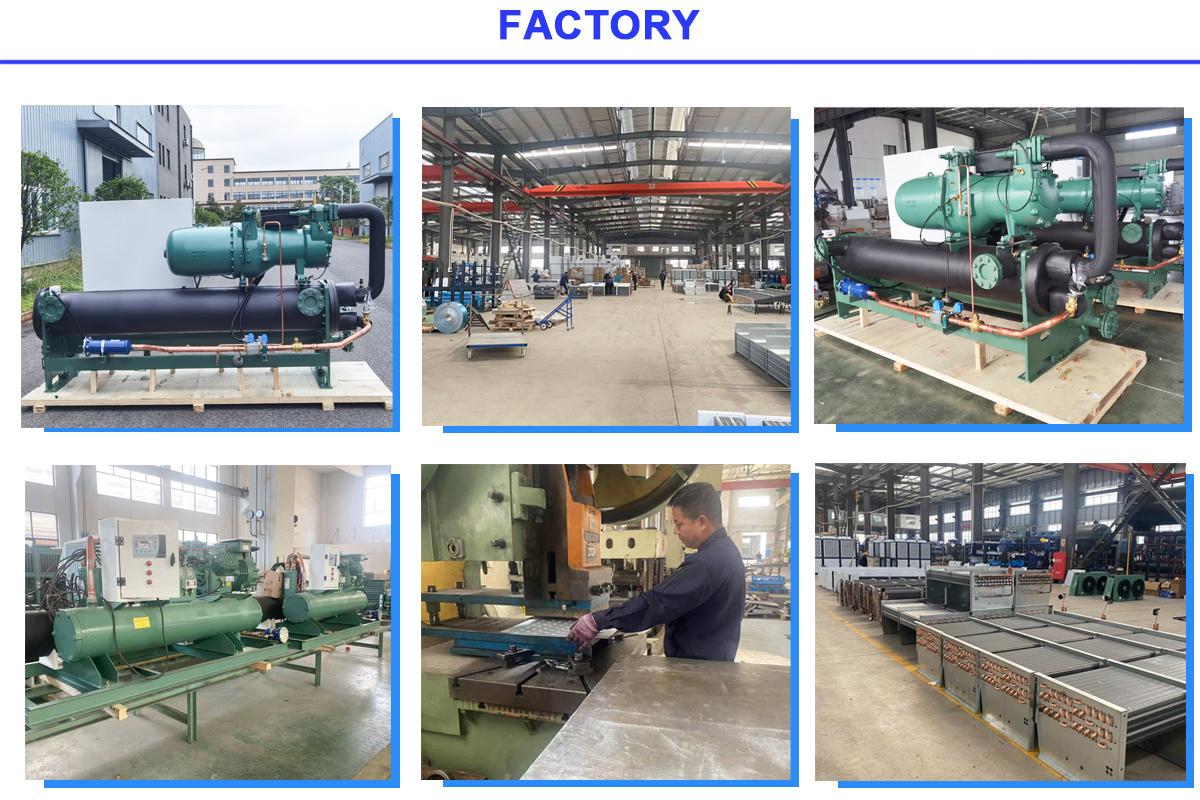

    Our Factory

    1.Xiamen Jialiang series screw compressor racks are assembled with original semi-hermetic screw compressors;

    2.Specially used for low temperature application and big capacity demand;

    3.With development of refrigeration market, huge capacity cold rooms are required, screw compressor rack is perfectly applicable for it;

    4.The racks are with protect function of overheat, overload, exhaust temperature , low oil level, oil flow;

     5.Famous band screw compressor rack for refrigeration system is the most popular equipment, which is welcome by many customers.




    FAQ

    A1: Can I customize the chiller unit?
    Q2: Yes. You can choose output, material, accessories brand, etc.
    A2: Cooling water flow requirements and recommended inlet temperature for each chiller?
    Q2: The outlet temperature is 7℃ and the inlet temperature is 12℃.
