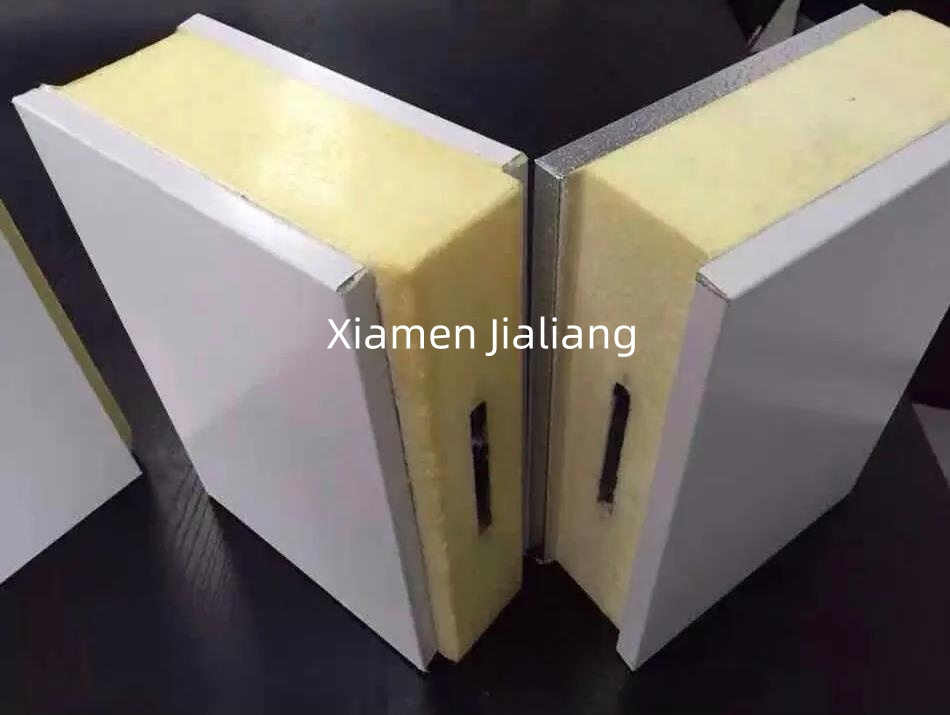

    High Density Easy Install Cam Lock for The Cold Room Panel

    Density (Kg/m3)38-45
    Bending Strength (Mpa)>0.25
    Compressive Strength (Mpa)>0.2
    Thermal Conductivity(W/n℃)<0.022
    Water absorption (KG/m3)<0.30
    Self-extinguish time (S)<7S
    DimensionLength(m)*Width(m)*Height(m)
    PanelNew material polyurethane insulation panel,40~45kg/m3
    Width of Panel960mm, ect. (customized)
    Height of Panel1 to 12m
    Panel thickness50mm,75mm,100mm, 120mm,150mm,200mm
    Color steel thickness0.326/0.376/0.426/0.476/0.5mm
    Type of doorSliding door,swing door,double door
    Temp. of room-60℃~+20℃ optional
    Company CertificationsISO 9001: 2000 SGS SASO CE
    Business TypeManufacturer

    Customized Services

    FAQ

    Q1: Are cold room panels suitable for food production plants?

    A1: Yes, cold room panels are widely used in food production and storage to ensure food safety and quality.

    Q2:Where can I find technical specifications for a product cold room panels?

    A2: You can find detailed technical specifications for each product on our official website.
