Cold Room Panel Cam Lock
    • Fireproof Customized Pu Sandwich Panel

    • Double-sided Color Steel Camlock

      • 50mm/100mm/120mm/150mm/200mm
    • Get A Quote
    • Description
    • Features

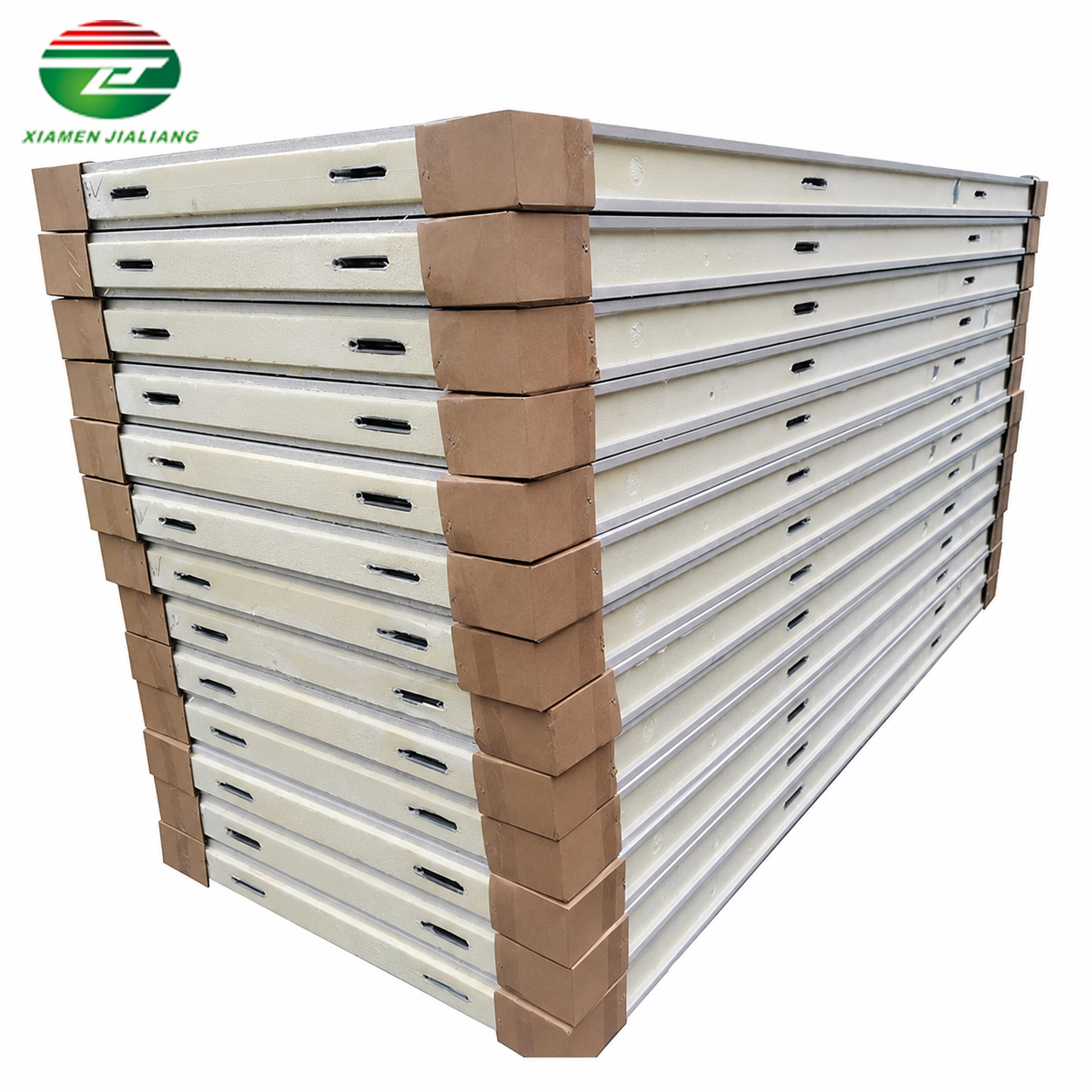

    Fireproof Customized Pu Sandwich Panel

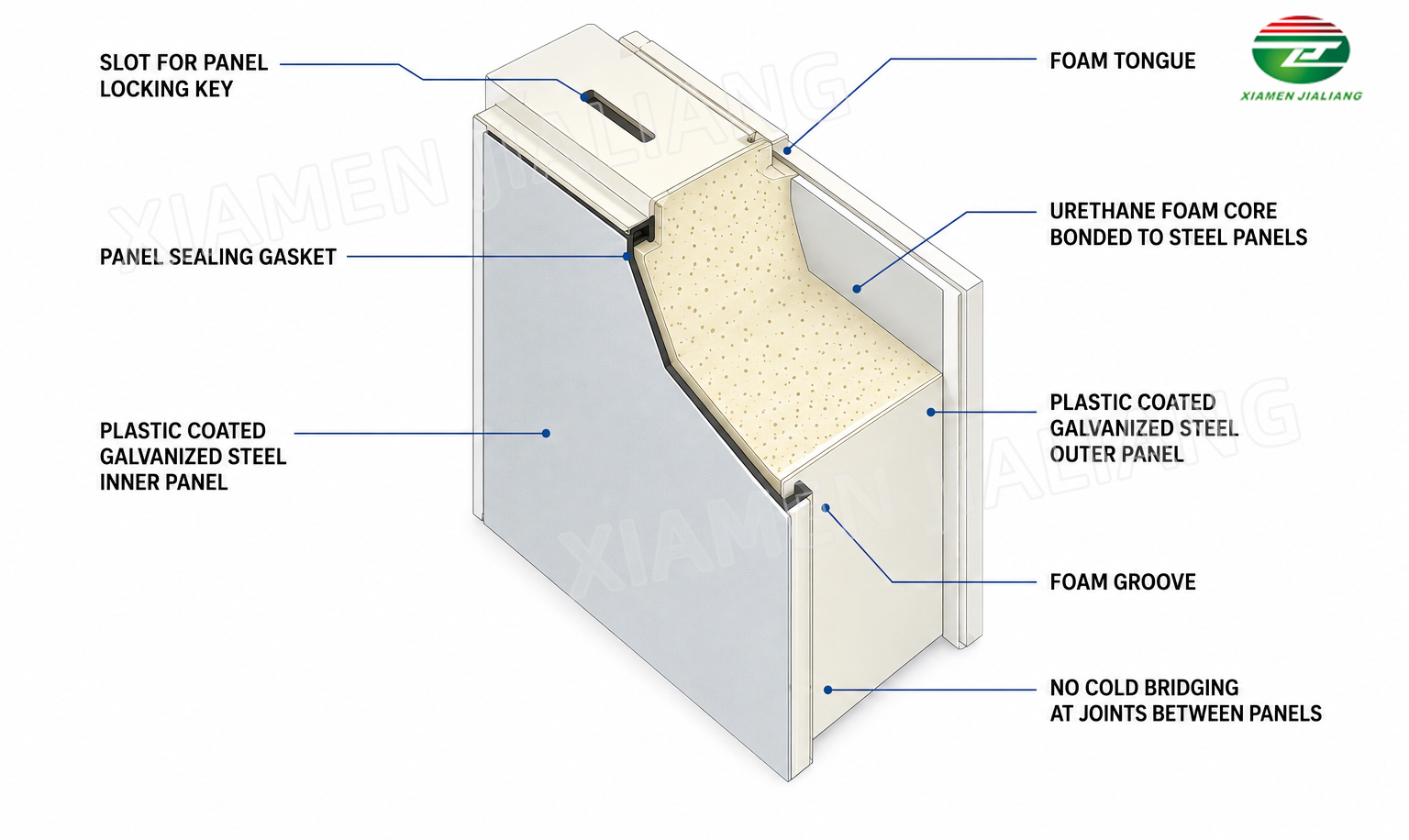

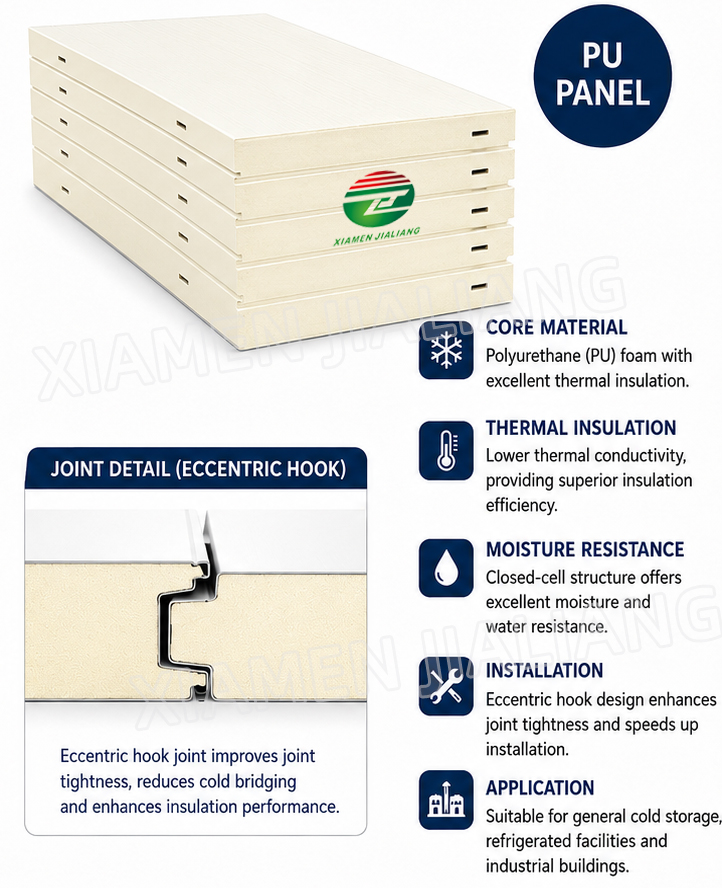

    PU panel is also called PU sandwich panel, PUR Panel or PUF Panel in which polyurethane foam is been sandwiched between the two outer covers. The CFC-free insulated PU panel is commonly used as the cold storage panels due to its advantageous mechanical, chemical, biological and moisture properties, it is excellent to prevent thermal conductivity, restrain growth of fungi, keep out moisture ingress. We are engaged in manufacturing reliable PU sandwich panels in variegated specifications.

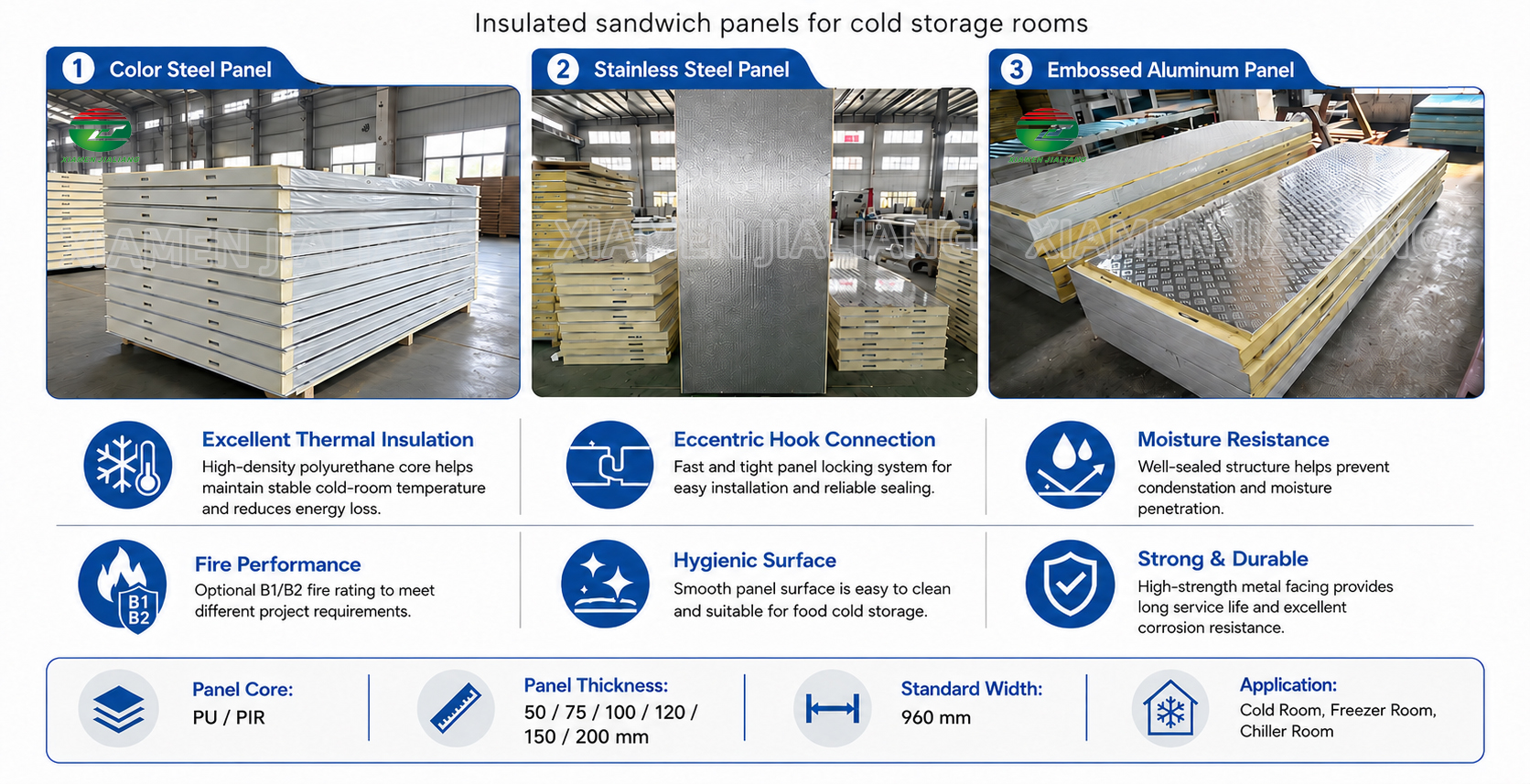

    PUR Panels:

    Thickness: 50mm 75mm 100mm 120mm 150mm  200mm

    Density of core: 38-45kg/m3

    Steel Plate Thickness: 0.4-0.8mm

    Metal Sheet: Color Coated Steel

    Panel Length: According to customers’ request

    Width:960mm





    1. Suitable for low and high temperature controlled applications.

    2. Offer high thermal performance, maintaining the temperature of the internal environment.

    3. Provide low air leakage performance.

    4. Significantly reduce energy usage and running costs.








    Q1: What is the width of your Panel?
    A1: The regular width of our Panel is 960mm, which can also be customized
    Q2: What is the fire rating of your panels?
    A2: We are B1/B2 fire protection class

    Q3: Is it possible to suggest suitable panel specifications?
    A3: No problem, please provide the size and temperature of the cold room, our engineer will design it for you
