Cooling Tower Axial Cooling Fan
    • Quality Manufacturing Axial Flow Fans

    • China Factory Condenser Cooling Fan 12 Volt 24 Volt Dc Axial Cooling Fan

      • 500mm550mm630mm
    • Get A Quote
    • Description
    • Features

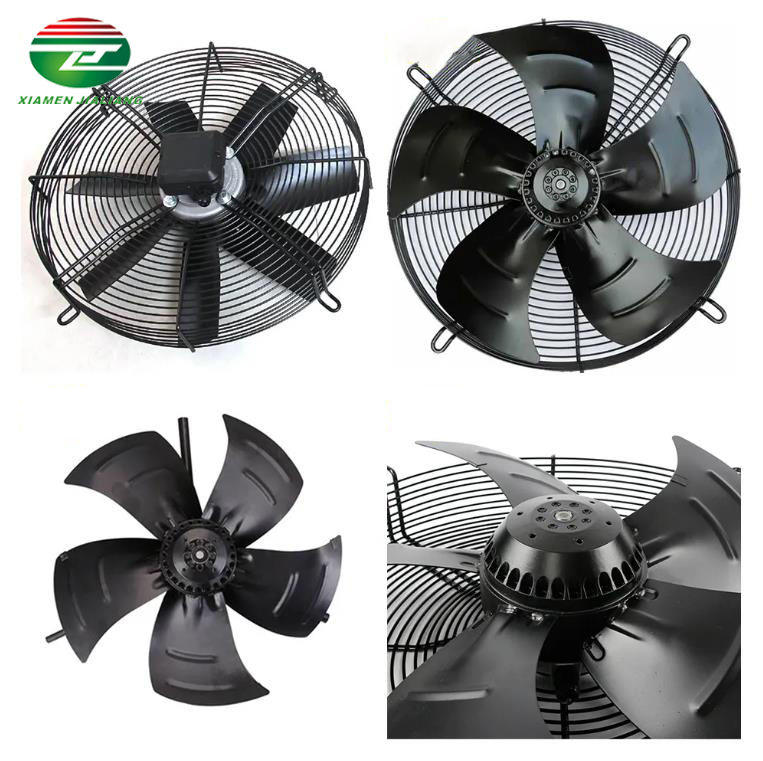

    Quality Manufacturing Axial Flow Fans


    Axial Fan can be used for ventilation or heat dissipation enhancement in places such as metallurgy, chemical industry, light industry, food,mechanical equipment and civil buildings. If the chassis is removed, it can also be used as free fan, and it can also be installed in series at intervals in a longer exhaust pipe to improve the wind pressure in the pipe.




    ModelVoltage(v)Frequency(HZ)Curent(A)Input power(w)Speed(R/MIN)Capacitor(UF)N.W,(KG)Noise(dBA)Max Airflow(m/h)
    YWF-4E450220501.15255135088.0675350
    YWF-4D450380500.60255136088.0685390




    1. Diameter:500.550.600.700mm

    Air Flow : Up to 18054 m3/h

    Inout Power Ranges : Up to 2122w


    2. Diameter( Impeller):650 mmto 800mm

    Air Flow : Up to 28800m3/h

    Inout Power Ranges : Up to 4500w


    3. Diameter( lmpeller):300 mmto 800mm

    Air Flow : Up to 25480m*/h

    Inout Power Ranges : Up to 4000w


    Types

    Innovative design of axial flow fan with excellent performance

    Voltage Ranges380V
    Frequency50/60 Hz

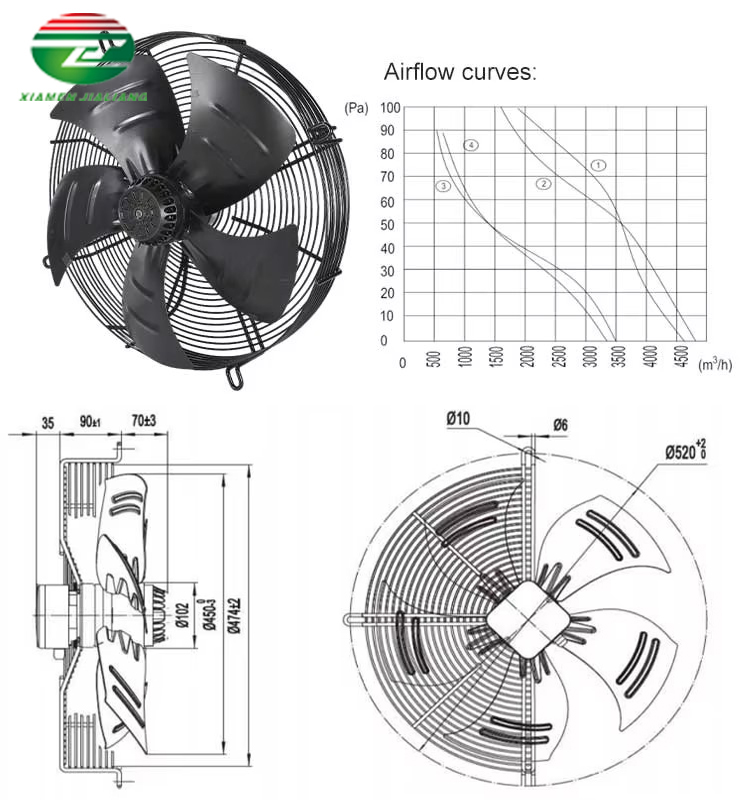

    Diamter500mm,550mm,630mm ( impeller diameters )
    Motor TypesExternal Rotor Motor
    Speed Control0-10V Signal / PWM / RS485(Optional)
    Max.ambient Temp-25℃～ +60℃
    Electronic ProtectionCurrent limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
    Working & Storage

    Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH

    Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH

    Applicable altitude range：＜1000m

    Mainly ApplicationsAIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipmens Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

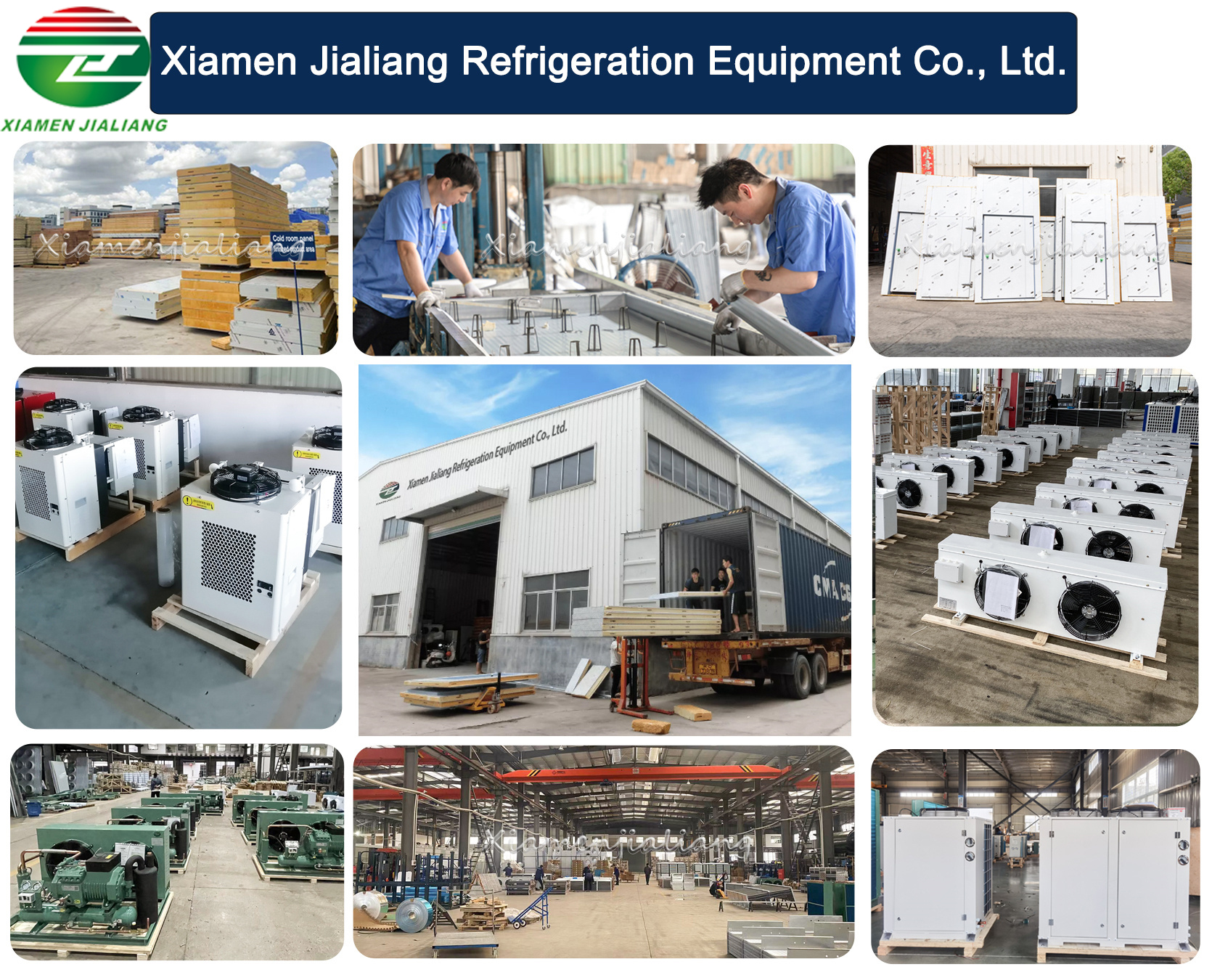

    Xiamen Jialiang values include putting customers first, striving for the bestquality, promoting teamwork, emphasizing sincerity and rellabllity,professionalism, and innovation.
    Jialiang will take the company spirit as an essential element of growth,proactlvely carry out innovatlon, sincerely provlde service for new and oldcustomers, and strive for the sustainable development of the company.





    Q1: How do you ensure the quality of the fan ?
    A1: Our products if do a good job of daily maintenance and dust removal. Regular maintenance, correct operation will not have any problems

    The shelf life of our products is one year (in the case of not being considered damaged)

    Q2: How can you install axial fan?
    A2:We will send layout diagrams and English installation videos, and have a dedicated after-sales group that can provide remote guidance for you.
