- 3hp 5hp 6hp 10hp Compressor Condensing Unit
Air Cooled Semi Hermetic Compressor
- Get A Quote
- Description
- Features
3hp 5hp 6hp 10hp Compressor Condensing Unit
Condensing unit uses advanced technology, making it perfect for cold storage, food processing, cold chain logistics,etc.It features eco friendly refrigerants, excellent energy efficiency, and low noise. With an intelligent control system for real time monitoring and adjustments, it ensures efficient, stable, and reliable performance, reducing maintenance costs and energy consumption.
| Type | Horse Power | Voltage Range | Current (400V) | Compressor Type |
| 2DES-2Y | 2 HP | 380-420V | 4.35 A | Semi-hermitic |
| 4FES-3Y | 3 HP | 380-420V | 6.21 A | Semi-hermitic |
| 2CES-4Y | 4 HP | 380-420V | 7.10 A | Semi-hermitic |
| 4TES-12Y | 12 HP | 380-420V | 16.55 A | Semi-hermitic |
| 4HE-18Y | 15 HP | 380-420V | 22.6 A | Semi-hermitic |
| 4GE-30Y | 30 HP | 380-420V | 35.4 A | Semi-hermitic |

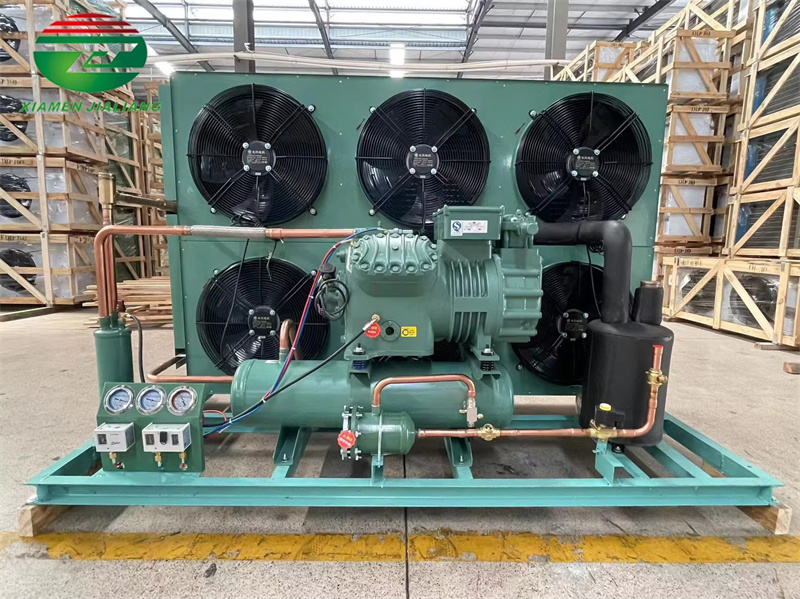

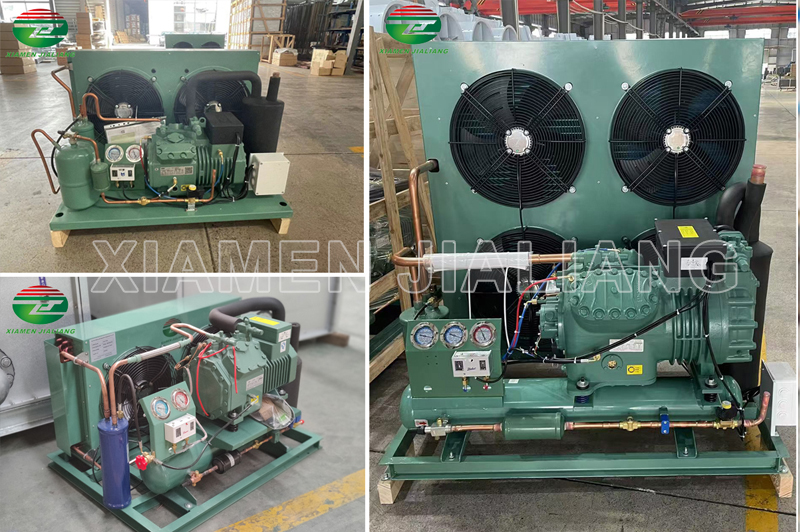

Show the real side of condensing unit
1.Refrigeration Compressor
(1)High quality and stable operation;
(2)Low operating noise and good looking appearance.
2. High and low pressure table
(1)The high pressure gauge is used to detect theexhaust pressure (condensing pressure);
(2)The low pressure gauge is used to detect thesuction pressure (evaporation pressure).
3. Pressure Controller
To ensure that the system is operating normally,Prevent the refrigeration system pressure frombeing too high or too low,avoid cause a majorsystem failure.
Xiamen Jialiang is an established company established in 1999, we have more than 26 years of working experience in the refrigeration field, which dedicated in supplying finest quality Cold Room, Blast Freezer, Unit Cooler, Condensing Unit, Door and PU Panel, etc. Product innovation and customer satisfaction are our long term commitment to all our partners.
FAQ
Q1: Our local climate is very hot/cold, can the condensing unit achieve the cooling effect?
A1: We will appropriately increase the condenser to resist hot weather according to the customer's local temperature. Or optimize the electric control box to ensure that it can still work at low temperatures.
Q2: Can the condensing unit be installed on the ceiling?
A2: Yes, but you need to reserve space on the top of the cold storage, and we will also configure enough copper pipes accordingly.
Q3: Why same HP compressors have big price difference?
A3: Because the temperature requirements are different, the price is also different for low temperature and high temperature machine in the same hp.
The voltage is different, the special voltage 60hz is more expensive than the regular voltage 50hz, because it needs to be customized.
