Short Time Low Temp S6G25.2 25HP High Precision Fast Refrigeration Condensing Unit
    • Short Time Low Temp S6G25.2 25HP High Precision Fast Refrigeration Condensing Unit

    • Energy-Efficient Cooling Units

      • S6G25.2R404aBitzer BandXiamen JialiangAir Cooled- 35℃
    • Get A Quote
    • Description
    • Features

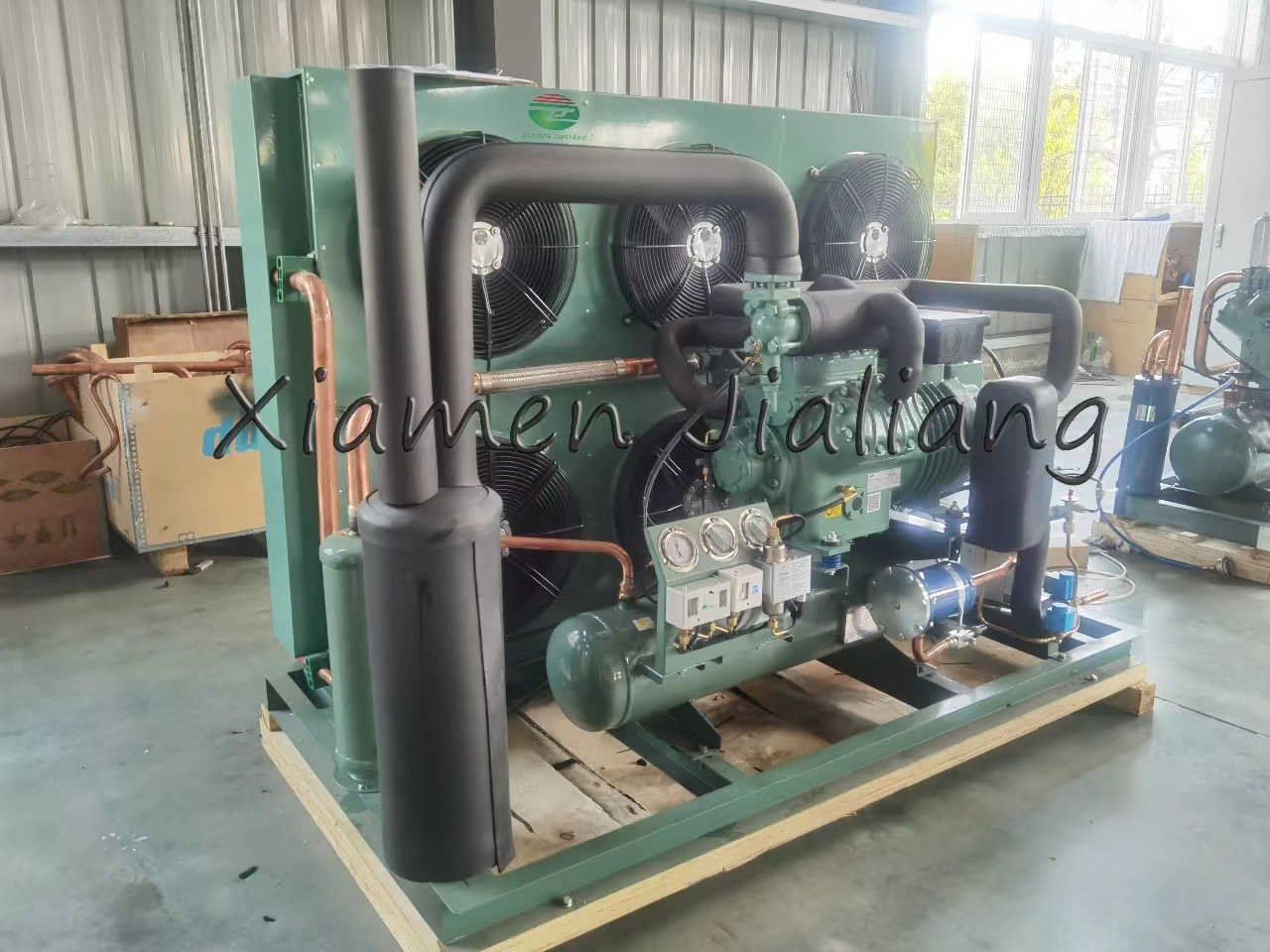

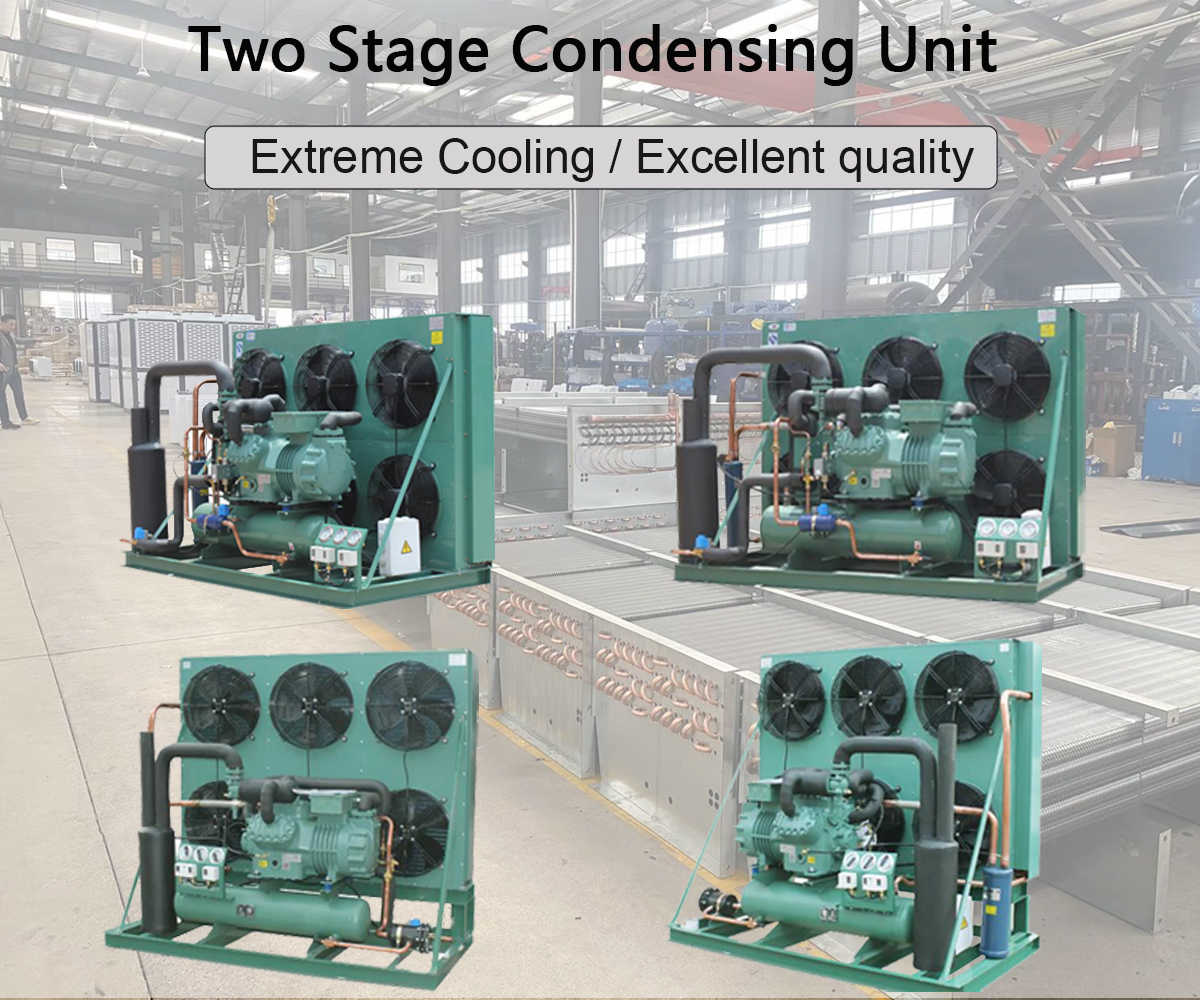

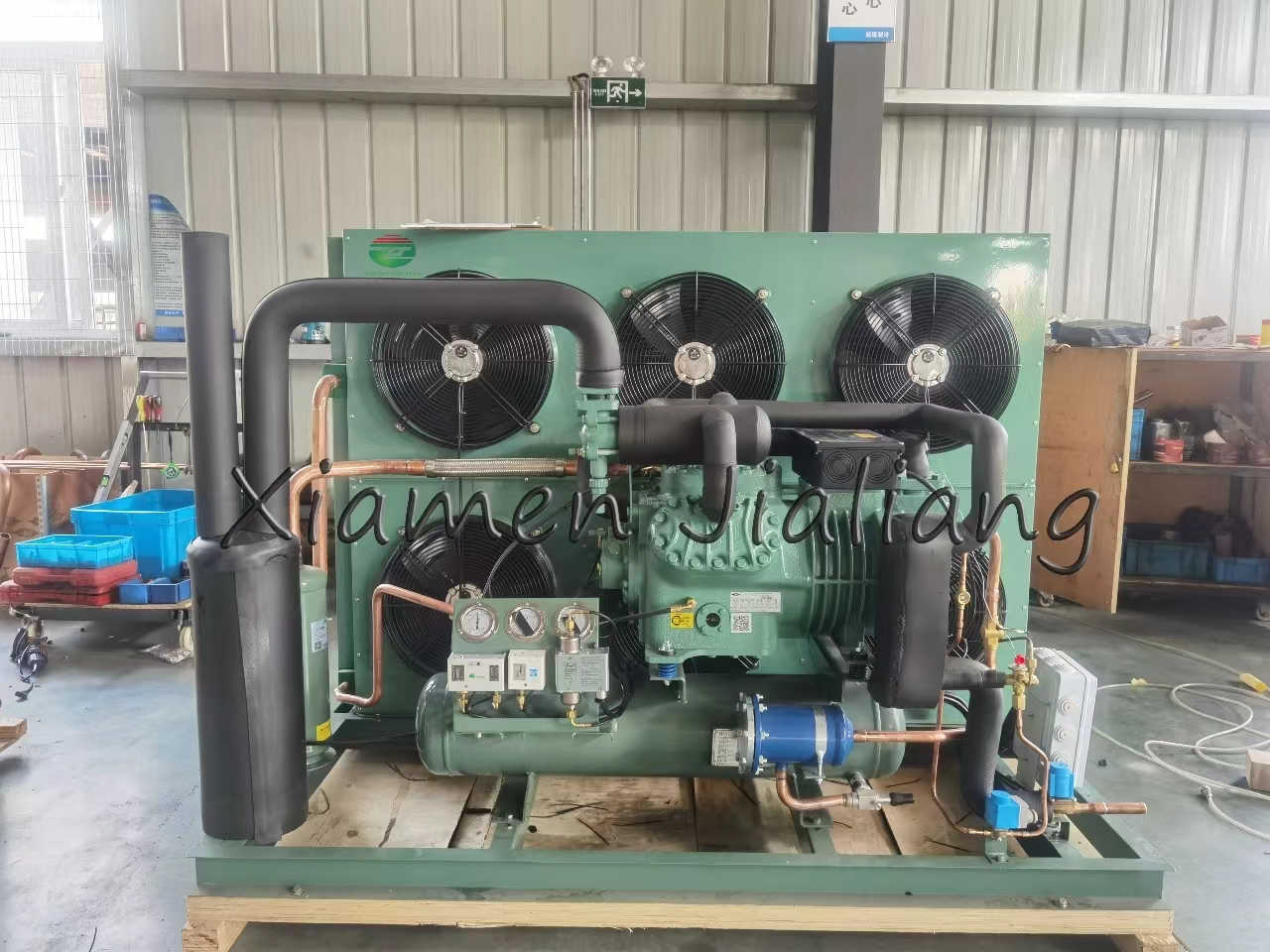

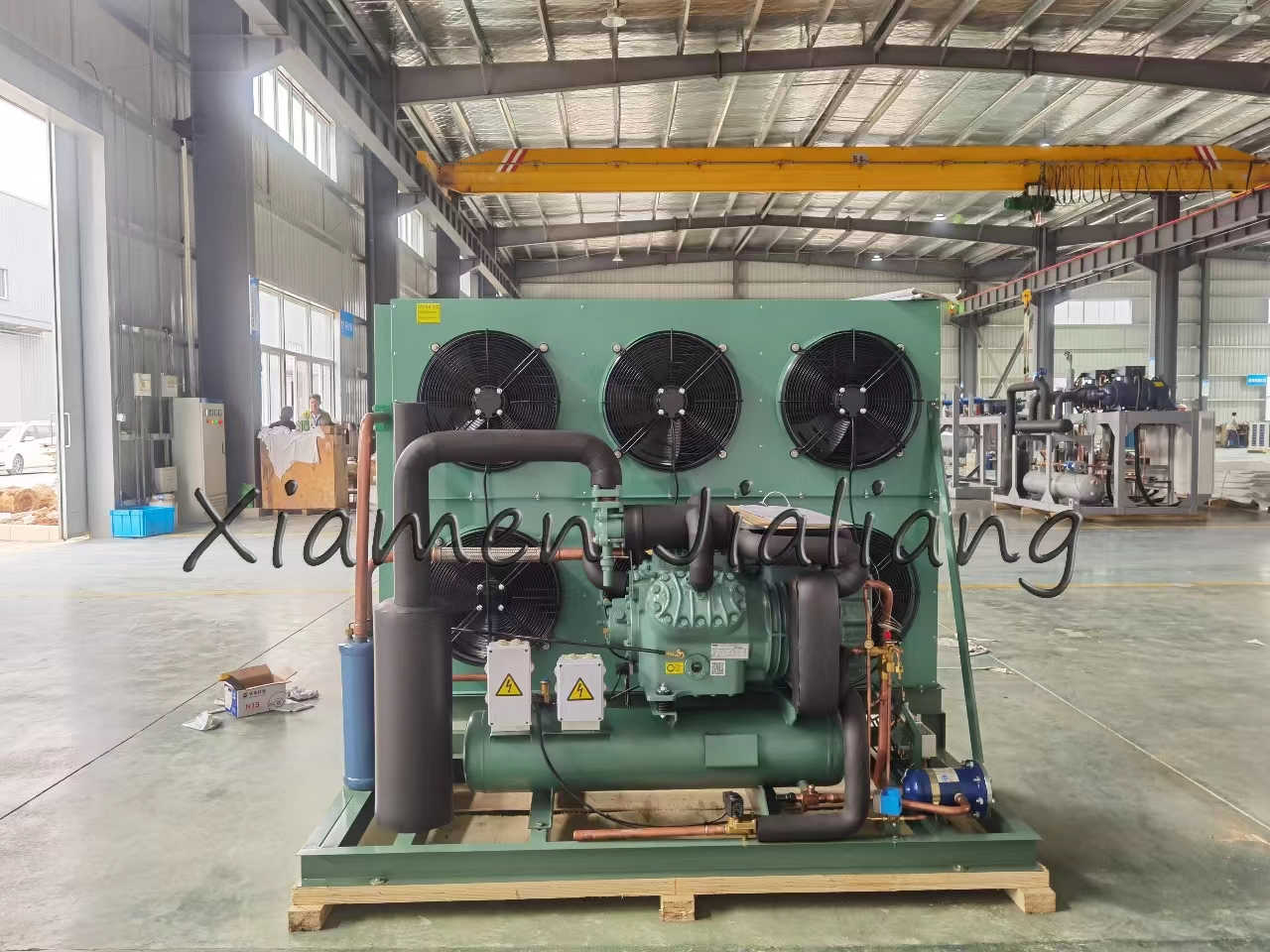

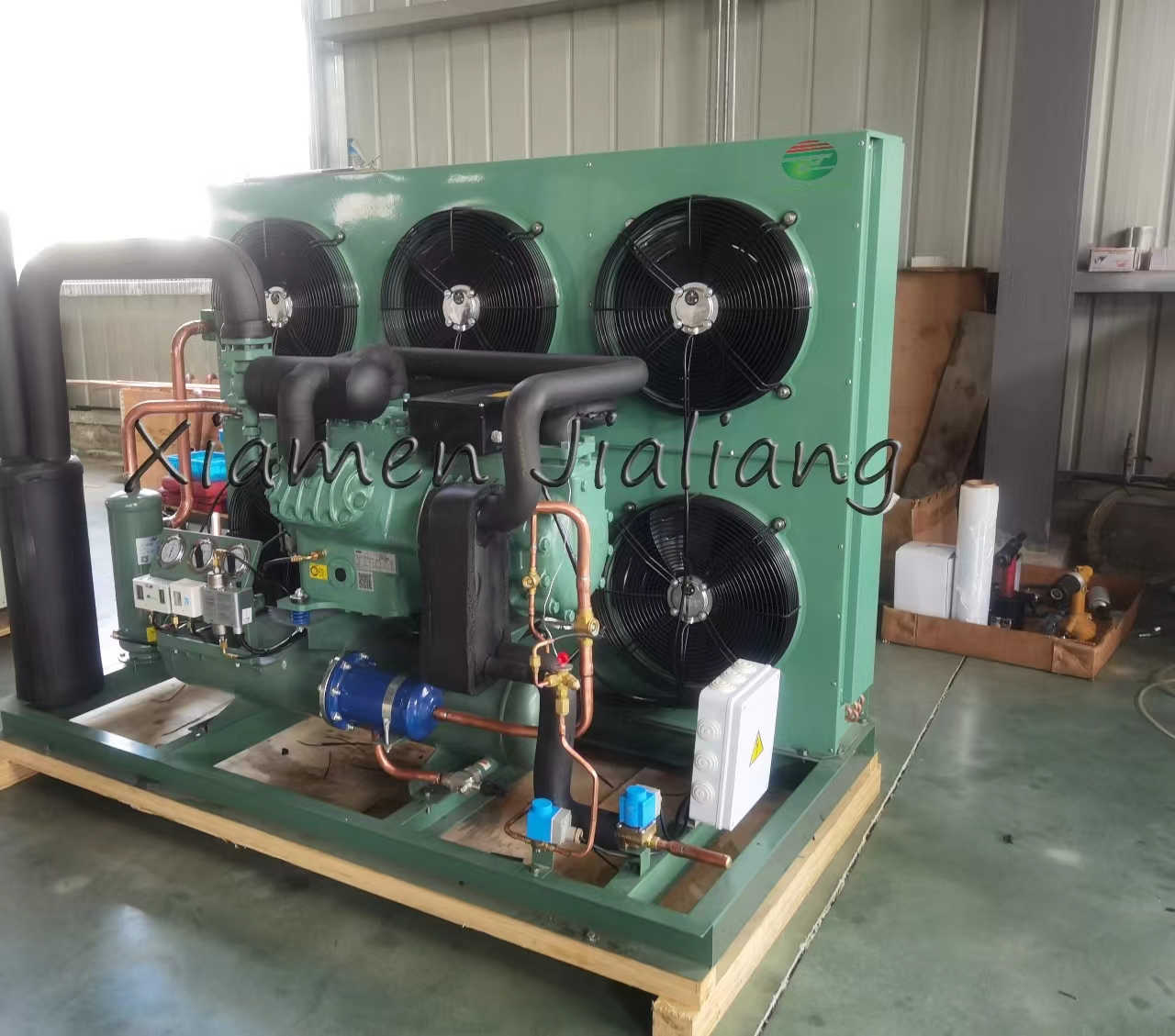

    S6G25.2 25HP High Precision Fast Refrigeration Condensing Unit

    This two-stage refrigeration condensing unit primarily consists of a semi-hermetic Bitzer compressor, with the possibility of using compressors from other brands.

    1. Its open-style design simplifies mobility, installation, and maintenance.

    2. It incorporates high and low-pressure controllers, which serve to safeguard the entire compressor system in case of equipment malfunctions or overloads.

    3. The key components include the compressor, condenser, receiver tank, filter drier, solenoid valve, pressure controller, pressure gauge, connection box, and electrical controller box, among others.

    Brand NameXiamen Jialiang
    CompressorS6G25.2
    Compressor BrandBitzer
    Capacity Steps100%
    Warranty1 Year
    Temperature Range - 35 °C
    Refrigeration Unit BrandXiamen Jialiang
    Cooling Capacity（The temperature is 0℃）19.24 KW
    Evaporator Capacity（The temperature is 0℃）19.24 KW
    Power Input（The temperature is 0℃）15.98 KW
    Current (400V)27.5 A
    Horse Power25 HP
    Voltage Range380-420V
    SizeCustomzised
    Compressor TypeTwo Starge Compressors
    RefrigerantR22/R404a/R447a/R448a/R449a/R507a
    Refrigeration TypeAir Cooled/Water Cooled/Evaporation Cooled

    Customized Services

    We pay attention to every detail and provide customers with the best products.

    We are a manufacturer and we can customize products for you according to your requirements. If you don't know which model is suitable for you, you can leave us a message. We have many professional engineers to tailor solutions for you.

    FAQ

    Q1: Which brand produces the S6G25.2 condensing unit?

    A1:  It is Xiamen Jialiang. Suppliers provide S6G25.2 condensing unit information for you to know more.

    Q2: What is the expected shipping time for delivering the S6G25.2 condensing unit to my desired .

    A2: Please tell us the name of the port and the name of the country, so that we can ask the shipping agent about the shipment date
