Excellent performance High Density White Pu Sandwich Panel For Cold Room
| Product Name | Cold room panel |
| Density (Kg/m3) | 38-45 |
| Bending Strength (Mpa) | >0.25 |
| Compressive Strength (Mpa) | >0.2 |
| Thermal Conductivity(W/n℃) | <0.022 |
| Water absorption (KG/m3) | <0.30 |
| Self-extinguish time (S) | <7S |
| Dimension | Length(m)*Width(m)*Height(m) |
| Panel | New material polyurethane insulation panel,40~45kg/m3 |
| Width of Panel | 960mm, ect. (customized) |
| Height of Panel | 1 to 12m |
| Panel thickness | 50mm,75mm,100mm, 120mm,150mm,200mm |
| Type of door | Sliding door,swing door,double door |
| Temp. of room | -60℃~+20℃ optional |
| Company Certifications | ISO 9001: 2000 SGS SASO CE |
| Business Type | Manufacturer |
| Panel thickness | Suitable Temperature for Cold Room | Stroge Product |
| 50mm | 5℃~15℃ | Fruit,Vegetable,Flower |
| 100mm | -15℃~5℃ | Tea,Cheese,French fries |
| 120mm | -15℃~-20℃ | Meat,Seafood |
| 150mm | -20℃~-30℃ | Ice cream,Shrimp |
| 200mm | below -30℃ | Frozen food,Tuna |

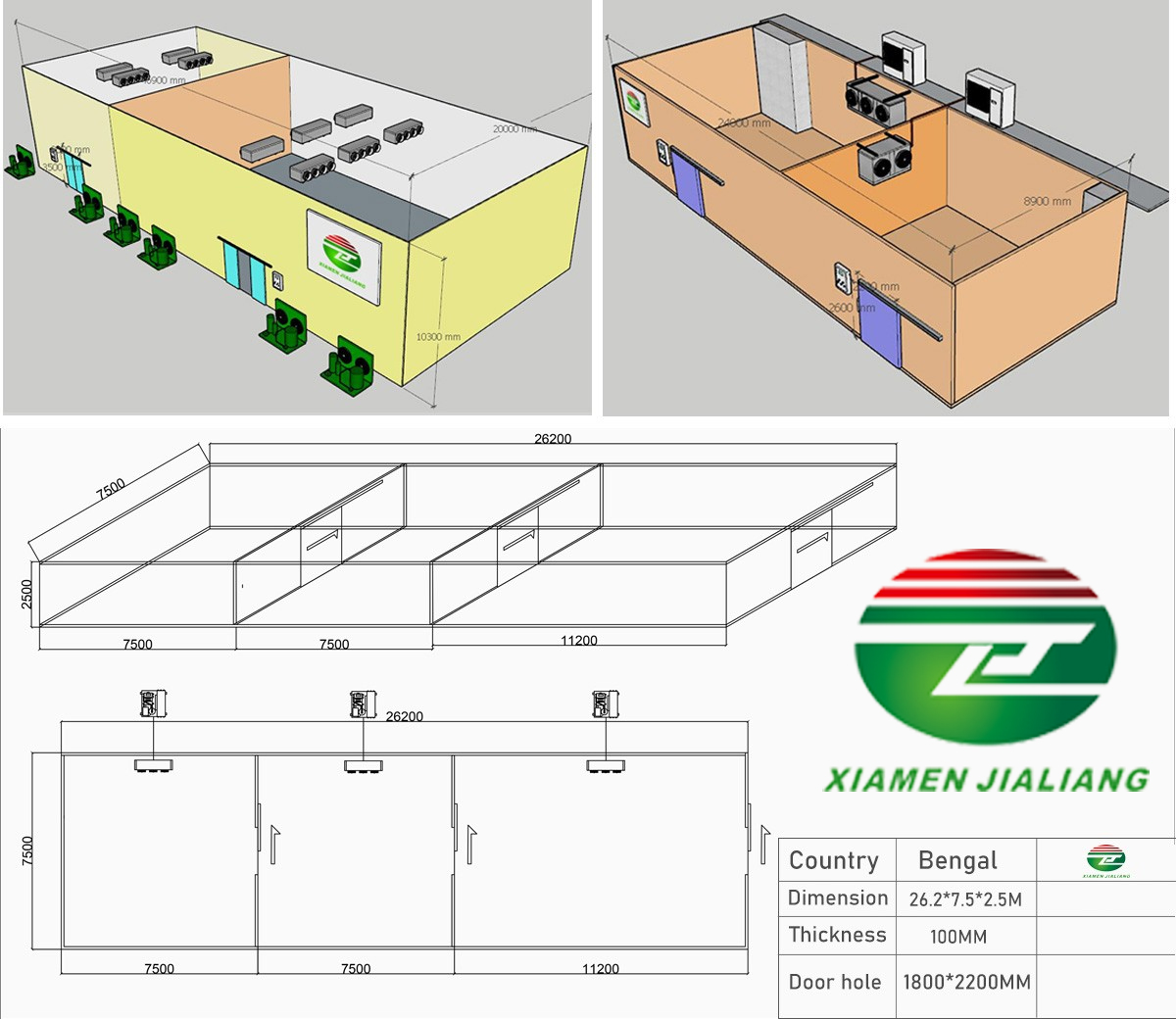

Customized Services
FAQ
Q1: What are cold room panels? |
A1: Panels are components that make up the walls of cold storage. They are used to isolate and protect the internal environment of the cold storage, ensuring suitable temperatures. |
Q2: What is the main function of cold room panels? |
A2: The primary function of panels is to provide insulation and thermal performance, maintaining a stable temperature within the cold storage and preventing external temperatures from affecting the interior. |
