XMJL 5HP Monoblock Condensing Unit Manufacture
You need to provide the following information, and Xiamen Jialiang will recommend a suitable solution for you:
1. Cold storage area and volume
2.Use venue (indoor or outdoor)
3. Storage product type
4. Storage temperature requirements for stored products
5. Product temperature before storage
| Horse Power | 5HP |
| Refrigeration Capacity | 5295 W |
| Storage Capacity (-18 ℃) | 58 m³ |
| Power | 4.05 KW |
| Voltage | 380 V |

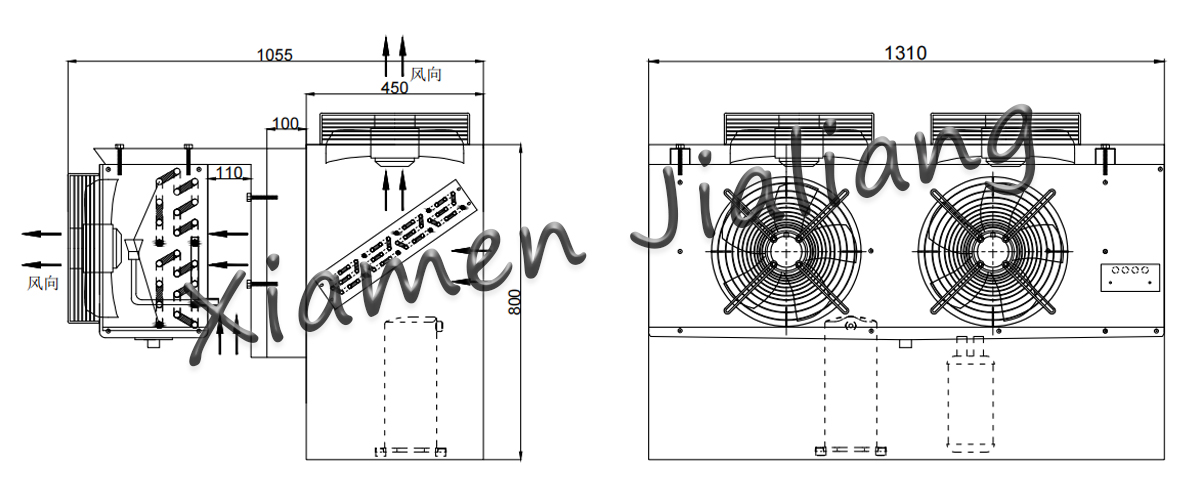

| External Size (L*W*H(mm)) | 888*1320*855 |
| Hole Size (L*W*H(mm)) | 1290*490 |
| Evaporation Fan Parameters | |
| Motor Power | 85 W |
| Blade Diameter | 300 mm |
| Number of Fans | 2 |
| Air Volume | 4800 CMH |
| Condensing Fan Parameters | |
| Motor Power | 195 W |
| Blade Diameter | 350 mm |
| Number of Fans | 2 |
| Air Volume | 6400 CMH |

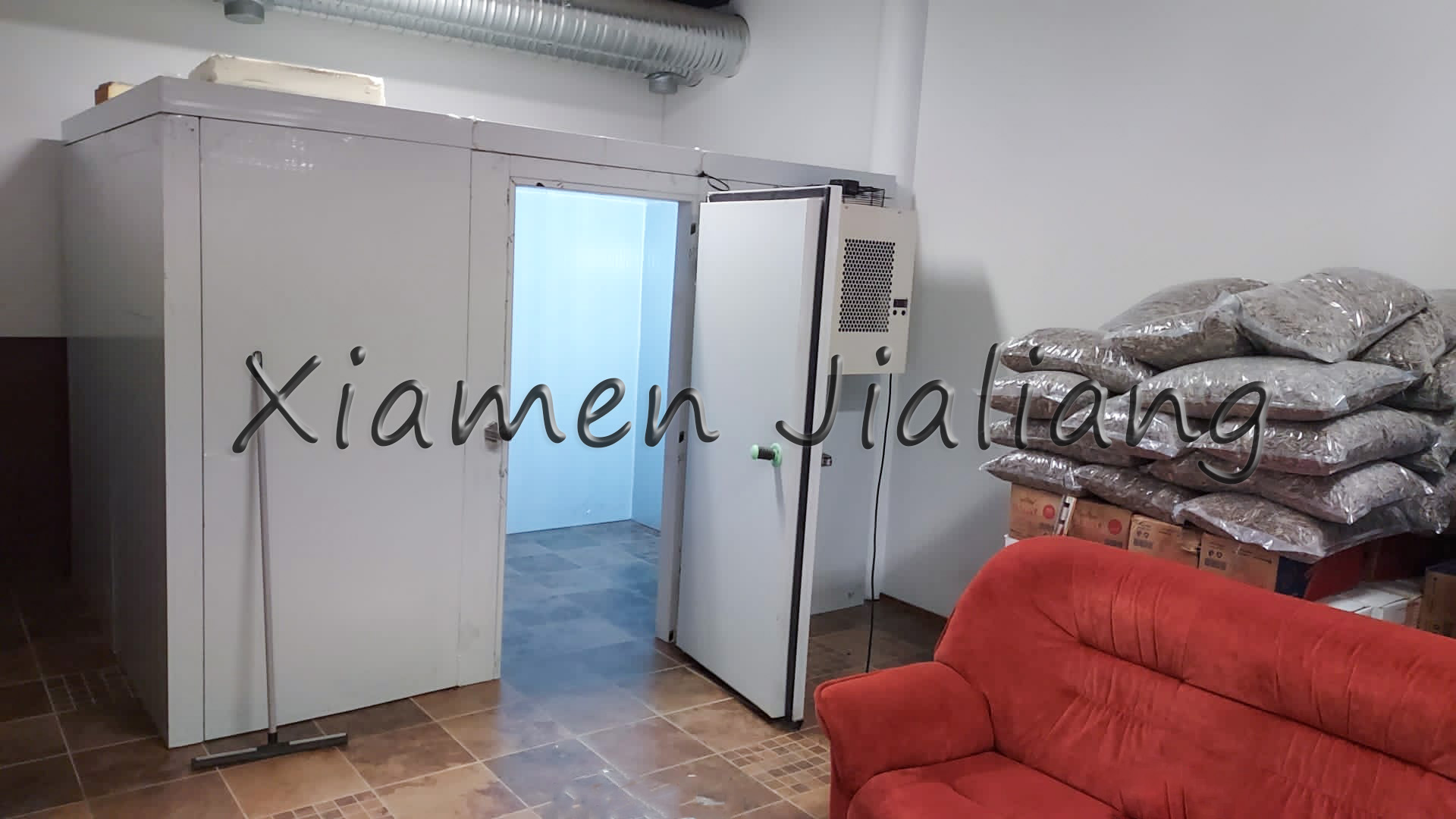

1. The product structure adopts wall-mounted type, and the unit is installed on the side panel of the warehouse.
2. The unit has two types: medium temperature type and low temperature type. The medium temperature unit mainly meets the use of 0-10℃ cold storage, such as fresh-keeping storage. The low-temperature unit mainly meets the use of -15~-20℃ cold storage, such as freezer storage, etc.
3. Using hot air bypass defrosting, the defrosting effect is good.
4. Fully automatic intelligent control, with functions such as warehouse temperature setting and control, defrost setting and control, system operation protection, etc.
Customized Services
Product Details.

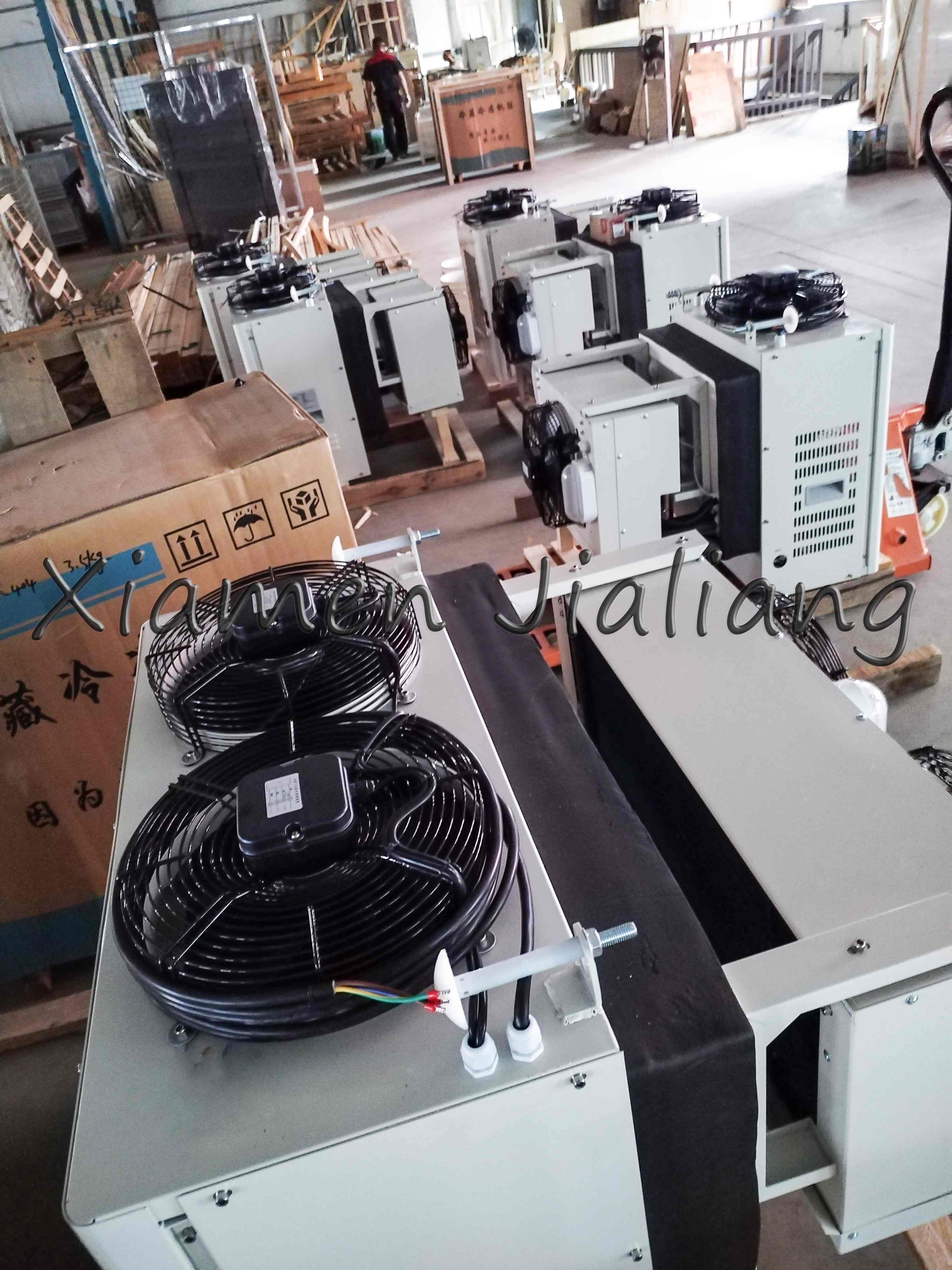

All our products can be customized, and the accessories are CE certified. Our products undergo strict quality inspection during processing before delivery. If necessary, we can take photos of each step of the process and send them to customers.
FAQ
| Q1: What ensures the XMJL monoblock condensing unit maintains a stable temperature? |
| A1: The XMJL monoblock condensing unit achieves temperature stability through its intelligent control system and highly efficient refrigeration technology. |
| Q2: Can the XMJL monoblock condensing unit be remotely monitored? |
| A2: Yes, the XMJL monoblock condensing units are often equipped with remote monitoring capabilities, allowing users to monitor its operation status in real-time. |
