    ZB Scroll Refrigeration Compressor Condensing Unit


    Product Description

    1. Electric components were added on the basis of series,including condensing unit,main control board,cold room temp control board and operation board.Cold room temp control board and operation board are optional.
    2. Main control board can start/stop compressor by system low voltage,be suitable for super market,milk container,water chiller etc.If all optional included ,system can control compressor by temp,with function of temp,and defrosting adjustment.The complete set of control system can be used for cold room directly,no extra controller required.
    3. With multi protections including phase protection,phase lack,over current,too constant start of compressor ,discharge temp and system high/low temp.
    4. With fan speed regulator ,to adjust condensing fan according to condensing temp.



    If you don't know which model is suitable for you, please contact we without hesitation, after tell us your requirements, we shall be glad to give you our professional advise.
    And if all this model don't suit for you, we have advanced software and professional team of engineers can design product for you.
    We have customized products for many customers, following are some projects we did before.
    We can provide prodcution drawings.


    ModelPowerCooling capacityMotor PowerTemperature
    ZB21KQE3HP4.65kw~10.5kw2.1kw-20~-+10℃
    ZB29KQE4HP6.25kw~14.1kw2.9kw-20~-+10℃
    ZB38KQE5HP7.75kw~17.6kw3.8kw-20~-+10℃
    ZB45KQE6HP9.45kw~21.1kw4.5kw-20~-+10℃
    ZB48KQE7HP10.4kw~23.2kw5.1kw-20~-+10℃
    ZB58KQE8HP11.85kw~28.05kw5.9kw-20~-+10℃
    ZB76KQE10HP16.4kw~36.85kw7.5kw-20~-+10℃

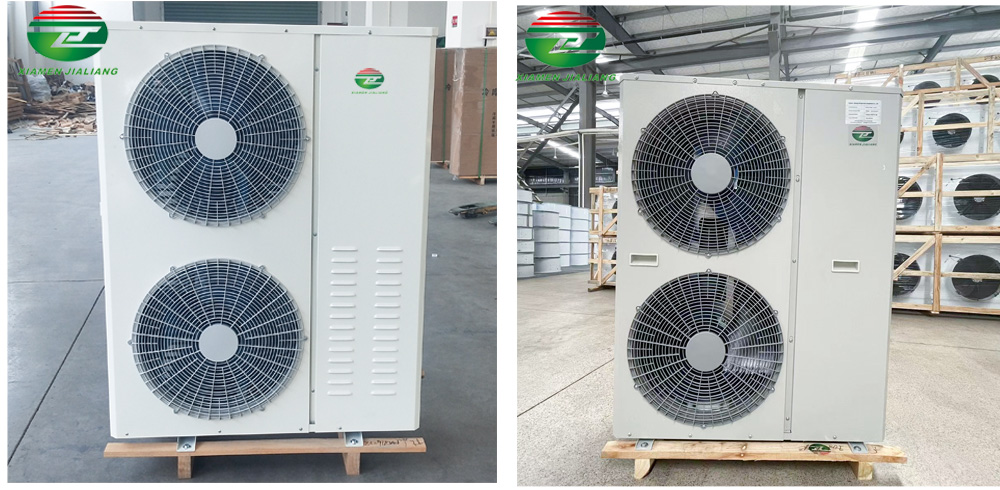

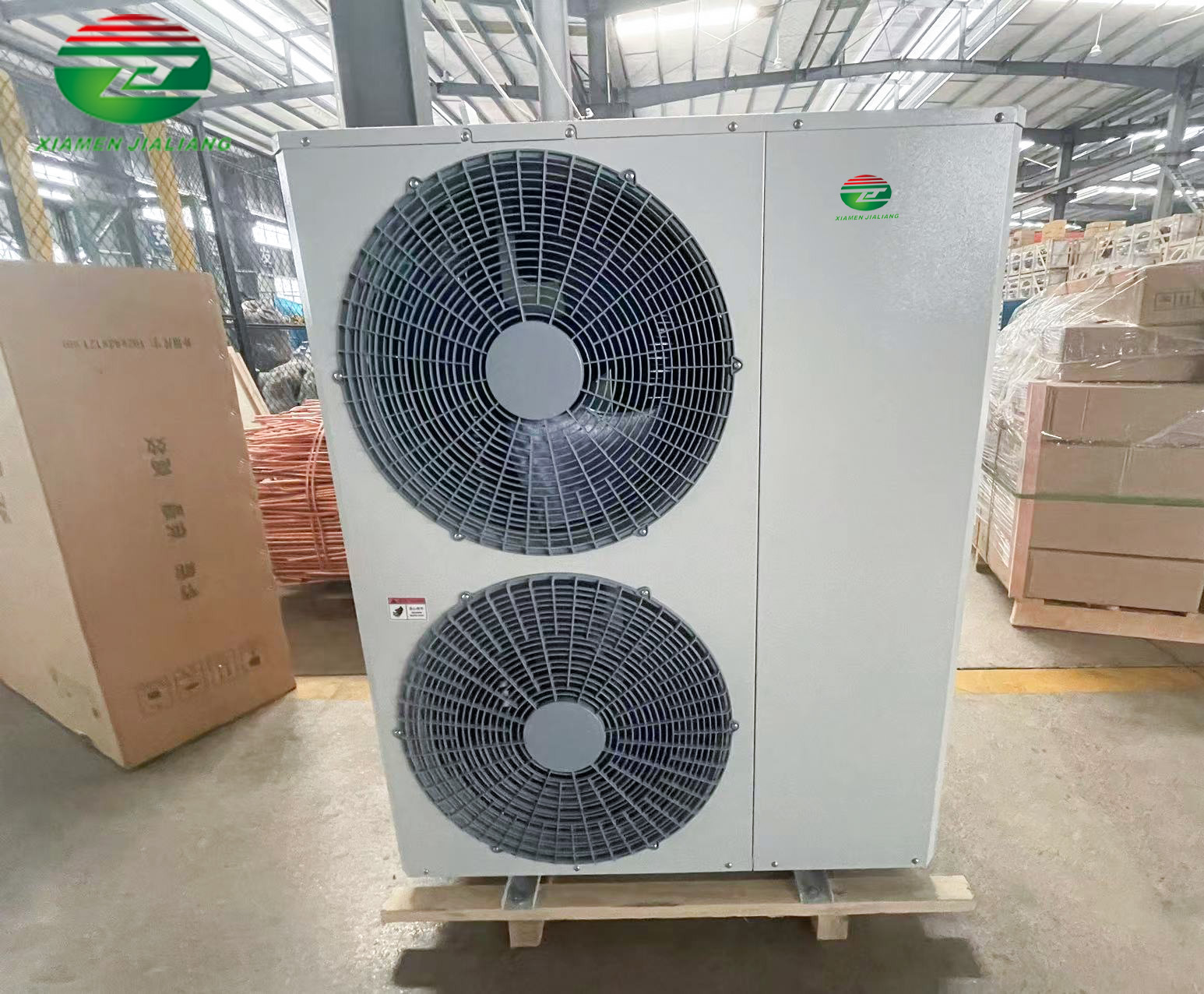

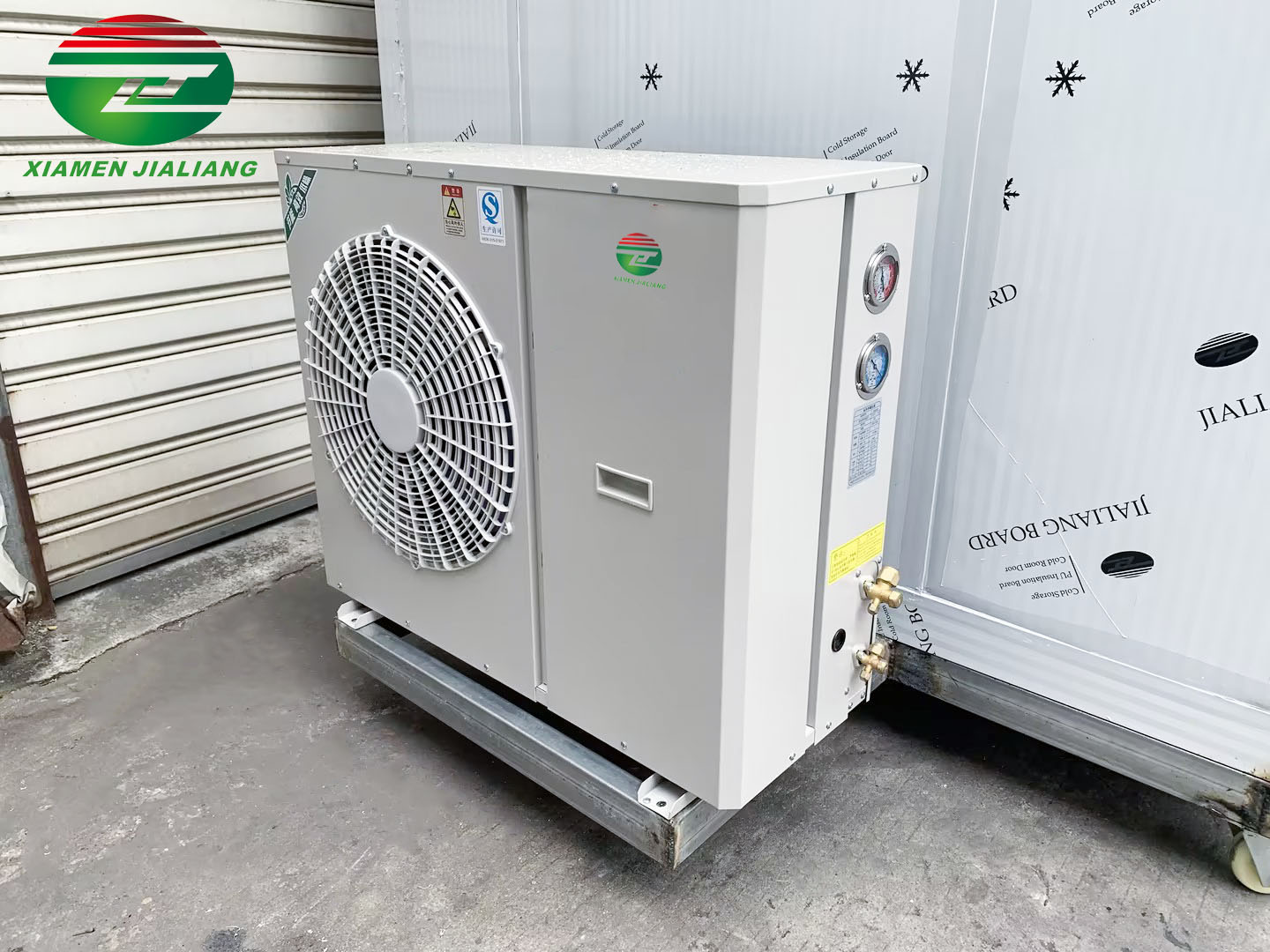

    Product Display

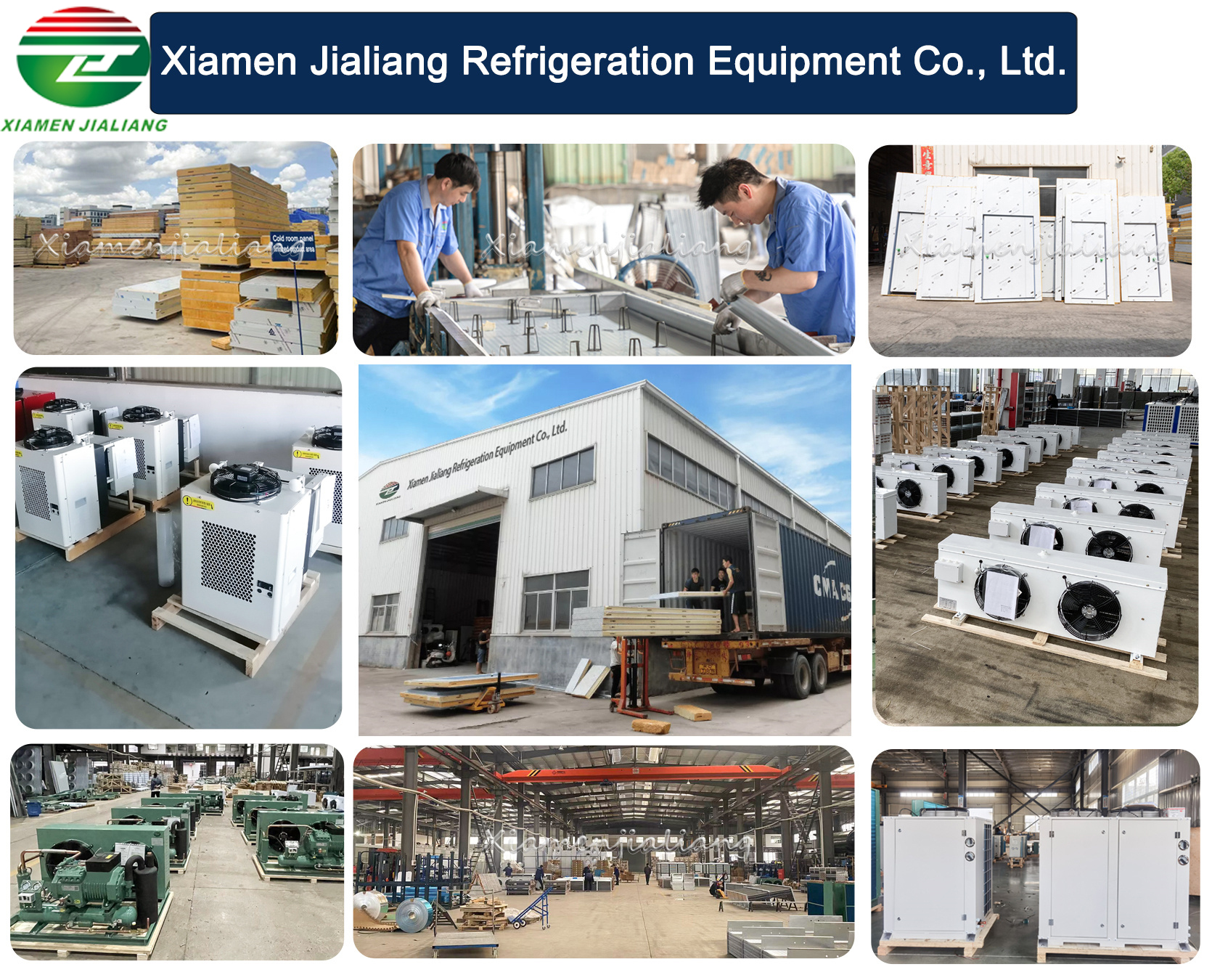

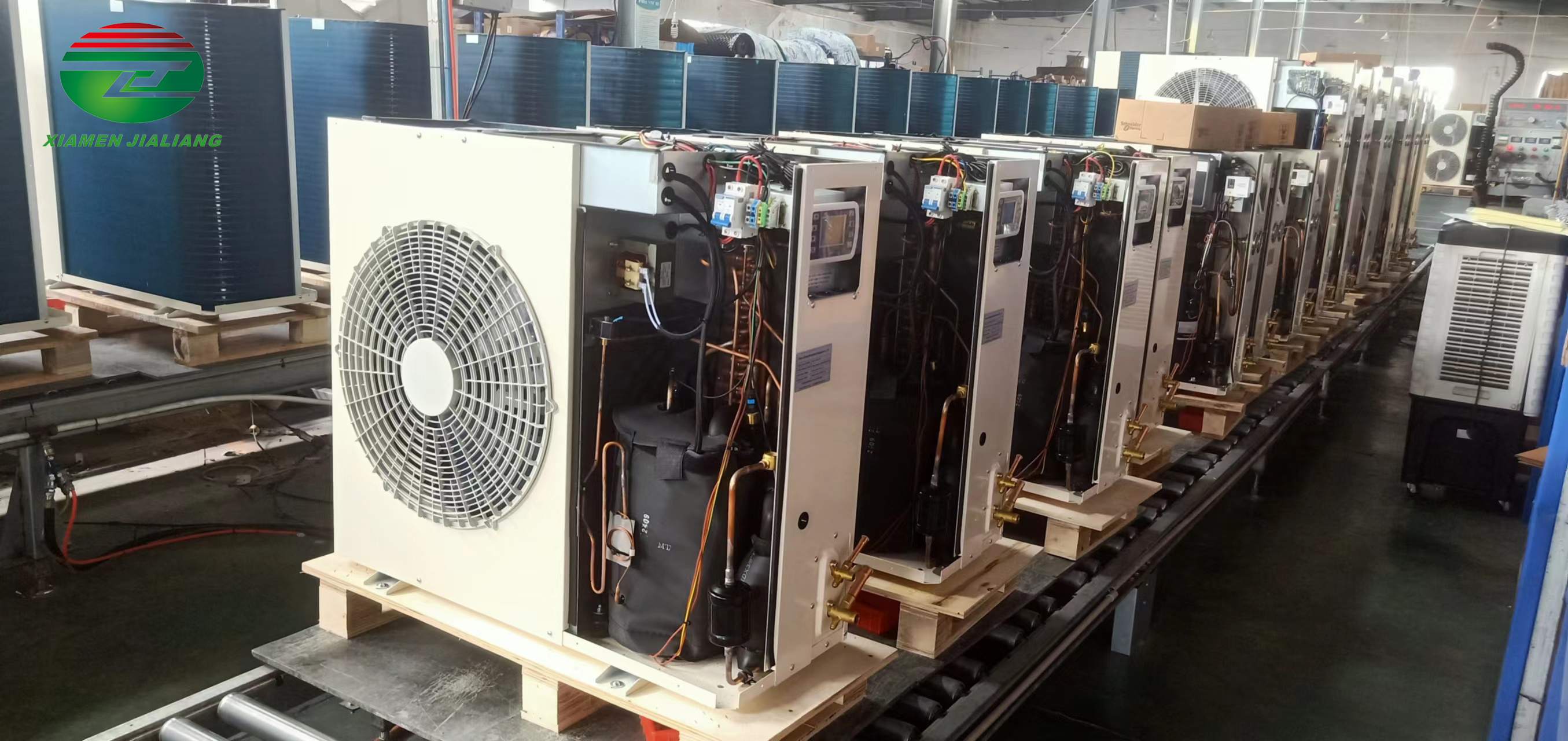

    Factory Workshop


    Xiamen Jialiang is the leading cold room and refrigeration unit designer, manufacturer and exporter, which dedicated in supplying finest quality Cold Room, Epaporator, Condensing Unit, Door and PU Panel, etc. Product innovation and customer satisfaction are our long term commitment to all our partners.

    Jialiang is the go-to professional manufacturer. True to our brand promise, at "Jialiang- we make sure you are cool". Jialiang prides itself on having excellent technical professionals. This includes licensed architects, highly trained factory staff, research and development experts, and technical sales and support teams. We serve both local and global customers from the US, Canada, South Asia among other regions. You are welcome to have a chat with our technical sales team if you want to make any inquiries or purchases.






    FAQ


    Q1: Is your inverter condensing unit a complete system?
    A1: Yes, our inverter condensing unit includes complete accessories, including high and low pressure gauges, oil and gas separators.
    Q2: Can the inverter condensing unit be installed on the ceiling?
    A2: Yes, it can be installed at any location, and we will also configure enough copper pipes accordingly
