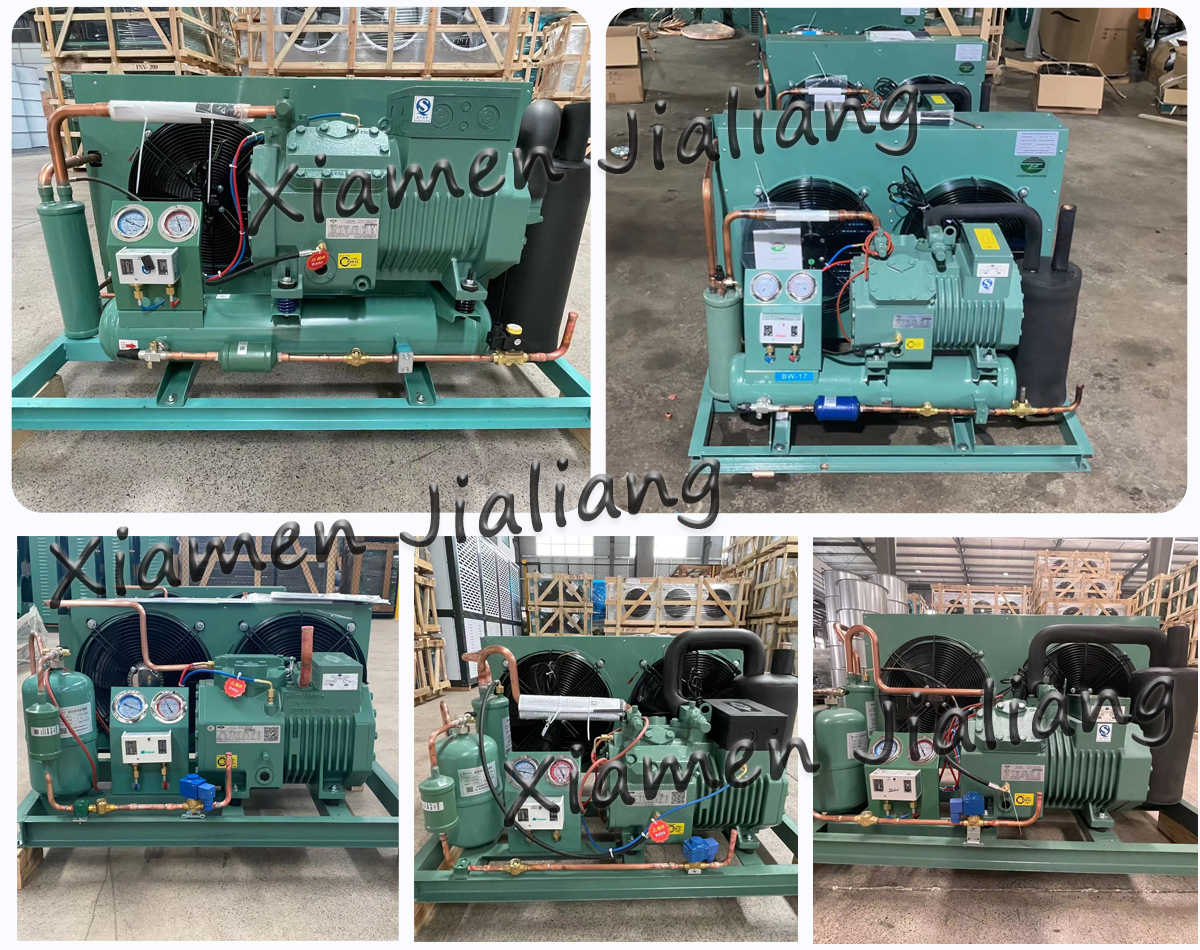

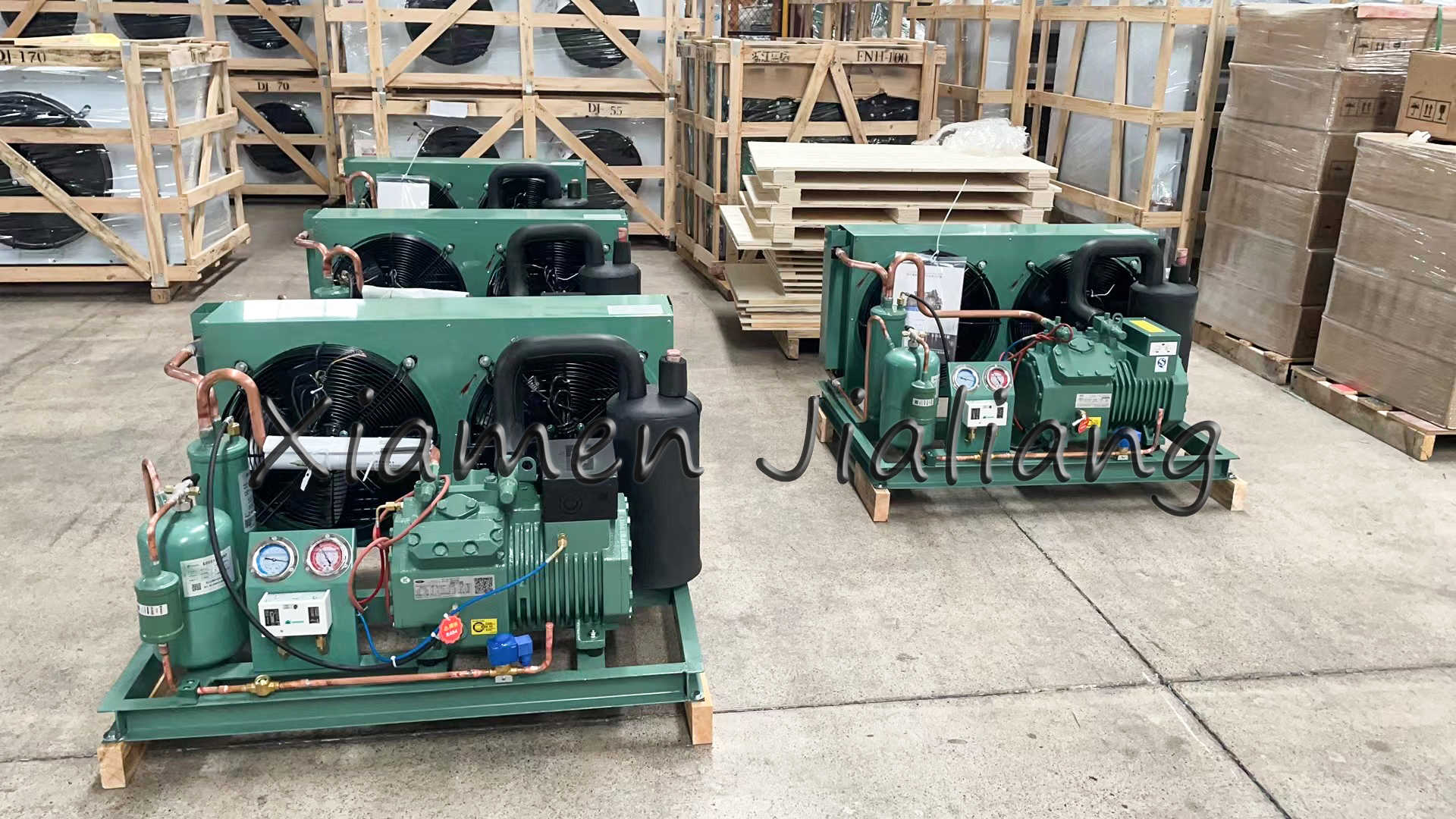

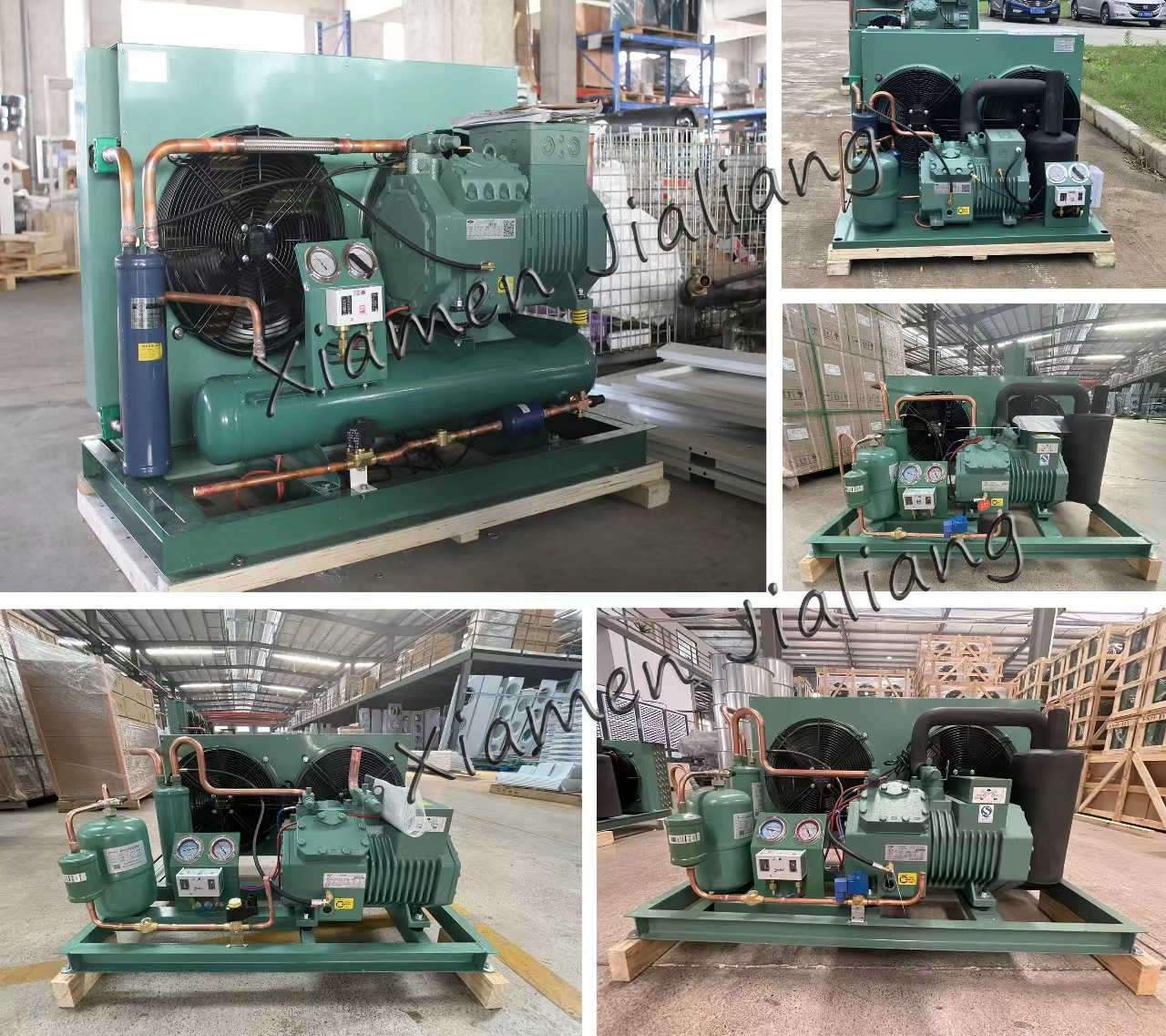

4FES-3Y 3HP Outdoor Industrial Refrigeration Condensing Unit
Freezer Condensing Units for Cold Rooms

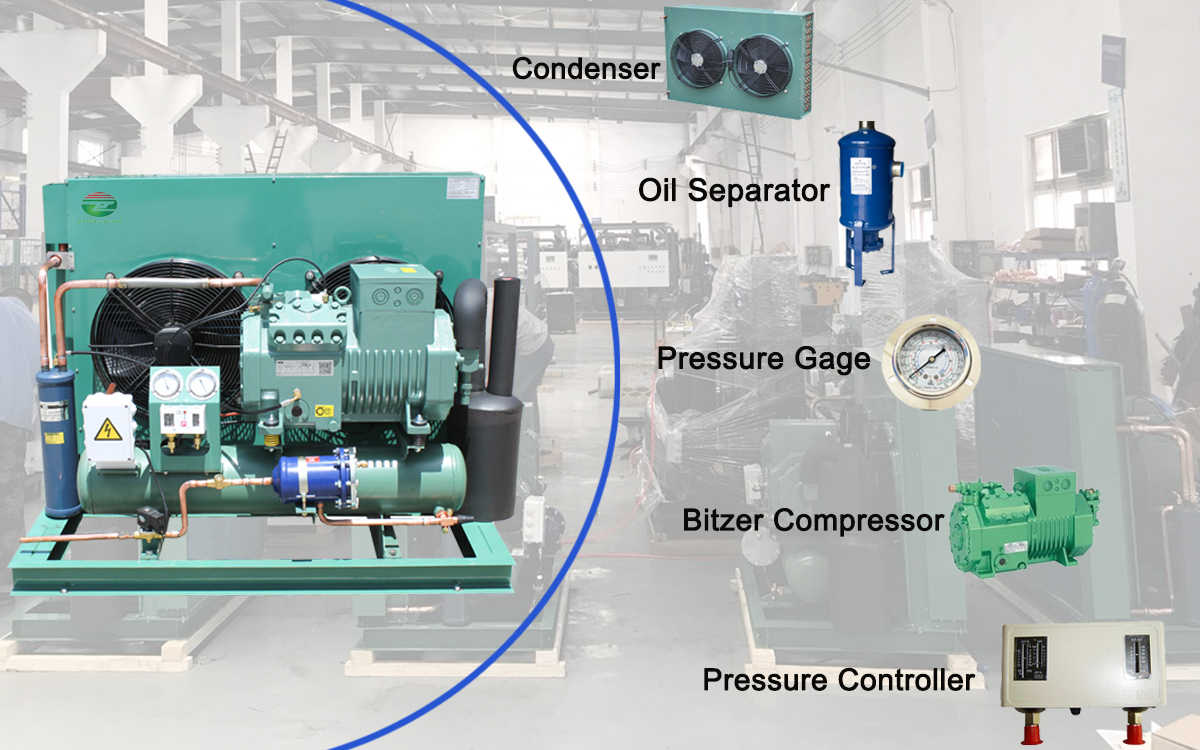

Condensing units play a vital role in various cold room applications. In our series of cold room condensers, we focus on producing units that feature semi-enclosed Bitzer compressors, copper tube aluminum sheet air-cooled condensers, and shell and tube condensers. The air-cooled units are equipped with external rotor fans, ensuring low noise levels and high efficiency.
These units offer the following key functions and features:
1. Reliable Semi-Sealed Piston Compressor: Our units incorporate semi-sealed piston compressors known for their reliable quality and performance.
2. Easy Installation and Maintenance: The open design of our condensing units makes them easy to install and maintain, reducing downtime and operational disruptions.
3. Air Cooling: These units employ air cooling as the primary cooling method, effectively dissipating heat.
4. Efficient Heat Exchanger: Featuring copper tube aluminum finned heat exchangers, our units optimize heat transfer for efficient cooling.
5. Refrigerant Options: Our condensing units are compatible with both R404A and R22 refrigerants, providing flexibility in choosing the appropriate refrigerant for your specific needs.
| Brand Name | Xiamen Jialiang |
| Compressor | 4FES-3Y |
| Compressor Brand | Bitzer |
| Capacity Steps | 100% |
| Warranty | 1 Year |
| Temperature Range | - 11 °C ~ - 28 °C |
| Refrigeration Unit Brand | Xiamen Jialiang |
| Cooling Capacity（The temperature is 0℃） | 5.37 KW |
| Evaporator Capacity（The temperature is 0℃） | 5.37 KW |
| Power Input（The temperature is 0℃） | 3.29 KW |
| Current (400V) | 6.21 A |
| Horse Power | 3 HP |
| Voltage Range | 380-420V |
| Size | Customzised |
| Compressor Type | Semi-hermitic Reciprocating Compressors |
| Refrigerant | R22/R404a/R447a/R448a/R449a/R507a |
| Refrigeration Type | Air Cooled/Water Cooled/Evaporation Cooled |
Customized Services
Technical Requirements for Condensing Unit Components:
1. Fins Specifications:
- Fins are made of aluminum foil.
- Hole spacing: 25mm.
- Row spacing: 21.65mm.
- Sheet spacing: 2.0mm.
- During the flanging process, ensure no cracks around holes, no burrs, fragments, or other defects, and maintain consistent color of the aluminum foil.
2. Fins Assembly:
- After fins assembly, there should be no flipping or dirt on the fins.
3. Connection of Fins and Copper Pipes:
- The connection between fins and copper pipes must be through expansion, ensuring a secure and tight fit with no looseness.
4. Welding of Winter Fiber Points:
- Winter fiber welding points should be firmly welded with no welding defects, such as false soldering or missing soldering.
5. Airtightness Test:
- After component assembly, conduct an airtightness test at a pressure of 3.5 ± 0.2MPa.
- Immerse the assembly in water for a minimum of 5 minutes.
- Ensure that there is no leakage during the test.
6. Fan Specifications:
- Equipped with external rotor motor.
- Fan blade diameter: 2 * 4D450.
7. Pipe Sizes:
- Inlet pipe diameter: 25mm.
- Outlet pipe diameter: 916mm.
FAQ
| Q1: Which brand is associated with the 4FES-3Y condensing unit? |
| A1: It's xiamen jialiang. The supplier will provide detailed information as soon as 4FES-3Y condensing unit possible. |
Q2: What is the estimated shipping time for delivering the 4FES-3Y condensing unit to my country? |
| A2: Please provide port name and country name , we could checking shipping days from shipping agent. |
