- Operate Flexibly Cold Design Outdoor Cold Room Condensing Unit
Elevate Your Refrigeration Systems with Xiamen Jialiang's Expertise and Quality
- Get A Quote
- Description
- Features

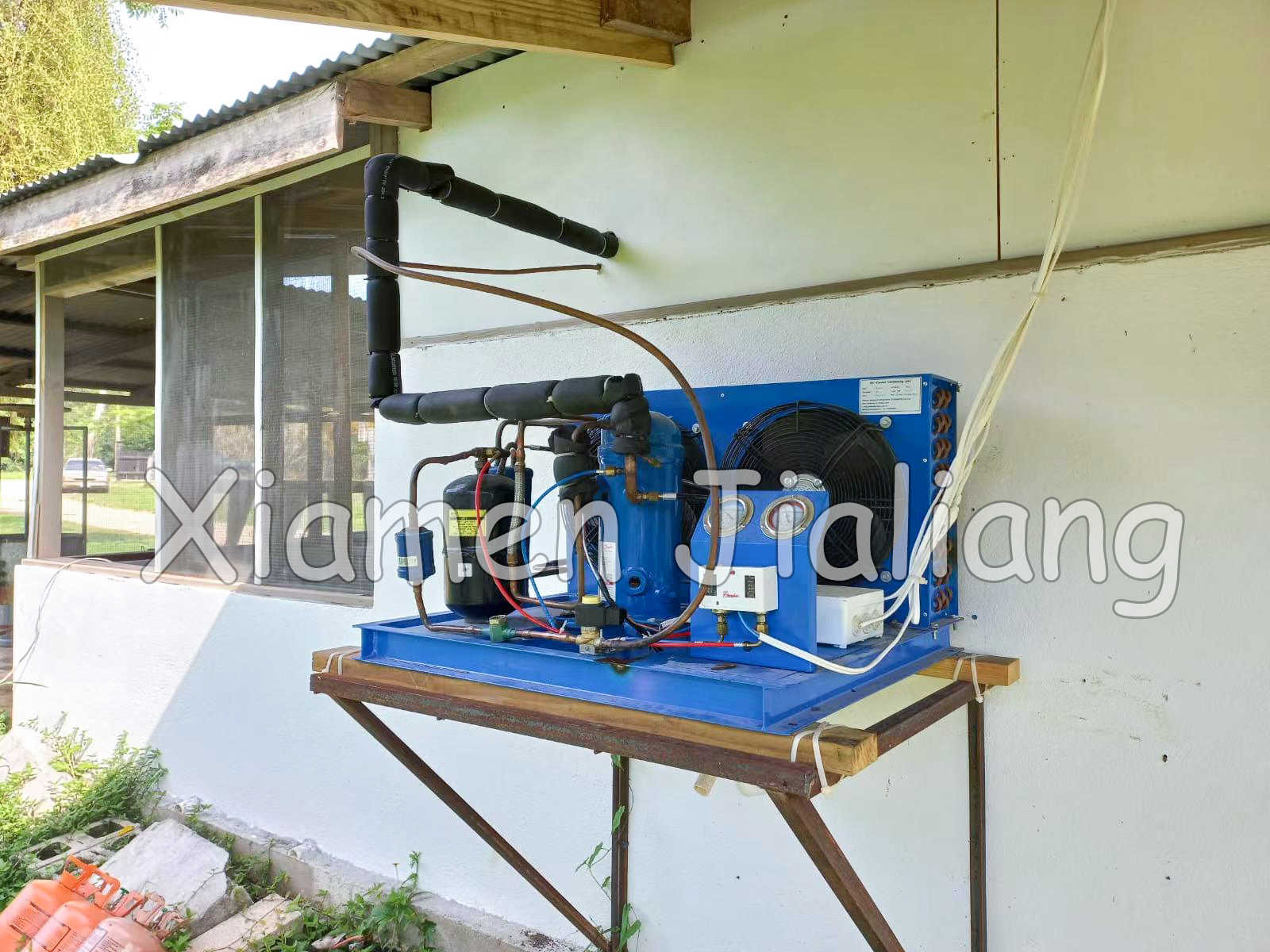

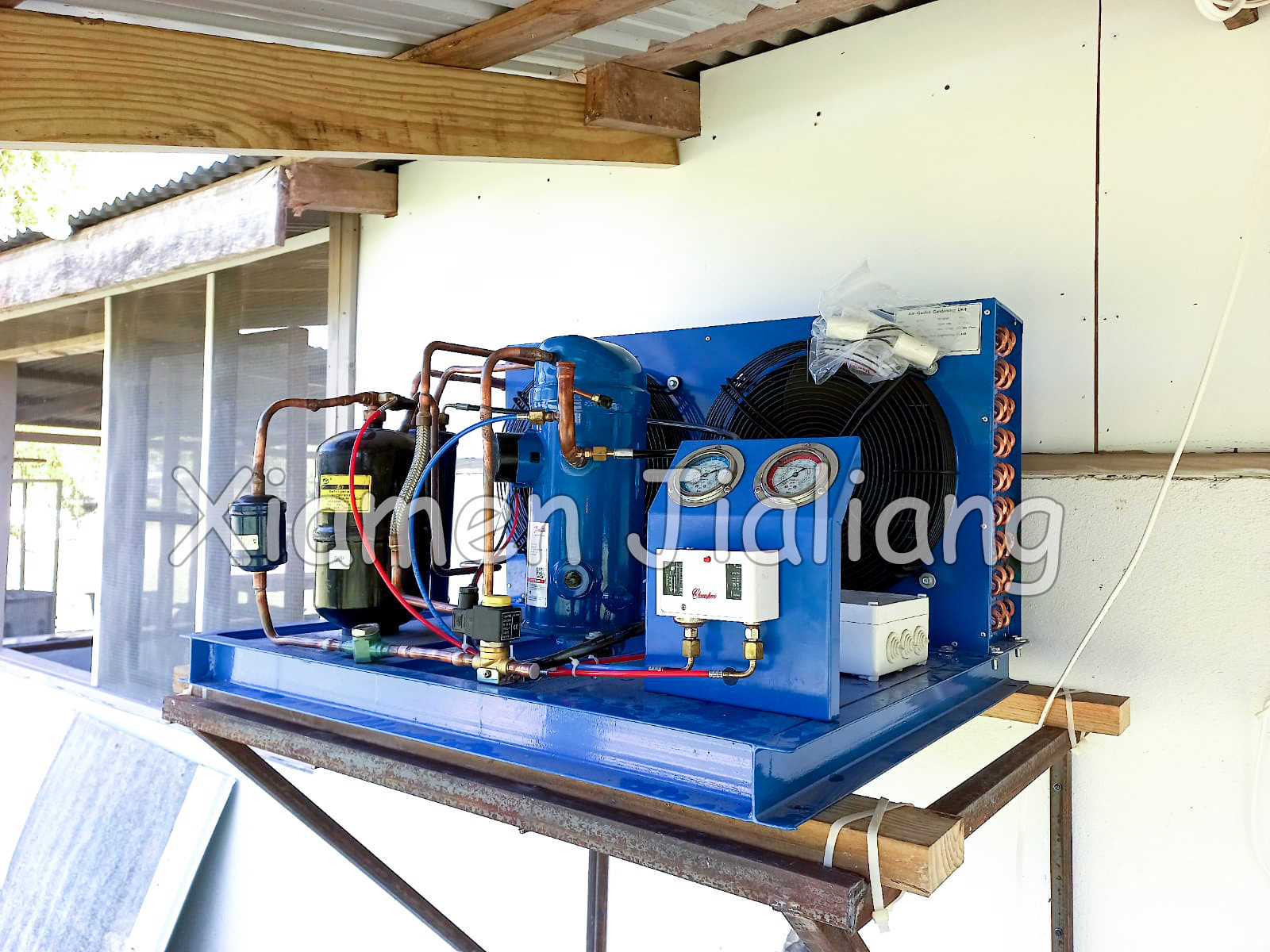

Design Outdoor Cold Room Condensing Unit

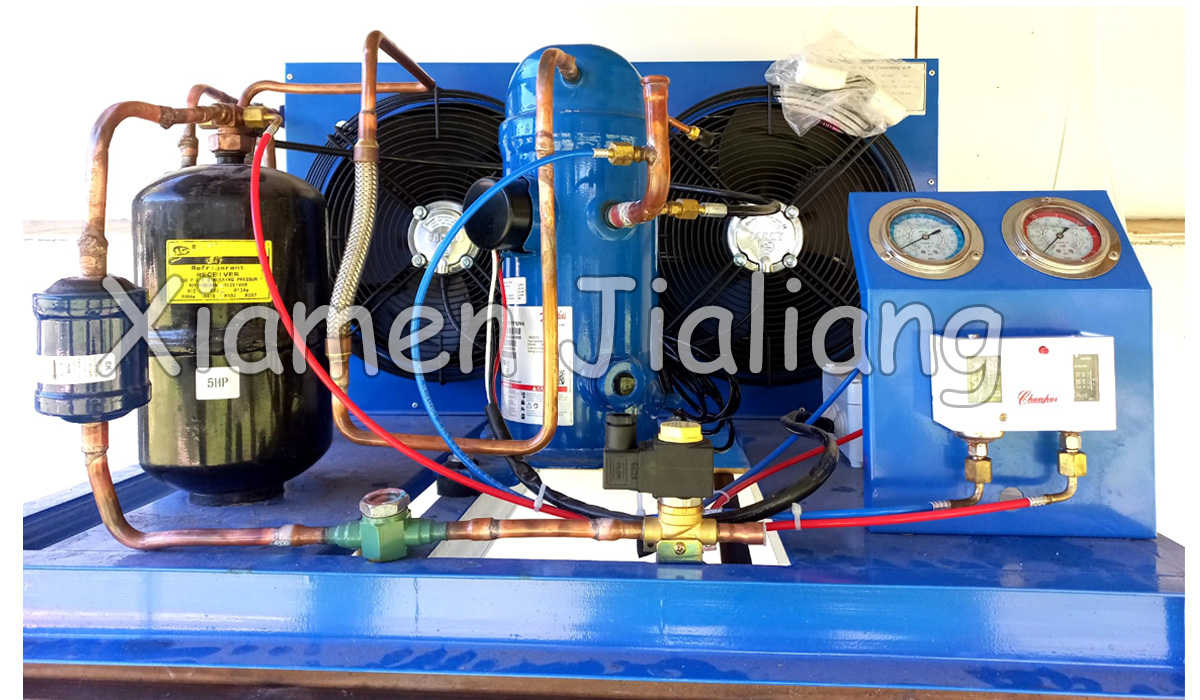

Cold room refrigeration units with Danfoss compressor.
1. Refrigerant: R404a.
2. Temperature range: -18°C.
3. The shape is novel and beautiful, the structure is light and reasonable, and it is easy to install.

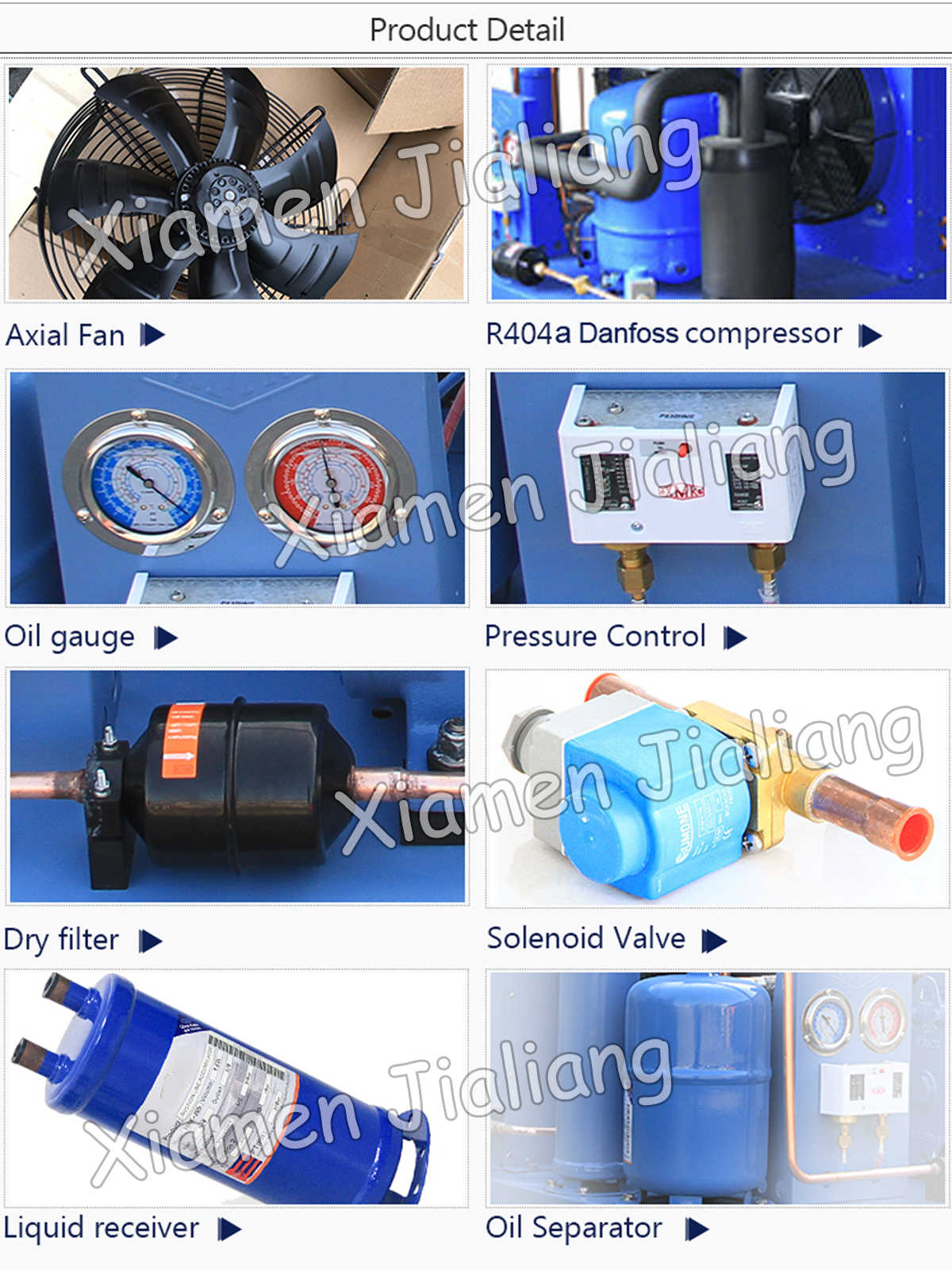

4. Use high-efficiency, low-power, low-noise, high-wind axial flow fan motor.
| Single Phase Condensing Unit | |||||
| Model | MLZ015 | MLZ019 | MLZ021 | MLZ026 | MLZ030 |
| Horse Power | 2HP | 2.5HP | 3HP | 3.5HP | 4HP |
| Compressor | Danfoss | ||||
| Refrigeration Capacity | 3300W | 4500W | 4700W | 5800W | 7100W |
| Btu/h | 11300 | 15400 | 16000 | 19800 | 24200 |
| Input Power | 1.75W | 2.16W | 2.27W | 2.9W | 3.35W |
| COP（W/W） | 1.89 | 2.06 | 2.08 | 2 | 2.11 |
| EER（Btu/h/W） | 6.45 | 7.03 | 7.1 | 6.83 | 7.2 |
| cm3/rev | 33.8 | 43.5 | 46.2 | 57.1 | 68.8 |
| m3/h | 5.9 | 7.6 | 8 | 9.9 | 12 |
| Oil Injection Volume | 1.1L | 1.1L | 1.1L | 1.1L | 1.6L |
| Net Weight (With Oil) | 31kg | 31kg | 31kg | 31kg | 37kg |
| Condensing Temperature | 40℃ | 40℃ | 40℃ | 40℃ | 40℃ |
| Evaporation Temperature (-15 ℃) | |||||
| Refrigeration Capacity (W) | 2.77 | 3.73 | 3.95 | 4.81 | 5.87 |
| Output Power (W) | 1.57 | 1.93 | 2.02 | 2.57 | 2.98 |
| Voltage Range | 220V(50hz) | 220V(50hz) | 220V(50hz) | 220V(50hz) | 220V(50hz) |
| Three Phase Condensing Unit (Special Voltage) | ||||||
| Model | MLZ015 | MLZ019 | MLZ021 | MLZ026 | MLZ030 | MLZ038 |
| Horse Power | 2HP | 2.5HP | 3HP | 3.5HP | 4HP | 5HP |
| Compressor | Danfoss | |||||
| Refrigeration Capacity | 3300W | 4500W | 4700W | 5800W | 7100W | 8400W |
| Btu/h | 11300 | 15400 | 16000 | 19800 | 24200 | 28700 |
| Input Power | 1.75W | 2.16W | 2.27W | 2.9W | 3.35W | 3.86W |
| COP（W/W） | 1.89 | 2.06 | 2.08 | 2 | 2.11 | 2.19 |
| EER（Btu/h/W） | 6.45 | 7.03 | 7.1 | 6.83 | 7.2 | 7.47 |
| cm3/rev | 33.8 | 43.5 | 46.2 | 57.1 | 68.8 | 81 |
| m3/h | 5.9 | 7.6 | 8 | 9.9 | 12 | 14.1 |
| Oil Injection Volume | 1.1L | 1.1L | 1.1L | 1.1L | 1.6L | 1.6L |
| Net Weight (With Oil) | 31kg | 31kg | 31kg | 31kg | 37kg | 37kg |
| Condensing Temperature | 40℃ | 40℃ | 40℃ | 40℃ | 40℃ | 40℃ |
| Evaporation Temperature (-15 ℃) | ||||||
| Refrigeration Capacity (W) | 2.77 | 3.73 | 3.95 | 4.81 | 5.87 | 7.06 |
| Output Power (W) | 1.57 | 1.93 | 2.02 | 2.57 | 2.98 | 3.42 |
| Voltage Range | 220V(50hz) | 220V(50hz) | 220V(50hz) | 220V(50hz) | 220V(50hz) | 220V(50hz) |
Why did you choose our compressor condenser unit?
Production: All processes are well controlled. Manufacturing workers have extensive experience in high-quality refrigeration
About price: Generally we follow a complete work process to save costs for customers while maintaining high quality.
As a manufacturer, we can customize products according to your requirements. If you don't know which model is suitable for you, please leave us a message. Our responsibility is to customize solutions for you.
FAQ
| Q1: How efficient is the refrigeration of a danfoss condensing unit? |
| A1: The refrigeration efficiency of a danfoss condensing unit depends on its refrigeration system design and energy efficiency rating. High-quality units generally have higher refrigeration efficiency, achieving the same cooling effect with less energy consumption. |
| Q2: What is the energy consumption of a danfoss condensing unit? |
| A2: The energy consumption of a danfoss condensing unit depends on its refrigeration system design, operating time, and load, among other factors. High-quality units generally have lower energy consumption, resulting in reduced operating costs. |
