Home / Condensing Unit
condensing unit
    • Factory Price 6H-25.2 25HP 25hp Compressor China Condensing Unit

    • Globally Leading Cold Storage Solutions

      • 6H-25.2R404aXiamen JialiangAir Cooled-11℃~-28℃-10℃~15℃
    • Get A Quote
    • Description
    • Features

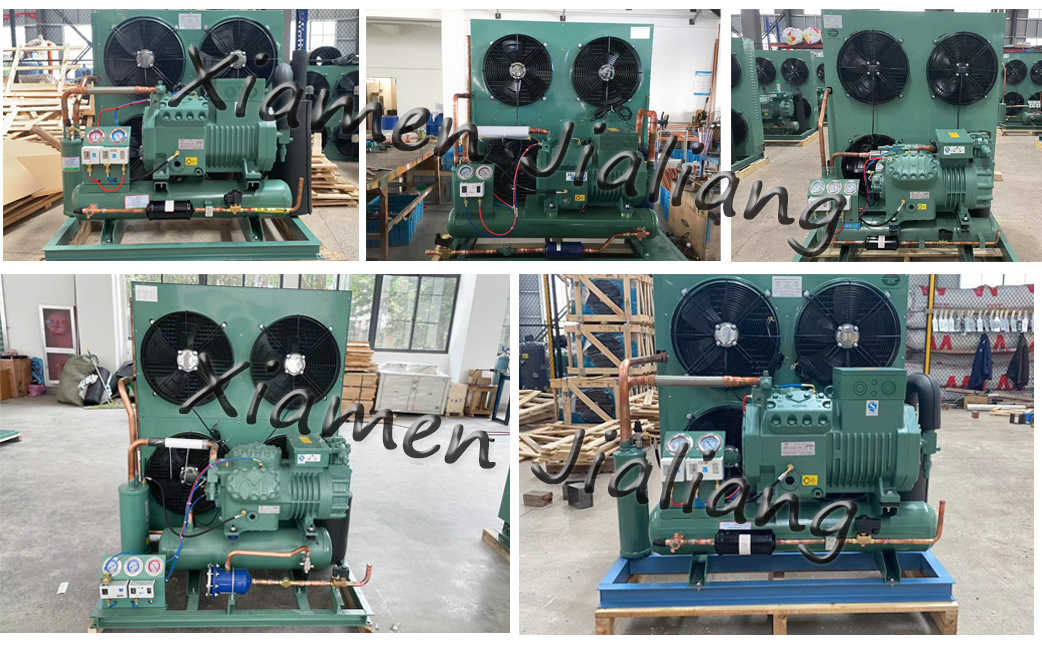

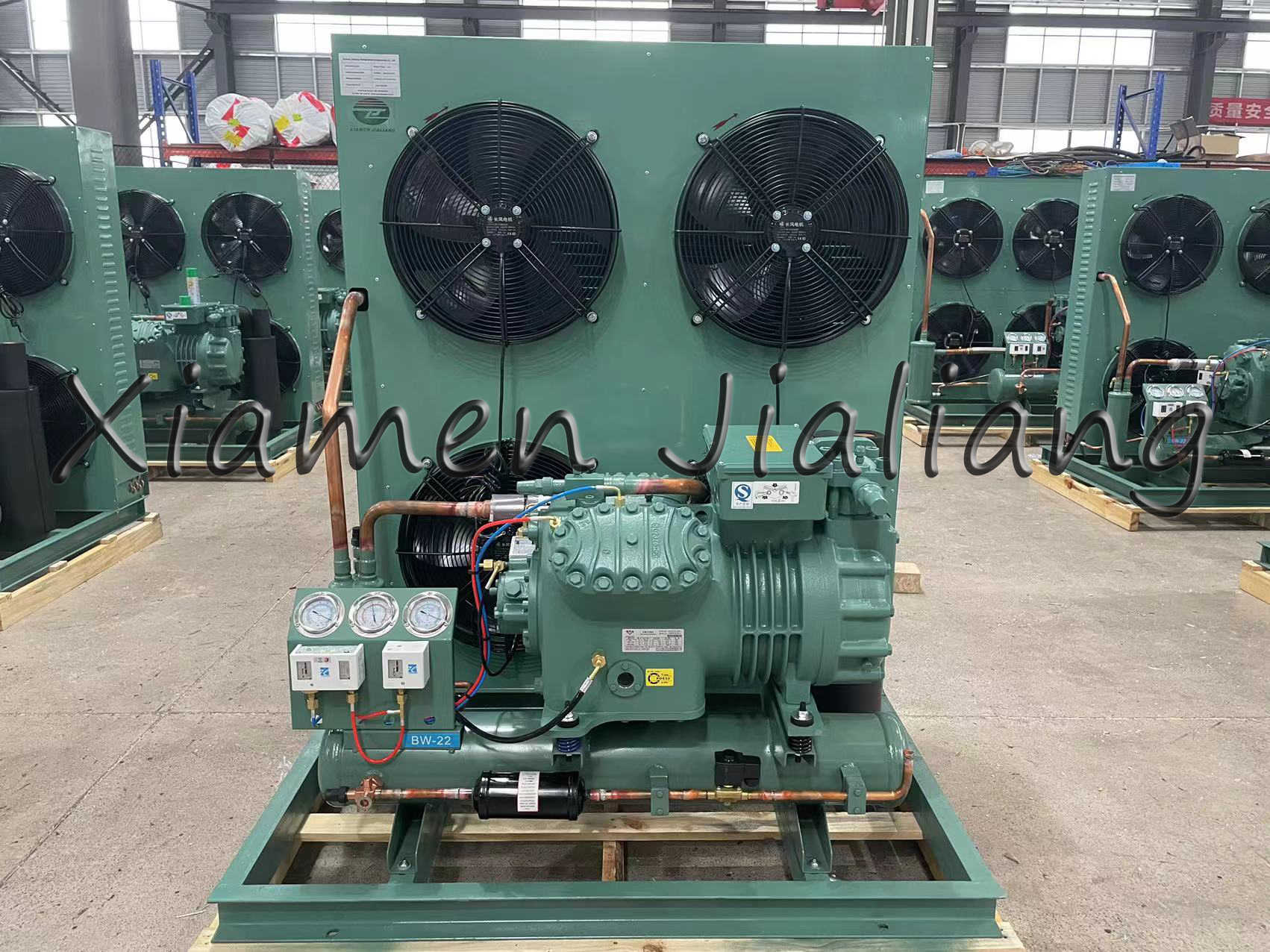

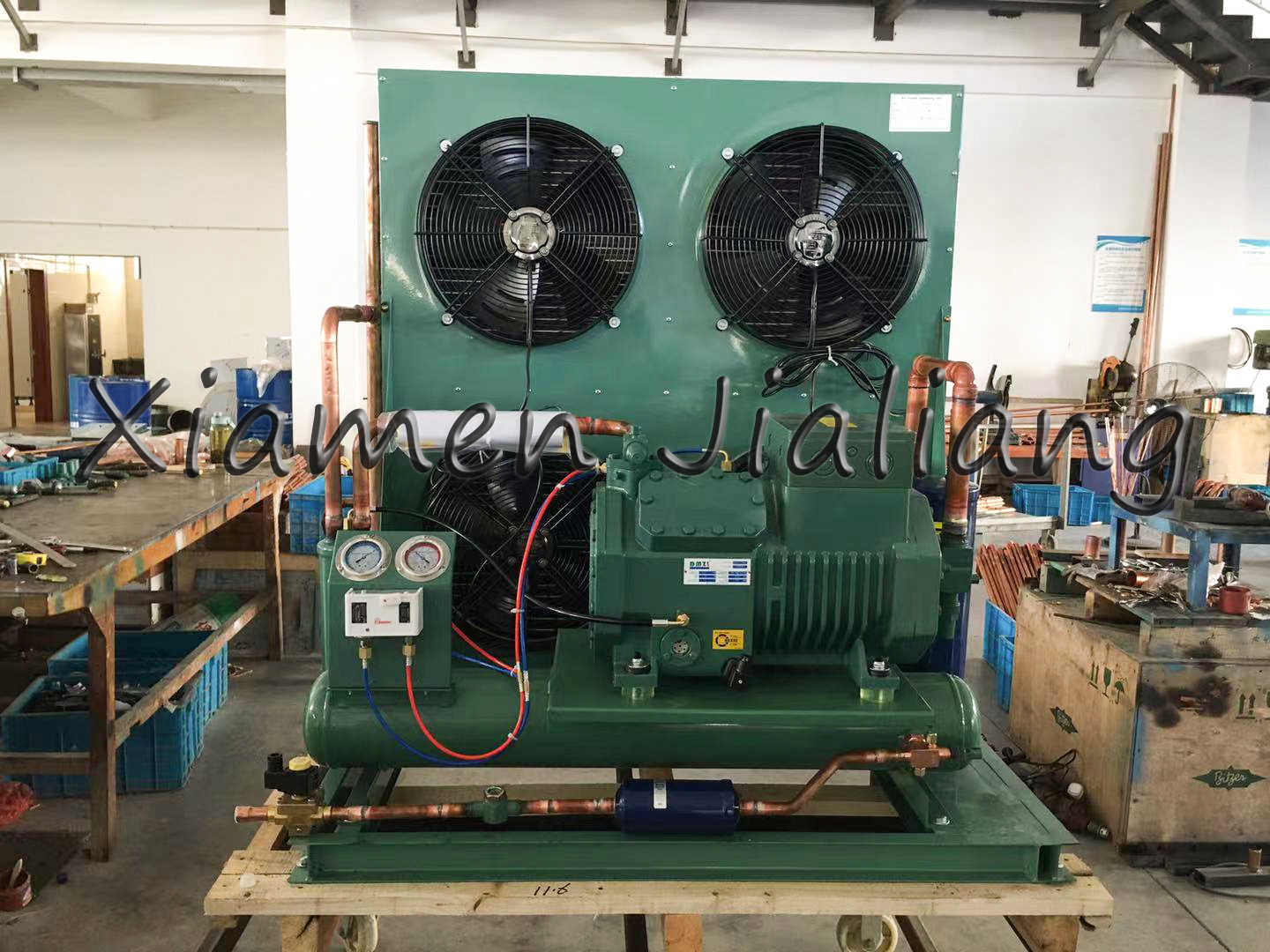

    6H-25.2 25HP 25hp Compressor China Condensing Unit

    Our Commitments about cold room condenser:

    1. Customizable Configurations: We assure you of flexible configuration options. The unit's accessories can be tailored to meet specific demands. You can choose to enlarge the condenser or liquid receiver, and upgrade components such as the oil filter, solenoid valve, sight glass, or pressure controller to internationally renowned accessories.

    2. Elegant Design: Our units not only possess a beautiful and generous appearance but also feature professionally designed pipelines. These pipeline designs have evolved over many years of customer feedback to meet operational requirements effectively.

    3. Superior Quality: Our commitment to excellence includes the use of high-quality accessories, professional design, and reliable operation. The unit's exterior undergoes a comprehensive spraying process, resulting in a uniform and vibrant color finish that resists paint peeling.

    Brand NameXiamen Jialiang
    Compressor6H-25.2
    Compressor BrandXiamen Jialiang
    Condensing Temperature40℃
    Warranty1 Year
    Temperature Range-10℃~15℃
    Refrigeration Unit BrandXiamen Jialiang
    Cooling Capacity（The temperature is -5℃）74.7 KW
    Evaporator Capacity（The temperature is -5℃）74.7 KW
    Voltage Range

    380~420YY/3/50

    440~480YY/3/60

    Engine Displacement (50Hz) m/h110.5 m
    Current (400V)45 A
    Horse Power25 HP
    SizeCustomzised
    Compressor TypeSemi-hermitic Reciprocating Compressors
    RefrigerantR22/R404a/R447a/R448a/R449a/R507a
    Refrigeration TypeAir Cooled/Water Cooled/Evaporation Cooled

    Customized Services

    Compact and Elegant Design: Presents a compact and sophisticated appearance, adding aesthetic appeal.

    Pre-Assembled for Easy Installation: Arrives fully assembled and prepared for installation, reducing assembly time and costs.

    Versatile Operating Range: Offers a broad operating range, ensuring suitability for various applications and environments.

    FAQ

    Q1: Is the cooling efficiency of the 6H-25.2 condensing unit affected by ambient temperature

    A1: Yes, the cooling efficiency of the condensing unit is affected by ambient temperature. High ambient temperatures may cause the cooling efficiency of the unit to decrease, so additional cooling measures may be required in hot environments.

    Q2: What are the installation methods of the 6H-25.2 condensing unit?

    A2: The installation methods of the condensing unit include floor installation and wall installation. You can choose the appropriate installation method based on site and space requirements.
