- Blue 380V Condensing Unit For Freezer Room
Advanced refrigeration equipment can achieve precise temperature control
- Get A Quote
- Description
- Features

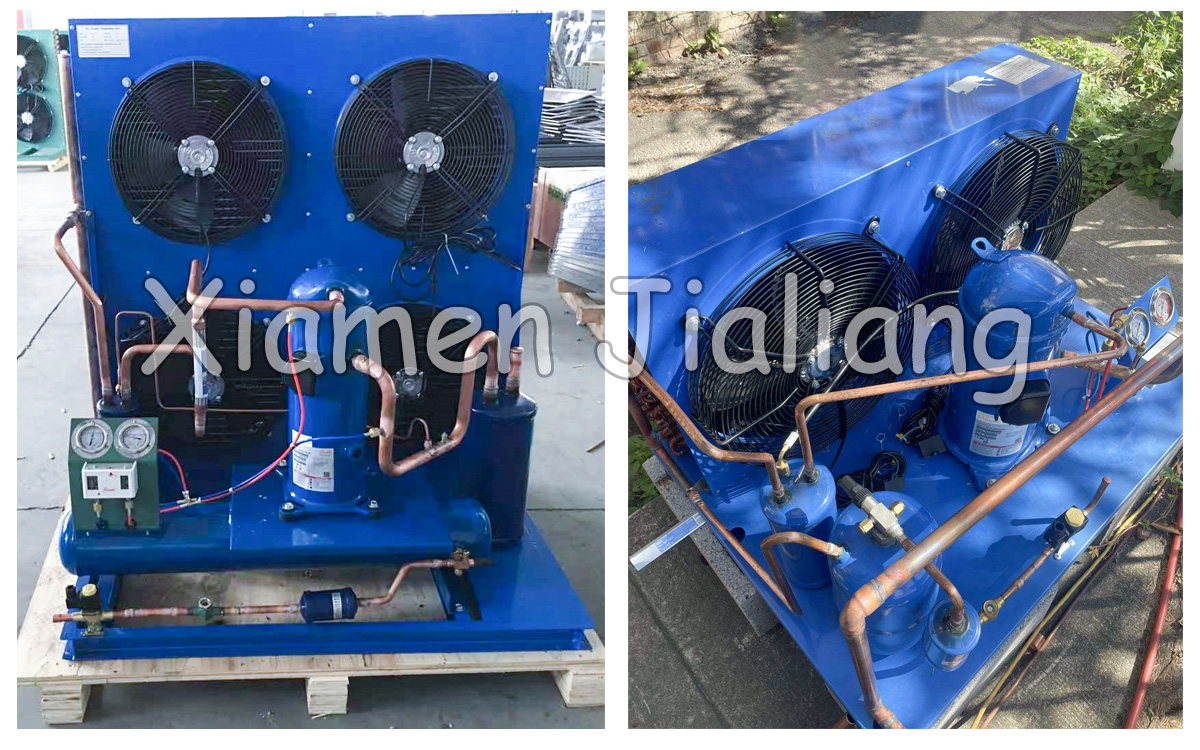

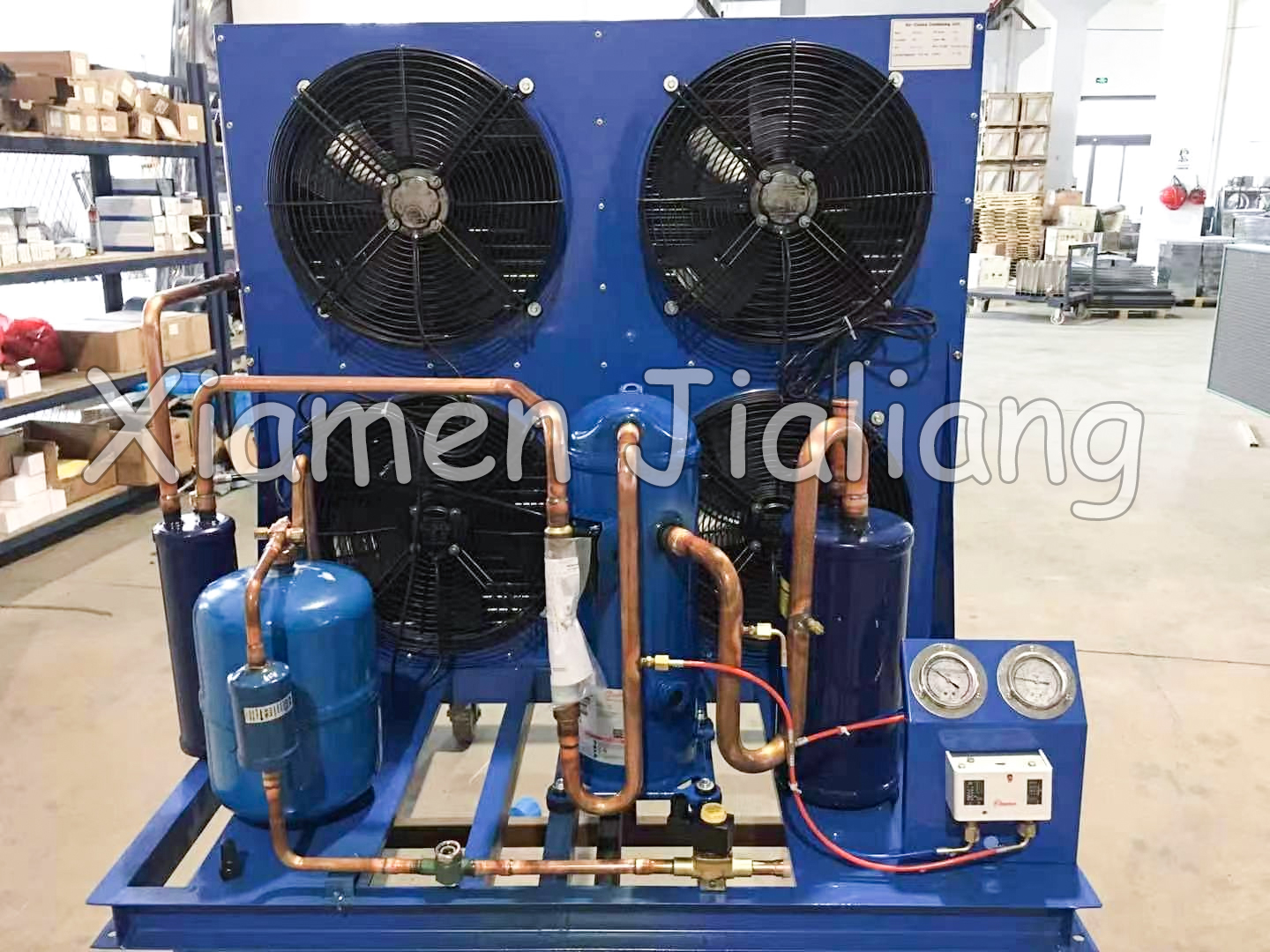

Blue 380V Condensing Unit For Freezer Room
| Single Phase Condensing Unit | |||||
| Model | MLZ015 | MLZ019 | MLZ021 | MLZ026 | MLZ030 |
| Horse Power | 2HP | 2.5HP | 3HP | 3.5HP | 4HP |
| Compressor | Danfoss | ||||
| Refrigeration Capacity | 3300W | 4500W | 4700W | 5800W | 7100W |
| Btu/h | 11300 | 15400 | 16000 | 19800 | 24200 |
| Input Power | 1.75W | 2.16W | 2.27W | 2.9W | 3.35W |
| COP（W/W） | 1.89 | 2.06 | 2.08 | 2 | 2.11 |
| EER（Btu/h/W） | 6.45 | 7.03 | 7.1 | 6.83 | 7.2 |
| cm3/rev | 33.8 | 43.5 | 46.2 | 57.1 | 68.8 |
| m3/h | 5.9 | 7.6 | 8 | 9.9 | 12 |
| Oil Injection Volume | 1.1L | 1.1L | 1.1L | 1.1L | 1.6L |
| Net Weight (With Oil) | 31kg | 31kg | 31kg | 31kg | 37kg |
| Condensing Temperature | 40℃ | 40℃ | 40℃ | 40℃ | 40℃ |
| Evaporation Temperature (-15 ℃) | |||||
| Refrigeration Capacity (W) | 2.77 | 3.73 | 3.95 | 4.81 | 5.87 |
| Output Power (W) | 1.57 | 1.93 | 2.02 | 2.57 | 2.98 |
| Voltage Range | 220V(50hz) | 220V(50hz) | 220V(50hz) | 220V(50hz) | 220V(50hz) |
| Three Phase Condensing Unit | ||||||
| Model | MLZ015 | MLZ019 | MLZ021 | MLZ026 | MLZ030 | MLZ038 |
| Horse Power | 2HP | 2.5HP | 3HP | 3.5HP | 4HP | 5HP |
| Compressor | Danfoss | |||||
| Refrigeration Capacity | 3300W | 4500W | 4700W | 5800W | 7100W | 8400W |
| Btu/h | 11300 | 15400 | 16000 | 19800 | 24200 | 28700 |
| Input Power | 1.75W | 2.16W | 2.27W | 2.9W | 3.35W | 3.86 |
| COP（W/W） | 1.89 | 2.06 | 2.08 | 2 | 2.11 | 2.19 |
| EER（Btu/h/W） | 6.45 | 7.03 | 7.1 | 6.83 | 7.2 | 7.47 |
| cm3/rev | 33.8 | 43.5 | 46.2 | 57.1 | 68.8 | 81 |
| m3/h | 5.9 | 7.6 | 8 | 9.9 | 12 | 14.1 |
| Oil Injection Volume | 1.1L | 1.1L | 1.1L | 1.1L | 1.6L | 1.6L |
| Net Weight (With Oil) | 31kg | 31kg | 31kg | 31kg | 37kg | 37 |
| Horse Power | 2HP | 2.5HP | 3HP | 3.5HP | 4HP | 5HP |
| Condensing Temperature | 40℃ | 40℃ | 40℃ | 40℃ | 40℃ | 40℃ |
| Evaporation Temperature (-15 ℃) | ||||||
| Refrigeration Capacity (W) | 2.77 | 3.73 | 3.95 | 4.81 | 5.87 | 7.06 |
| Output Power (W) | 1.57 | 1.93 | 2.02 | 2.57 | 2.98 | 3.42 |
| Voltage Range | 220V(50hz) | 220V(50hz) | 220V(50hz) | 220V(50hz) | 220V(50hz) | 220V(50hz) |
Customized Services
FAQ
Q1: What is a danfoss condensing unit？ |
A1: A danfoss condensing unit is a refrigeration equipment designed for refrigeration or freezing storage. It includes key components such as compressors, condensers, and evaporators, used to maintain a stable low temperature inside the cold storage. |
Q2: How is the cooling capacity of a danfoss condensing unit measured? |
A2: The cooling capacity of a danfoss condensing unit is typically measured in "refrigeration capacity" or "cooling power" to represent the amount of heat it removes per unit of time. |
Q3: What is the application scope of a danfoss condensing unit? |
A3: danfoss condensing units are widely used in industries such as food, pharmaceuticals, and chemicals, for refrigeration and freezing storage of various goods and items. |
Q4: How often does a danfoss condensing unit require maintenance? |
A4: The maintenance frequency of a danfoss condensing unit typically depends on its usage and environmental conditions. In general, it is recommended to conduct comprehensive maintenance at least once a year. |
