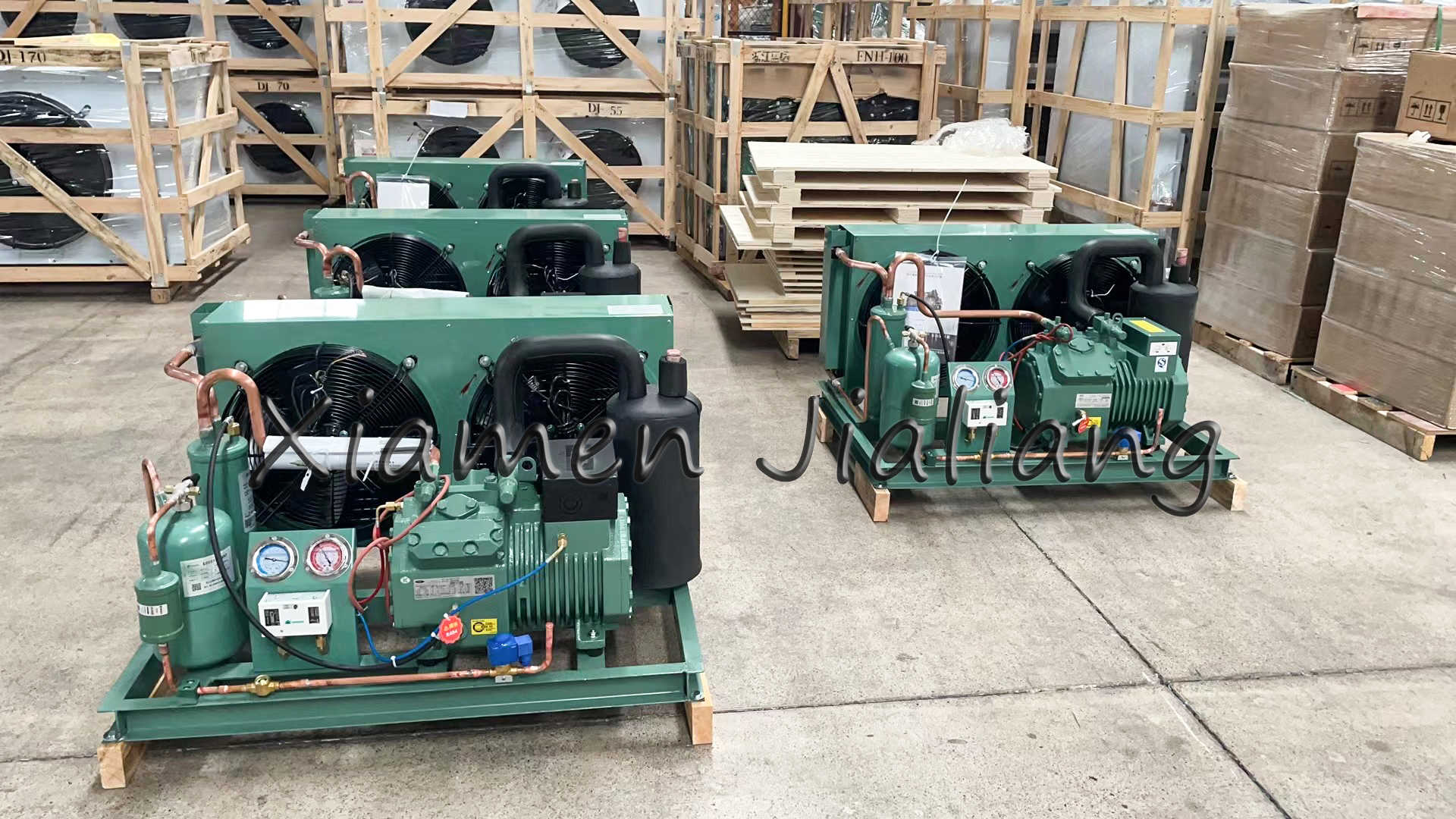

2FES-2Y 2HP Refrigeration Condensing Unit
Condensing Units in Cold Rooms:

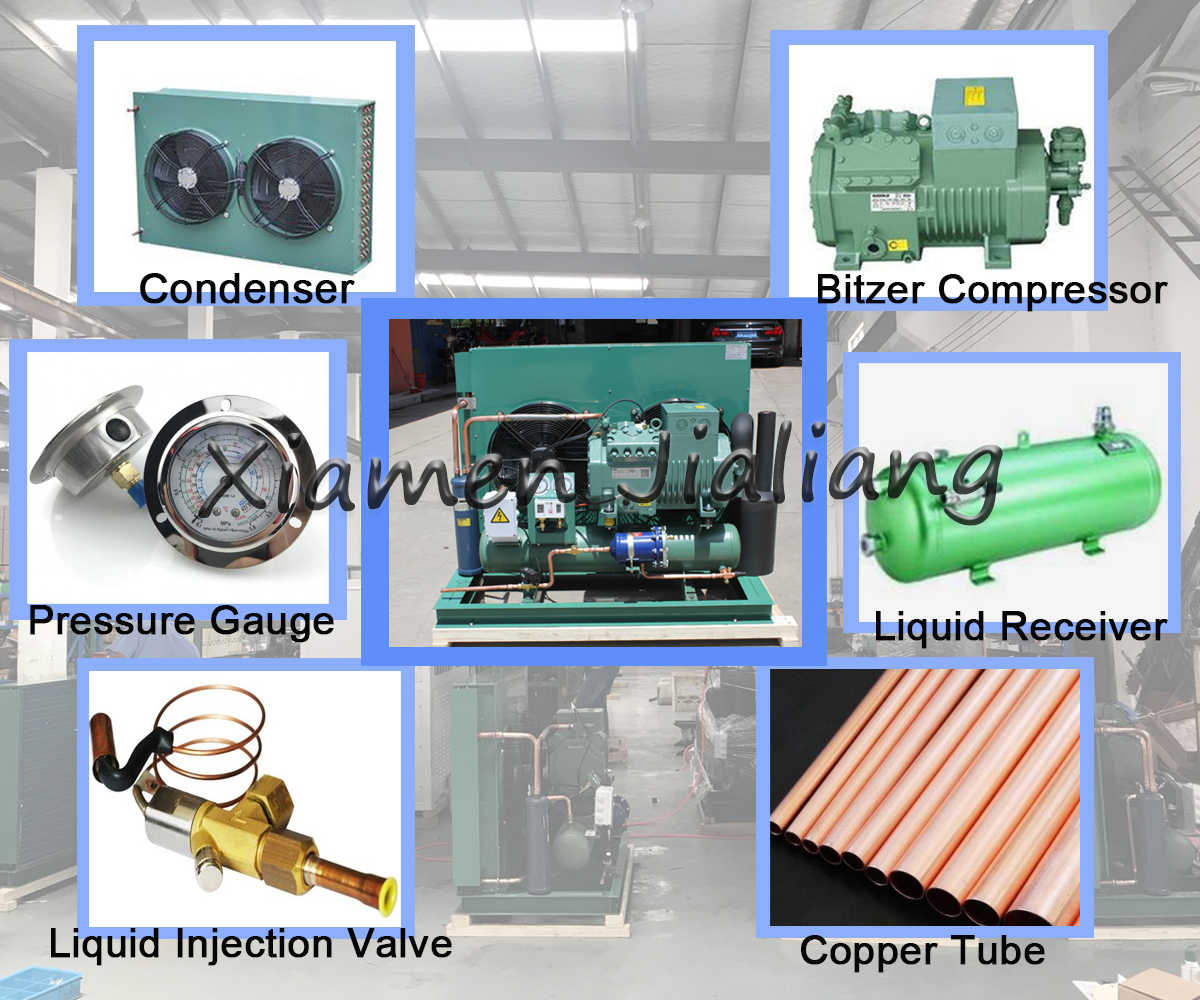

Condensing units play a crucial role in various cold room applications. In this series of condensing units, we primarily utilize semi-enclosed Bitzer compressors, copper tube aluminum sheet air-cooled condensers, and shell and tube condensers. Additionally, our air-cooled units incorporate external rotor fans, delivering not only high efficiency but also low noise levels.
These condensing units offer the following key functions:
1. Reliable Compressor: They feature a semi-sealed piston compressor known for its reliability and quality.
2. Ease of Installation and Maintenance: These units are designed for straightforward installation and maintenance.
3. Cooling Method: Utilizes air cooling for efficient heat dissipation.
4. Efficient Heat Exchanger: Equipped with copper tube aluminum finned heat exchangers, ensuring optimal heat transfer.
5. Refrigerant Options: They are compatible with both R404A and R22 refrigerants, providing flexibility for different cooling needs.
| Brand Name | Xiamen Jialiang |
| Compressor | 2FES-2Y |
| Compressor Brand | Bitzer |
| Capacity Steps | 100% |
| Warranty | 1 Year |
| Temperature Range | - 11 °C ~ 28 °C |
| Refrigeration Unit Brand | Xiamen Jialiang |
| Cooling Capacity（The temperature is 0℃） | 2.54 KW |
| Evaporator Capacity（The temperature is 0℃） | 2.54 KW |
| Power Input（The temperature is 0℃） | 1.77 KW |
| Current (400V) | 3.52 A |
| Horse Power | 2 HP |
| Voltage Range | 380-420V |
| Size | Customzised |
| Compressor Type | Semi-hermitic Reciprocating Compressors |
| Refrigerant | R22/R404a/R447a/R448a/R449a/R507a |
| Refrigeration Type | Air Cooled/Water Cooled/Evaporation Cooled |
Customized Services
Technical requirements:
1. The fins are made of aluminum foil with a hole spacing of 25mm, a row spacing of 21.65mm, and a sheet spacing of 2.0mm; When flanging holes, there should be no cracks around them,
There should be no burrs, fragments or other adverse phenomena, and the color of the aluminum foil should be consistent:
2. After the assembly of the fins, there should be no flipping or dirt on them.
3. The connection between the fins and copper pipes must be through expansion, ensuring firmness without any looseness.
4. Winter fiber welding points must be securely welded, free from welding defects such as false soldering and missing soldering.
5. Upon completion of component assembly, it is mandatory to conduct an airtightness test at a pressure of 3.5 ± 0.2MPa. Submerge the unit in water for a minimum of 5 minutes to ensure there are no leaks.
6. The fan must be equipped with an external rotor motor with a blade diameter of 2 * 4D450.
7. Inlet pipe diameter should be 25mm, while the outlet pipe diameter should be 916mm.
FAQ
| Q1: What is your 2FES-2Y condensing unit brand? |
| A1: It's xiamen jialiang. The supplier will provide detailed information as soon as 2FES-2Y condensing unit possible. |
| Q2: How long does it take to ship the 2FES-2Y condensing unit to my country? |
| A2: Please provide port name and country name , we could checking shipping days from shipping agent. |
