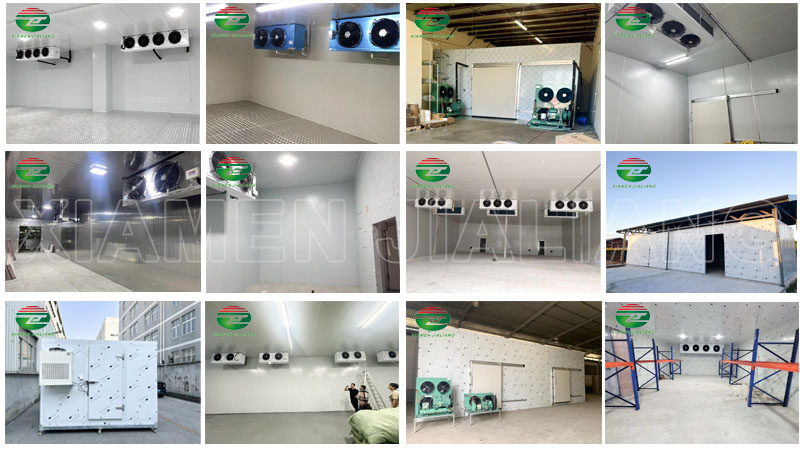

Cold Room for Commercial Use and Storage
Introduction of cold store:
Cold room is a warehouse that artificially generates a specific temperature. It is usually designed to store products in an
environment below the outside temperature. Combination cold room was assembled by PU panels,cold room at the same time has good
air tightness and heat insulation effect.
According to the requirements of use of thermal insulation and cold room panel place is different, can choose different size and
the thickness of the material according to the requirements of panel products.
Cold store features:
1. Temperature range: for Vegetables and Fruits -5°C+5°C are all available; for Meat and Seafood -18°C.
2.Size: Customization.
3. Function: preservation, freezing, quick freezing.
4. Good performance, low noise and high reliability.
As specialists in cold rooms and refrigeration, we can help design a cold room tailored to your needs, provide suitable equipment, and arrange for professional installation and after-sales support. However, before making a purchase, it's important to understand some key considerations and facts about cold rooms to choose the right one for your requirements.
| Thickness of panels | 75mm 5℃ to 15℃ 100mm -15℃ to 5℃ 120mm -20℃ to -15℃ 150mm -30℃ to -20℃ 200mm lower than -30℃ |
| Panel Length | Customized longest: 11.8m (according to container dimension) |
| Panel Width | 960mm standard Customization Available |
| Density | ≥ 42kg/m³ |
Semi-hermetic Condensing Unit
•Compressor Optional:
Semi-hermetic
•Condenser:Air cooled or Water
cooled(for higher ambient temperature)
•Frame:can be stell shell with spray painting or open type on stell frame
•Refrigerant:R22/R404a/R507a
•Capacity:Singe compressor 2HP-50HP
| Model | Temperature | Application |
| DL | -5~+15°C | Fruit,vegetable,flower |
| DD | -18~-10°C | Frozen meat, fish, seafood. |
| DJ | -25~-20°C | Ice cream |
The temperature of a cold room depends on the items being stored. For example, the temperature for storing fruits and vegetables ranges from -5°C to 10°C, while for meat storage, it is typically -18°C to -25°C. Temperature requirements may also vary for ripening agricultural products (18-22°C) and pharmaceutical storage (-18°C to -25°C). Different products have different temperature needs, so it's essential to consult with us if you're unsure about the specific requirements for your products.
Xiamen Jialiang the leading cold room and refrigeration unit designer, manufacturer, and exporter dedicated to supplying the finest quality cold room solutions to worldwide customers. Our innovative, high-quality products and solutions include Cold Room, Evaporator,Condensing Unit, Cold Room Door, PU Panel, etc. We are willing to become your partners with our high cost-performance cold room, excellent quality, and perfect after-sale service.
| Q1: How much electricity does a cold storage consume per day? |
| A1: Depending on the size of the room and the corresponding machines, the typical power consumption is the number of machines per hour. |
| Q2: Please give me the price for cold storage? |
| A2: Hello, our products are customized, and we need you to provide some data: 1. What is the size of the cold room? 2. What is the temperature required for the cold room? 3. What voltage can you use? |
| Q3: Is your cold storage disassembled for transportation? |
| A3: Yes, on the one hand, it protects the goods, and on the other hand, it can reduce the number of cubic meters |
