Product Information

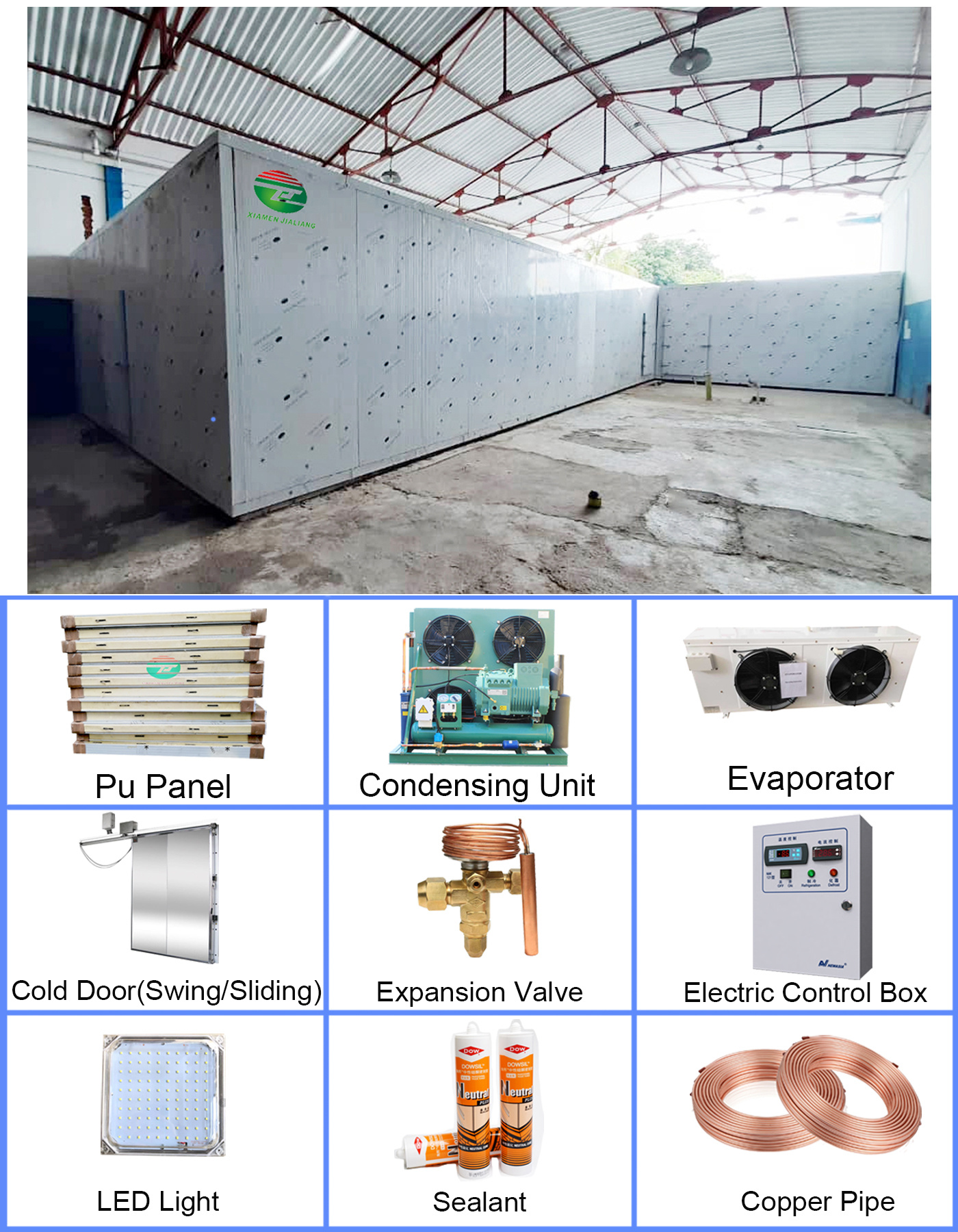

A cold room can be categorized into different types based on temperature requirements, including high temperature, medium temperature, and low temperature cold rooms, along with a quick freezing room. These cold rooms are typically composed of various components, such as panels, condensing units, evaporators, doors, and electric control boxes, among others.

A walk-in freezer, featuring PU/PIR panels with high panel density, is known for its energy efficiency, resulting in a 20% reduction in power consumption and cost savings. This type of cold storage is indispensable in a variety of applications, including restaurants, food warehouses, and the food and beverage industry, to name a few.

Polyurethane (PU) Panels with Cam-Lock

- Panel Surface: These panels are available with surface options including color steel (PPGI), stainless steel, and aluminum.

- Thickness: PU panels are offered in various thicknesses, ranging from 50mm to 200mm.

- Density: The density of these panels is approximately 45 KG/m3.

Condensing Unit

- Condenser: The condensing unit can be air-cooled or water-cooled, providing flexibility to suit different requirements.

- Frame: The unit is housed in a steel shell with spray painting, featuring an open design on a steel frame.

- Refrigerant: Options for refrigerants include R449a, R404a, and R410a.

Evaporator

- Shell: The evaporator's shell is constructed with steel and can include materials such as galvanized steel or SS304 (stainless steel).

- Fins: The evaporator is equipped with blue fins, which enhance heat exchange efficiency.

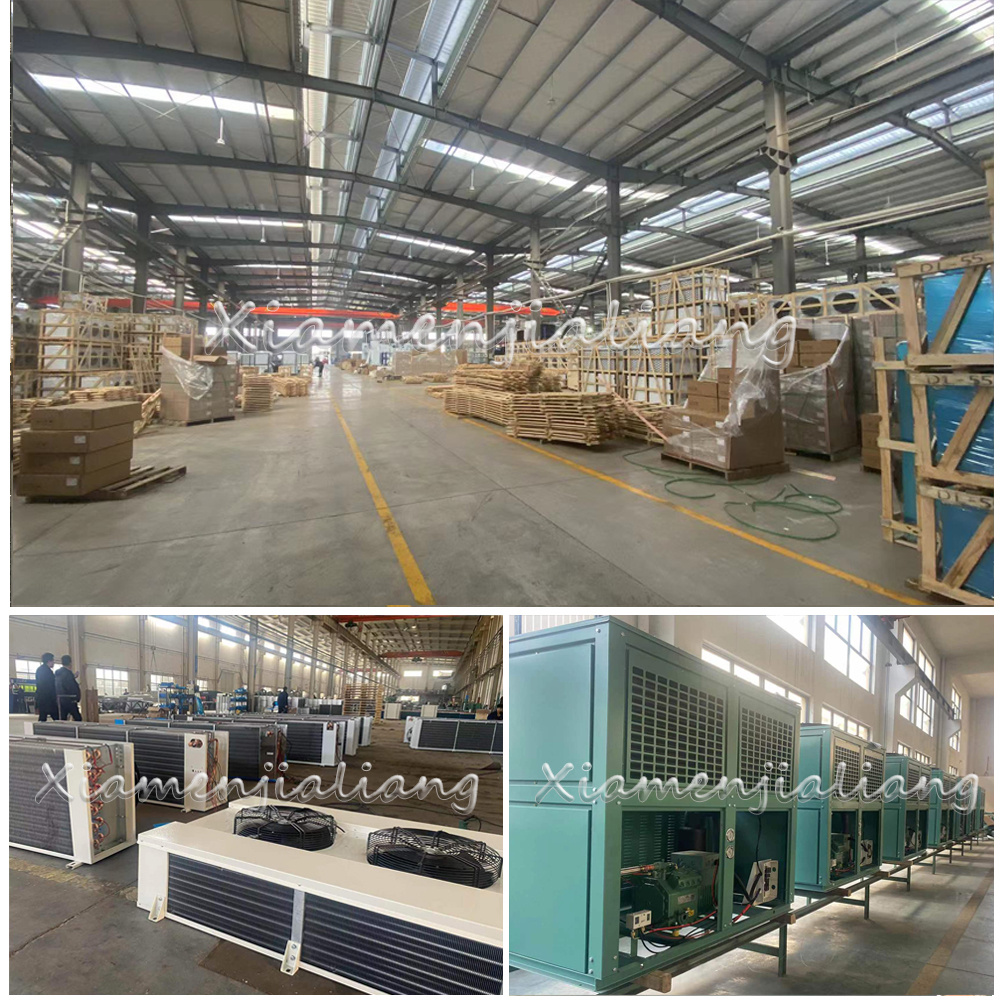

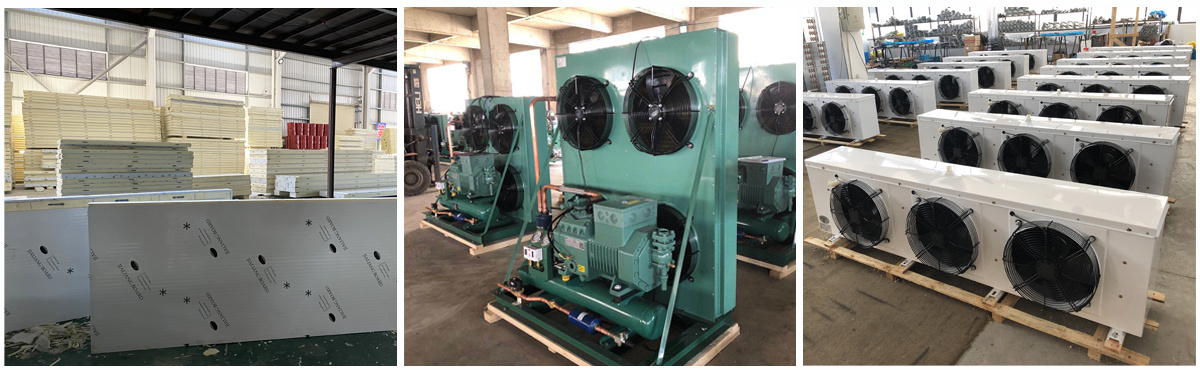

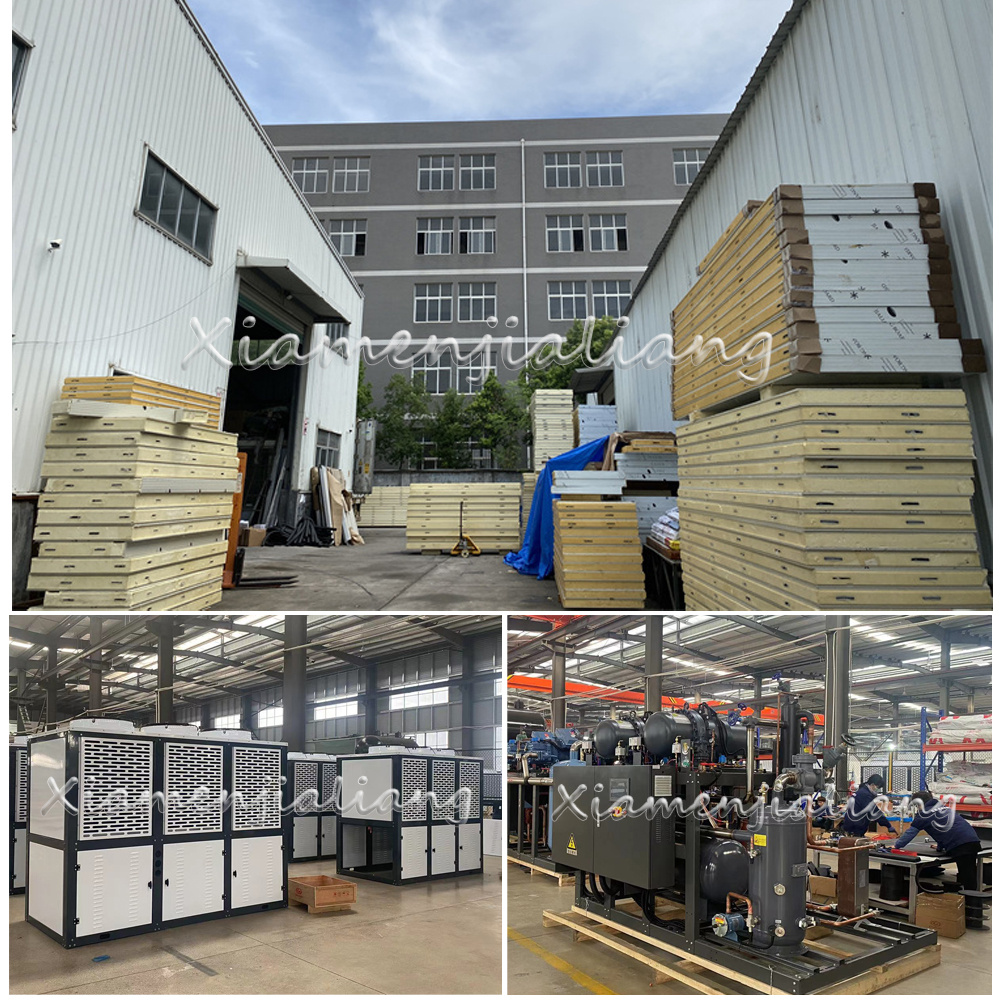

Factory

Our Service

Comprehensive Solutions

Our expertise in the cold storage industry spans 24 years, enabling us to tailor complete cold storage solutions based on your specific requirements. We consider factors such as quantity, voltage, and the temperature needed for your stored items. To enhance your understanding of our products, we provide detailed schematic diagrams and instructional videos.

One-Stop Service

We offer a comprehensive range of services, encompassing cold room design, manufacturing, installation, and ongoing support. With a presence in over 200 countries, we have delivered more than 10,000 custom cold room solutions.

Customization

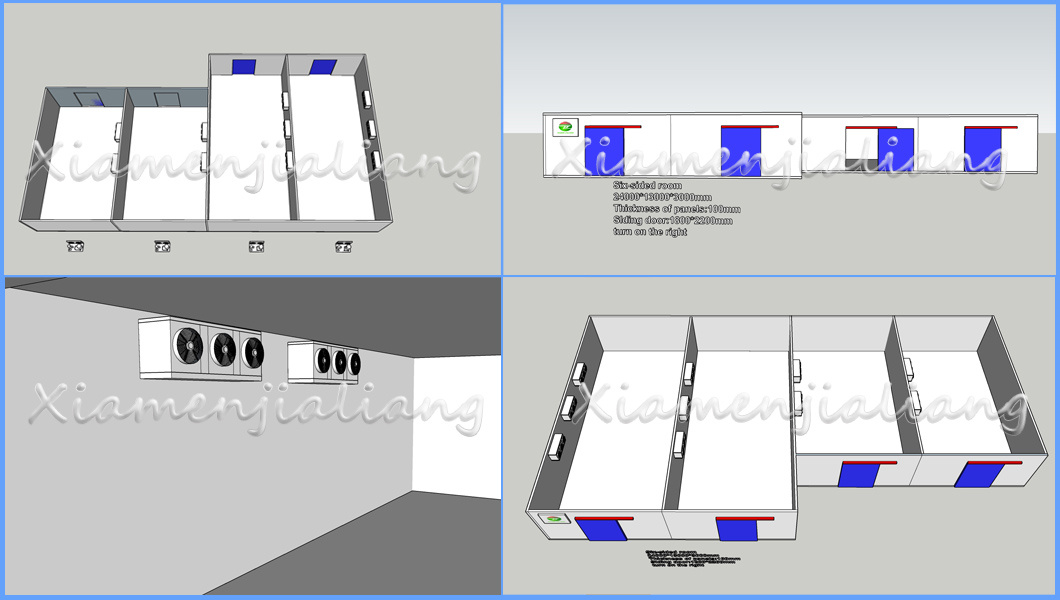

We provide a variety of customization options, including OEM and ODM services, as well as 3D images and CAD designs, allowing you to create your unique cold room tailored to your needs.

Continuous Innovation

Our commitment to innovation drives us to continually refine and optimize our solutions and products, ensuring that our customers always have access to the best options available.

Global Collaboration

We collaborate with esteemed partners worldwide to deliver exceptional cold room solutions and products, creating a network of excellence in the industry.

Project Cases

Success Case

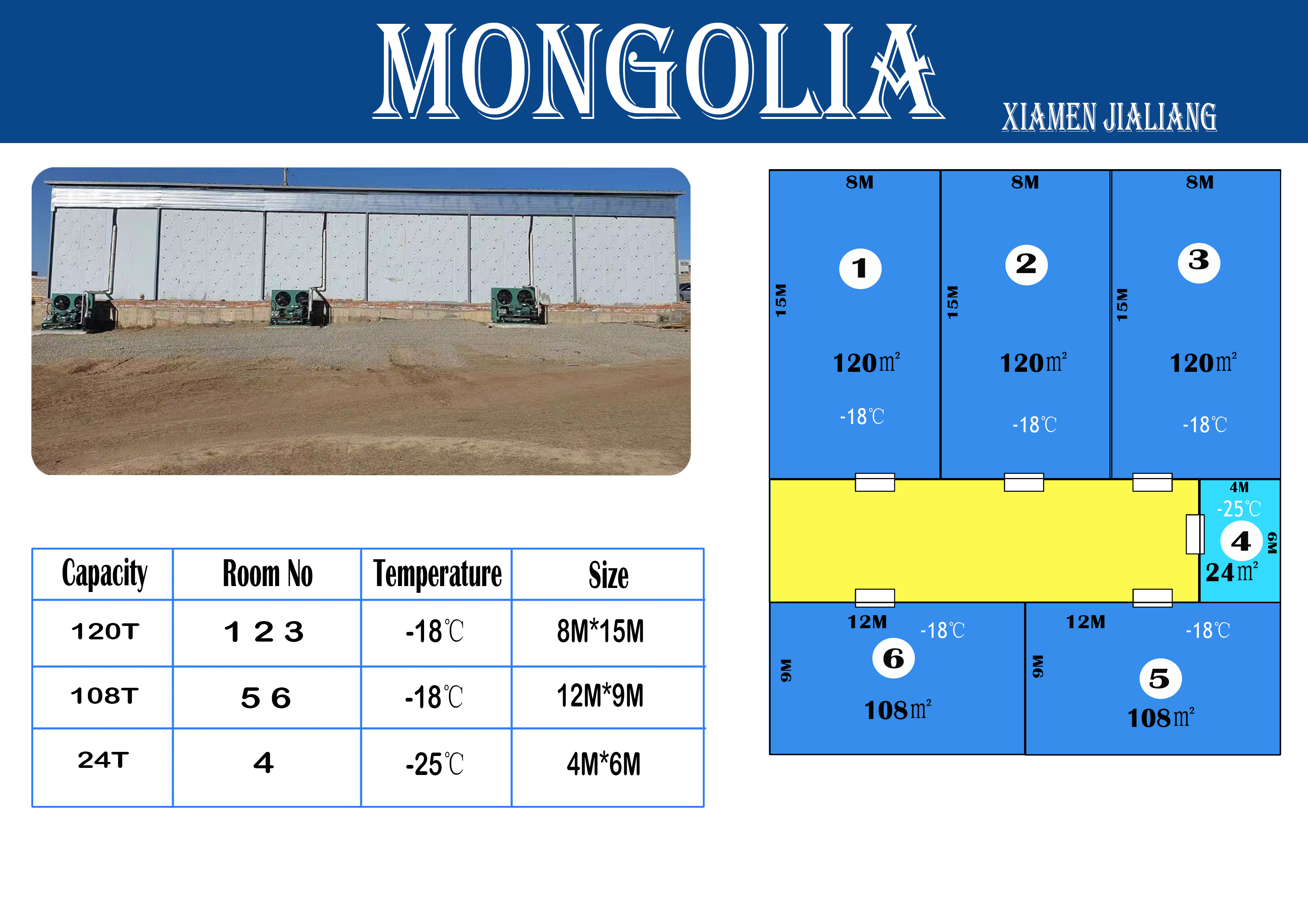

▲ When it comes to fish cold storage, the typical temperature range falls between -15°C to -25°C. The primary objective is to maintain frozen fish quality, especially after being processed through devices like blast freezer rooms or plate freezers, ensuring that the fish's temperature remains below 0°C (32°F) during storage.

Here's a summary of the fish cold storage solution:

1. Temperature Range: The cold storage room is designed to maintain temperatures within the range of -15°C to -25°C.

2. Cold Storage Panel: The panels used are typically 120mm to 150mm thick and are constructed with PU/PIR material. The surface material can be either a cost-effective color plate, which adds an aesthetic touch while saving on expenses, or a more robust and durable option in the form of stainless steel, which provides better resistance to rust.

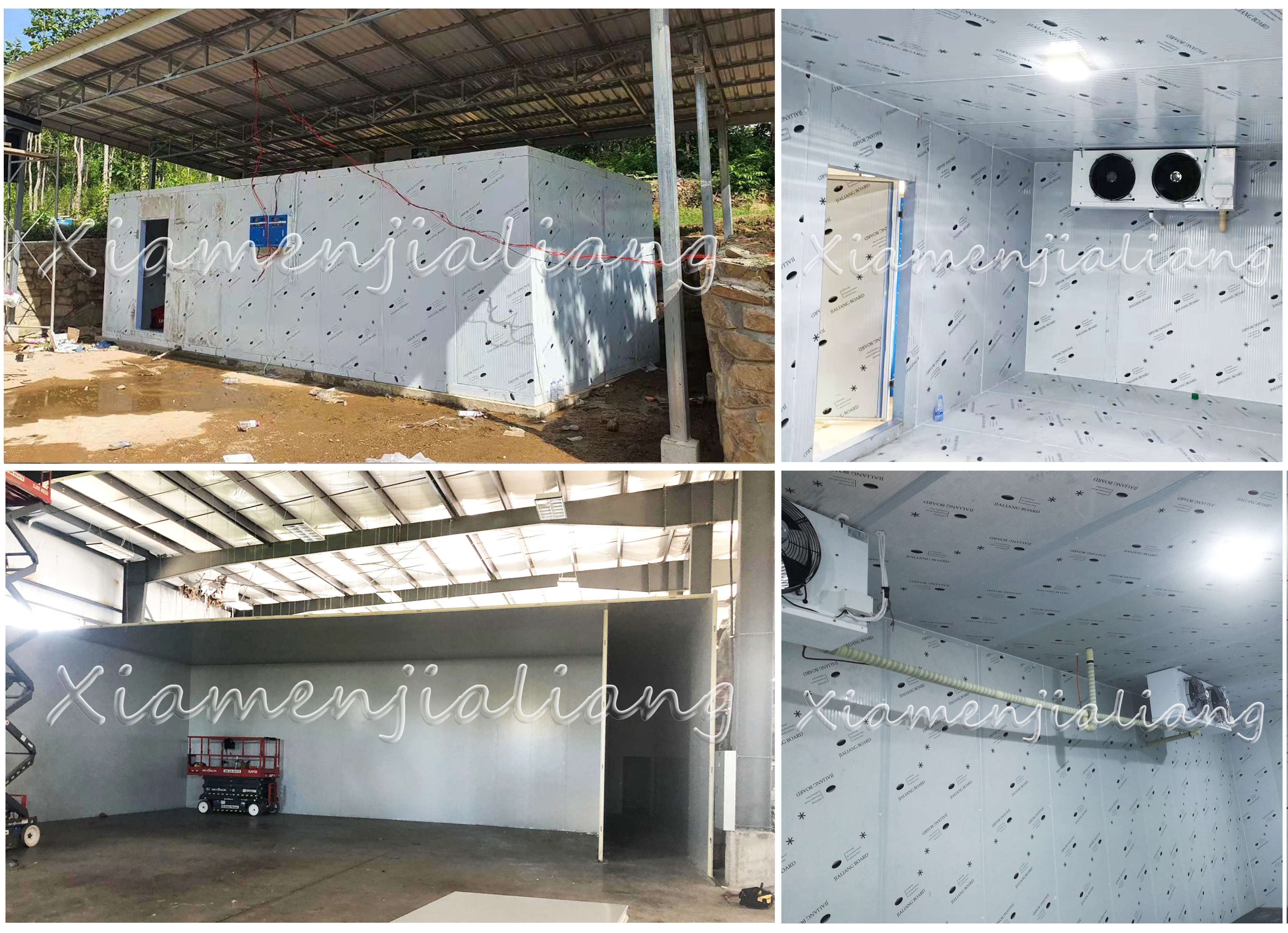

▲ Refrigeration Chamber:

Our refrigeration chambers cater to the storage needs of fruits, vegetables, and dairy products, preserving their freshness. These chambers feature insulation with 100mm to 200mm PU/PIR panels, ensuring exceptional thermal efficiency. They are paired with high-efficiency condensing units, resulting in cost savings through reduced power consumption.

Key Highlights:

- Extend the freshness of your fruits and vegetables for extended periods.

- Utilize top-quality insulation panels to optimize operational costs.

- Tailor the perfect storage solution to match your specific needs.

- Employ premium color plate materials from reputable brands for long-lasting durability.

- Implement high-efficiency refrigeration units that align with your operational requirements.
