monoblock unit

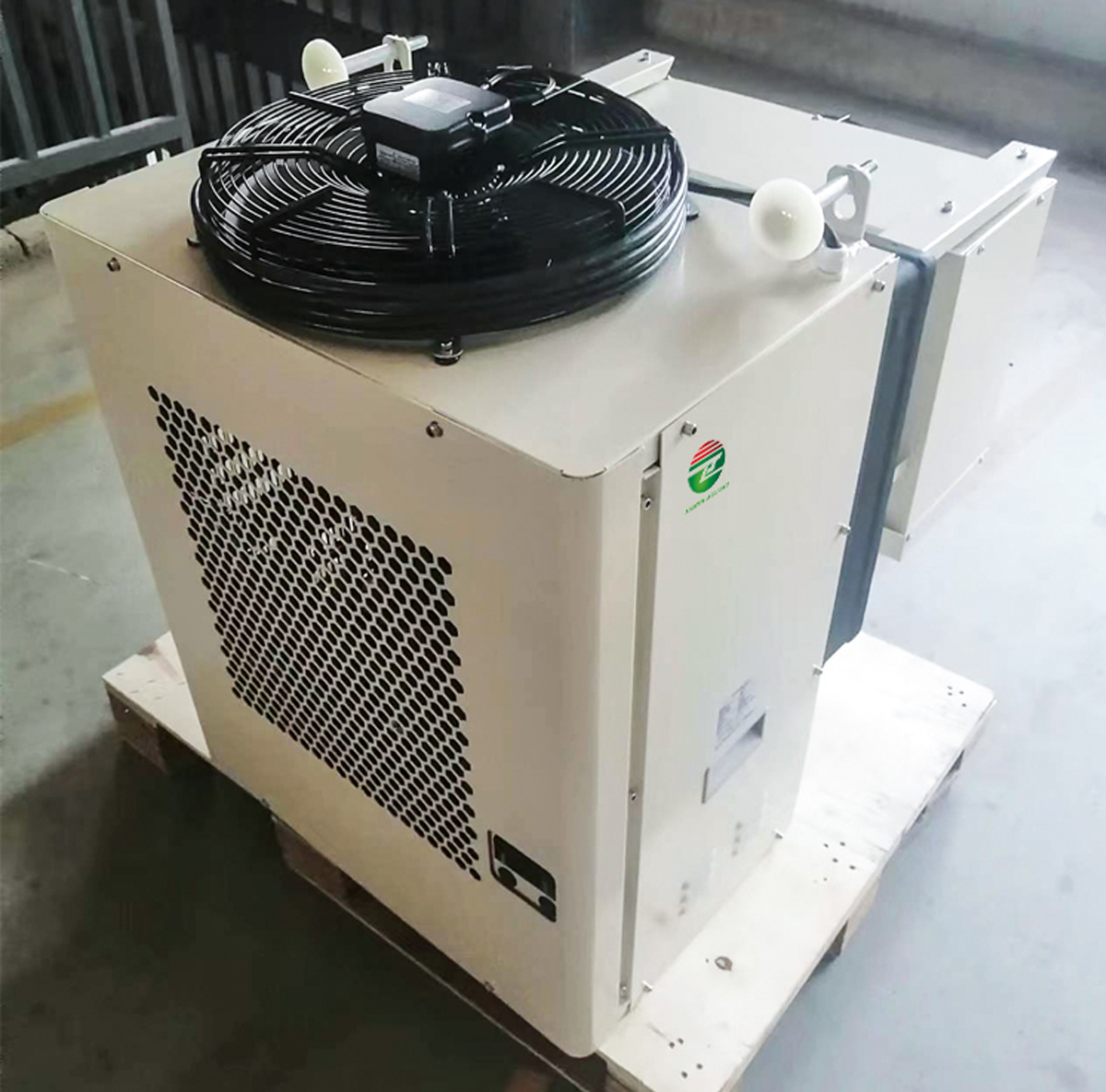

    • Hot sales 2 HP Wall Mounted Monoblock Condensing Unit

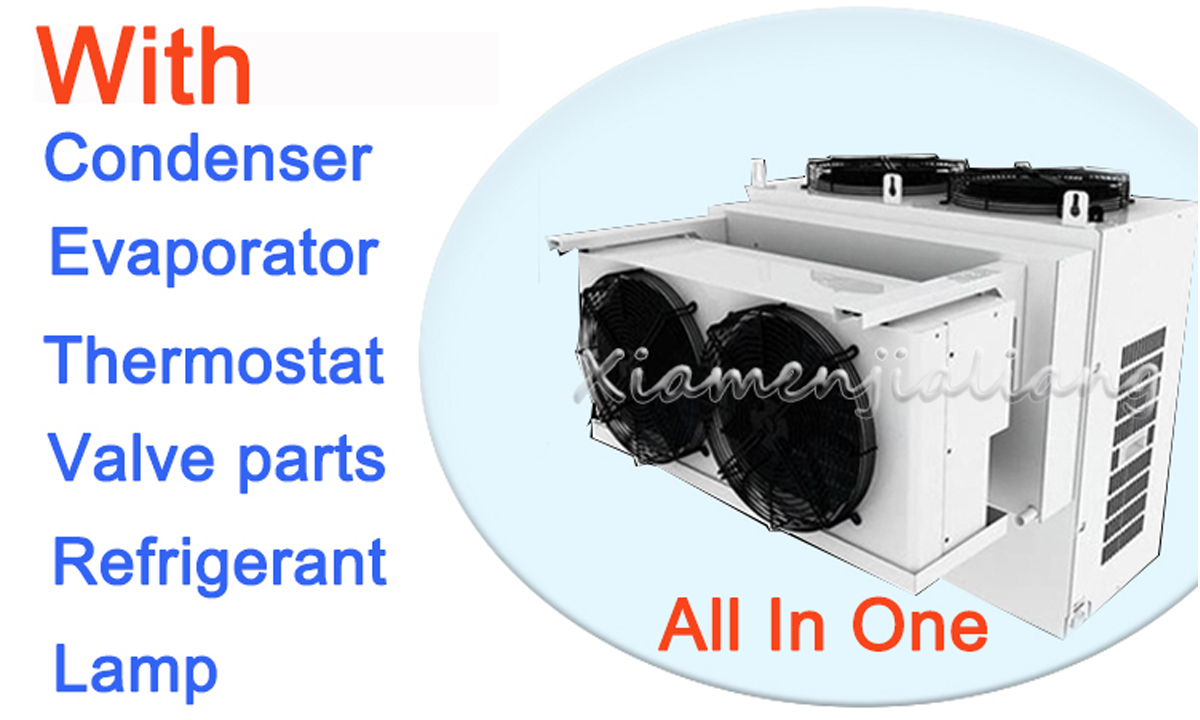

    • Industry 4.0 with All-in-One Machines

      • 1HP2HP3HP
    • Get A Quote
    • Description
    • Features


    1. The product structure adopts wall-mounted type, and the unit is installed on the side panel of the warehouse.


    2. The unit has two types: medium temperature type and low temperature type. The medium temperature unit mainly meets the use of 0-10℃ cold storage, such as fresh-keeping storage. The low-temperature unit mainly meets the use of -15~-20℃ cold storage, such as freezer storage, etc.


    3. Using hot air bypass defrosting, the defrosting effect is good.


    4. Fully automatic intelligent control, with functions such as warehouse temperature setting and control, defrost setting and control, system operation protection, etc.




    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz
    		670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30
    		220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V
    		380V/50Hz1120*1070*1060190≤35m³≤55m³


    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³

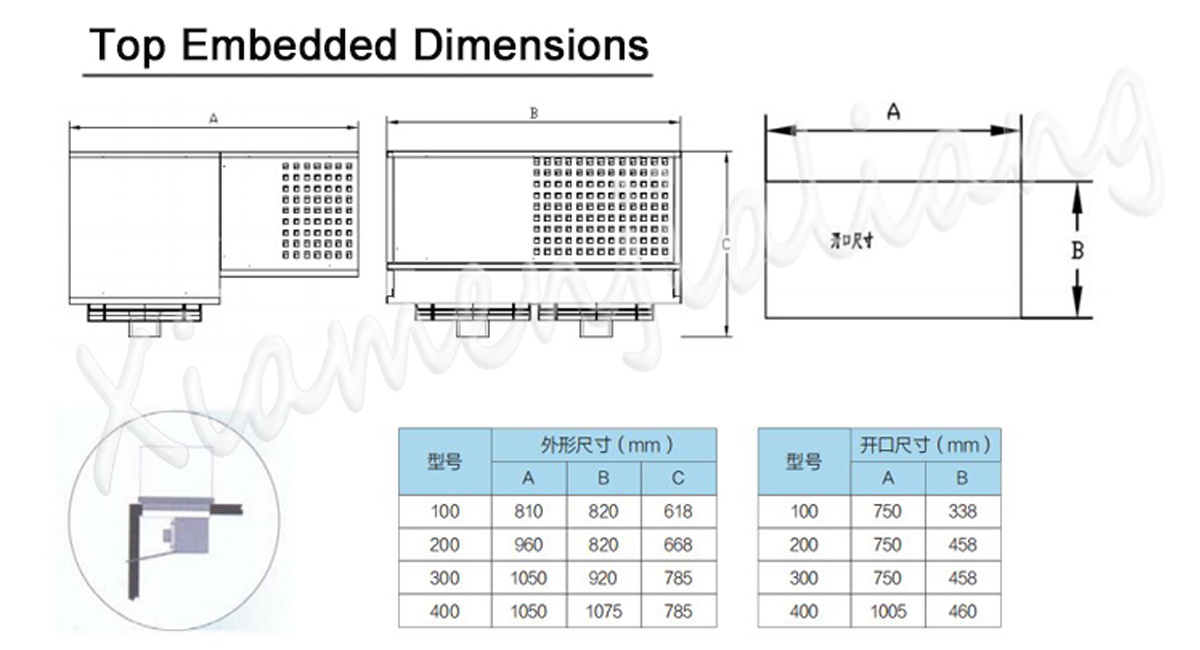

    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)
    		Product Weight(kg)Freezer Room Volume

    Cold Room Volume

    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/50Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz
    		1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz


    ★Application Scope: Widely used in small cold storages such as medical, catering, cold chain, food, and dairy products.
    ★ Temperature range: ambient temperature: -15℃～+48℃, room temperature: -18℃～+10℃

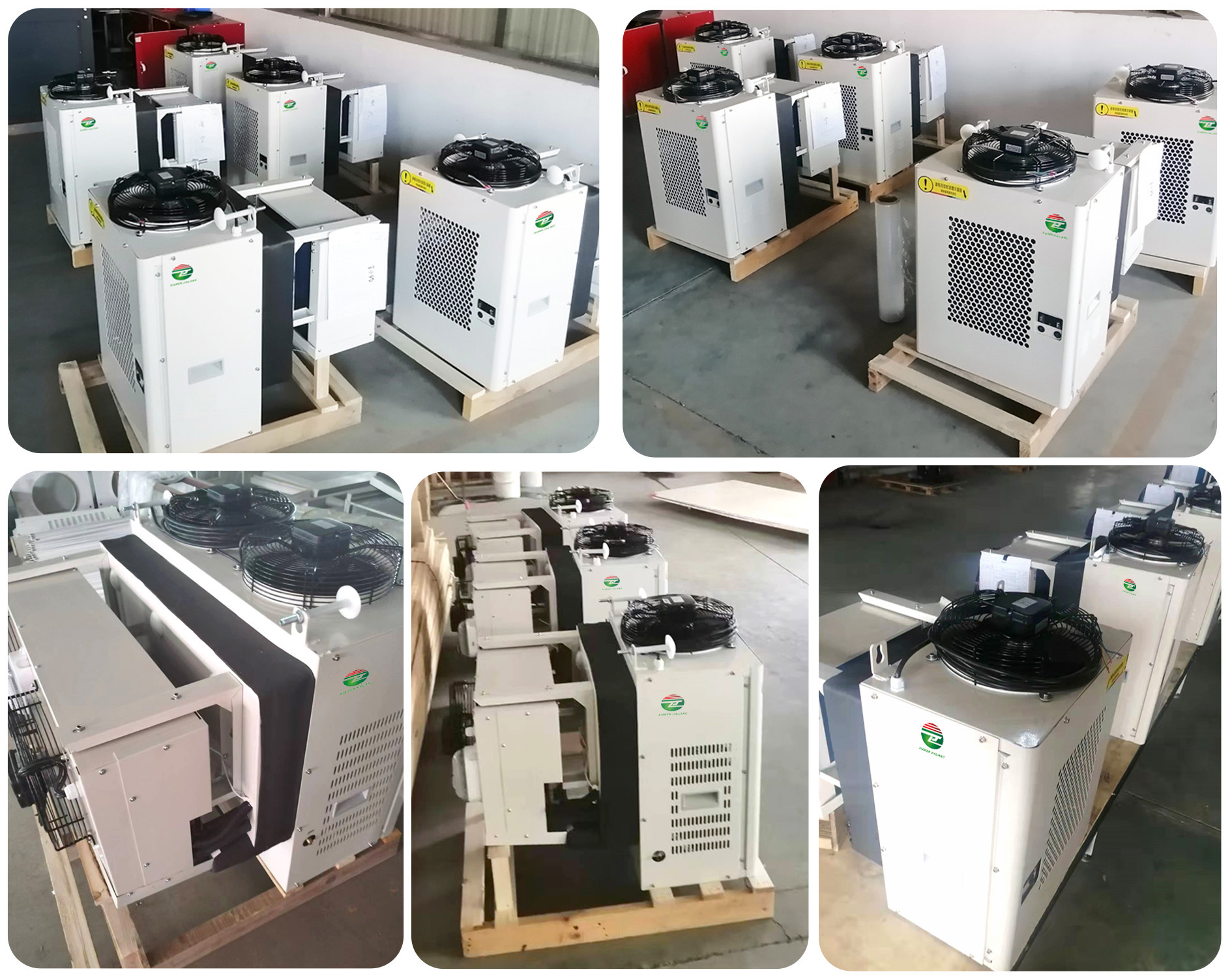

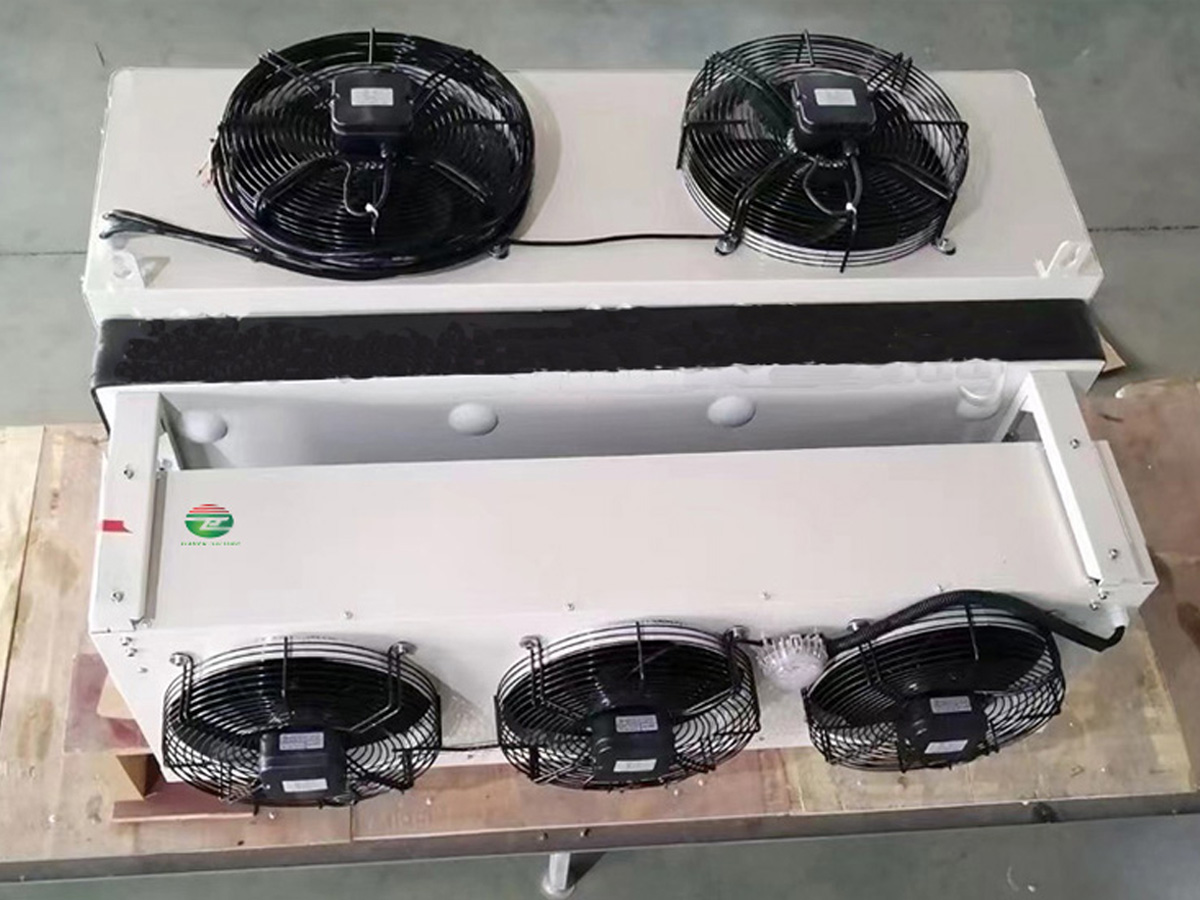

    feature:    Product View

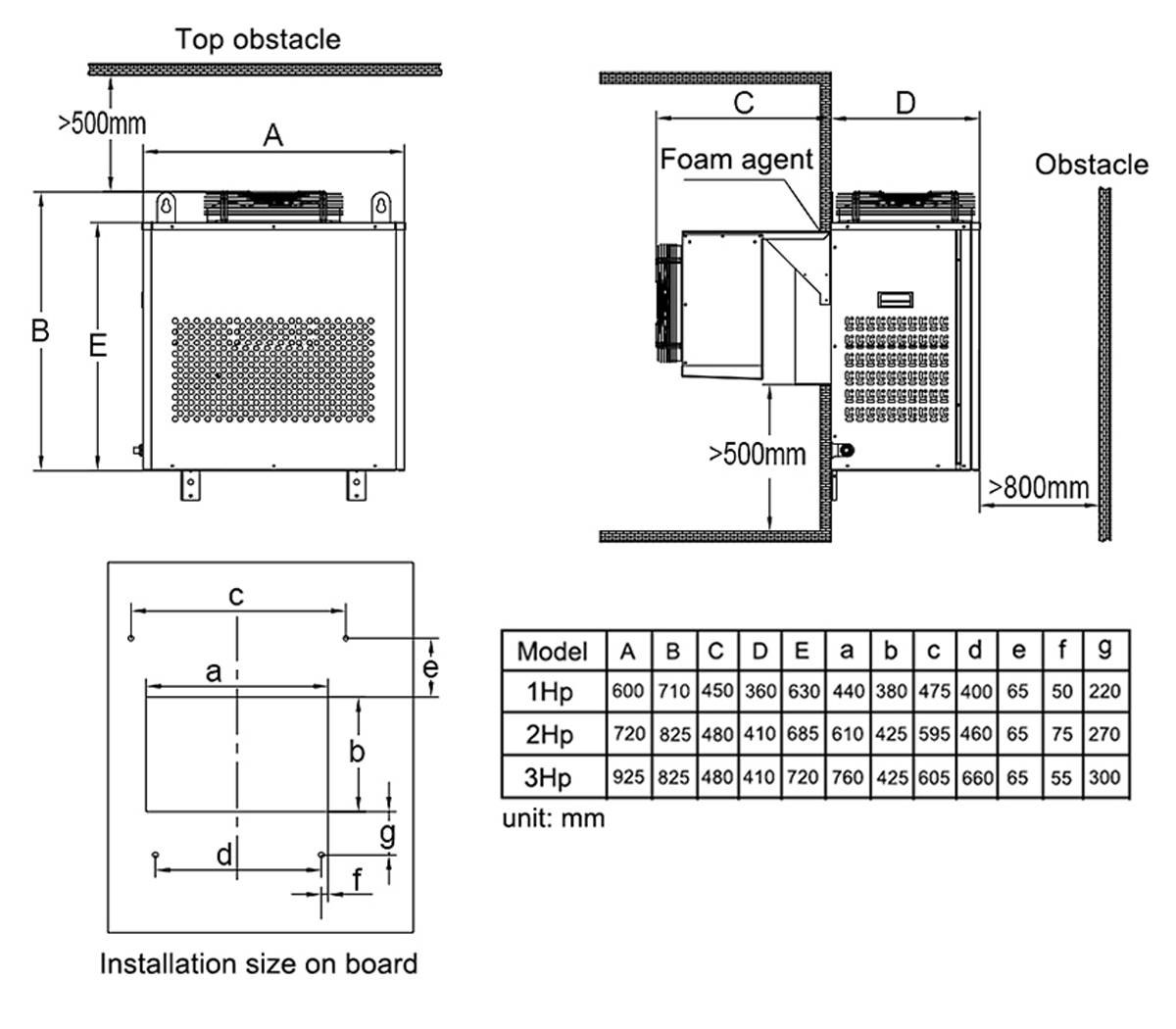

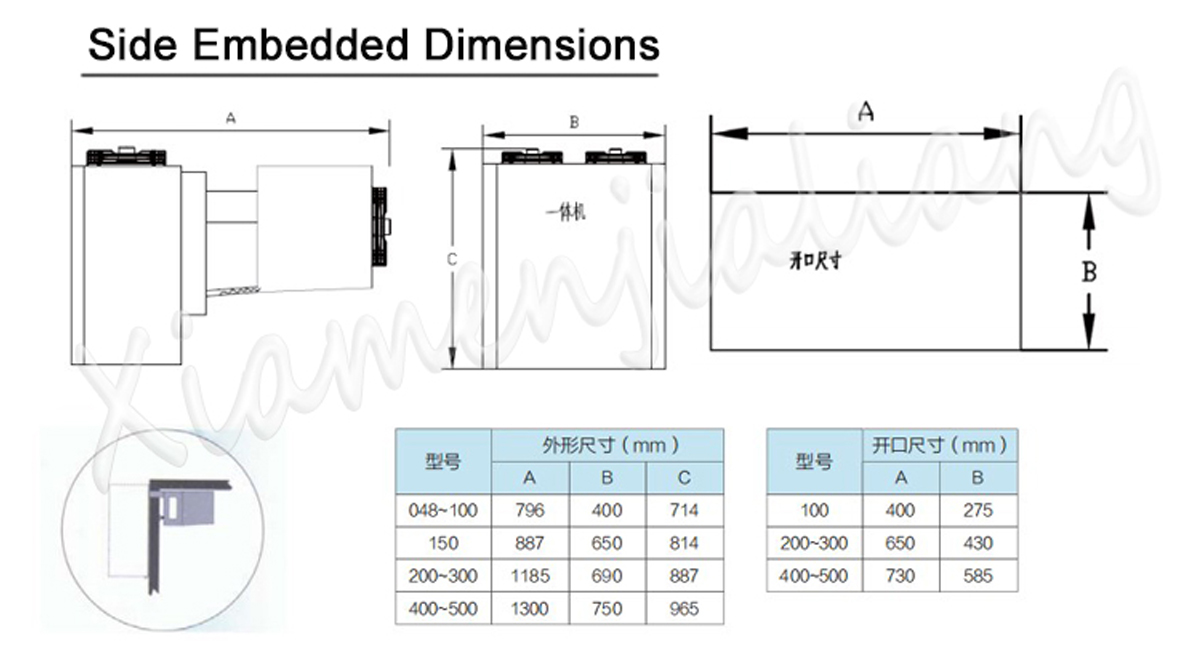

    ★ Compact structure and easy installation, just reserve the corresponding size on the side panel of the cold storage


    ★ Defrost water automatic evaporation system reduces condensation temperature and improves refrigeration efficiency



    Product Type



    Our Service

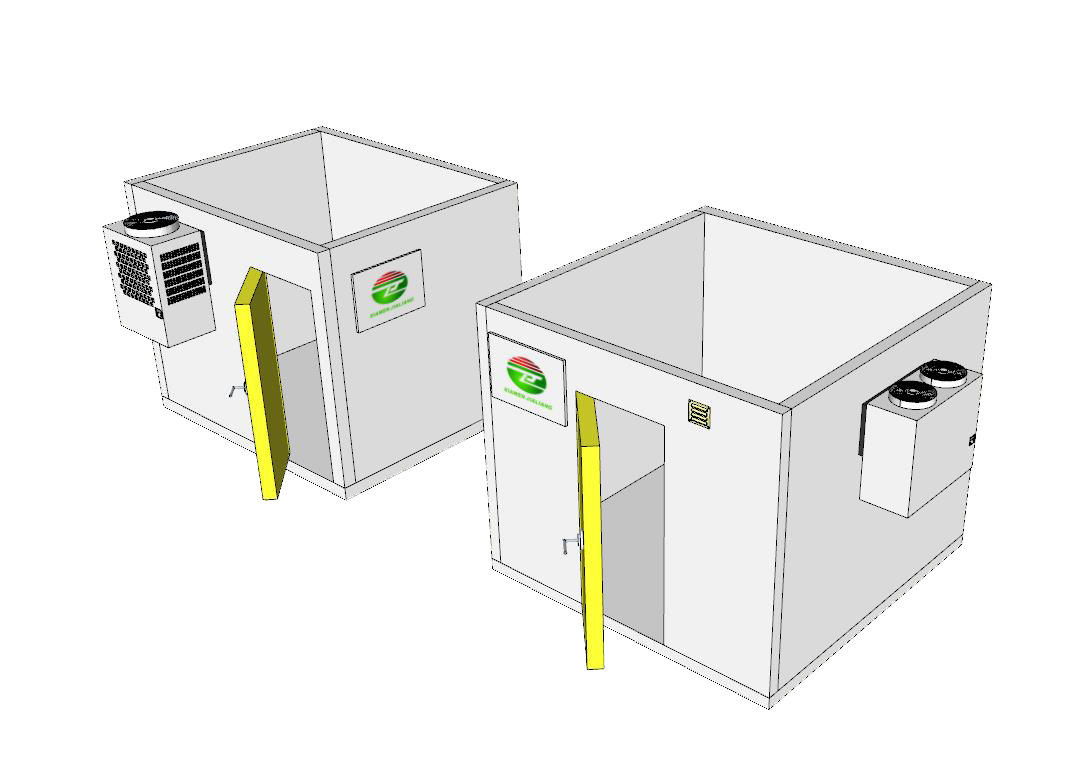

    Installation method: During installation, you only need to open a hole in the library body, insert the unit, and connect the power supply. No debugging is required, greatly reducing installation time and labor costs.

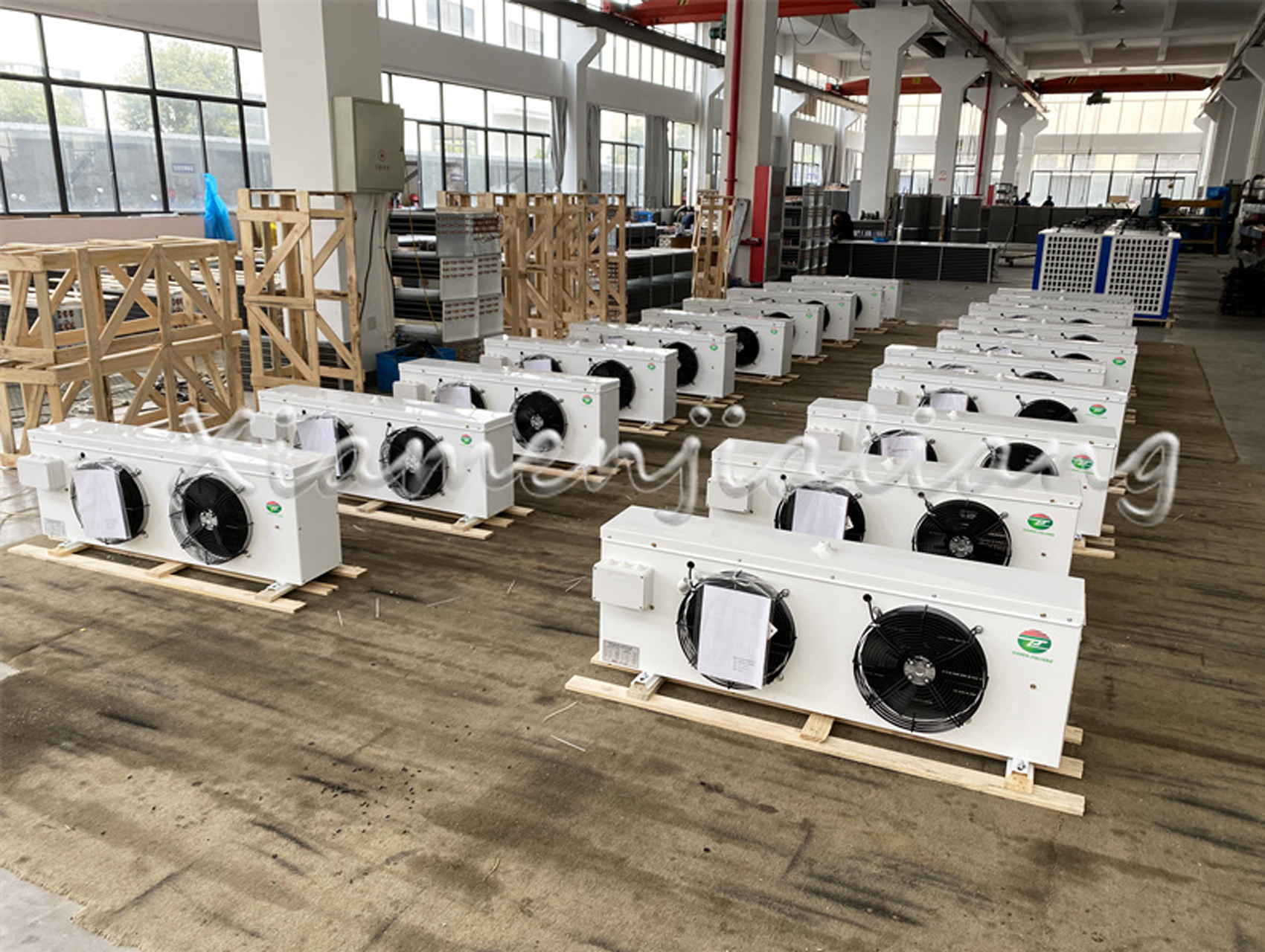

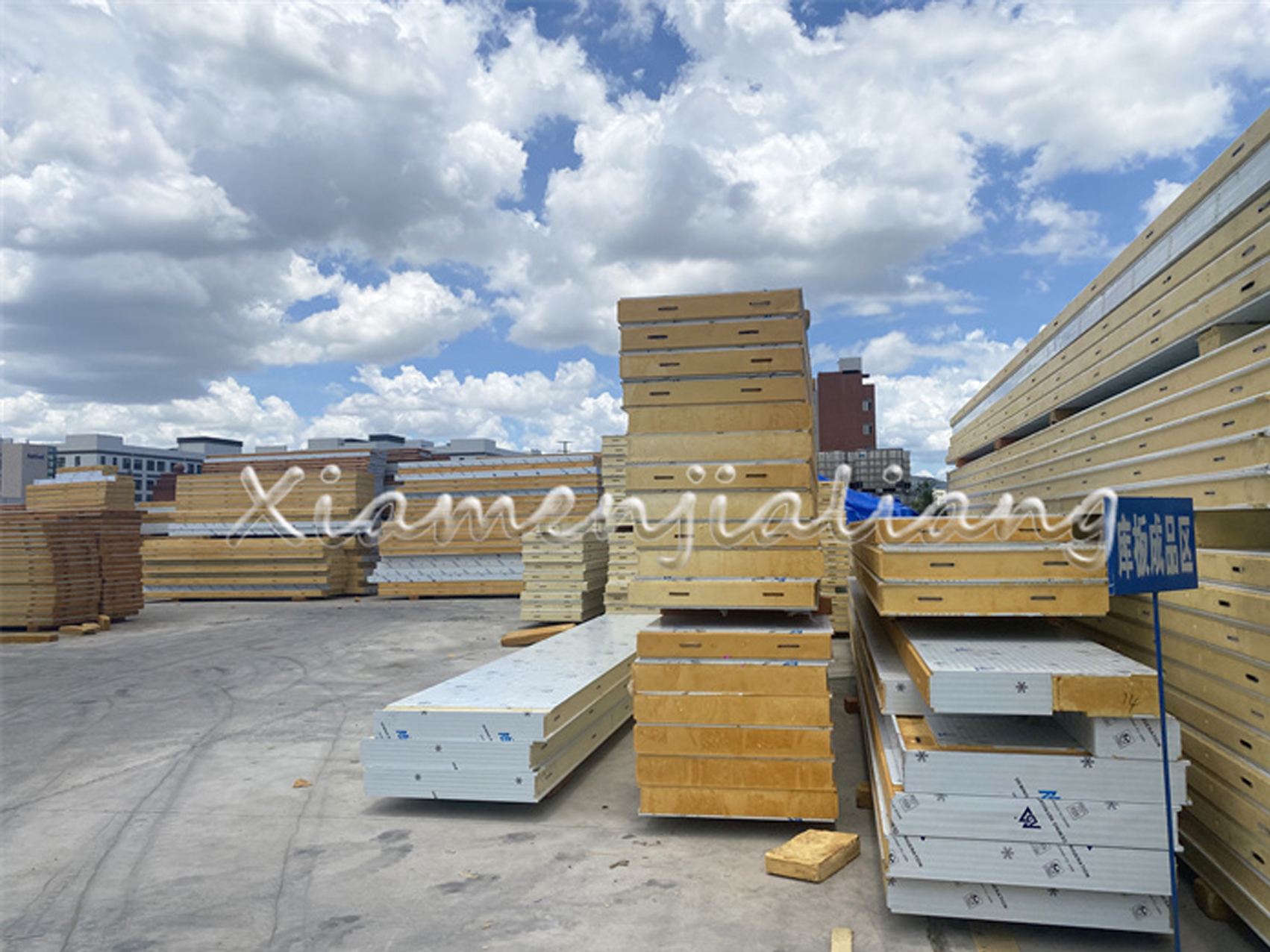

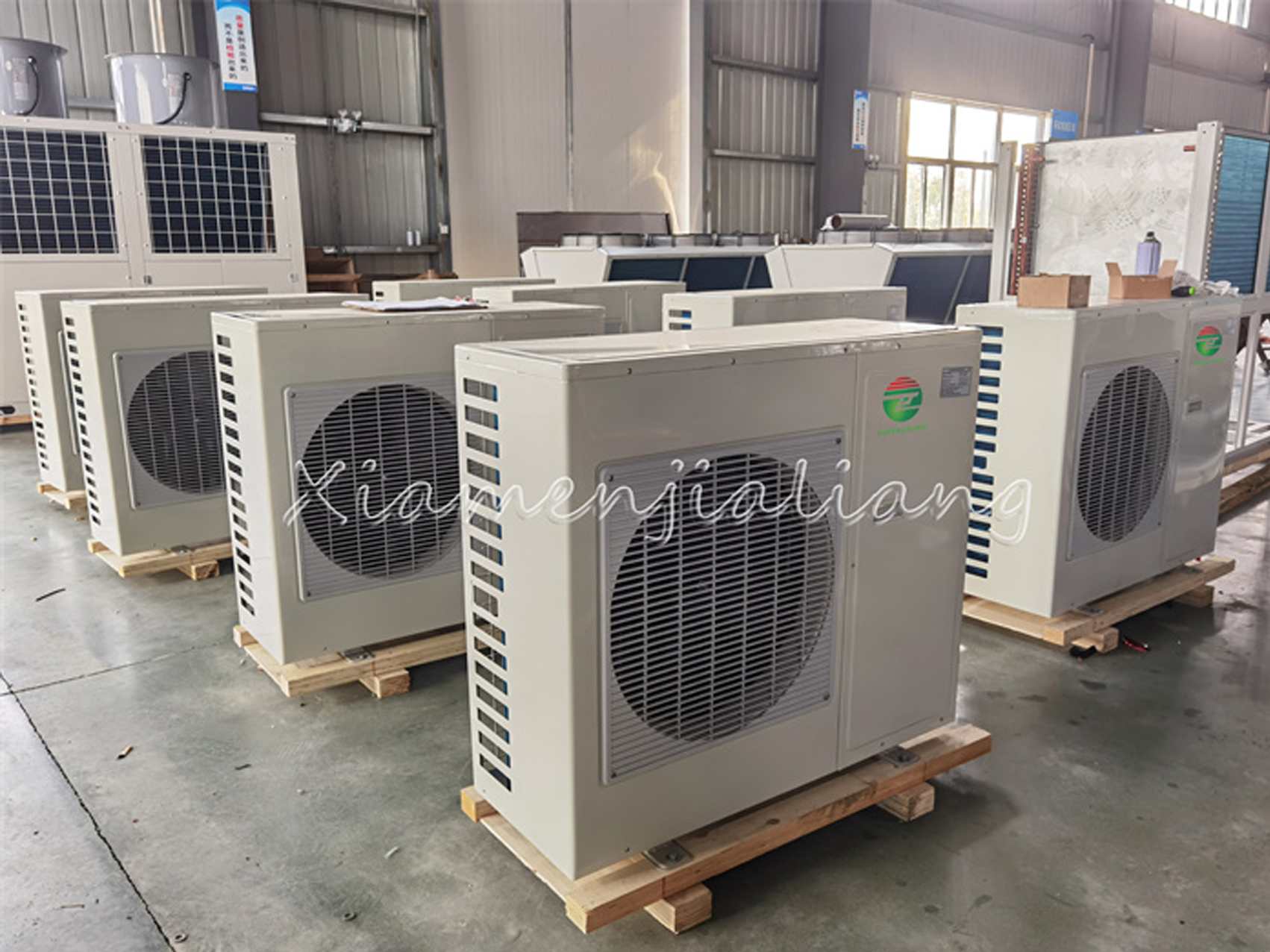

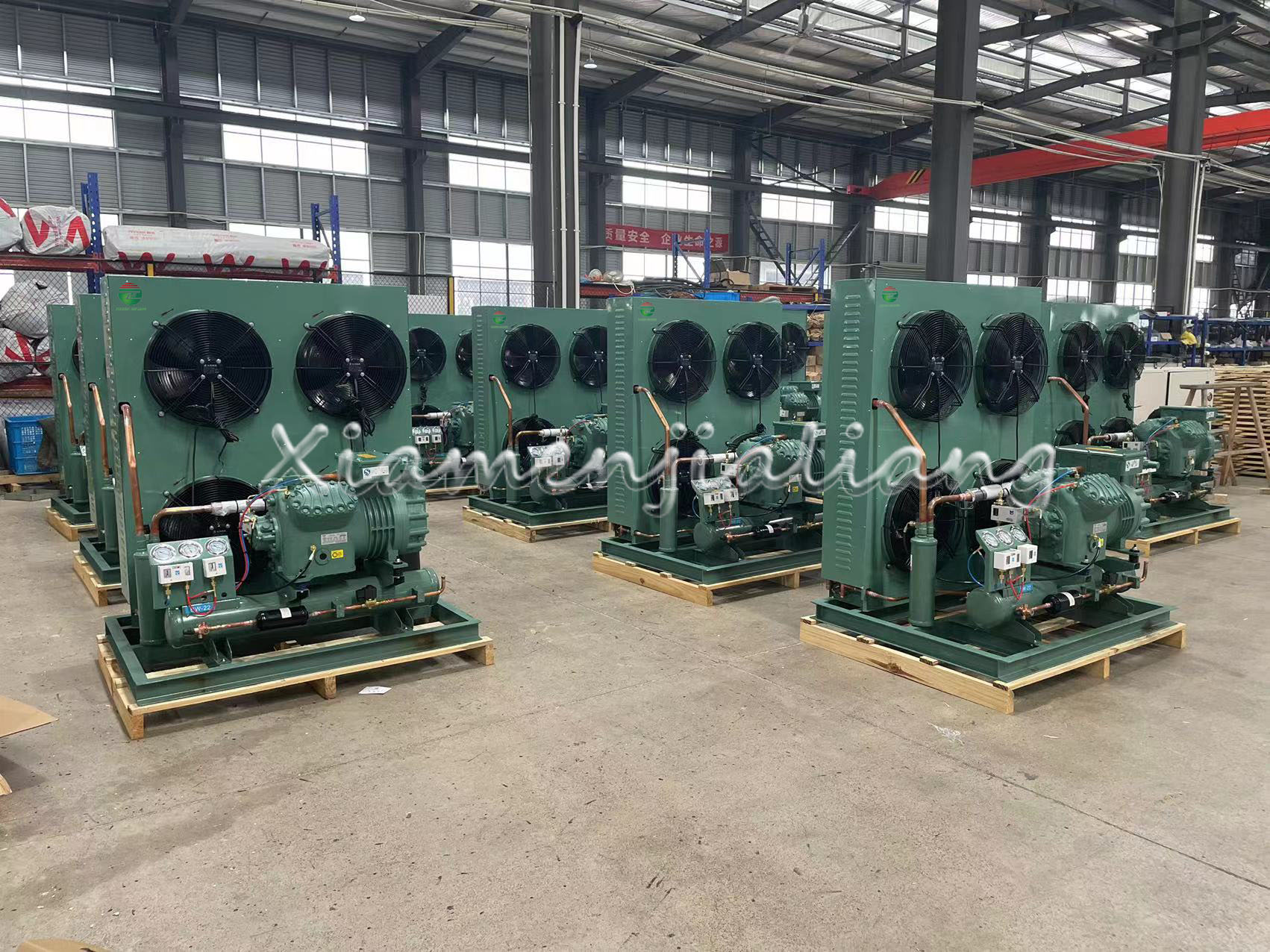

    Our Factory
