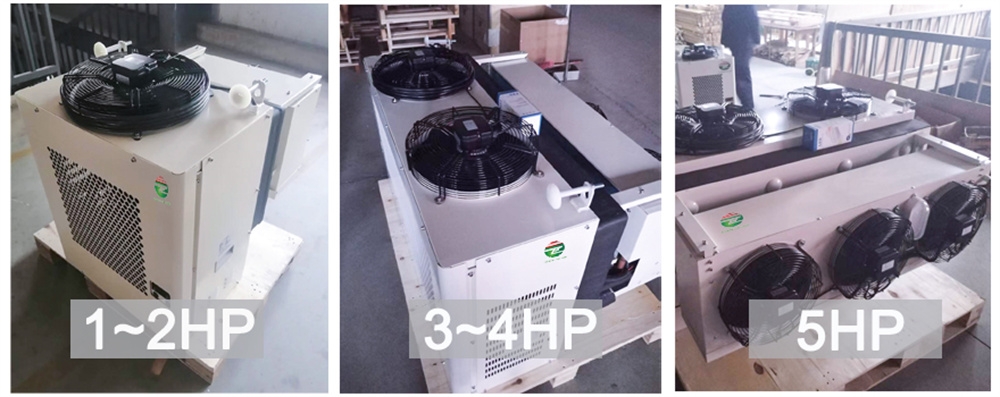

    • 1HP1.5HP2HP3HPWall Mounted Monoblock Refrigeration UnitRoof Mounted Monoblock Refrigeration UnitXiamen Jialiang
    • Get A Quote
    • Description
    • Features


    High Efficiency Monoblock Condensing Unit For Hotel


    Monoblock condensing unit for a hotel is a refrigeration system that combines the compressor, condenser, and other necessary components in a single unit. It's commonly used in hotel refrigeration and air conditioning systems for efficient cooling and climate control. Monoblock condensing units are often installed outside the building and are designed to be space-saving and easy to install.



    China Wholesale Monoblock Air Conditioner Durable Duct Cooling System Air Cooled Ducted Unit

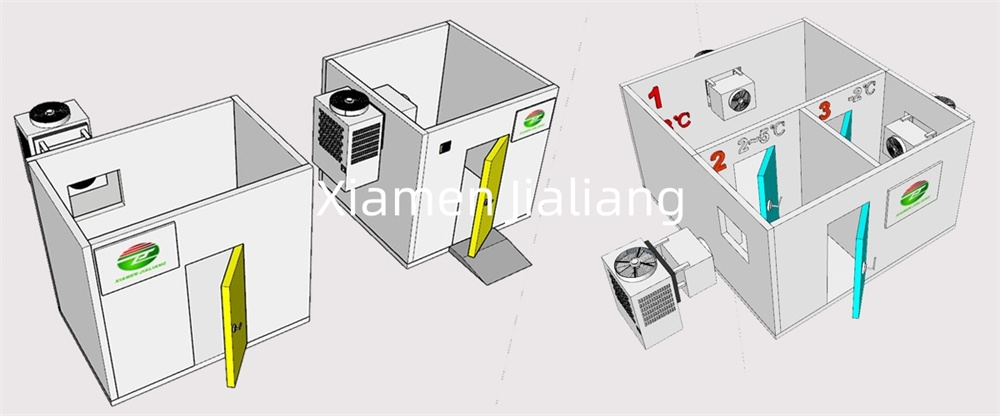

    Can satisfy the use of mini and small cold storage with 5~5 - degrees Ct 1523 degrees C. It can be widely used in freshness and cold storage for hotels, restaurants, food, health, medicine and so on.

    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz
    670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30
    220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V
    380V/50Hz1120*1070*1060190≤35m³≤55m³


    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³
    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)
    Product Weight(kg)Freezer Room Volume

    Cold Room Volume

    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/50Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz
    1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz




    Here are some key points to consider when using a monoblock condensing unit for a hotel:


    1. Cooling Capacity: Ensure the monoblock condensing unitcooling capacity matches the hotel's requirements. This is determined by the size of the area to be cooled and the expected load.


    2. Energy Efficiency: Look for a monoblock condensing unit with a high energy efficiency rating to reduce operating costs and environmental impact.


    3. Maintenance: Regular maintenance is essential to keep the monoblock condensing unit running efficiently. Cleaning the condenser coils and checking for refrigerant leaks are important tasks.


    4. Noise Level: Consider the noise level of the monoblock condensing unit, especially if it's located near guest rooms. Quieter units may be preferred.


    5. Temperature Control: Depending on the hotel's needs, the monoblock condensing unit should have good temperature control and be capable of maintaining a consistent temperature.
