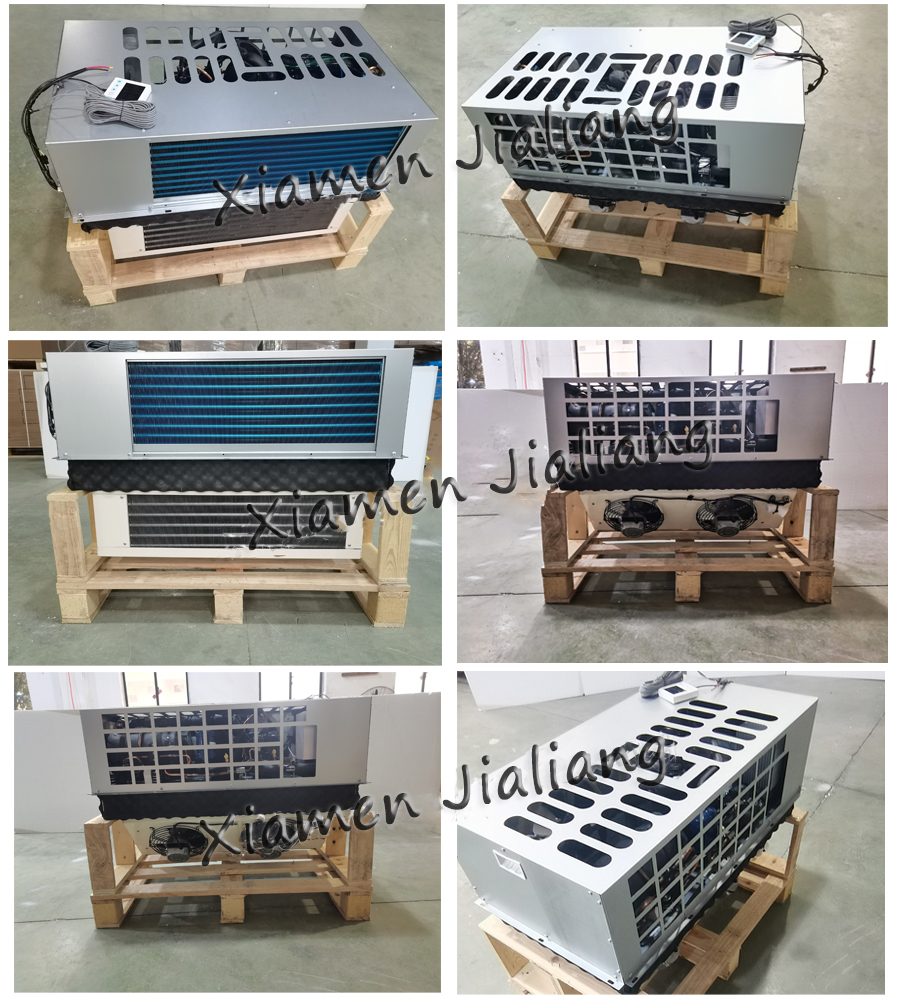

    XMJL 2HP China Monoblock Condensing Unit Supplier


    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz
    		670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30
    		220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V
    		380V/50Hz1120*1070*1060190≤35m³≤55m³


    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³
    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)
    		Product Weight(kg)Freezer Room Volume

    Cold Room Volume

    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/50Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz
    		1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz

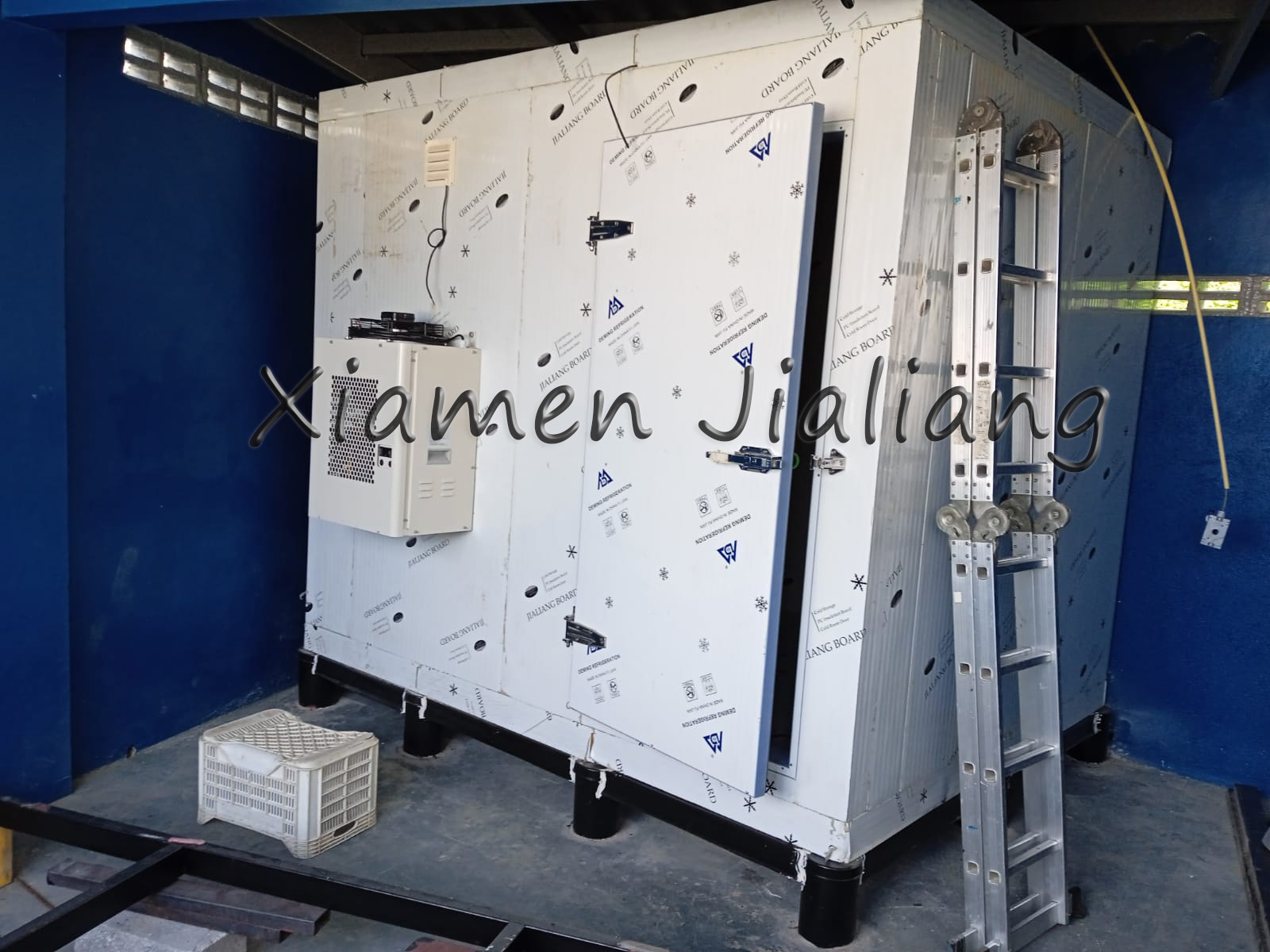

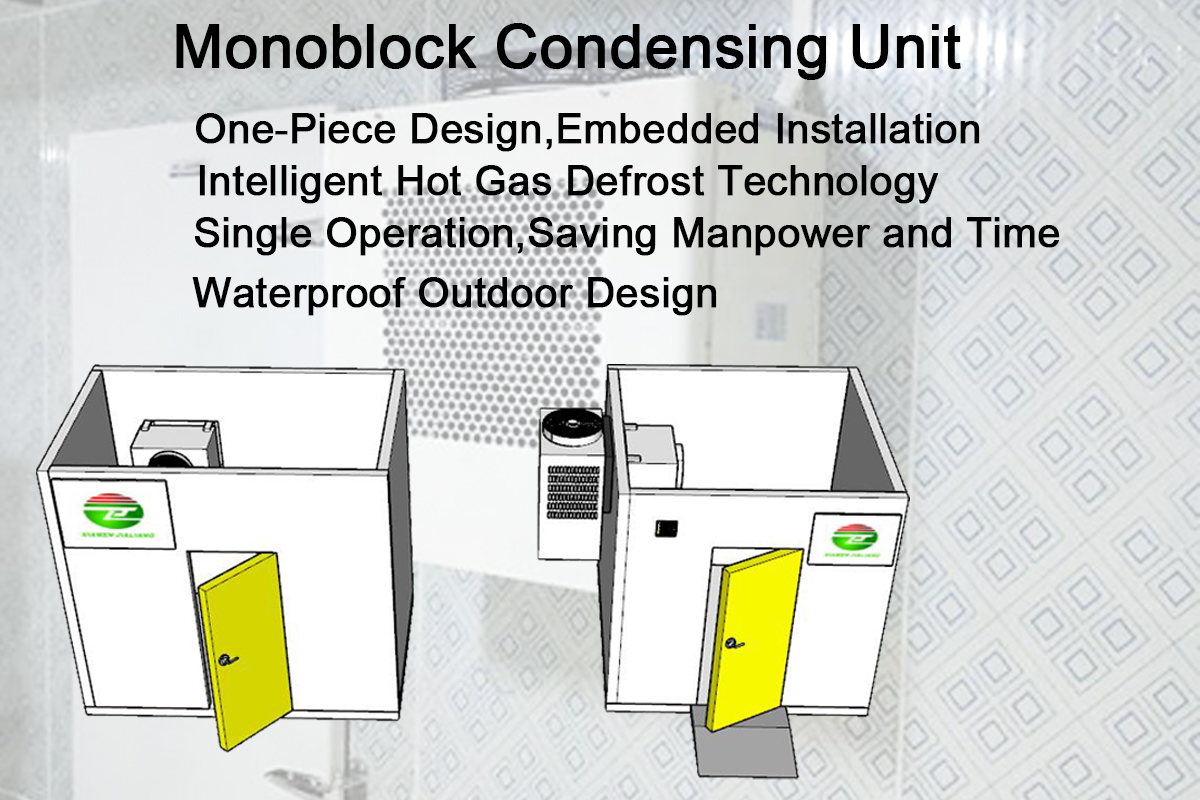

    Integrated refrigeration units are divided into: wall-mounted integral type and ceiling-mounted integral type.Installation method: During installation, you only need to open a hole in the library body, insert the unit, and connect the power supply. No debugging is required, greatly reducing installation time and labor costs.



    Customized Services

    FAQ

    Q1: Is it necessary to provide additional structural support for the XMJL monoblock condensing unit, or can it operate independently?
    A1: The XMJL monoblock condensing unit is designed to operate independently, typically without the need for additional structural support.
    Q2: How frequently does theXMJL monoblock condensing unit require refrigerant replenishment?
    A2: The XMJL monoblock condensing unit doesn't require frequent refrigerant replenishment, but regular inspections are important to ensure its optimal performance.
