    XMJL 4HP Energy Saving Monoblock Condensing Unit

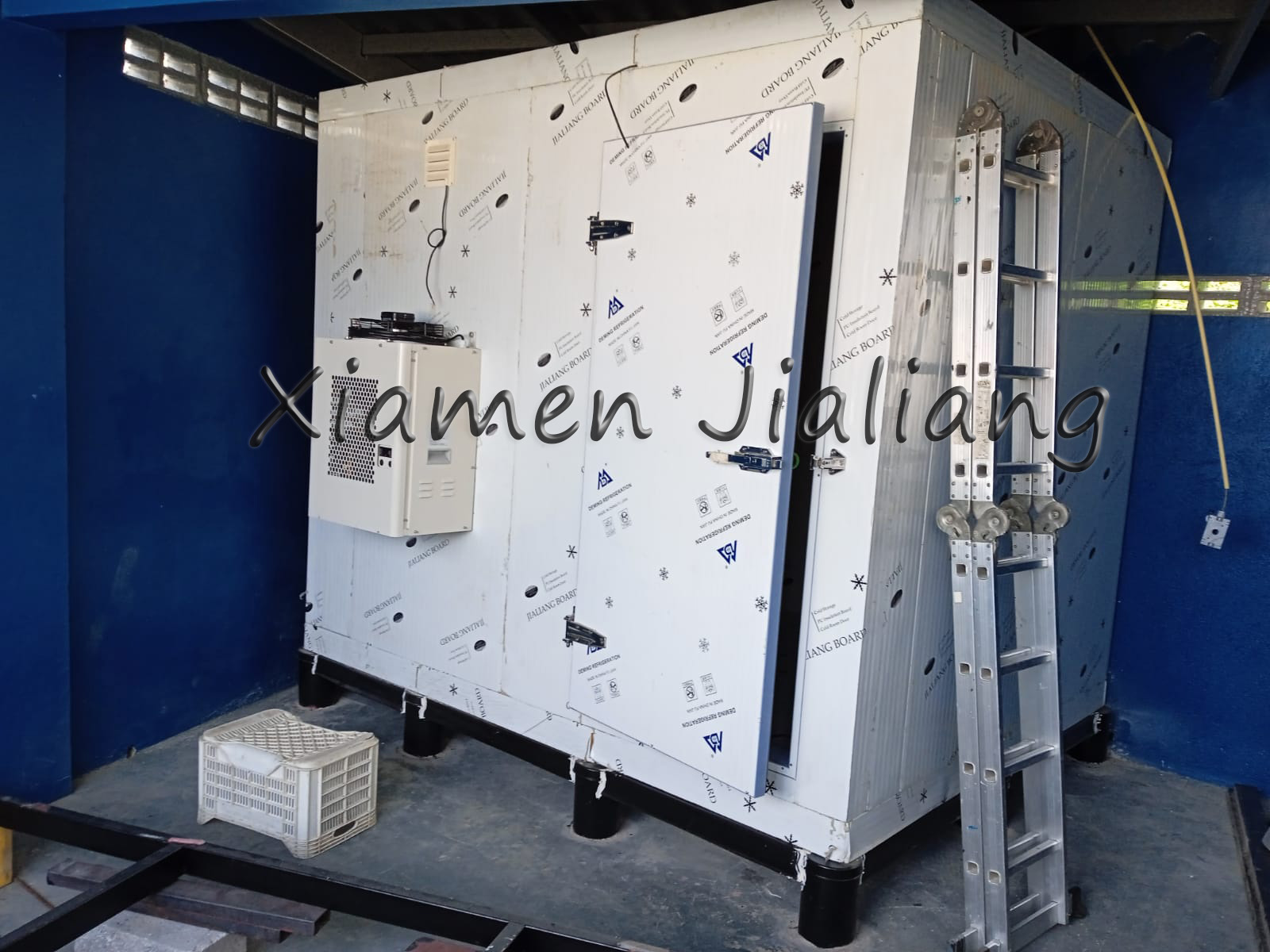

    1. The product structure adopts wall-mounted type, and the unit is installed on the side panel of the warehouse. 2. The unit has two types: medium temperature type and low temperature type. The medium temperature unit mainly meets the use of 0-10℃ cold storage, such as fresh-keeping storage. The low-temperature unit mainly meets the use of -15~-20℃ cold storage, such as freezer storage, etc.


    3. Using hot air bypass defrosting, the defrosting effect is good.

    4. Fully automatic intelligent control, with functions such as warehouse temperature setting and control, defrost setting and control, system operation protection, etc.



    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz
    		670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30
    		220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V
    		380V/50Hz1120*1070*1060190≤35m³≤55m³


    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³
    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)
    		Product Weight(kg)Freezer Room Volume

    Cold Room Volume

    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/50Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz
    		1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz

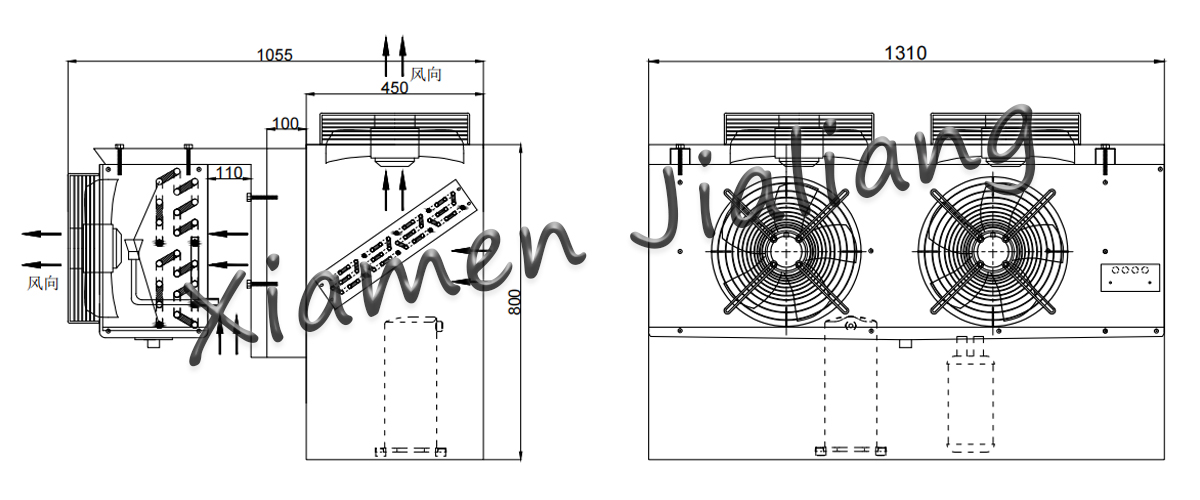

    Concentrator: 3x8 ring, chord length 1100mm, plate spacing 2mm. Heat exchange area 30㎡

    Technical Parameters:


    Equipped with x2∅350 external rotor motor, each motor has a power of 150w and an air volume of 2350m3/unit


    Air cooler: 3x8 holes, chord length 1050mm, pitch 6mm. Heat exchange area 22m


    Equipped with x2∅350 external rotor motor, each motor has a power of 150w and an air volume of 2350m3/unit


    Customized Services



    FAQ

    Q1: What are the features of the XMJL monoblock condensing unit (also known as a one-piece unit)?
    A1: The XMJL monoblock condensing unit is an integrated refrigeration system that combines both cold storage and refrigeration functions into a single, compact unit.
    Q2: What advantages does the XMJL monoblock condensing unit provide?
    A2: The XMJL monoblock condensing unit offers easy installation, a small footprint, and dependable, consistent performance as its main benefits.
