    China Manufacturer Monoblock Chiller Unit For Cold Room Use MOnoblock Freezer Unit


    Product introduction


    Monoblock Condensing Unit is a refrigeration system that combines the condenser and compressor into a single unit. This design is often used in smaller refrigeration and cooling applications, such as commercial freezers, refrigerators, and air conditioning systems. Monoblock units are known for their compactness and ease of installation, making them a popular choice in situations where space is limited or where a simplified installation process is desired.




    The key components of a Monoblock Condensing Unit typically include:


    Compressor: This is responsible for compressing the refrigerant gas, raising its temperature and pressure.


    Condenser: The condenser is where the hot, high-pressure refrigerant releases heat and condenses into a liquid.


    Fan: Fans help dissipate the heat generated during the condensation process. These are often mounted on the exterior of the unit.


    Refrigerant  Lines: These connect the compressor and condenser to the evaporator, allowing the flow of refrigerant between the indoor and outdoor units.

    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz
    		670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30
    		220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V
    		380V/50Hz1120*1070*1060190≤35m³≤55m³


    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³
    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)
    		Product Weight(kg)Freezer Room Volume

    Cold Room Volume

    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/50Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz
    		1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz

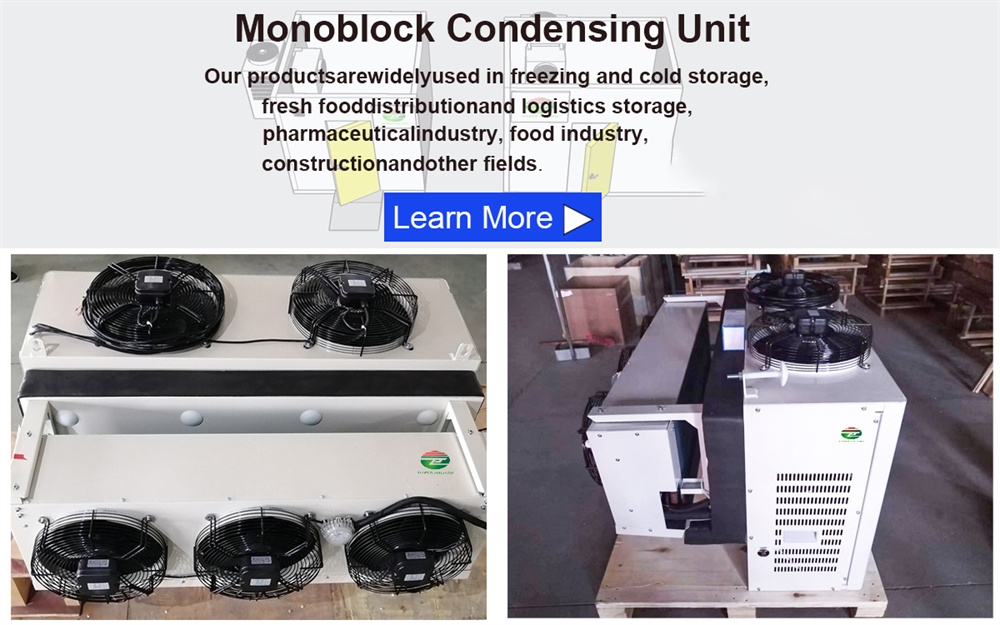

    Product Display


    Monoblock units are convenient for smaller-scale applications but may not be suitable for larger, more complex refrigeration systems where separate components provide more flexibility and efficiency.
