monoblock unit
    • Beautiful design XMJL 1HP Wall Mounted Monoblock Condensing Unit

    • Smart Control with All-in-One Machines

      • 1HPXiamen jialiangR404aAir Cooled
    • Get A Quote
    • Description
    • Features

    XMJL 1HP Wall Mounted Monoblock Condensing Unit

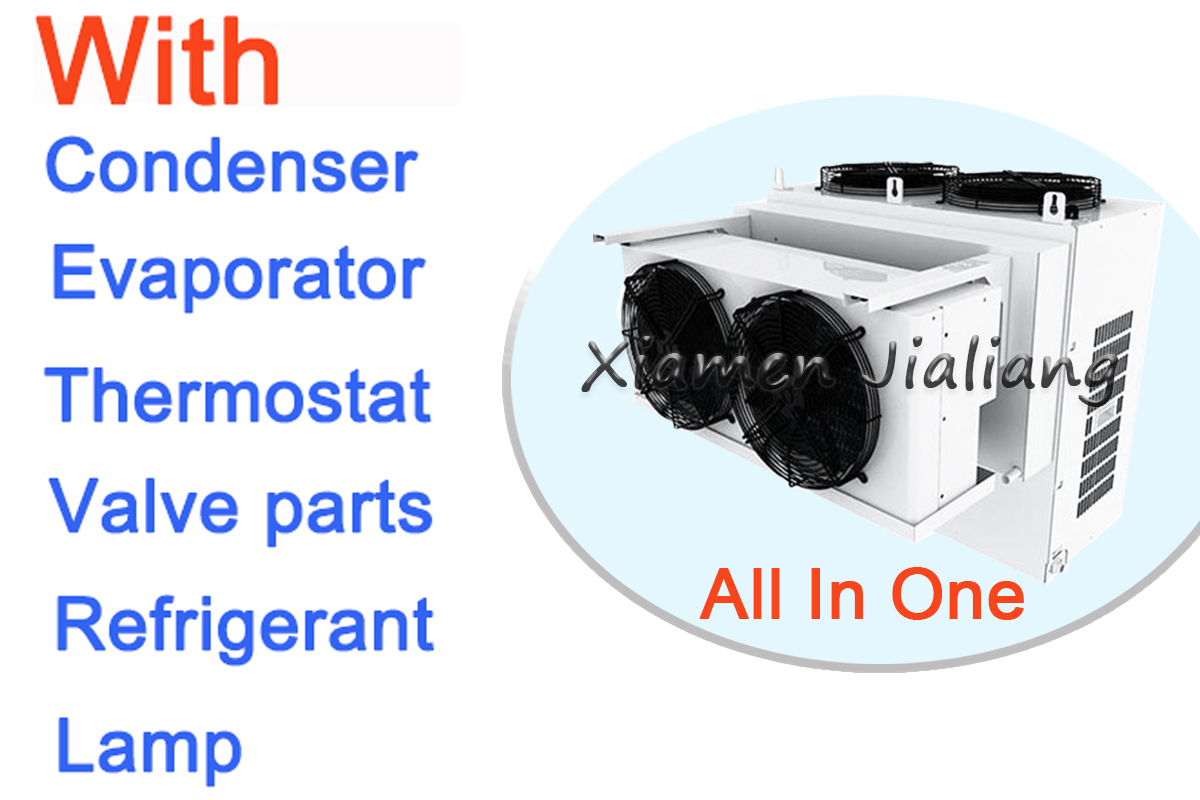

    1. Compact structure. The evaporator, condenser, compressor, electronic control, etc. are designed into a compact overall structure to save installation space;


    2. High refrigeration efficiency, low noise and high reliability;


    3. Use high-efficiency copper tube and aluminum plate heat exchangers, with high heat exchange efficiency; use internationally renowned brand refrigeration accessories and fans, with high reliability and long service life;


    4. Fully automatic intelligent control, with functions such as temperature setting, temperature control, and automatic defrost.



    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz
    		670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30
    		220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V
    		380V/50Hz1120*1070*1060190≤35m³≤55m³


    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³
    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)
    		Product Weight(kg)Freezer Room Volume

    Cold Room Volume

    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/50Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz
    		1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz

    1. The top of the unit outside the storage O≥ 500mm from the top obstacle, in order to discharge hot air Inside the machine
    Note:
    Customized Services

    2. The front the unit outside the storage L≥800mm from the obstacle, in order to facilitate cooling, and is convenient for the installation and operation of the unit

    3. The rear of the unit inside the storage W≥ 500mm From the obstacle, behind the library unit distance from obstacles

    W more than 500mm, In order to facilitate the full cycle of cooling machine

    4. The bottom of the unit Inside the cold storage H≥500mm, In order Io facilitate the full cycle of cooling machine


    FAQ

    Q1: Does the XMJL monoblock condensing unit require additional building structure support?
    A1: Generally, the XMJL monoblock condensing unit does not require additional building support, as it can operate independently.
    Q2: Does the XMJL monoblock condensing unit require frequent refrigerant replenishment?
    A2: In general, the refrigerant in the XMJL monoblock condensing unit does not require frequent replenishment, but regular checks are necessary.
