monoblock refrigeration system
    • 2Hp Refrigeration Freezer Monoblock Cooling Unit

    • monoblock cooling unit is a type of cooling system typically used for refrigeration and air conditioning applications.

      • 1HP1.5HP2HP3HPWall Mounted Monoblock Refrigeration UnitXiamen Jialiang
    • Get A Quote
    • Description
    • Features

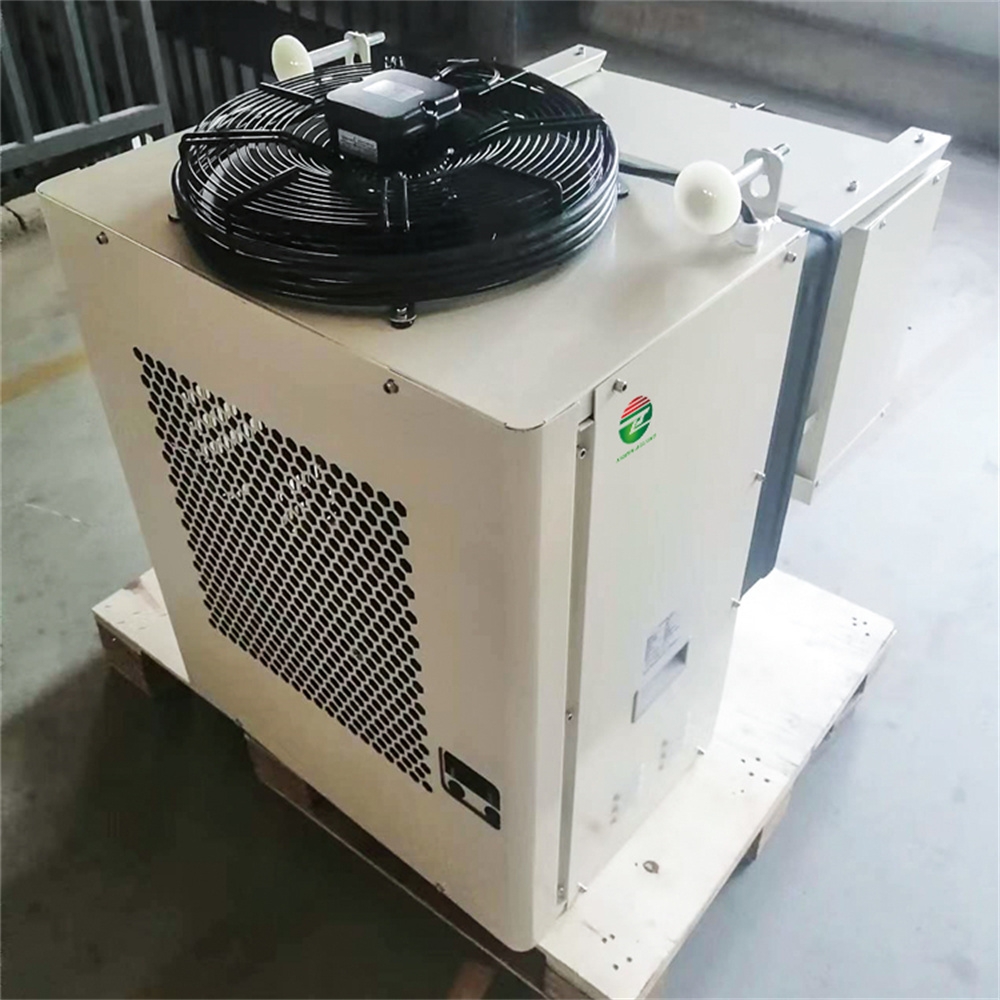

    2Hp Refrigeration Freezer Monoblock Cooling Unit


    Monoblock cooling unit is a type of cooling system typically used for refrigeration and air conditioning applications. Unlike split systems, which have separate indoor and outdoor units, a monoblock unit combines both the evaporator and condenser coils into a single unit. This can be useful for smaller-scale cooling needs, such as domestic refrigerators or portable air conditioners.

    The main advantages of monoblock cooling units include their compact size and ease of installation, as they do not require extensive refrigerant lines or connections between indoor and outdoor components. However, they may have limitations in terms of cooling capacity and efficiency compared to larger, split systems.






    The cold room monoblock refrigeration unit has exquisite craftsmanship and is a completely compact cooling unit, which is easy and fast to install. At the same time, the operation is safe and reliable. The meticulous system design also makes the maintenance of the unit simple, fast and safe.

    Cold room monoblock refrigeration unit is divided into :Wall-mounted monoblock and Ceiling-mounted monoblock

    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz
    		670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30
    		220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V
    		380V/50Hz1120*1070*1060190≤35m³≤55m³


    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³
    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)
    		Product Weight(kg)Freezer Room Volume

    Cold Room Volume

    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/50Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz
    		1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz

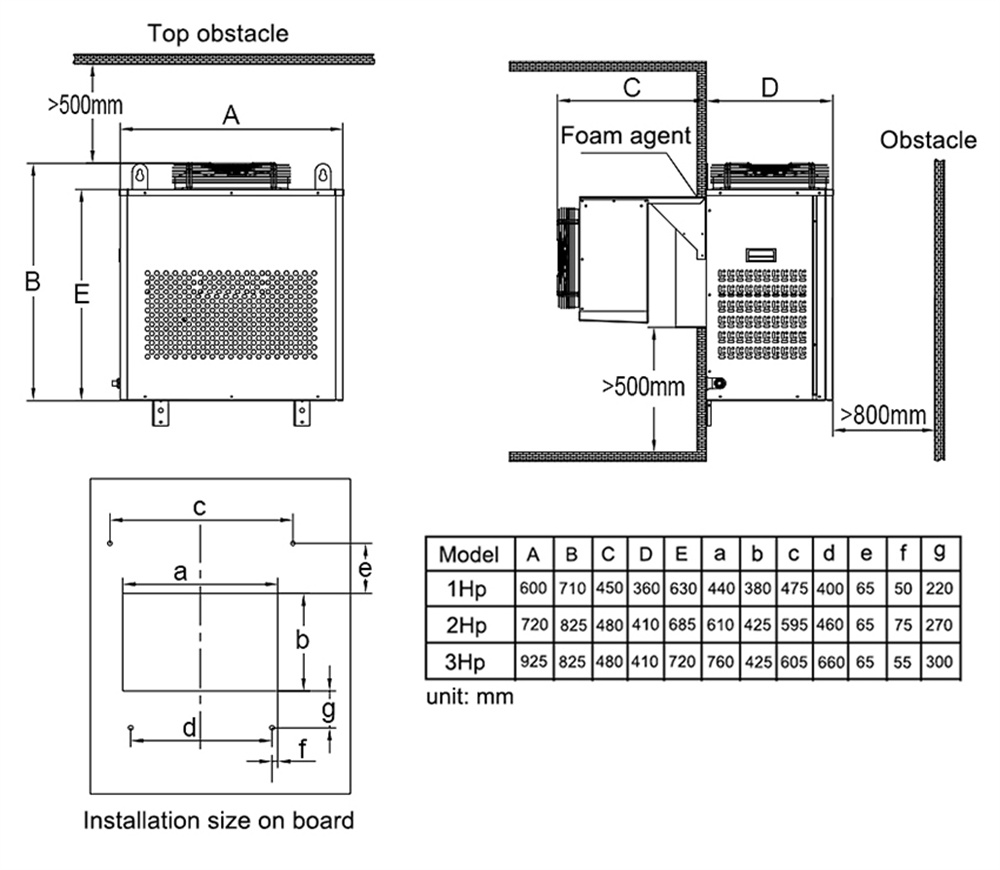

    Monoblock refrigeration unit installation method: When installing, you only need to open a hole in the library body, insert the unit, and connect the power supply. No debugging is required, which greatly reduces the installation time and labor cost.
