    DL Series  Cold Room Condensors Evaporators

    Here are some product features:

    1. Blue Fins/Hydrophilic Aluminum Foil: Our product features anti-corrosion material on its surface, ensuring excellent corrosion resistance.

    2. Wavy Fins: The wavy fin design promotes efficient airflow and accelerates air circulation.

    3. Stainless Steel Screws: We use stainless steel screws for superior corrosion resistance, making it ideal for evaporator environments. These screws not only provide better anti-corrosion performance but also ensure long-lasting durability and an aesthetically pleasing appearance.

    4. Wall-Hanging Design: The wall-hanging design simplifies installation, saving space and installation costs.

    5. Acceptable OEM: We offer OEM services, streamlining branding and customization efforts, ultimately saving time and effort for our customers while facilitating brand promotion.

    ModelDL20DL25DL40DL55DL80DL105
    Refrige-Rating Capacity4.3KW5.3KW8.4KW11.6KW16.8KW23.2KW
    Cooling Area22㎡25㎡40㎡ 55㎡80㎡105㎡
    Diameter of Feed Inlet12mm12mm16mm16mm19mm19mm
    Diameter of Tail Pipe16mm16mm25mm25mm32mm32mm
    Wind Rate2450*2m³/h2450*2m³/h3950*2m³/h3950*2m³/h5400*2m³/h5400*2m³/h
    Quantity2N2N2N2N2N2N
    Voltage380v380v380v380v380v380v
    Power2*150W2*150W2*180W2*180W2*180W2*180W
    Air Throw8m8m10m10m15m15m
    Coil Unit0.9KW1.2KW1.3KW1.5KW2.4KW3.6KW
    Drain Pan0.9KW1.2KW1.3KW1.5KW1.2KW1.2KW


    ModelDL125DL160DL185DL210
    Refrige-Rating Capacity27.6KW34.6KW40.3KW46.1KW
    Cooling Area125㎡160㎡185㎡210㎡
    Diameter of Feed Inlet19mm19mm25mm25mm
    Diameter of Tail Pipe38mm38mm42mm42mm
    Wind Rate5400*3m³/h5400*3m³/h5400*4m³/h5400*4m³/h
    Quantity3N3N4N4N
    Fan Blade450mm450mm450mm450mm
    Voltage380v380v380v380v
    Power3*280W3*280W4*280W4*280W
    Air Throw15m15m15m15m
    Coil Unit4.8KW5.1KW6.0KW6.6KW
    Drain Pan1.6KW1.7KW2.0KW2.2KW


    ModelDL260DL330DL410DL470DL580
    Refrige-Rating Capacity52.0KW66.0KW82.0KW94.0KW116.0KW
    Cooling Area260㎡330㎡410㎡470㎡580㎡
    Diameter of Feed Inlet25mm25mm25mm25mm28mm
    Diameter of Tail Pipe50mm50mm50mm50mm50mm
    Wind Rate12000*2m³/h12000*3m³/h12000*3m³/h12000*3m³/h12000*4m³/h
    Quantity2N3N3N3N4N
    Fan Blade600m600m600m600m600m
    Voltage380v380v380v380v380v
    Power2*1500W3*1500W3*1500W3*1500W4*1500W
    Air Throw20m20m20m20m20m
    Coil Unit6.6KW11.0KW11.0KW16.0KW17.6KW
    Drain Pan2.2KW2.2KW2.2KW2.0KW2.0KW

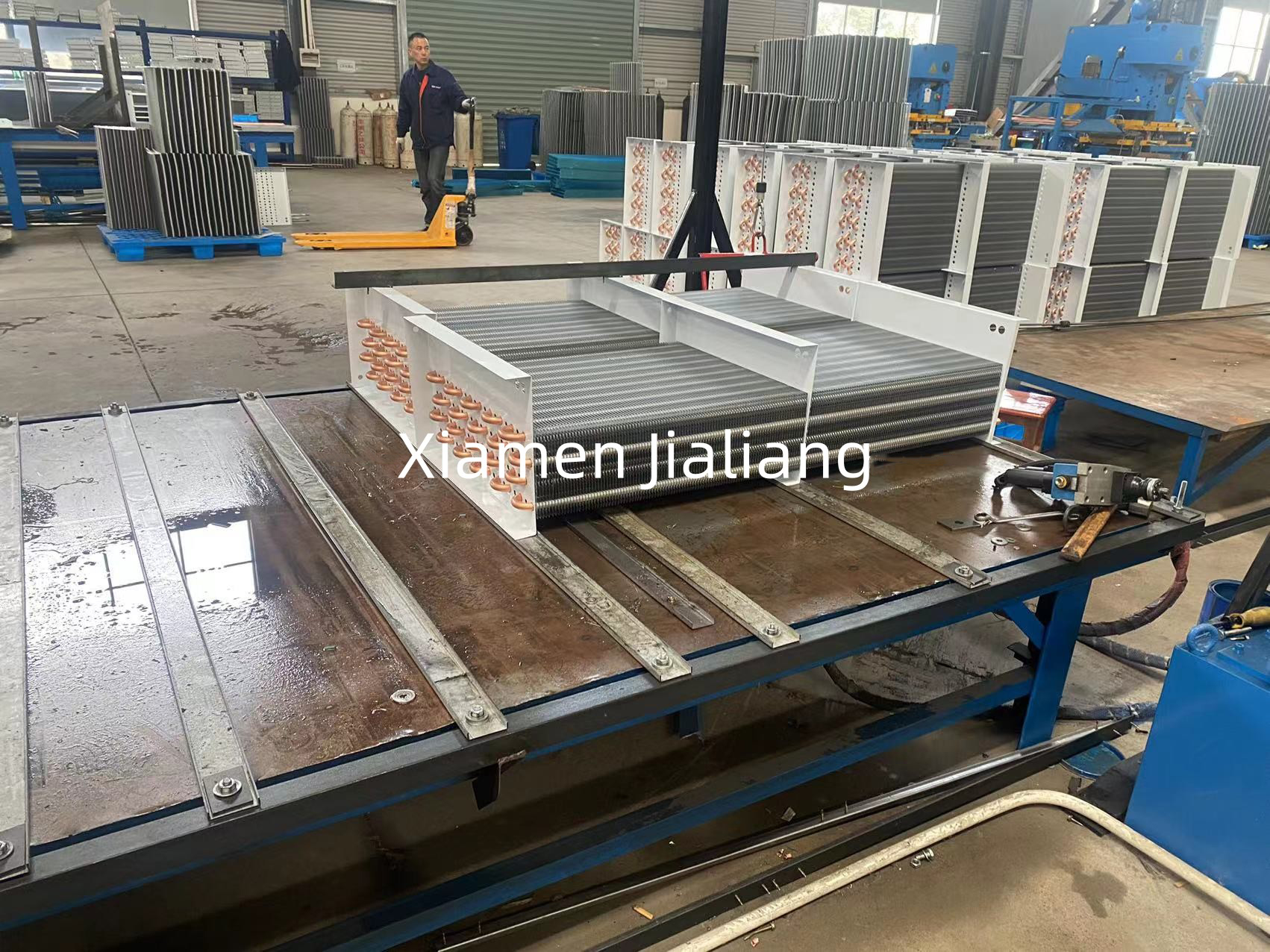

    On Site factory

    With over two decades of experience in the refrigeration industry, we bring a wealth of knowledge and a youthful, innovative, and confident spirit to our work. Our products have already made their mark in several countries across South America, Asia, the Middle East, Europe, Oceania, and Africa.

    Our success is driven by the stability and quality of our products, competitive pricing, and rapid customer service. We're dedicated to providing you with the best.

    In the future, we envision a world where everyone can enjoy a fresher, higher-quality life through our industry. We're excited to partner with you to turn this vision into reality, making a positive impact on people's lives everywhere. Together, we'll create a better, fresher future.

    FAQ

    Q1: What are the current export markets DL series evaporators?
    A1: So far, we have exported to more than 112 countries and our market is not limited to regions with hot weather, regions such as Russia where the temperature is too low also use our cold rooms to preserve vegetables and fruits in the cold winter.
    Q2: Do you have DL series evaporators samples?
    A2: There are samples that require sample fees
