Home / Container Cold Storage
Provide a climate-controlled environment to protect the quality and shelf life of specific items.
  • Provide a climate-controlled environment to protect the quality and shelf life of specific items.Provide a climate-controlled environment to protect the quality and shelf life of specific items.Provide a climate-controlled environment to protect the quality and shelf life of specific items.
    • Fast cooling container cold storage

    • Provide a climate-controlled environment to protect the quality and shelf life of specific items.

      • 20ft Container Cold Room40ft Container Cold Room
    • Get A Quote
    • Description
    • Features

    20ft Container Cold Room Cold Storage Room Container Cold Room
    Product description

    Application: meat , fish , seafood, vegetables, etc .

    Materials: SS304 or Color Steel Plate

    Volume: 10m³~90m³ (can be customized)

    Panel thickness: 33.44sq.m/100mm

    Temperature range: 0~10℃(chiller), -18℃~ -25℃(freezer)


    Cold room structure

     xiamen jialiang cold room consists of cold room panel (PU sandwich panel), cold room door, condensing unit,

    evaporator (air cooler),temperature controller, air curtain, copper pipe, expansion valve and other refrigeration fittings.



    Cold room applications

    Cold room is widely used in food industry, medical industry, and other related industries.

    In food industry, cold room is usually used in food process factory, slaughterhouse, fruit and vegetable

    warehouse,supermarket,hotel, restaurant, etc.

    Other related industries, such as chemical factory, laboratory, logistics center, they also need cold room.



    Solution and catalog

    ZSI Series Condensing Unit Three Phase Electricity
    Model

    Condensing Temperatur

    		Refrigeration   Capacity (-15°C）Power (-15 °C）VoltageTemperature

    Horse Power

    ZSI06KQE40℃
    		3.13KW1.72KW380V-23°C~-102HP
    ZSI08KQE40℃3.87KW1.83KW380V-23°C~-103HP
    ZSI11KQE40℃

    5.38KW

    		2.38KW380V-23°C~-104HP
    ZSI15KQE40℃7.66KW3.4KW380V-23°C~-105HP
    ZSI18KQE40℃9.48KW4.29KW380V-23°C~-106HP
    ZSI21KQE40℃10.57KW4.7KW380V-23°C~-107HP



    CompressorsBitzer,Danfoss,Copeland,Invotech,Boyard
    Connection Material Copper Pipe
    Voltage

    220~240V,50HZ,60HZ,Single or Triple
      Phase

    380~420V,Triple Phase

    440~460V,Triple Phase

    560V,Triple Phase

    Installation of Condensing UnitFloor Installation
    Compressor Unit TypeOpen/Scroll/ZB ZSI/Box Type
    Cooling TypeAir Cooled/Water Cooled/Evaporation Cooled
    WarrantyOne Years
    Condenser FanAxial Fan
    Defrost TypeElectric Defrosting
    SizeLength(m)*Width(m)*Height(m)



    Company Profile




    On site factory

    With two decades of experience in the refrigeration field, we bring a wealth of knowledge and a youthful, energetic, innovative,

    and confident spirit to our work. Our products have reached customers in various countries across South America, Asia, the Middle

    East, Europe, Oceania, and Africa.

    Our success is built upon the foundation of stable quality, competitive pricing, and responsive customer service, enabling us to

    continually expand our customer base.

    Looking ahead, we envision a future where our industry can enhance the quality of life by providing fresher and higher-quality

    products. We eagerly anticipate the opportunity to collaborate with you to turn this vision into reality and to help more people

    enjoy a high-quality life. Together, we'll shape a brighter future in our industry.

    Our Services

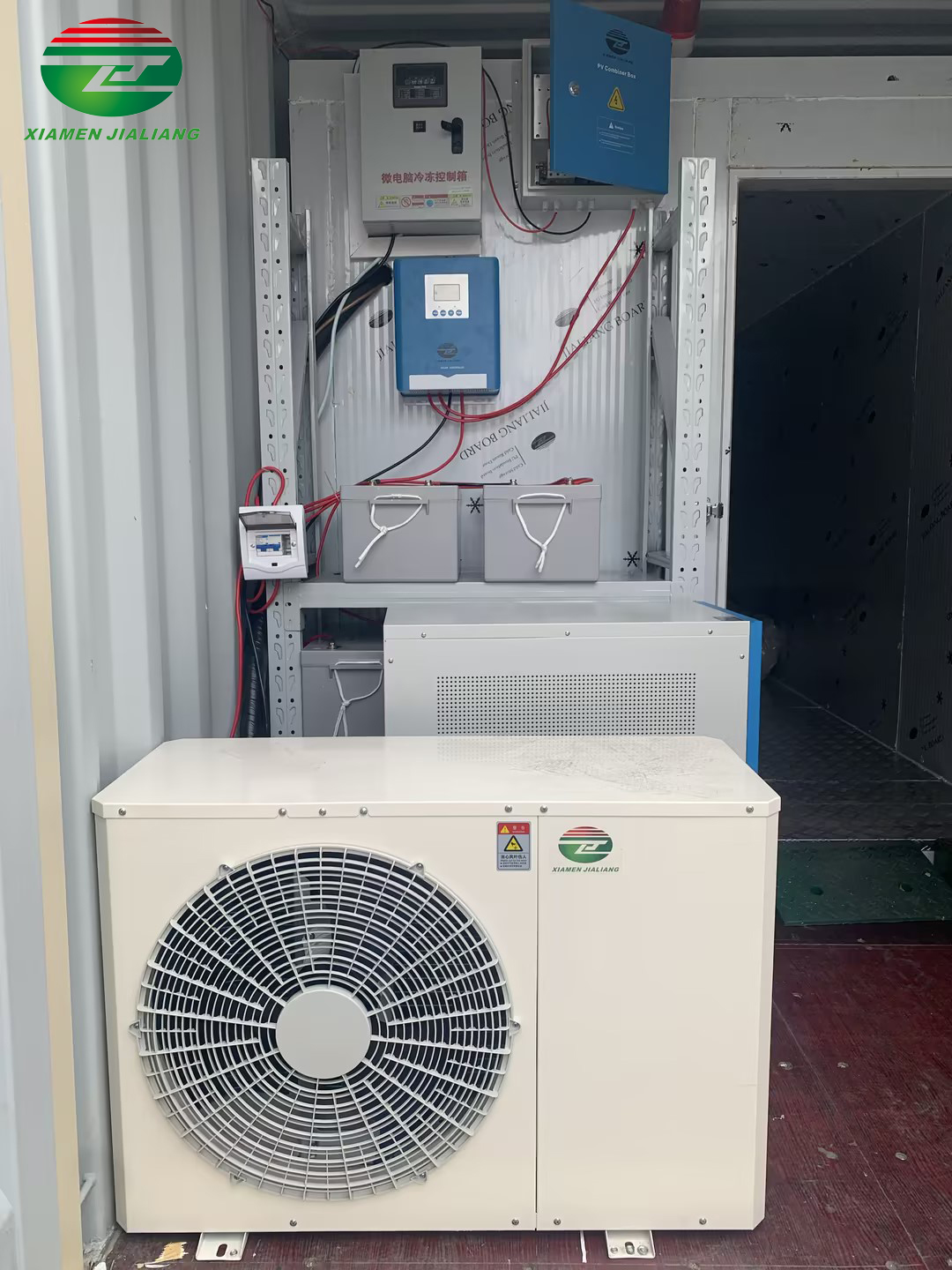

    The container freezer is designed to be 3D, we design the compressor unit to be installed inside the container, which is why the freezer length and unit installation space are included in our quotation. And the electric box will be covered with panels. The door is hinged.






    FAQ

     1.What is the cold room size do you prefer?
    2.provide L*W*H by meter. Indoor temp. and industry voltage?
    3.How to keep up with cold room maintenance?
    4.What is the cold room temperature do you need?
