- Energy-saving container cold storage
To provide cold chain storage for the medical industry to store vaccines and medicines.
- Get A Quote
- Description
- Features

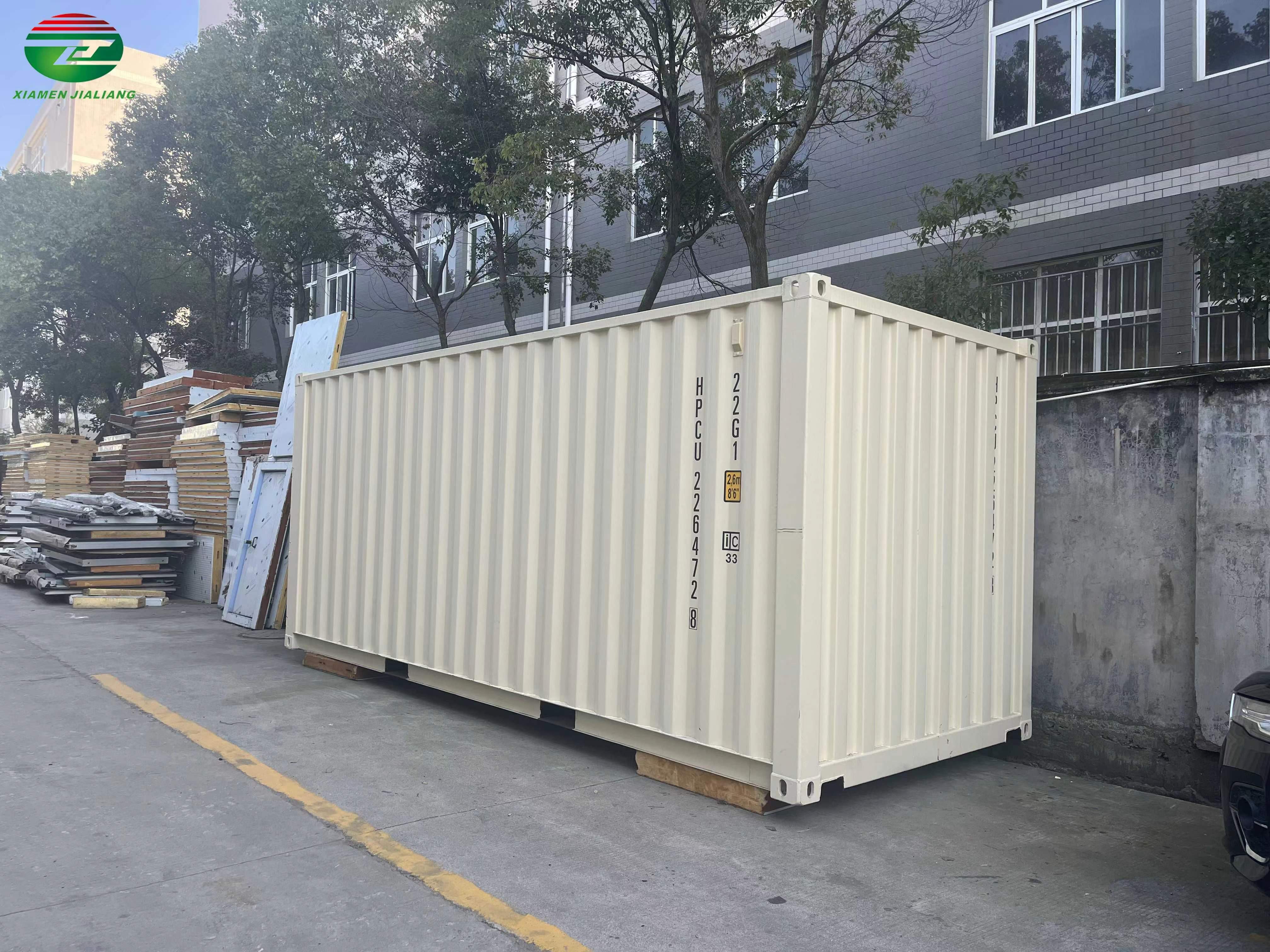

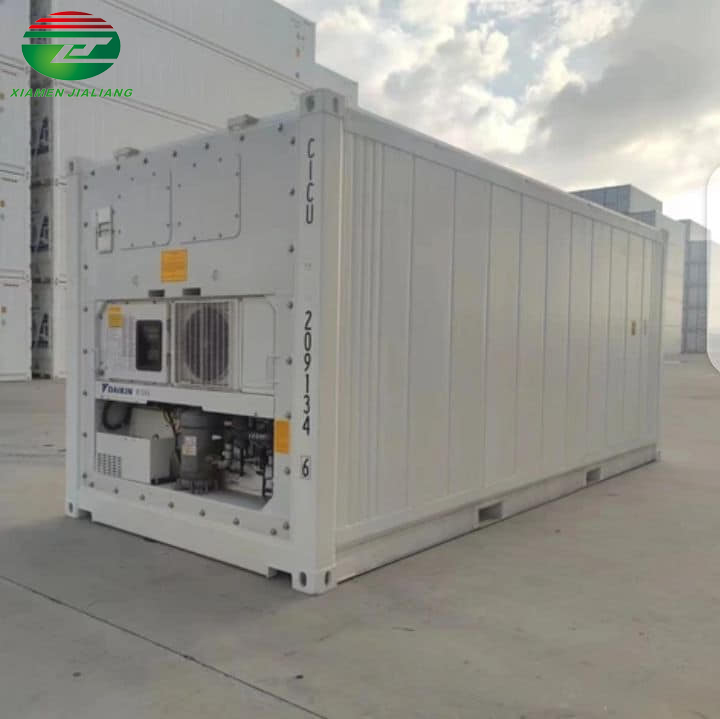

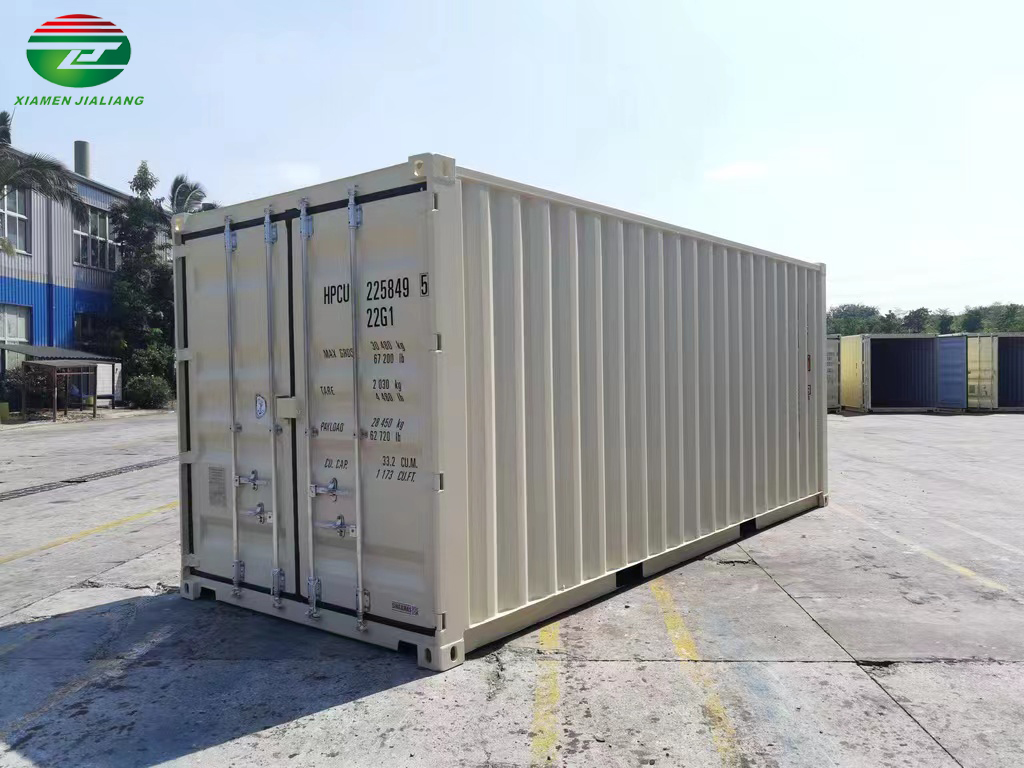

20ft Container Cold Room Cold Storage Room Container Cold Room
Product description
Application: meat , fish , seafood, vegetables, etc .
Materials: SS304 or Color Steel Plate
Volume: 10m³~90m³ (can be customized)
Panel thickness: 33.44sq.m/100mm
Temperature range: 0~10℃(chiller), -18℃~ -25℃(freezer)

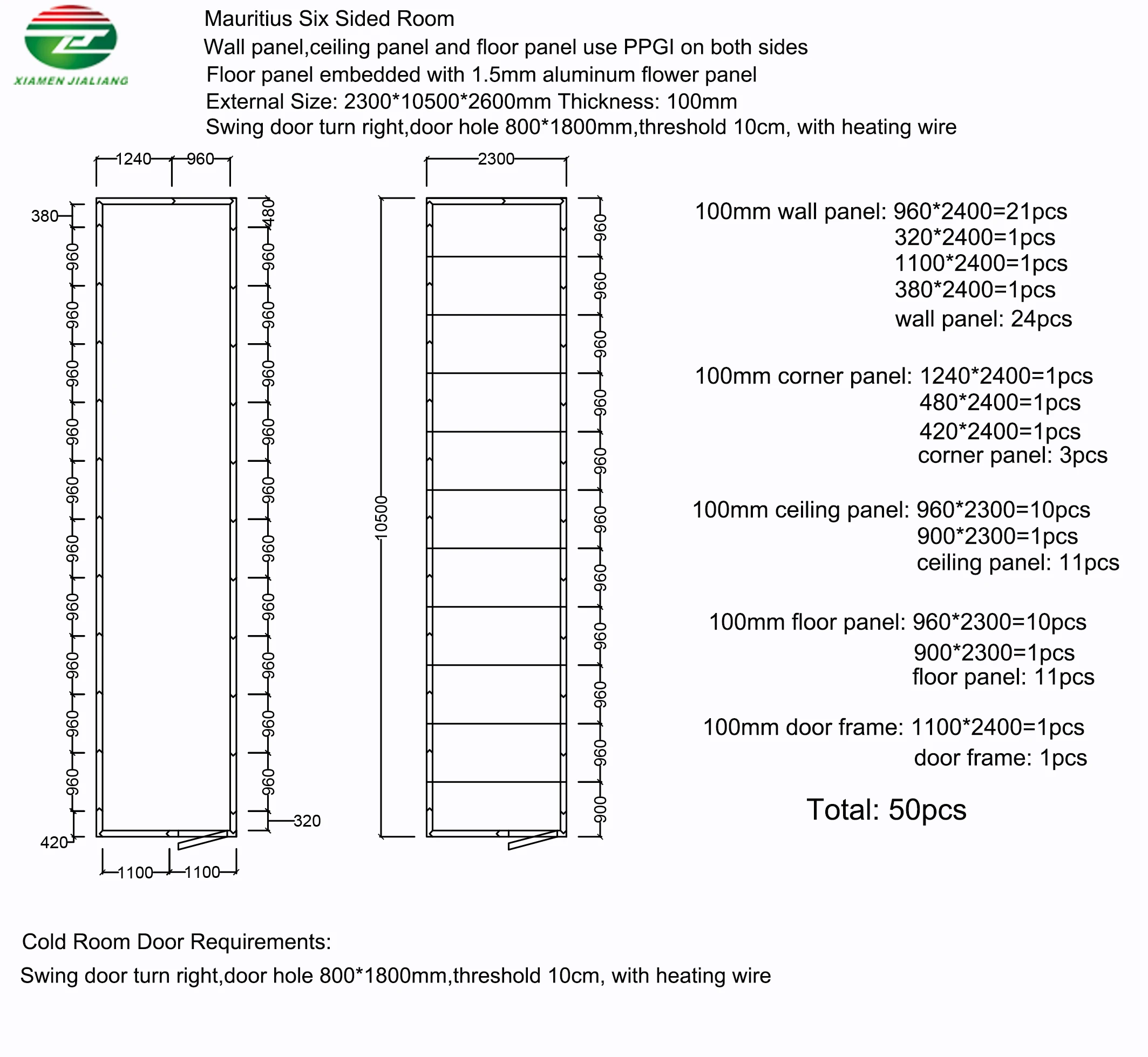

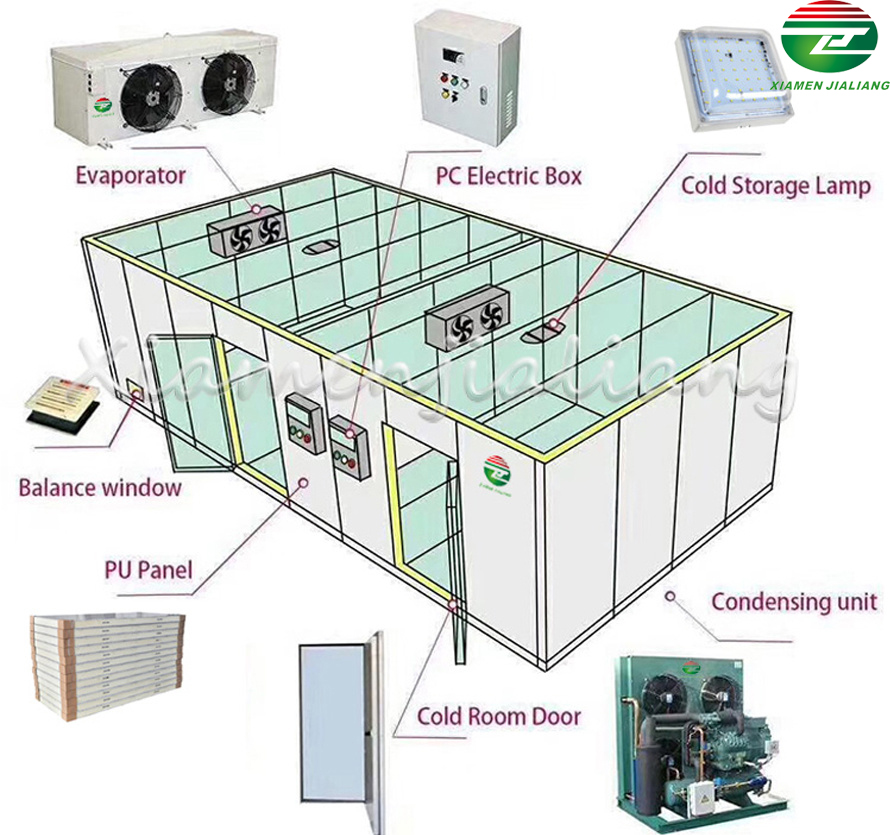

Cold room structure

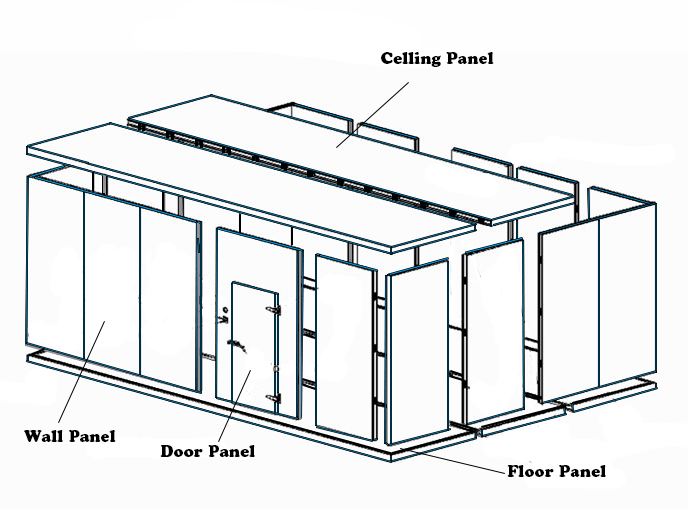

xiamen jialiang cold room consists of cold room panel (PU sandwich panel), cold room door, condensing unit,

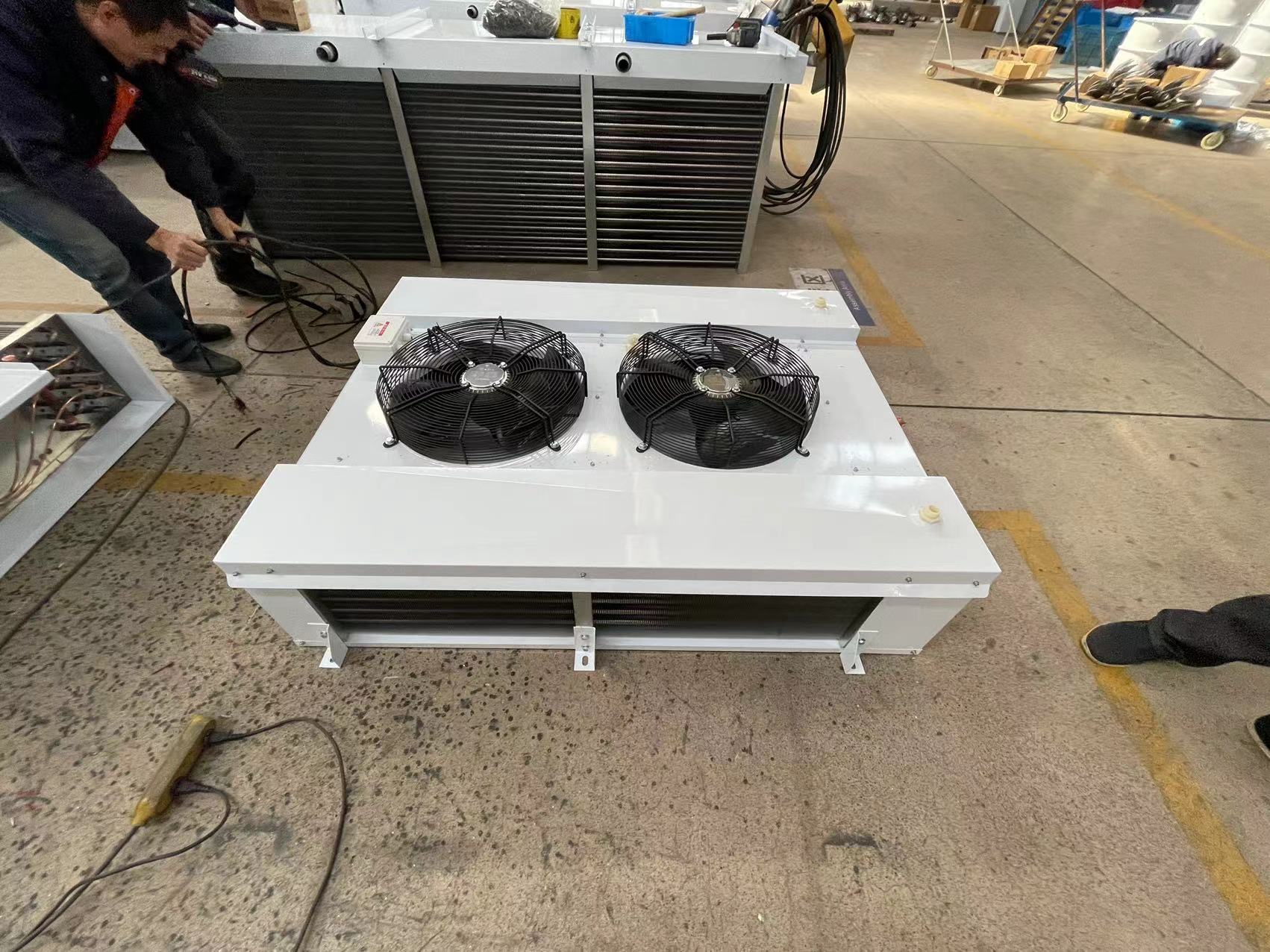

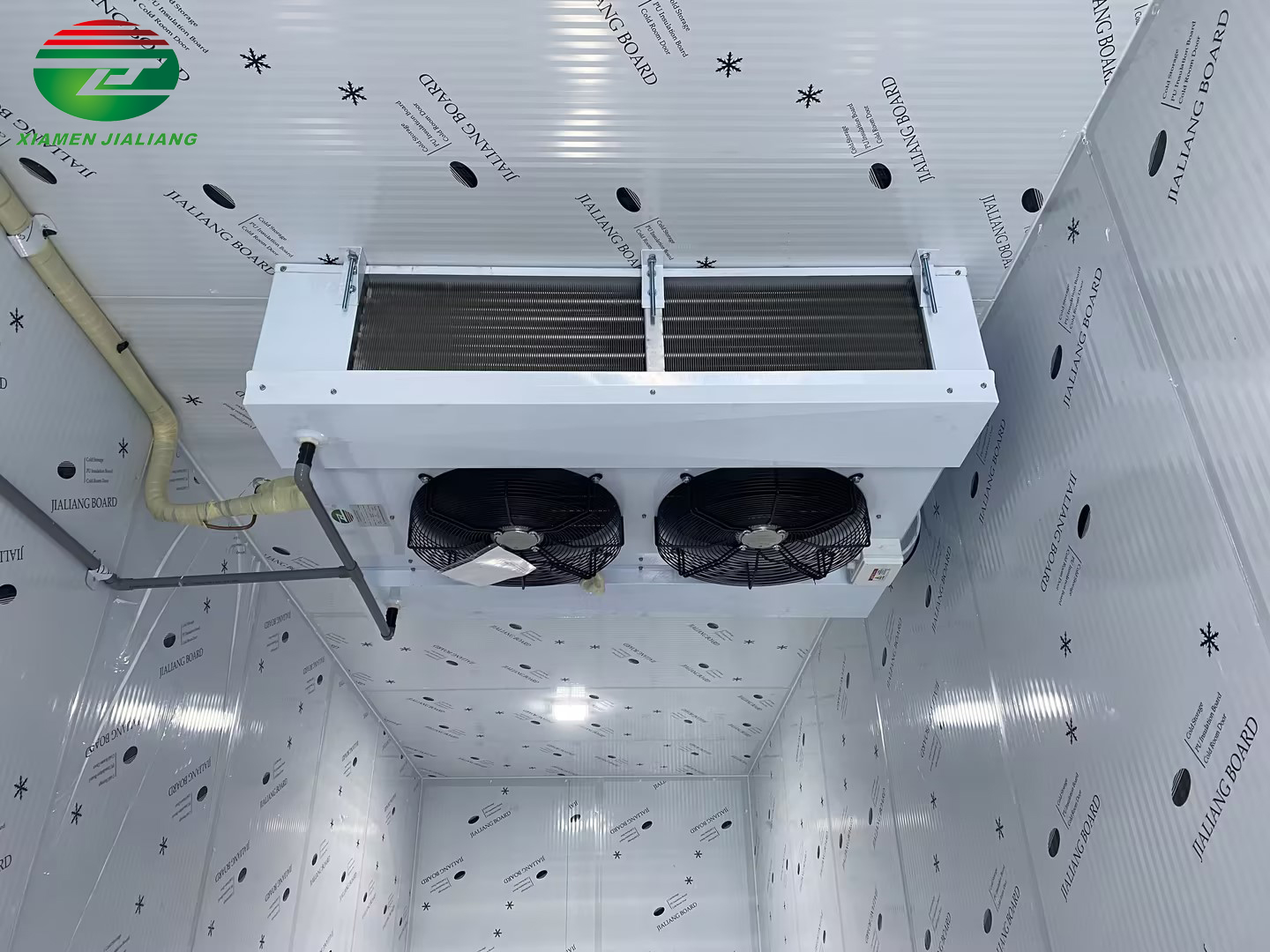

evaporator (air cooler),temperature controller, air curtain, copper pipe, expansion valve and other refrigeration fittings.
Cold room applications
Cold room is widely used in food industry, medical industry, and other related industries.
In food industry, cold room is usually used in food process factory, slaughterhouse, fruit and vegetable
warehouse,supermarket,hotel, restaurant, etc.
Other related industries, such as chemical factory, laboratory, logistics center, they also need cold room.
Solution and catalog

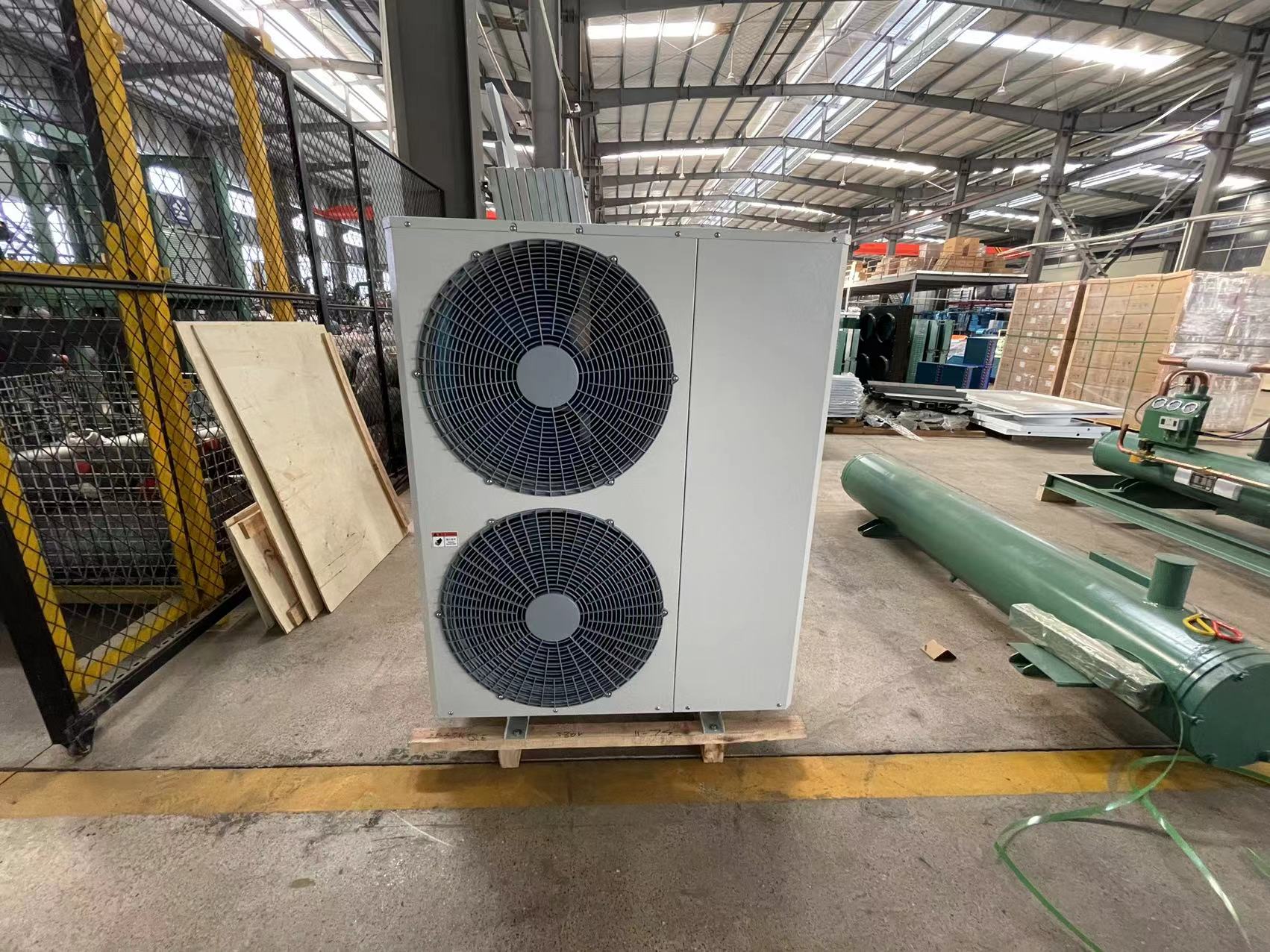

| ZSI Series Condensing Unit Three Phase Electricity | ||||||
| Model | Condensing Temperatur | Refrigeration Capacity (-15°C） | Power (-15 °C） | Voltage | Temperature | Horse Power |
| ZSI06KQE | 40℃ | 3.13KW | 1.72KW | 380V | -23°C~-10 | 2HP |
| ZSI08KQE | 40℃ | 3.87KW | 1.83KW | 380V | -23°C~-10 | 3HP |
| ZSI11KQE | 40℃ | 5.38KW | 2.38KW | 380V | -23°C~-10 | 4HP |
| ZSI15KQE | 40℃ | 7.66KW | 3.4KW | 380V | -23°C~-10 | 5HP |
| ZSI18KQE | 40℃ | 9.48KW | 4.29KW | 380V | -23°C~-10 | 6HP |
| ZSI21KQE | 40℃ | 10.57KW | 4.7KW | 380V | -23°C~-10 | 7HP |
| Compressors | Bitzer,Danfoss,Copeland,Invotech,Boyard |
| Connection Material | Copper Pipe |
| Voltage | 220~240V,50HZ,60HZ,Single or Triple 380~420V,Triple Phase 440~460V,Triple Phase 560V,Triple Phase |
| Installation of Condensing Unit | Floor Installation |
| Compressor Unit Type | Open/Scroll/ZB ZSI/Box Type |
| Cooling Type | Air Cooled/Water Cooled/Evaporation Cooled |
| Warranty | One Years |
| Condenser Fan | Axial Fan |
| Defrost Type | Electric Defrosting |
| Size | Length(m)*Width(m)*Height(m) |
Company Profile

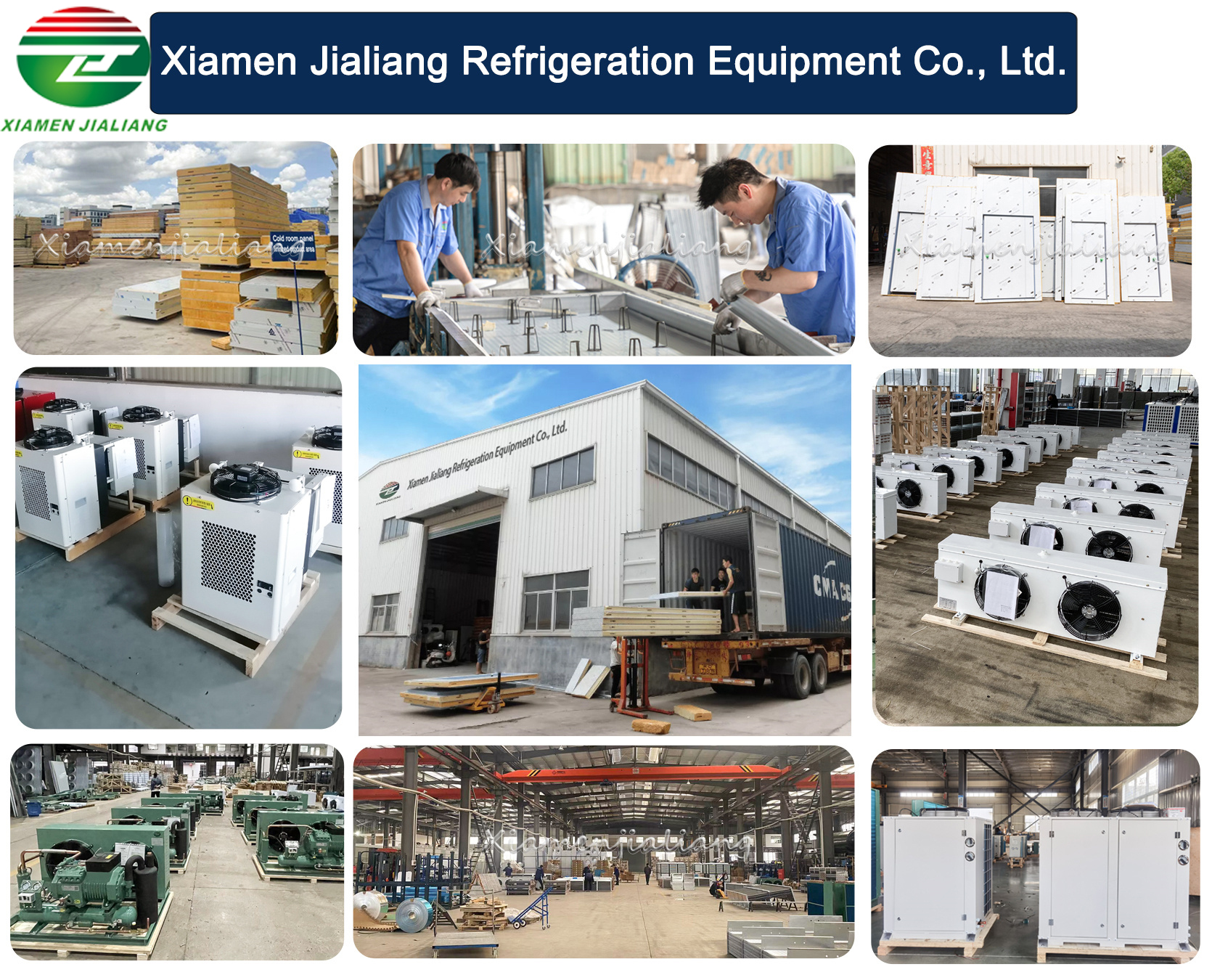

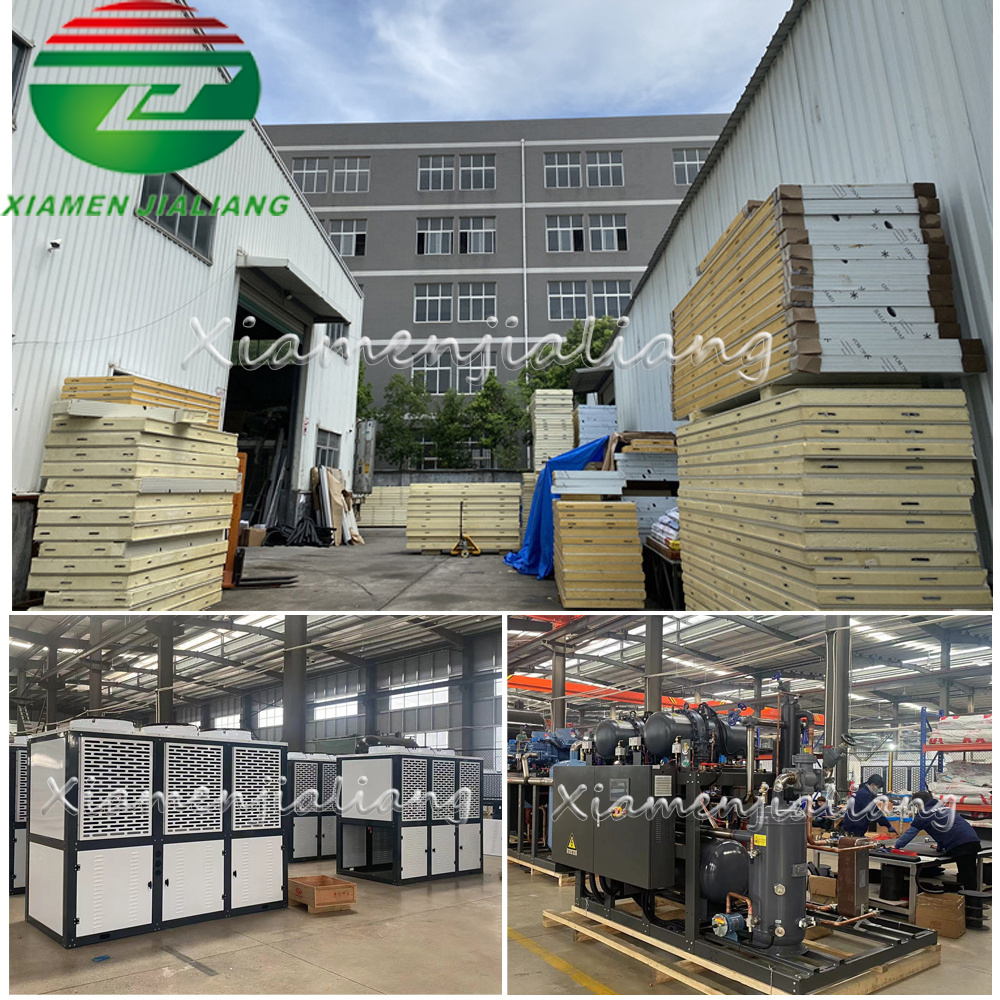

On site factory
With two decades of experience in the refrigeration field, we bring a wealth of knowledge and a youthful, energetic, innovative,
and confident spirit to our work. Our products have reached customers in various countries across South America, Asia, the Middle
East, Europe, Oceania, and Africa.
Our success is built upon the foundation of stable quality, competitive pricing, and responsive customer service, enabling us to
continually expand our customer base.
Looking ahead, we envision a future where our industry can enhance the quality of life by providing fresher and higher-quality
products. We eagerly anticipate the opportunity to collaborate with you to turn this vision into reality and to help more people
enjoy a high-quality life. Together, we'll shape a brighter future in our industry.
Our Services
The container freezer is designed to be 3D, we design the compressor unit to be installed inside the container, which is why the freezer length and unit installation space are included in our quotation. And the electric box will be covered with panels. The door is hinged.
FAQ
| 1.What is the cold room size do you prefer? |
| 2.provide L*W*H by meter. Indoor temp. and industry voltage? |
| 3.How to keep up with cold room maintenance? |
| 4.What is the cold room temperature do you need? |
