- Restaurant Commercial Cold Room Walk In 4G-30.2 30HP cold room compressor commercial condensing unit
High-efficiency cold storage unit product series
- Get A Quote
- Description
- Features

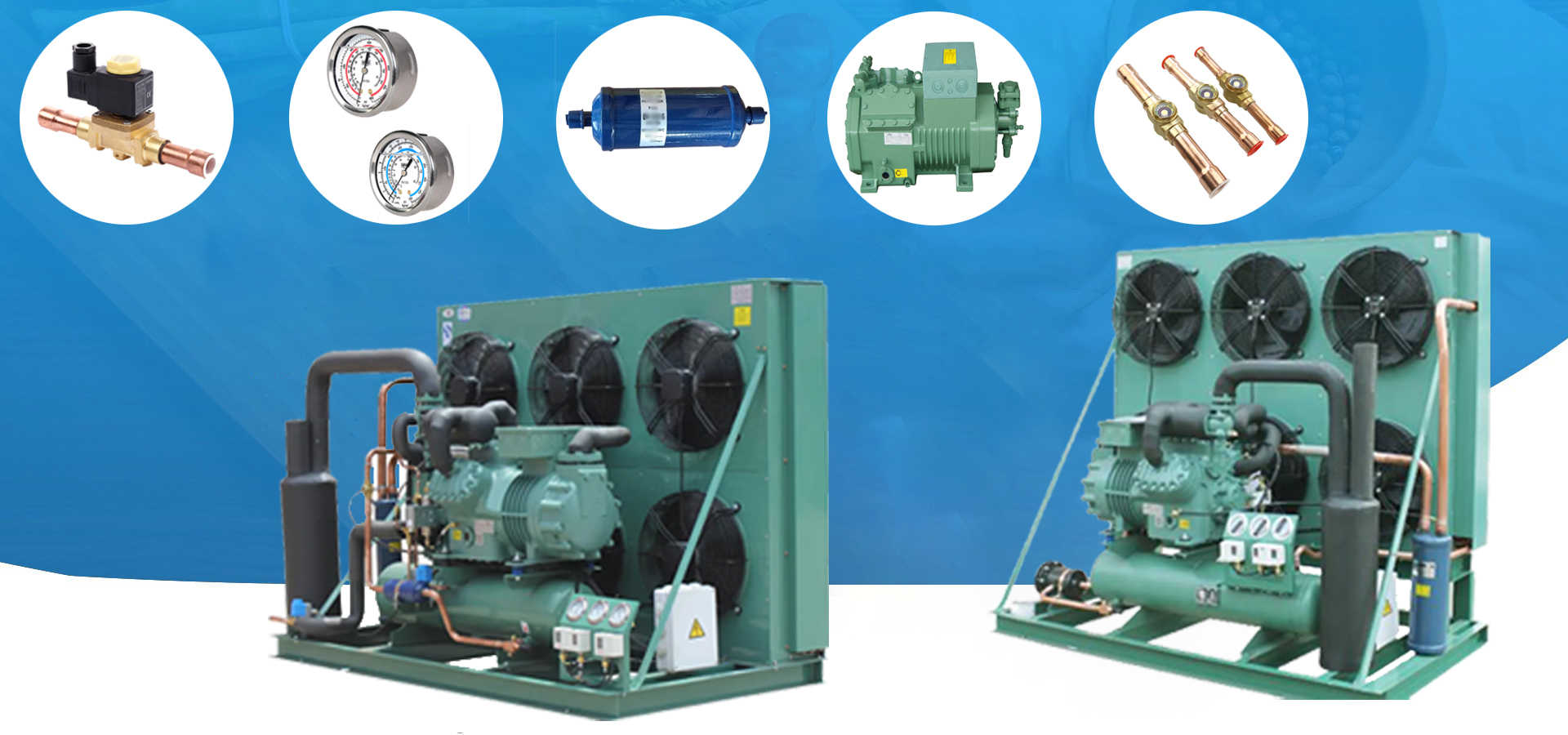

4G-30.2 30HP cold room compressor commercial condensing unit
Our Commitments about compressor condenser unit:
1. Customized Configurations:We offer flexibility in configuring our units to meet your specific needs. You can customize accessories such as expanding the condenser or liquid receiver, and upgrading components like the oil filter, solenoid valve, sight glass, or pressure controller to internationally renowned brands.
2. Elegant Design:Our units not only boast a beautiful and generous exterior but also feature professionally designed pipelines. These designs have evolved over years of customer feedback to meet operational requirements effectively.
3. Exceptional Quality:Our units feature high-quality accessories, professional design, and dependable operation. The exterior undergoes an advanced overall spraying process, resulting in a uniform and vibrant color finish that doesn't peel off.
| Brand Name | Xiamen Jialiang |
| Compressor | 4G-30.2 |
| Compressor Brand | Xiamen Jialiang |
| Condensing Temperature | 40℃ |
| Warranty | 1 Year |
| Temperature Range | -10℃~15℃ |
| Refrigeration Unit Brand | Xiamen Jialiang |
| Cooling Capacity（The temperature is -5℃） | 56.9 KW |
| Evaporator Capacity（The temperature is -5℃） | 56.9 KW |
| Voltage Range | 380~420YY/3/50 440~480YY/3/60 |
| Engine Displacement (50Hz) m/h | 84.5 m |
| Current (400V) | 53 A |
| Horse Power | 30 HP |
| Size | Customzised |
| Compressor Type | Semi-hermitic Reciprocating Compressors |
| Refrigerant | R22/R404a/R447a/R448a/R449a/R507a |
| Refrigeration Type | Air Cooled/Water Cooled/Evaporation Cooled |
Customized Services
Key Features of the condensing unit for cold room:
Compact and Stylish Design:Boasts a sleek and sophisticated appearance, adding a touch of elegance to any setting.
Ready for Installation:Comes fully assembled and ready to be installed, saving both assembly time and applied costs.
Wide Operating Range:Offers a broad operating range, providing versatility and adaptability for various applications and environments.
FAQ
| Q1: Are there environmentally friendly options available for the 4G-30.2 condensing unit? |
A1: Absolutely, the 4G-30.2 condensing unit incorporates environmentally friendly options by adopting refrigerants and energy-saving technologies that aim to minimize its impact on the environment. |
Q2: What temperature range does the 4G-30.2 condensing unit operate within |
| A2: The 4G-30.2 condensing unit is designed to operate effectively within a temperature range of -30°C to 10°C, ensuring reliable performance under various conditions. |
