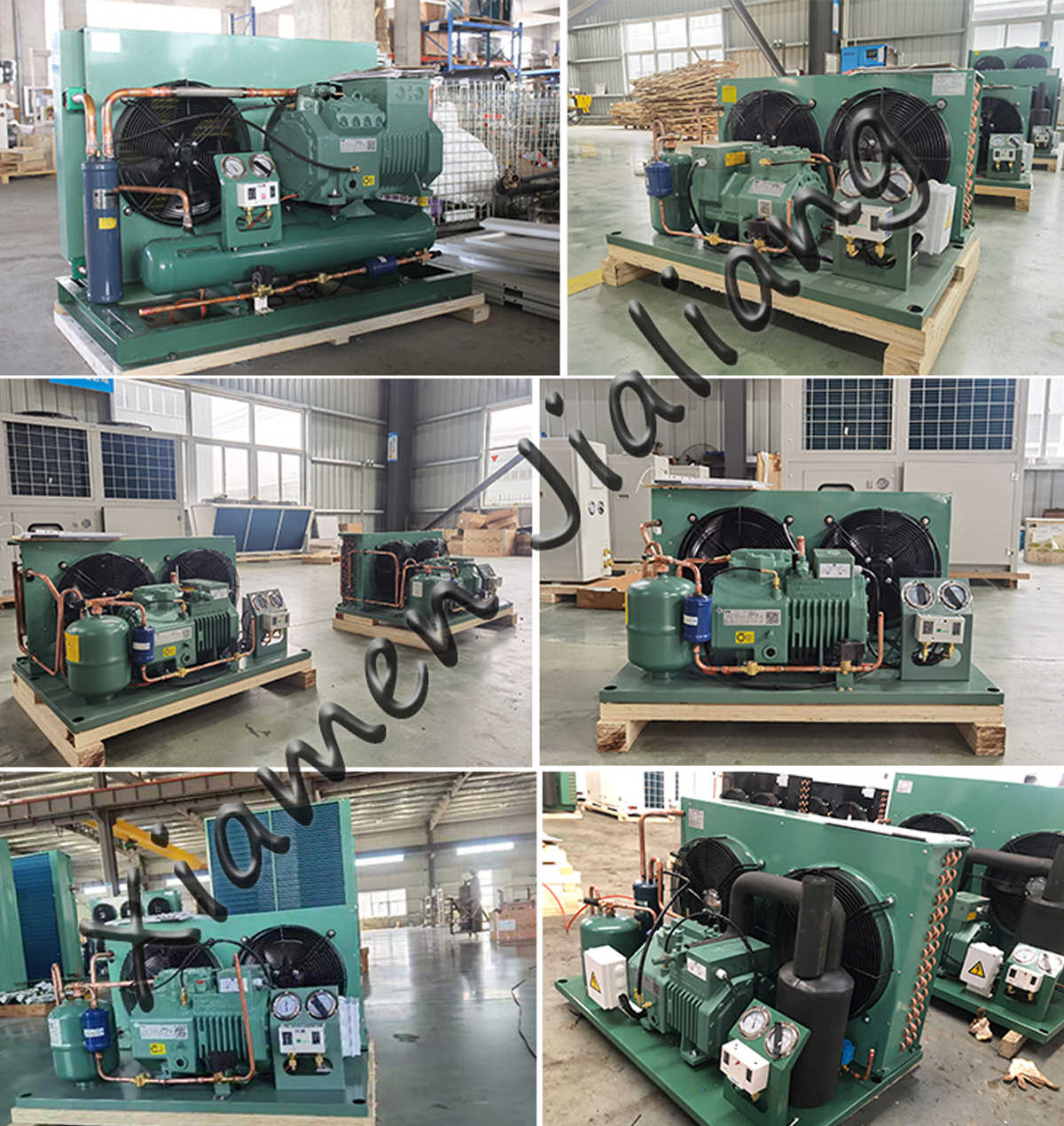

    4CES-6Y 6HP Air Cooled Industrial Stable Condensing Unit

    To provide you with the most accurate information about refrigeration condensing unit, we require additional details:

    1. Cold Room Dimensions:**

       - Please specify the Length, Width, and Height of the cold room in meters.

    2. Cold Room Usage Details:**

       - Kindly provide information about the goods to be stored inside the cold room.

       - Specify the desired indoor temperature for the cold room.

    3. Industry Voltage:**

       - Please specify the voltage requirements for your industry.

    Regarding the Bitzer Condensing Unit, it's great to hear about its optimized design and features. If you can provide the information requested above, we can offer more tailored advice and recommendations for your specific needs.

    Brand NameXiamen Jialiang
    Compressor4CES-6Y
    Compressor BrandBitzer
    Capacity Steps100%
    Warranty1 Year
    Temperature Range- 11 °C ~ - 28 °C
    Refrigeration Unit BrandXiamen Jialiang
    Cooling Capacity（The temperature is 0℃）9.74 KW
    Evaporator Capacity（The temperature is 0℃）9.74 KW
    Power Input（The temperature is 0℃）5.81 KW
    Current (400V)10.57 A
    Horse Power6 HP
    Voltage Range380-420V
    SizeCustomzised
    Compressor TypeSemi-hermitic Reciprocating Compressors
    RefrigerantR22/R404a/R447a/R448a/R449a/R507a
    Refrigeration TypeAir Cooled/Water Cooled/Evaporation Cooled

    Customized Services

    Technical requirements:

    1. The fins are made of aluminum foil with a hole spacing of 25mm, a row spacing of 21.65mm, and a sheet spacing of 2.0mm; When flanging holes, there should be no cracks around them,

    There should be no burrs, fragments or other adverse phenomena, and the color of the aluminum foil should be consistent:

    2. After the assembly of the fins, there should be no flipping or dirt on them.

    3. The connection between the fins and copper pipes must be through expansion, ensuring firmness without any looseness.

    4. Winter fiber welding points must be securely welded, free from welding defects such as false soldering and missing soldering.

    5. Upon completion of component assembly, it is mandatory to conduct an airtightness test at a pressure of 3.5 ± 0.2MPa. Submerge the unit in water for a minimum of 5 minutes to ensure there are no leaks.

    6. The fan must be equipped with an external rotor motor with a blade diameter of 2 * 4D450.

    7. Inlet pipe diameter should be 25mm, while the outlet pipe diameter should be 916mm.

    FAQ

    Q1: Which brand is associated with the 4CES-6Y condensing unit?

    A1: It's xiamen jialiang. The supplier will provide detailed information as soon as 4CES-6Y condensing unit possible.

    Q2: What is the approximate shipping time for the delivery of the 4CES-6Y condensing unit to my country?

    A2: Please provide port name and country name , we could checking shipping days from shipping agent.
