Compressor Chilled Water System Chiller Unit
Water chiller features:
1. Efficient and energy-saving, low operating costs: Using high-quality carrier compressors and optimized refrigeration systems.
2. Accurate temperature control and strong stability: High precision temperature control ensures stable and reliable system.
3. Environmental protection and safety, green and sustainable: Using environmentally friendly refrigerants with multiple safety protections.
4. Wide adaptability and flexible customization: Adaptable to different environments and needs, supporting customized design.
5. Low noise operation, environmentally friendly: Low noise design reduces interference in the working environment.
| Product Type | Piston Shell-And-Tube Water-Cooled Chillers |
| Horsepower | 30HP*2+40HP |
| Compressor | 06EA599 40HP |
| Voltage | 440V/60HZ/3Phase |
| Refrigerant | R404a(buyer buy locally) |
| Cooling Type | Water Cooling |
| Power | 74KW |
| Cooling Capacity | 320kw |
| Water Inlet | 12°C |
| Water Outlet | 5°C |
| Color | Close To Compressor's Green |
| Feature | 1.Include PLC and HMI 2. Without two 30HP Carrier compressor 3.0With Water temperature control |

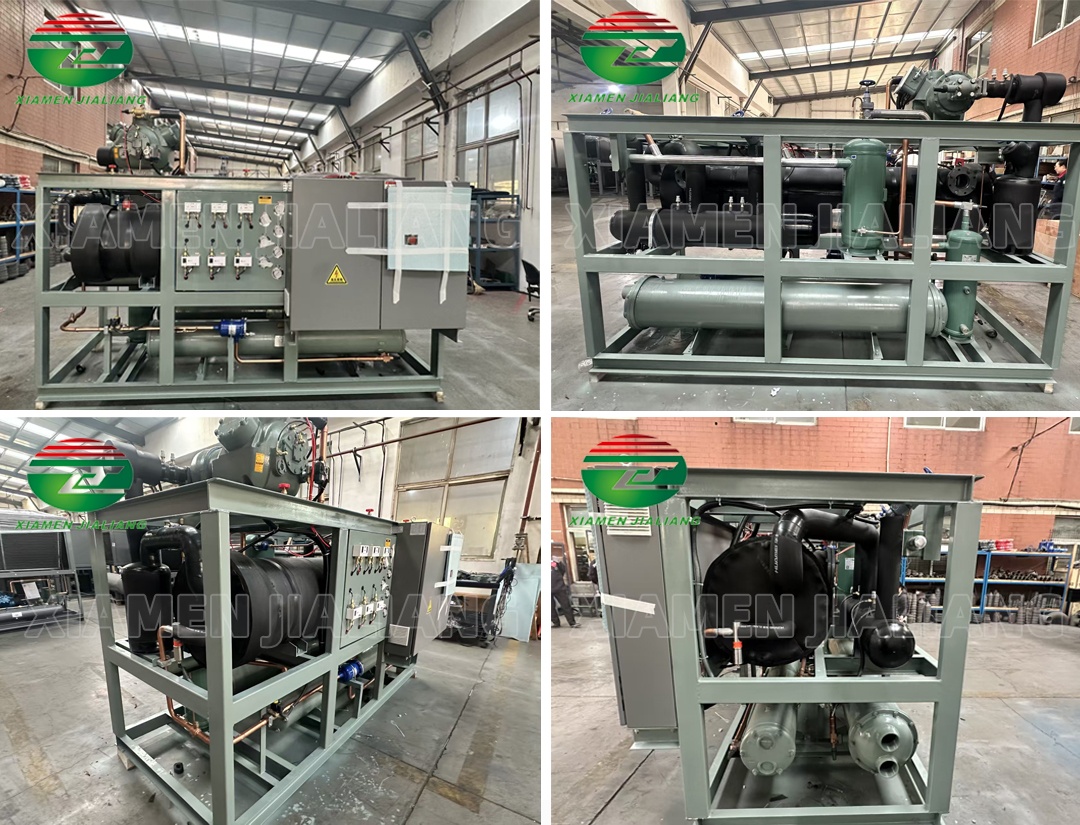

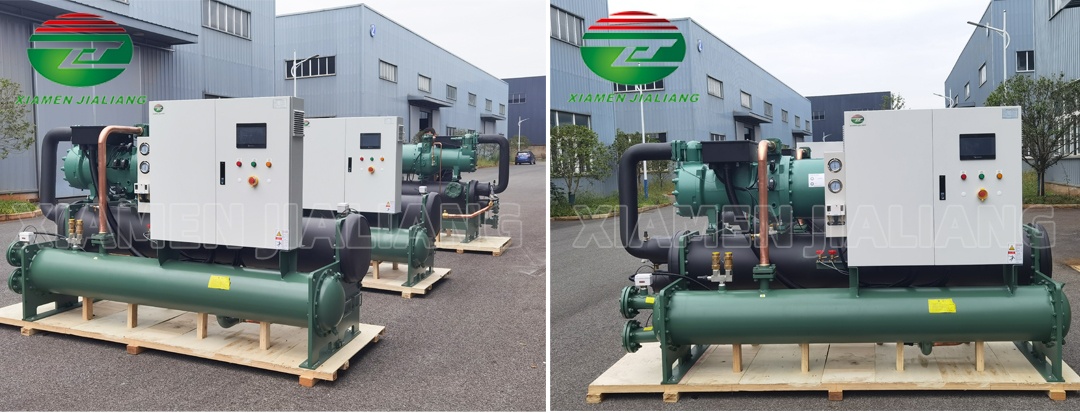

The water-cooled chiller unit has a neat, sturdy appearance, with its shell usually made of high-quality metal.
Treated with fine surface processing, it is not only aesthetic but also highly rust and corrosion-resistant. Its internal structure is compact and well-arranged, with components like compressors, condensers, and evaporators ordered properly, ensuring smooth refrigerant circulation and easy later maintenance.
