- Complete In Specifications Condensing Unit For Freezer

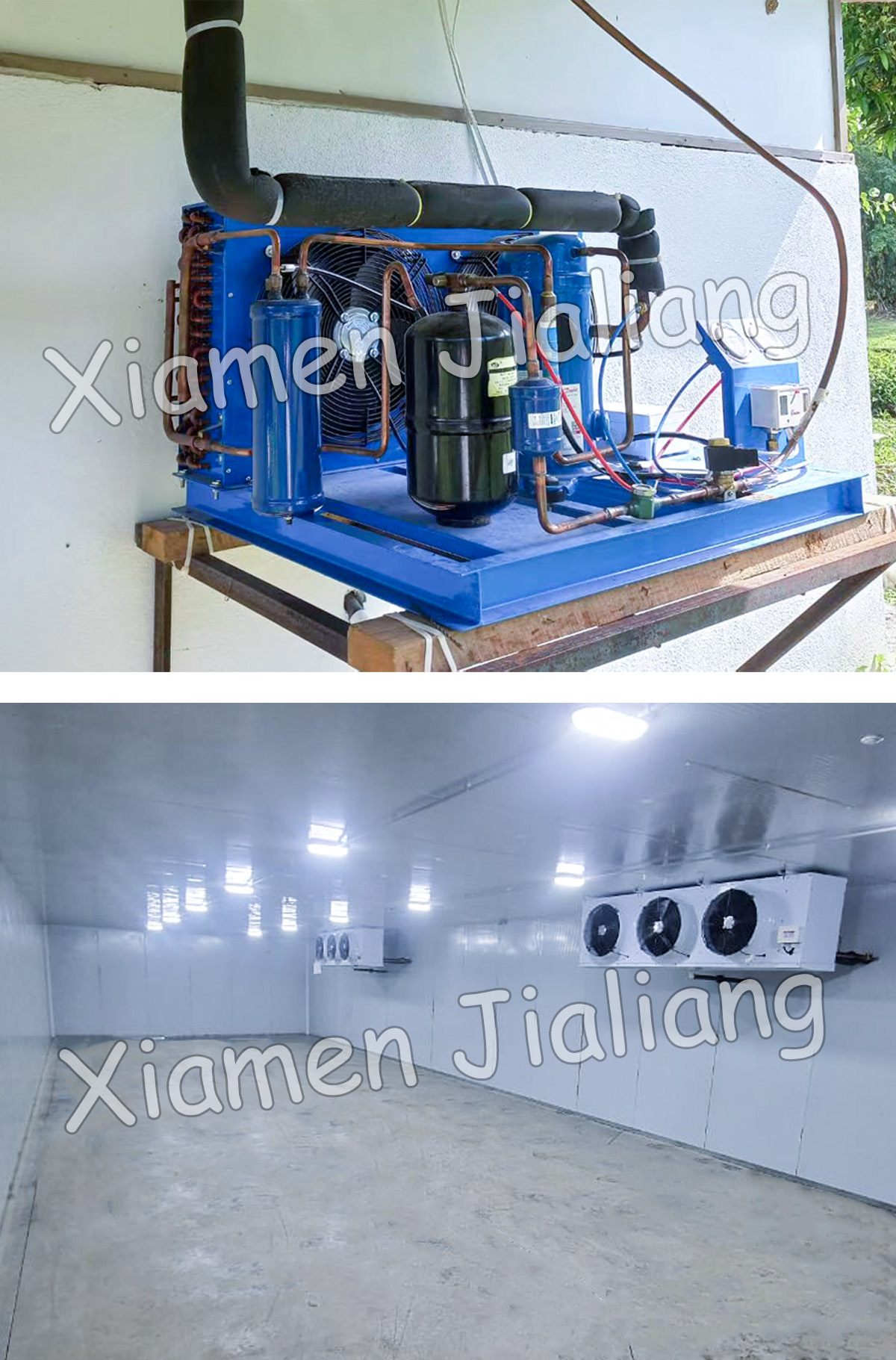

An efficient and energy-saving refrigeration solution tailored for catering hotels, which can meet the needs of preserving a large amount of food
- Get A Quote
- Description
- Features
Complete In Specifications Condensing Unit For Freezer
Condensing Unit With Danfoss compressor.
1. Refrigerant: R404a.
2. Temperature Range: -18℃
3. Original and handsome shape,light and reasonable structure,convenient installation.
4. Use efficient, low power, low noise and strong-wind axial fan motor.
| Three Phase Condensing Unit Special Voltage (60Hz) | ||||||
| Model | MLZ015 | MLZ019 | MLZ021 | MLZ026 | MLZ030 | MLZ038 |
| Horse Power | 2HP | 2.5HP | 3HP | 3.5HP | 4HP | 5HP |
| Compressor | Danfoss | |||||
| Refrigeration Capacity | 4100W | 5500W | 5800W | 7200W | 8500W | 10200W |
| Btu/h | 14000 | 18800 | 19800 | 24600 | 29000 | 34800 |
| Input Power | 2.1W | 2.58W | 2.74W | 3.44W | 3.9W | 4.7W |
| COP（W/W） | 1.94 | 2.11 | 2.13 | 2.1 | 2.18 | 2.18 |
| EER（Btu/h/W） | 6.62 | 7.2 | 7.27 | 7.17 | 7.44 | 7.44 |
| cm3/rev | 33.8 | 43.5 | 46.2 | 57.1 | 68.8 | 81 |
| m3/h | 7.1 | 9.1 | 9.7 | 12 | 14.4 | 17 |
| Oil Injection Volume | 1.1L | 1.1L | 1.1L | 1.1L | 1.6L | 1.6L |
| Net Weight (With Oil) | 31kg | 31kg | 31kg | 31kg | 37kg | 37kg |
| Condensing Temperature | 40℃ | 40℃ | 40℃ | 40℃ | 40℃ | 40℃ |
| Voltage Range | 220V（60Hz） | 220V（60Hz） | 220V（60Hz） | 220V（60Hz） | 220V（60Hz） | 220V（60Hz） |
Our Danfoss condensing unit product advantages
1. High volumetric efficiency: The pressure difference between adjacent spaces of the scroll compressor is small, the leakage is small, there are no suction and discharge valves, the resistance is small, and the volume of the free space does not expand again.
2.The Danfoss compressor adopts a solid cast iron body, providing a large heat dissipation area to improve the cooling effect of the compressor
FAQ
Q1: Is your compressor unit a complete system? |

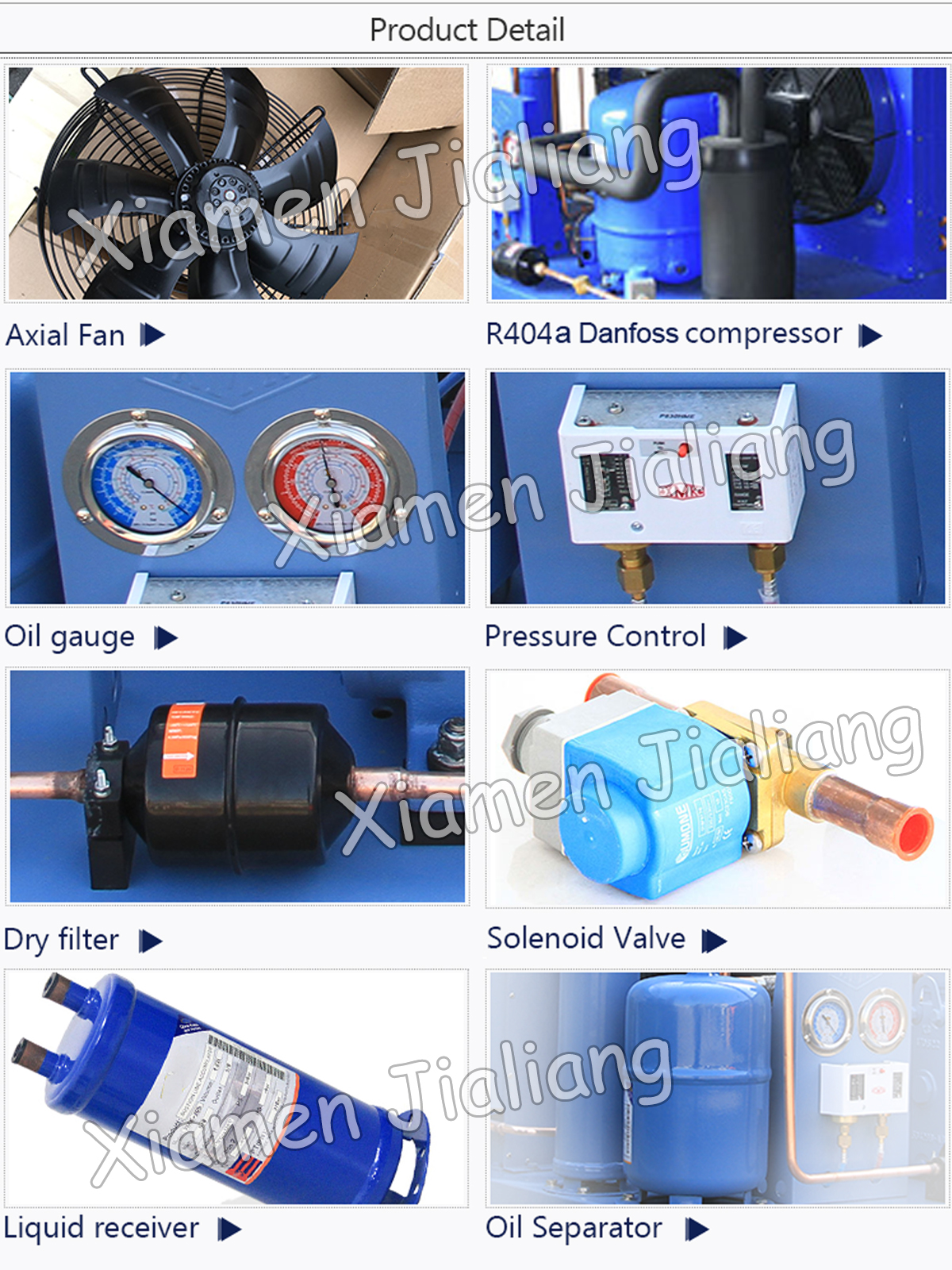

A1: Yes, our compressor unit includes complete accessories, including high and low pressure gauges, oil and gas separators. |
Q2: What is the noise level of a danfoss condensing unit? |
| A2: The noise level of a danfoss condensing unit is typically low, but the specific level depends on the unit's model and design. High-quality units are often equipped with noise reduction technology to minimize noise. |
