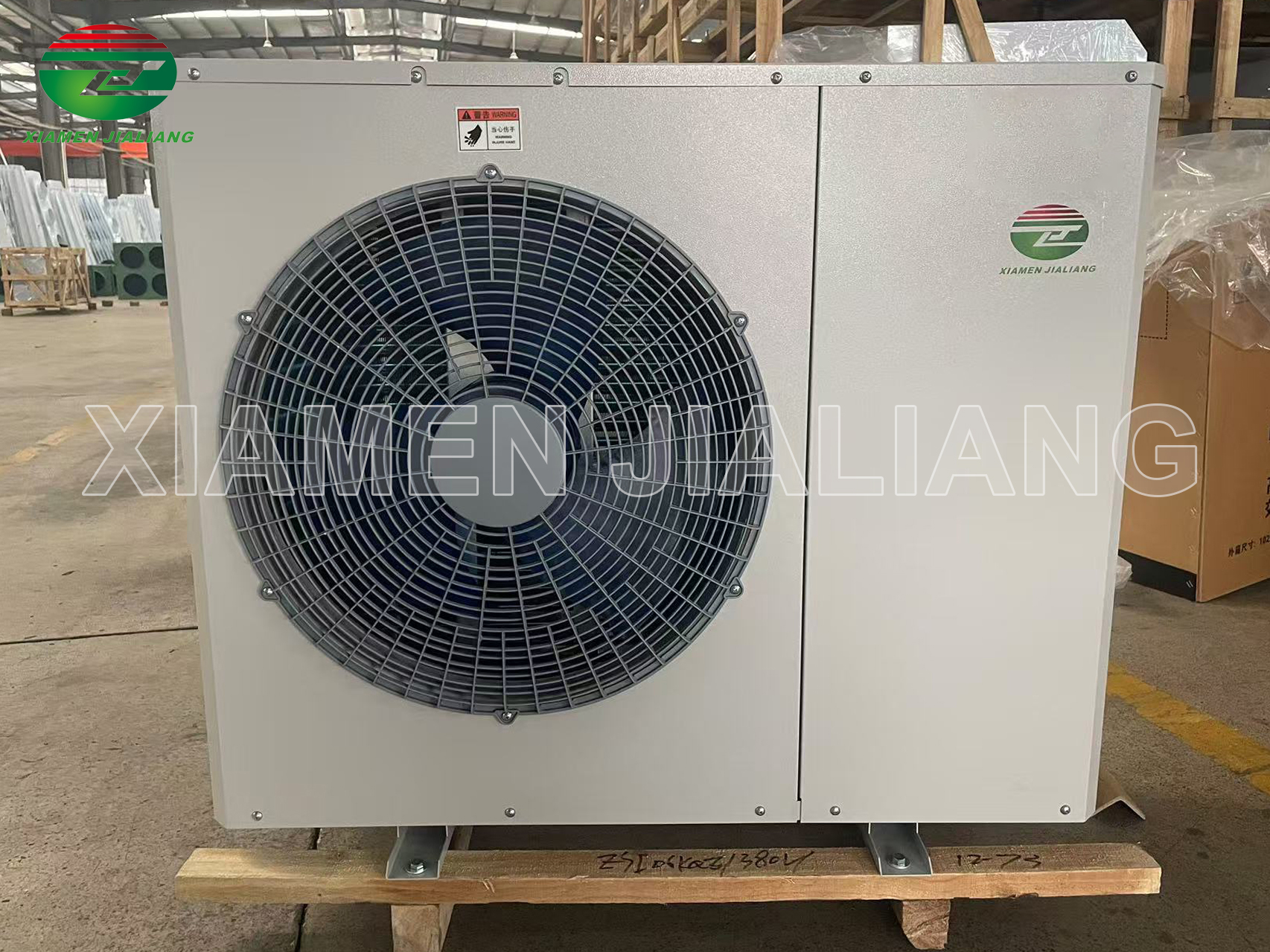

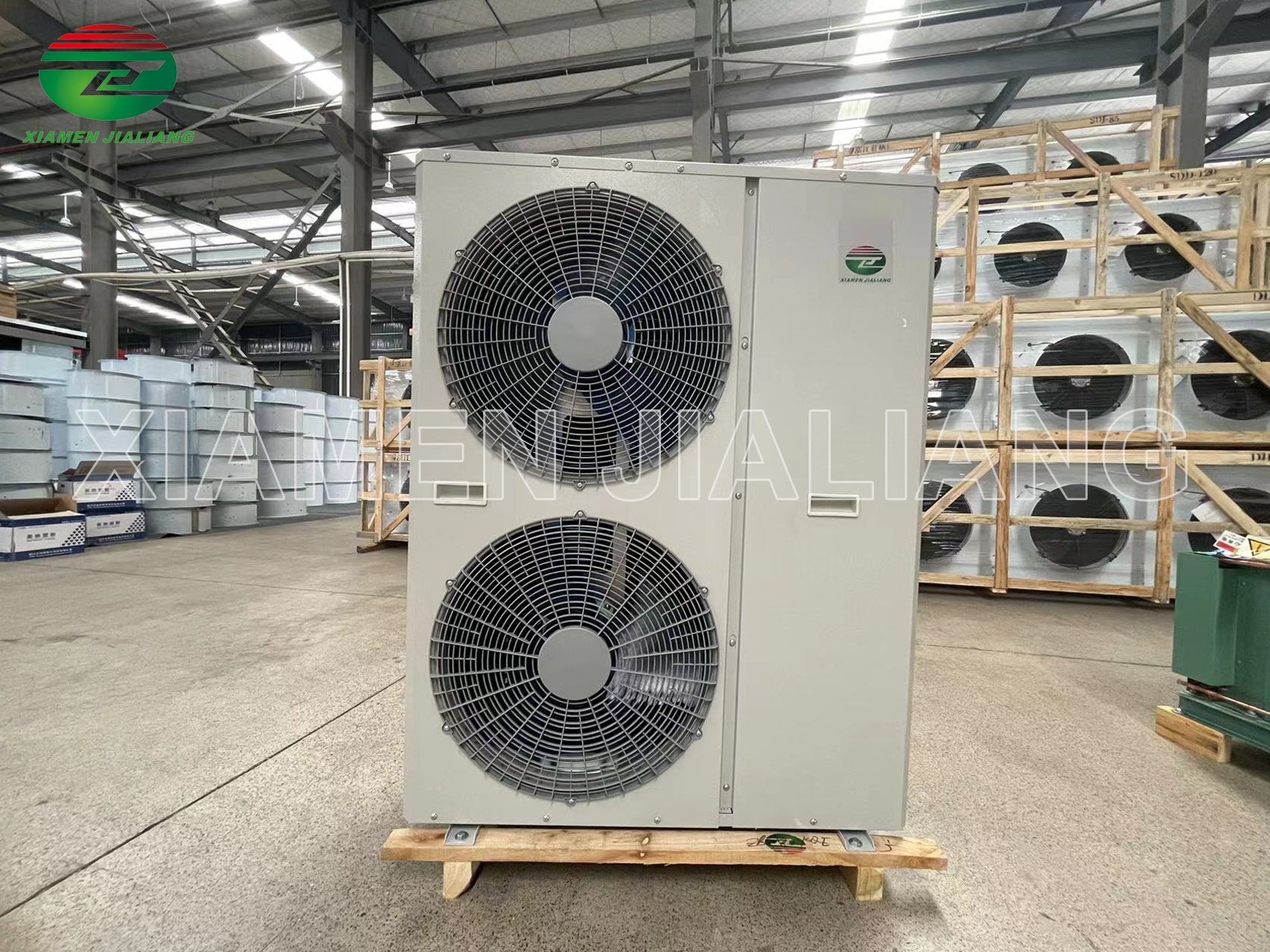

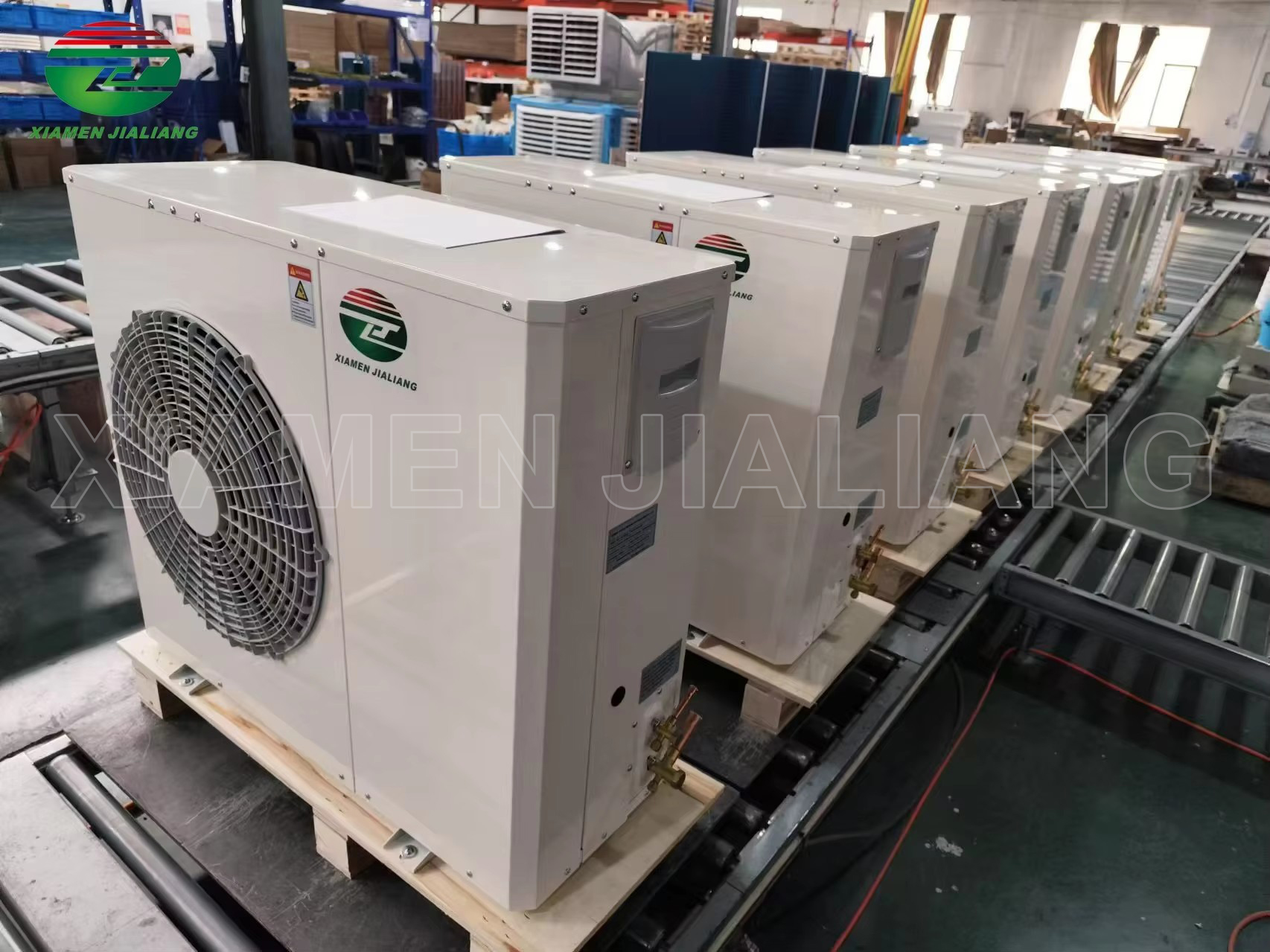

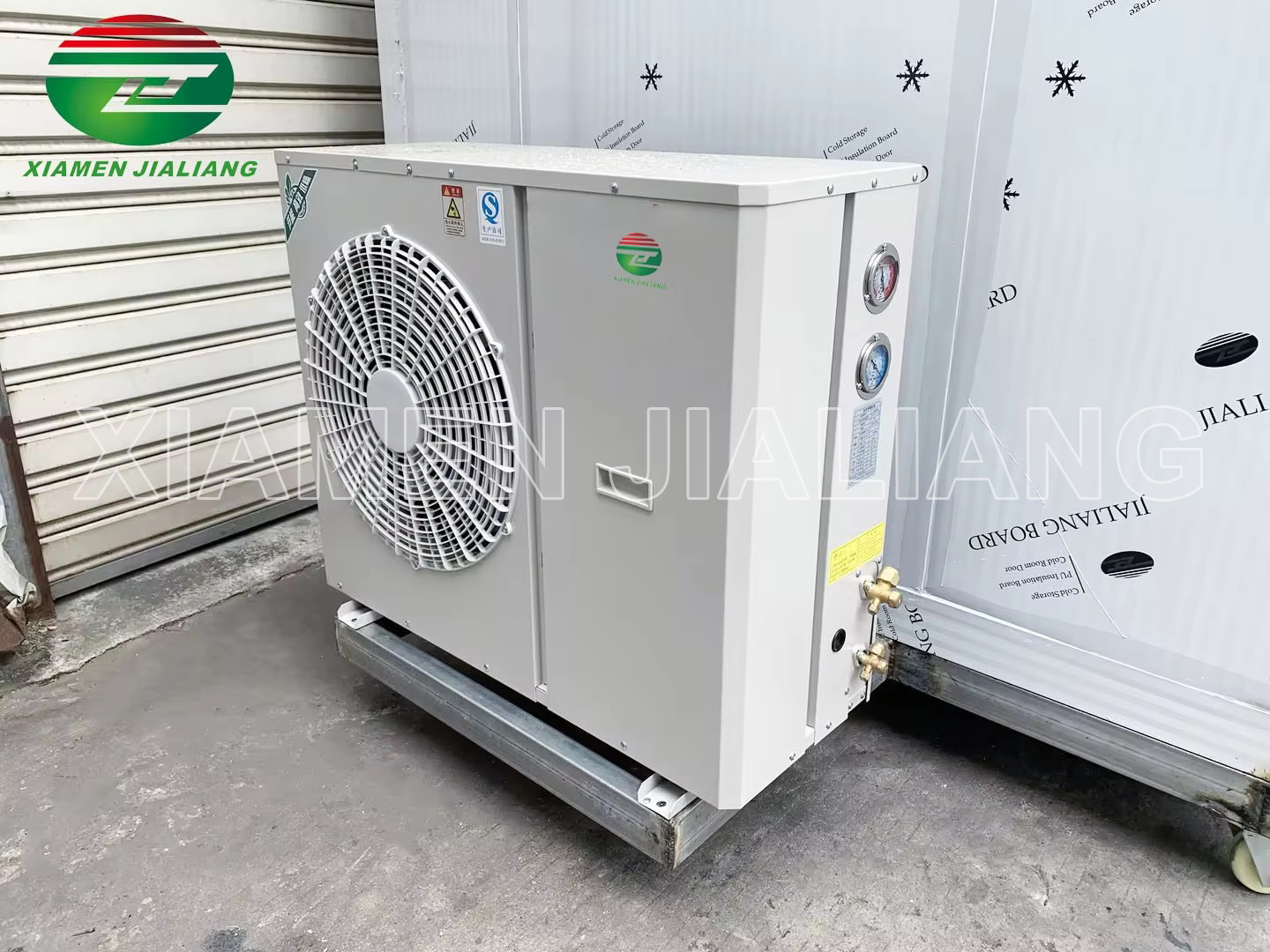

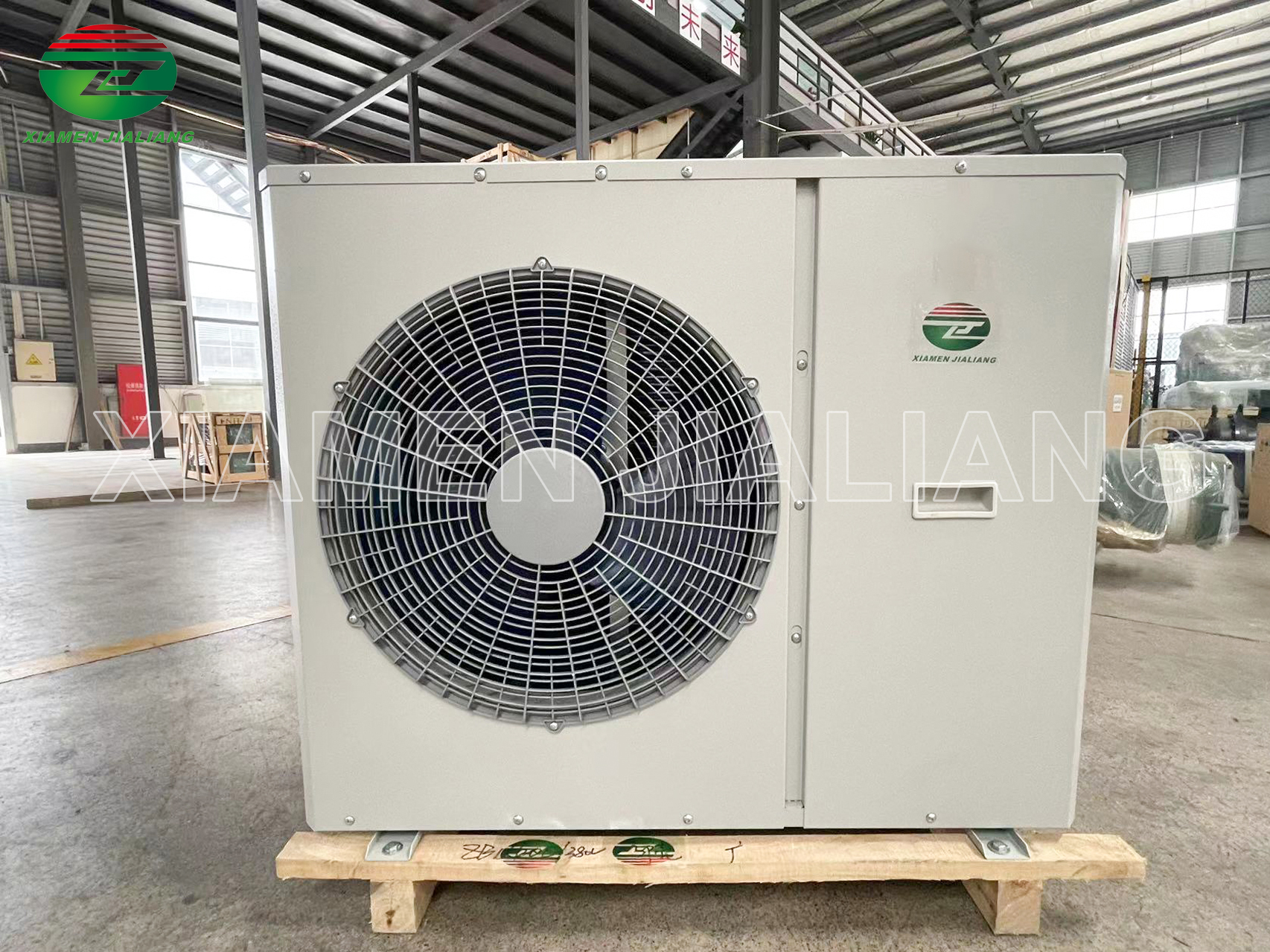

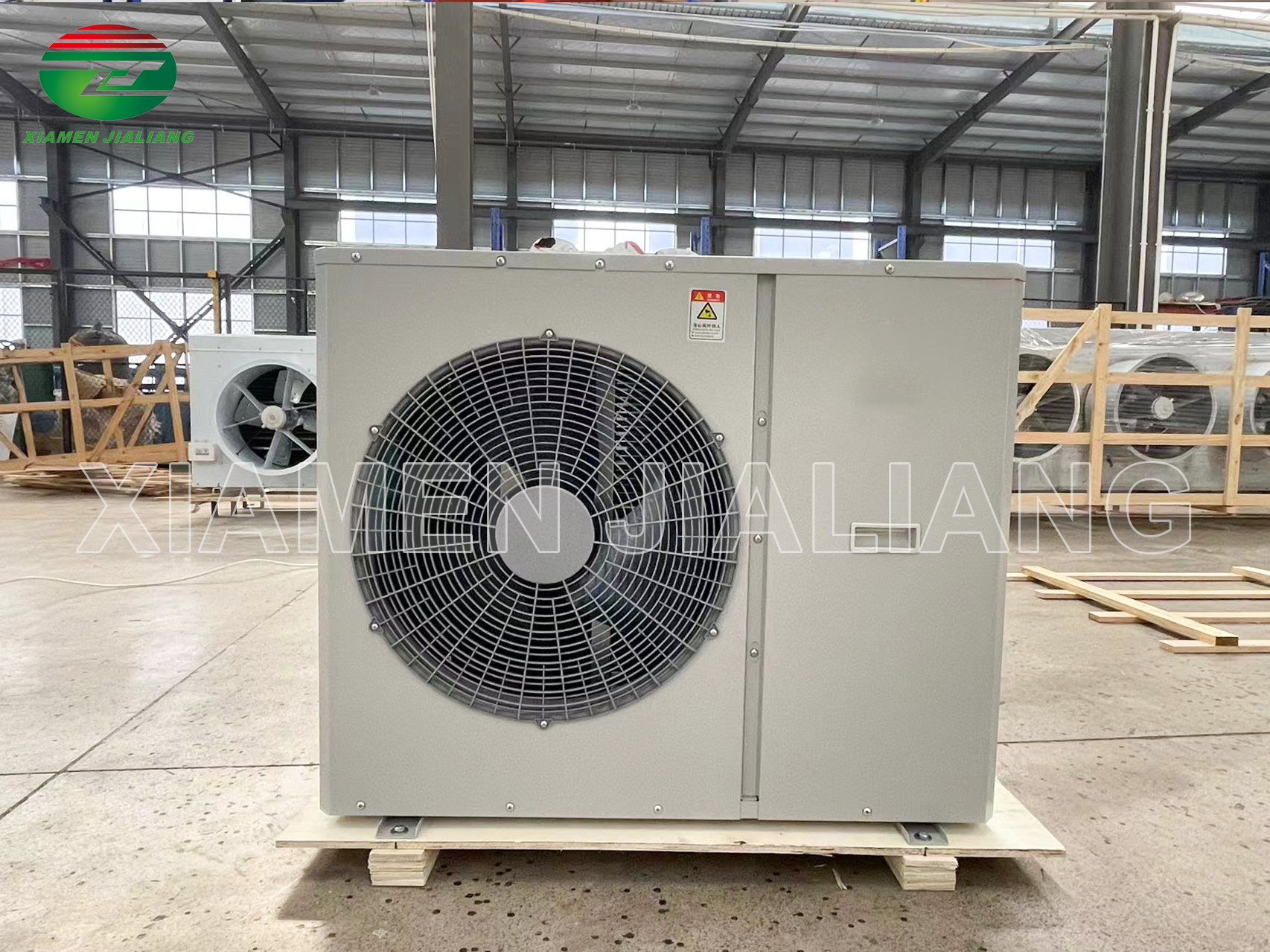

Box Type Scroll Compressor Condensing Unit

380V R507 Scroll Condensing Unit

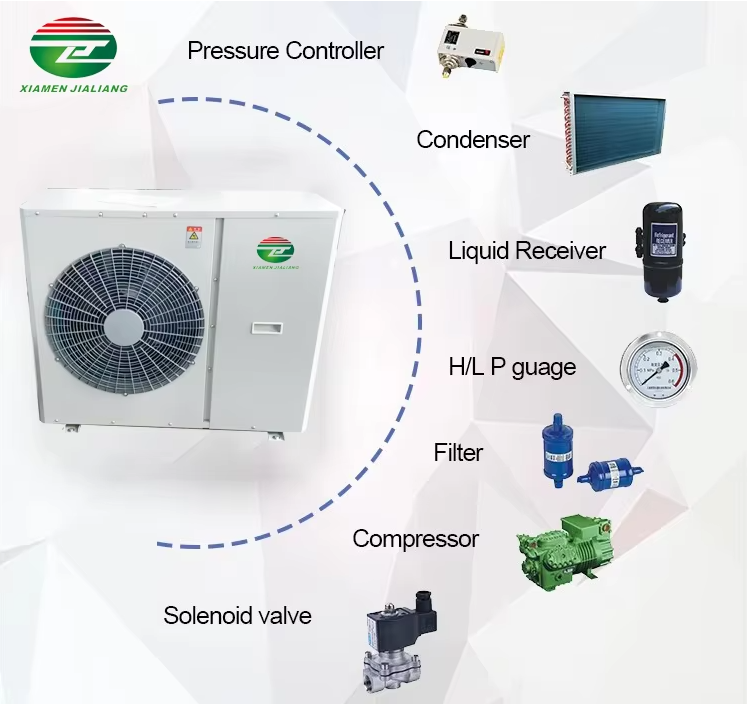

1. Electric components were added on the basis of series,including condensing unit,main control board,cold room temp control board and operation board.Cold room temp control board and operation board are optional.

2. Main control board can start/stop compressor by system low voltage,be suitable for super market,milk container,water chiller etc.If all optional included ,system can control compressor by temp,with function of temp,and defrosting adjustment.The complete set of control system can be used for cold room directly,no extra controller required.

3. With multi protections including phase protection,phase lack,over current,too constant start of compressor ,discharge temp and system high/low temp.

4. With fan speed regulator ,to adjust condensing fan according to condensing temp.

If you don't know which model is suitable for you, please contact we without hesitation, after tell us your requirements, we shall be glad to give you our professional advise.
And if all this model don't suit for you, we have advanced software and professional team of engineers can design product for you.

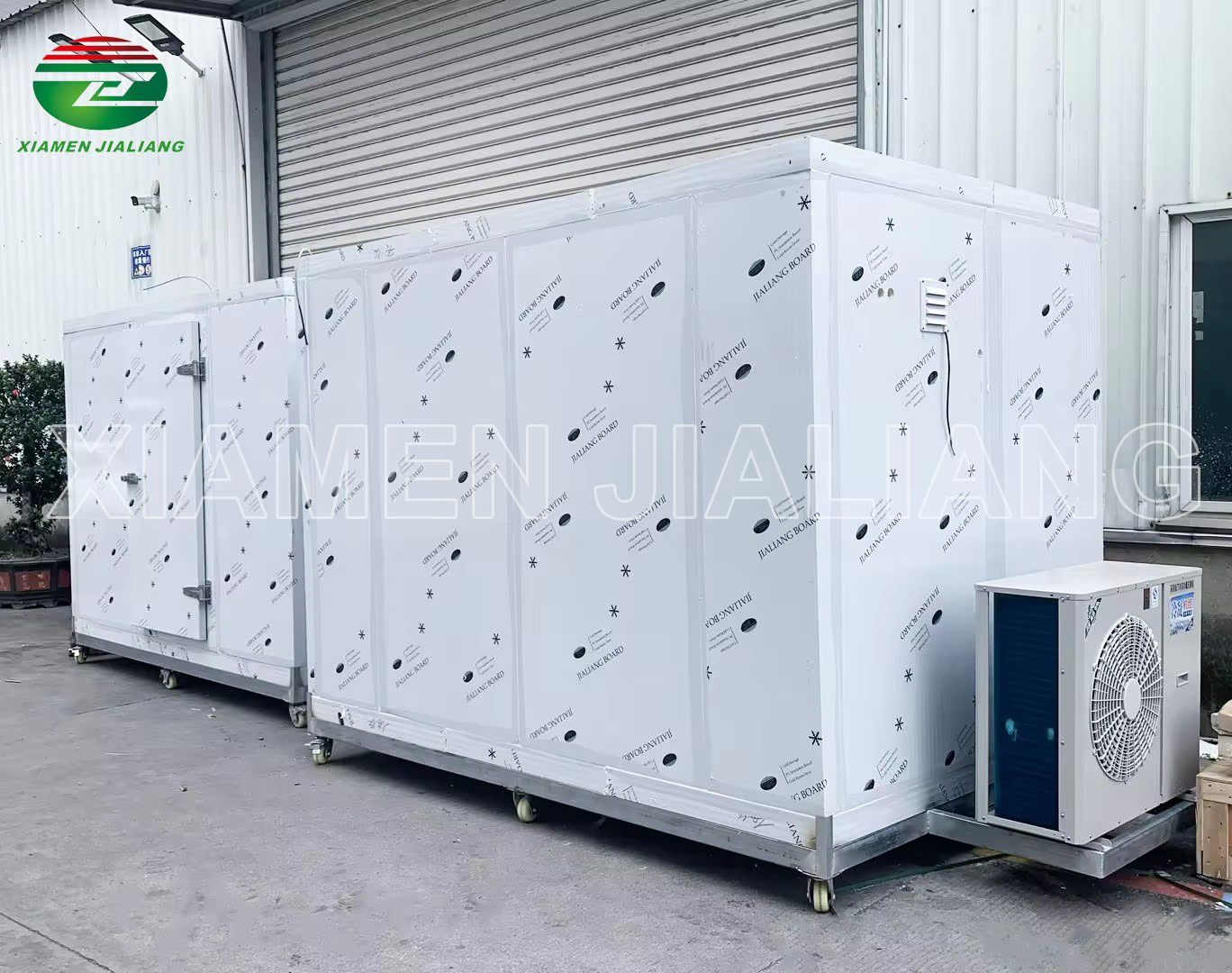

We have customized products for many customers, following are some projects we did before.
We can provide prodcution drawings.

Applications of Condensing Units
Condensing units are available in various models suitable for different sizes and evaporating temperature ranges, ranging from applications cold room,restaurants, and industrial manufacturing plants,ect.

Precautions for Contractors during Installation
Contractors need to take some precautions when installing condensing units. The condensing unit should be installed in a well-ventilated environment to ensure fresh air can flow into the condenser. Avoid installing it in enclosed areas, near walls,heat sources, or other systems. If installation in a confined space is necessary, ensure that the condensing unit receives fresh air at the condenser's inlet and has a clear hot air outlet. Additionally, factors such as direct sunlight, dust, rainwater, and strong winds that may interfere with the proper operation of the equipment should be avoided. Choose a sturdy and durable surface for equipment installation, avoiding irregular, uneven, or soft surfaces.

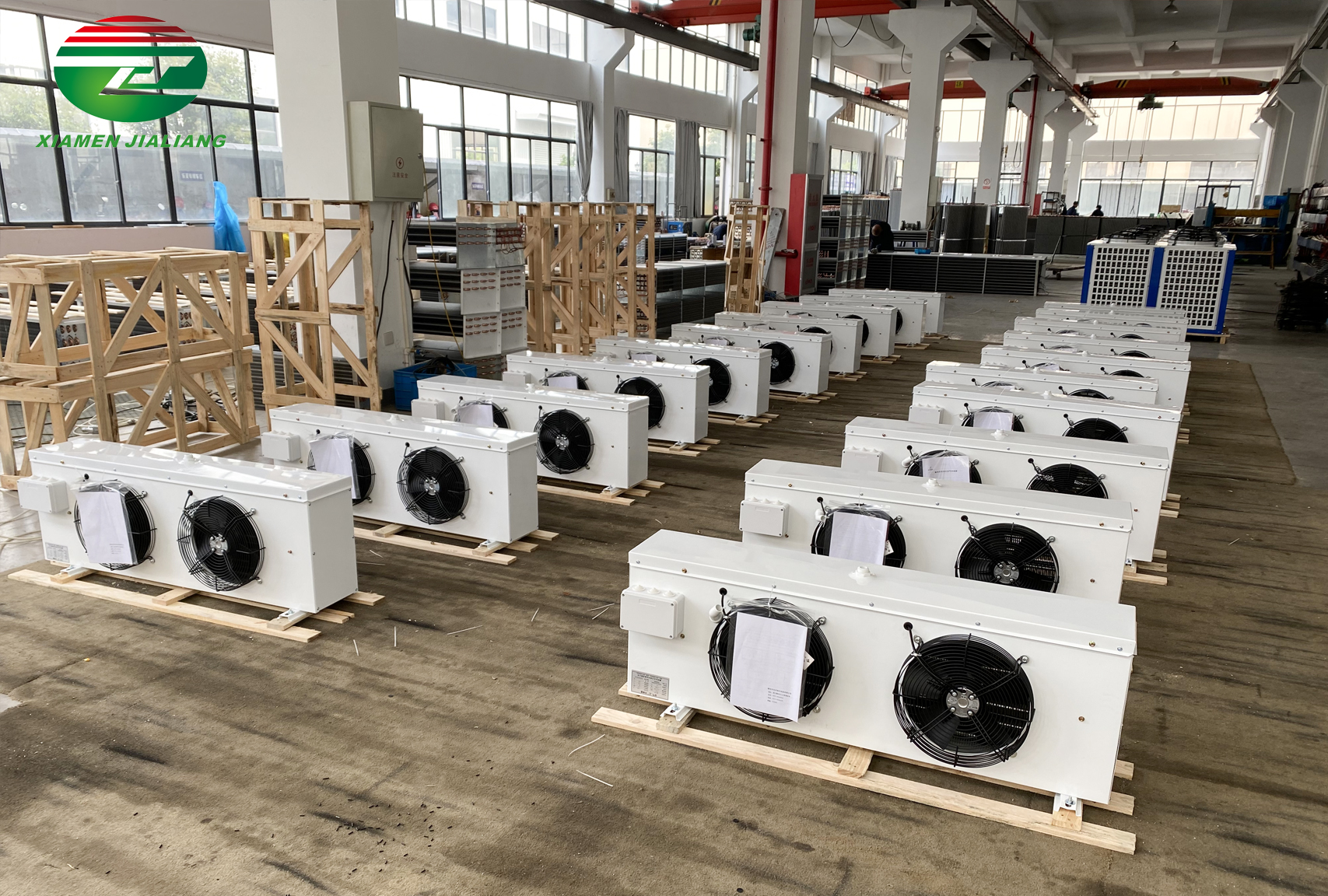

We have our own production factory, which mainly produces products related to refrigeration equipment, such as cold room, cold room panels, condensing units, evaporators, etc We are a factory with mature technology and supply capabilities, able to continuously provide you with the highest quality service!
