- 30hp 40hp 50hp Semi Hermetic Condensing Unit
Steel shell with spray painting open type on steel frame
- Get A Quote
- Description
- Features

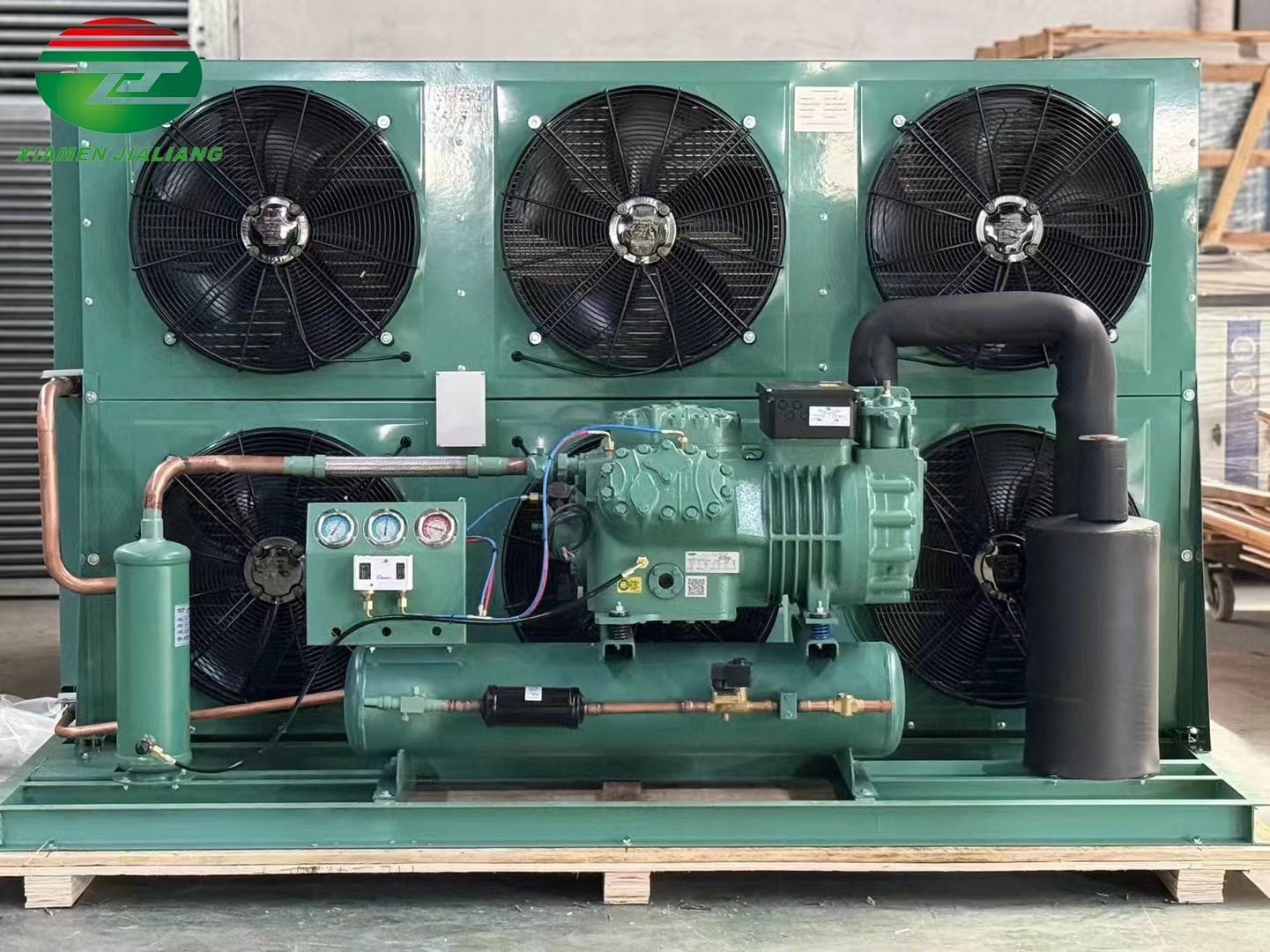

30hp 40hp 50hp Semi Hermetic Condensing Unit
Product Introduction
Condensing Unit .Condenser:Air Cooled/Water Cooled/Evaporation Cooled
.Frame:Steel shell with spray painting open type on steel frame
.Refrigerant:R22 R404a R447a R448a R449a R507a Refrigerant
.Can be cutsomized based on actual situation

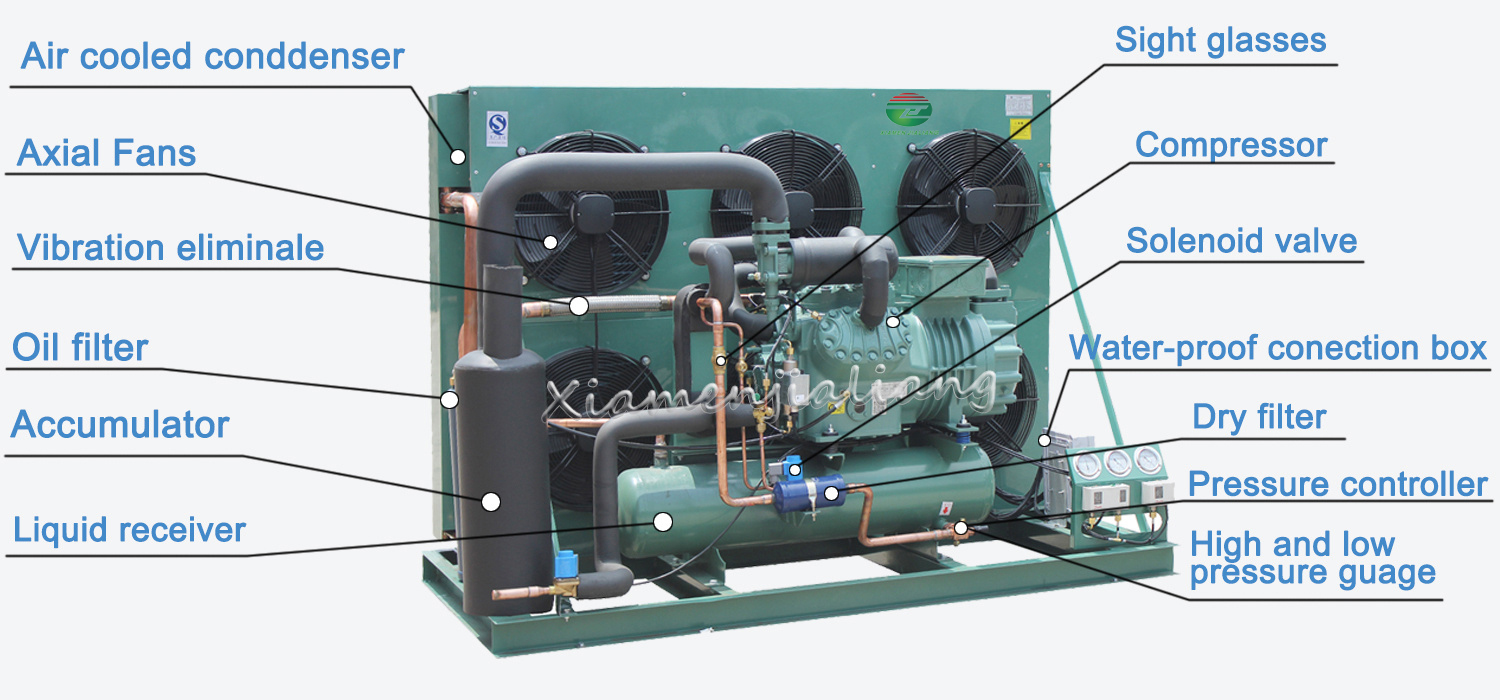

.Standard Equipment Include: Compressor, vibration eliminate, oil filter, condenser, liquid receiver, dry filter, sight glasses,
solenoid valve, accumulator (low temperature), pressure controller, high and low pressure guage, water-proof connection box.
| Name | Condensing Unit |
| Horse power | ≥30HP |
| Dimension | Length(m)*Width(m)*Height(m) |
| Fittings | All necessary fittings are included,optional |
| Functions | Fruit,vegetable,flower,fish,meat,chicken,chemical,etc. |
| Voltage | 220~240V,50HZ,60HZ,SINGLE OR TRIPLE PHASE 380~420V,TRIPLE PHASE 440~460V,TRIPLE PHASE |
Condensing unit is mainly used forrefrigerating flowers, vegetables, fruits, meat, eggs and milk and seafood products.
Slaughterhouses, cold stores, food and beverage factories, farms, food stores.
Refrigeration equipment consistsof compressor, condenser,liquidreceiver,dry filter, pressure
control, etc.
We use the famous brand spareparts, so to make sure the wholesystem is in excellent
About Us
FAQ
| Q1: Is your compressor unit a complete system? |
| A1: Yes, our compressor unit includes complete accessories, including high and low pressure gauges, oil and gas separators. |
| Q2: How can you install refrigeration equipment? |
| A2: We will send layout diagrams and English installation videos, and have a dedicated after-sales group that can provide remote guidance for you. |
