Large Customization Cold Room High Capacity Cold Storage Room In United
Project Overview
Engineering category: high temperature cold storage (constant temperature storage)
Project Address: Coffeyville, Mississippi, USA

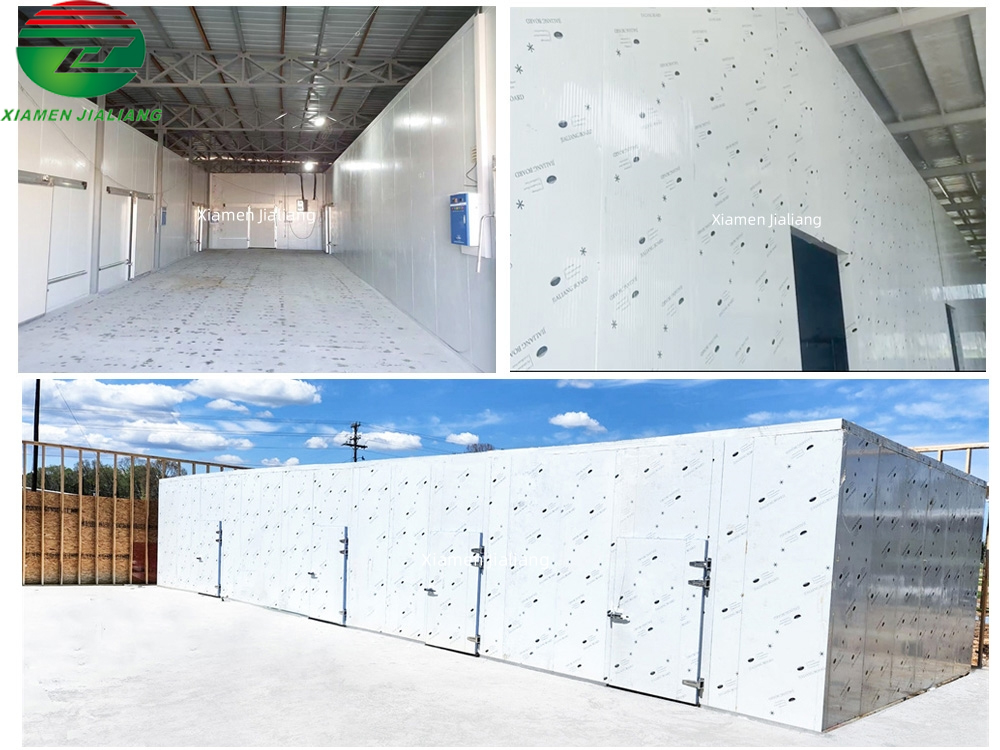

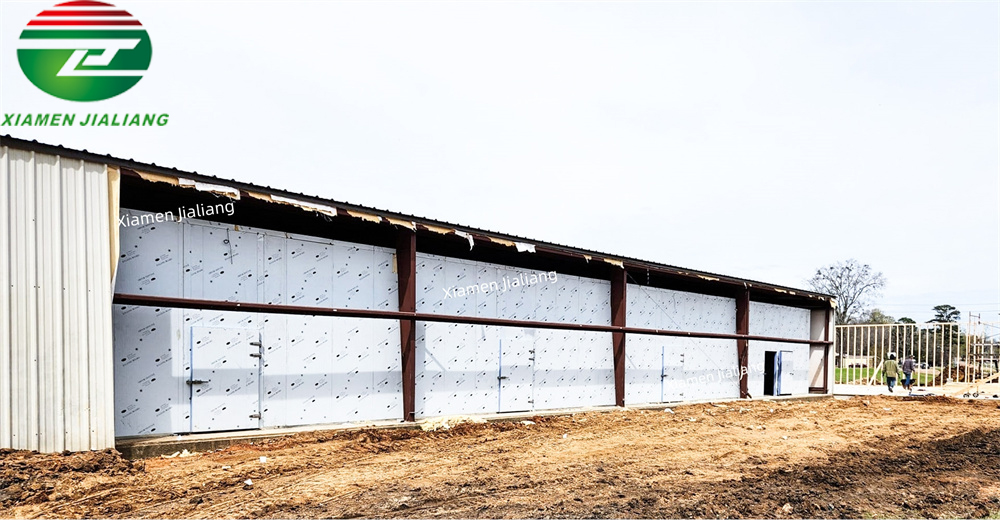

With the continuous expansion of the customer's company's business, according to the storage needs of its crops, our technicians finally decided to build 4 sets of cold storage. The total construction area of the completed 1 set of cold storage is 42518ft³(1 set includes two cold storages ), the temperature is 15～21℃, and the design of five-sided cold storage is adopted. Among them, the outer dimensions of cold storage 1 are 96.1 feet (length) × 44.9 feet (width) × 12.1 feet (height), covering an area of 9343 square foot. The outer dimensions of cold storage 2 are 60.0 feet (length) × 20.0 feet (width) × 9.8 feet (height), covering an area of 3616 square foot. With the consent of the client, the following pictures are all project construction entity photos of the scene issued by our client.
(1) The cold room insulation board adopts polyurethane board with double-sided color steel plate of 100mm.

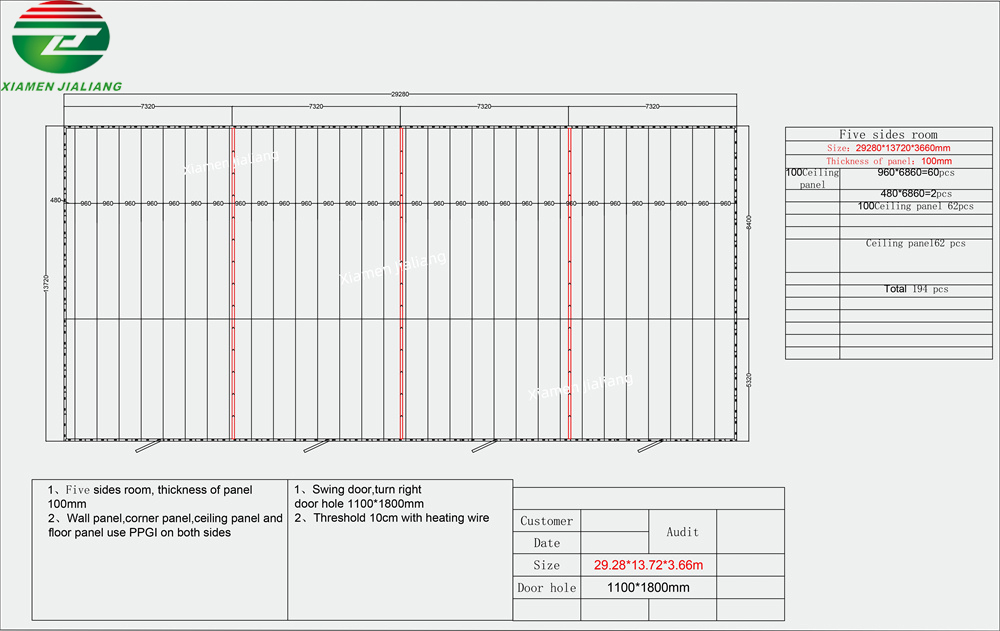

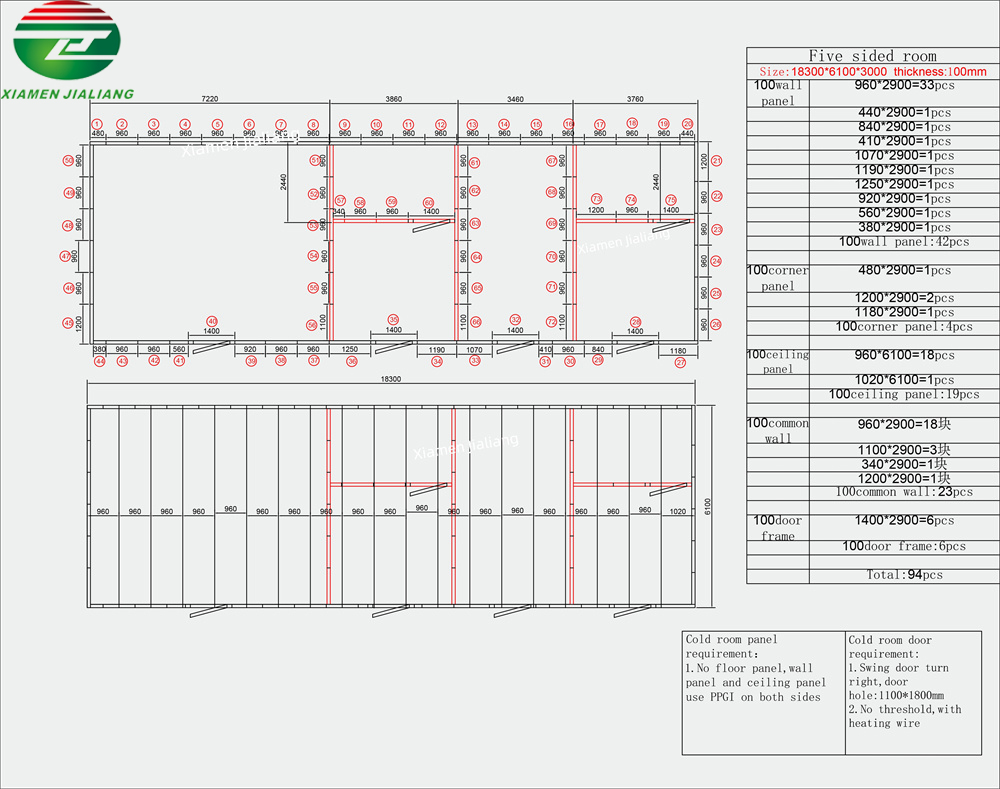

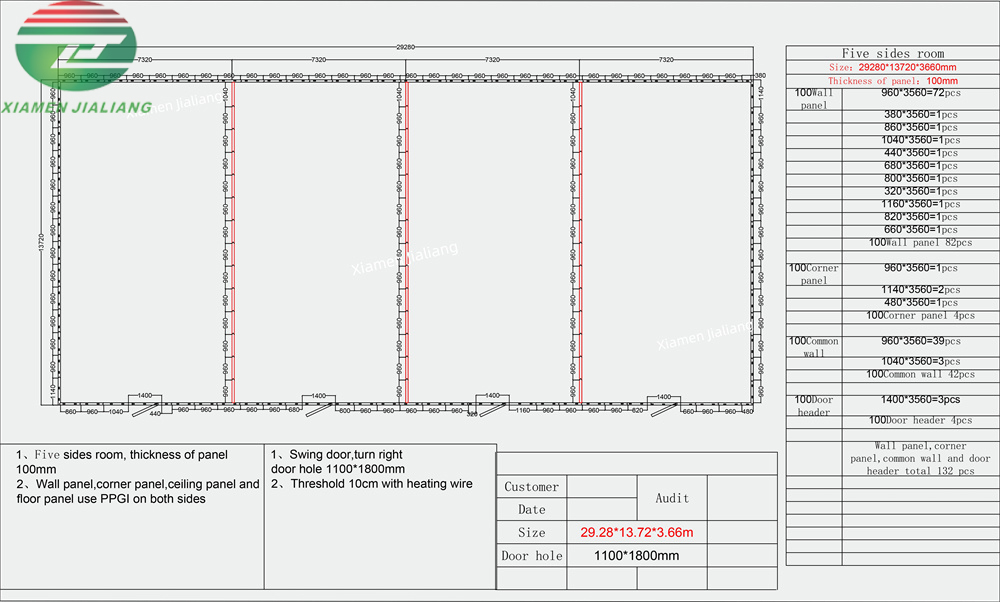

(2) Cold room 1 uses 3 common walls to divide the space of 868 square meters into 3 independent spaces, and cold room 2 uses 5 common walls to divide the space of 3616 square foot into 6 independent spaces for cargo storage chiller for cold storage.

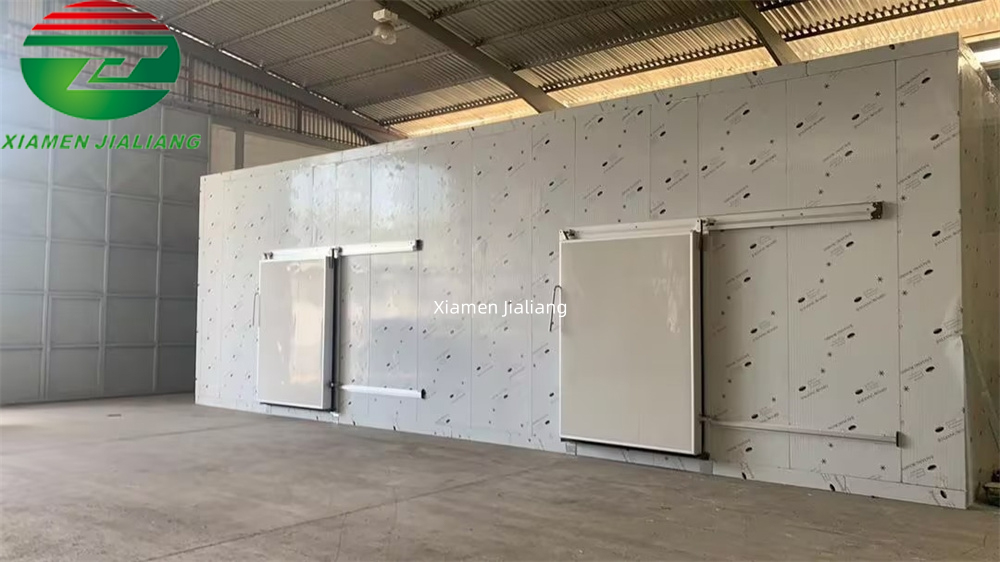

(3)The cold storage right-opening doors are all 4.9 feet X 7.2 feet sliding doors with no threshold, using 100mm double-sided color steel plates cold and freezer rooms.
| Project Country | America Cold Room |
| External Size | 29.3X13.7X3.7 Meter (96.1X44.9X12.1 Feet)) 18.3X6.1X3.0 Meter (60.0X20.0X9.8 Feet) |
| Temperature | 0℃(32℉) 15～21℃(59~69.8℉) -18~-25℃( -0.4~-13℉) |
| PU Panel Thickness | 50/100/120/150/200mm |
| Area | 868㎡( 9343 sq.ft) 336㎡ (3616 sq.ft) |
| Horse Power | 8HP Condensing Unit |
| Evapotator | DD-80 |
| Voltage | 440v/60hz/3ph |
| Refrigerant | R404a |
Customized Services

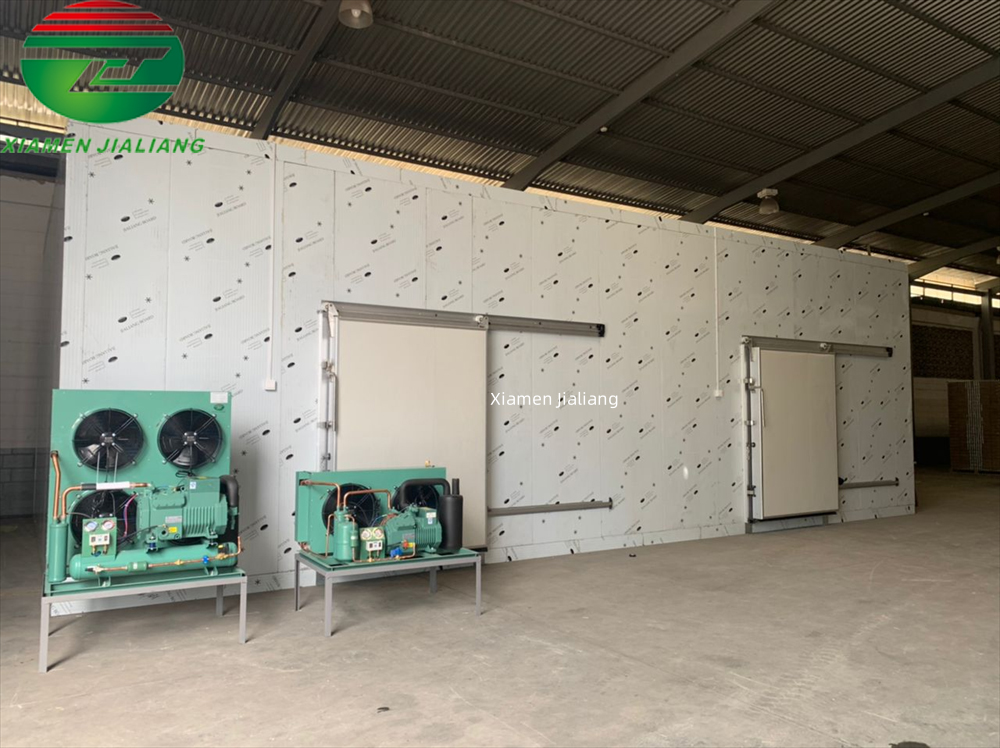

The refrigeration equipment of the high-temperature cold storage adopts the Bitzer semi-hermetic unit, which is suitable for the voltage of 440v/60hz/3ph cold room for ice block.
This high-temperature cold storage project in Xiamen Jialiang was constructed in August 2022. At present, 1 set of cold storage has been commissioned and accepted, and the customer is using it.
The remaining 3 sets of cold storage are still under construction cold room for food storage.
(1) Timely docking.
After you initiate an inquiry, our salesperson will connect with you in time and share relevant past cases of the project, keep in touch and reply as soon as possible cold storage room for fruits and vegetables.
(2) The design is clear.
After understanding your needs, our designers will issue a 3D drawing of the project for reference, so that you can form a preliminary sensory impression of the project commercial cool rooms for sale.
(3) Quotation matches demand.
After negotiating with you to confirm the drawing, our team will make a specific quotation according to your project requirements commercial kitchen cold room.
(4) Visualization of the whole process.

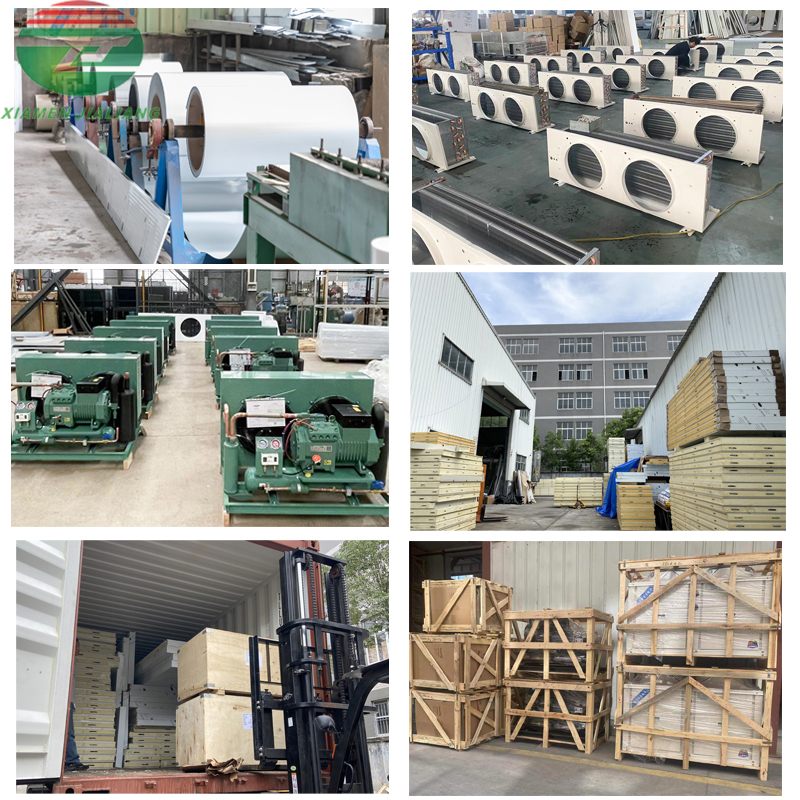

In order to make it easier for you to keep abreast of the progress of the project, we will provide you with a production cycle table, and take relevant pictures and videos at each production point in time to ensure the advancement of the entire process until the product is finally sealed and shipped cool room chiller.
