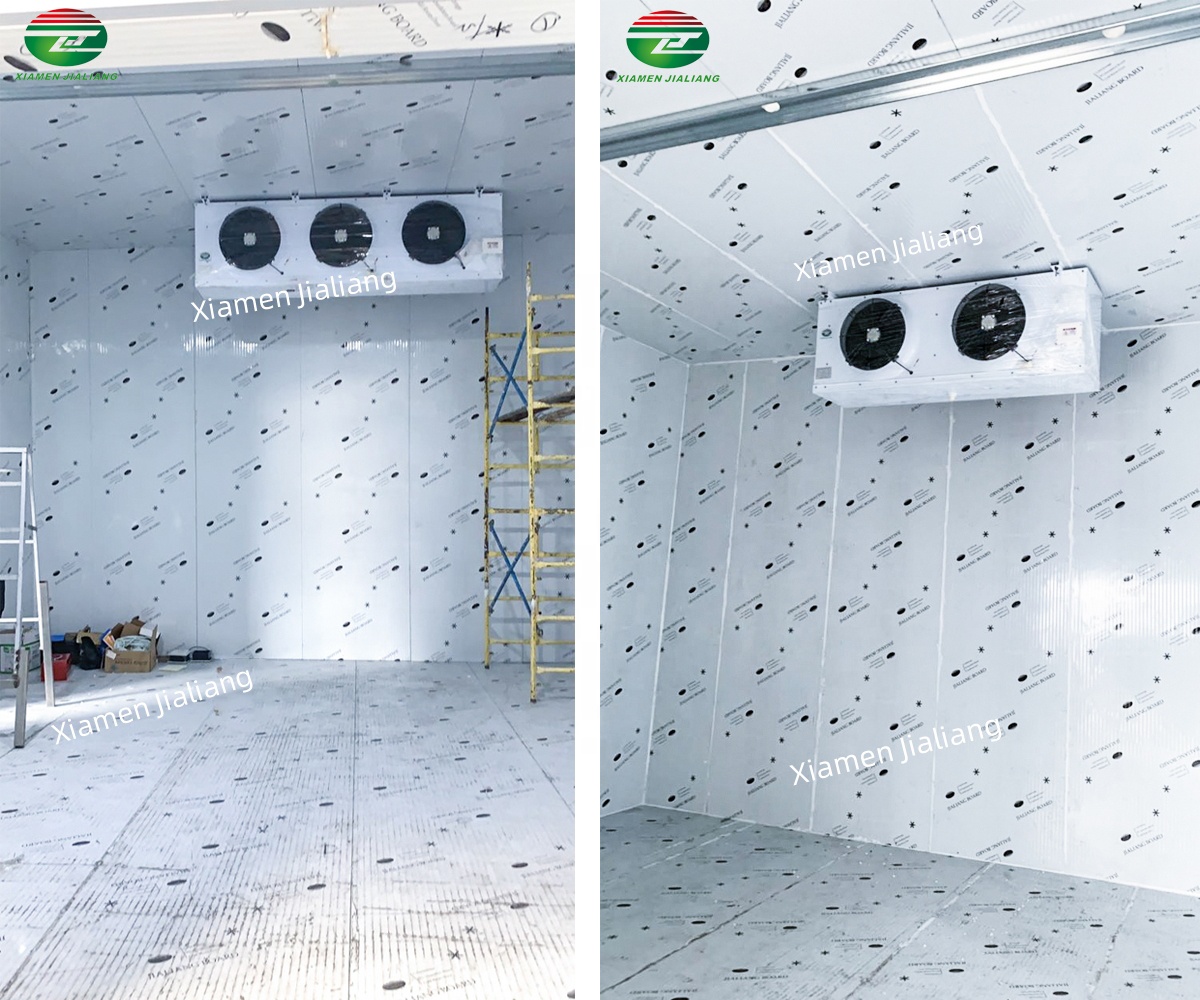

Product Description Vietnam

cold room size Vietnam	6.86.64.M
Temperature	-18℃
pu panel materials	PU Panels With Cam-lock 100mm
voltage	380V/50HZ/3Phase（can be customized）

Customer Feedback Vietnam

Our customers are from the United States, France, Philippines, Brunei, Cambodia, Kuwait, Mongolia, Maldives, Malaysia, Qatar, Sri Lanka, Nepal, Senegal, Ghana, Cote d'Ivoire, Tanzania, Australia, Canada, New Zealand, Mauritius, etc.

Product Details

PU Panel

Thickness	Application temperature
50mm	Above 15°C
75mm	Above 5~15°C
100mm	Above -5'C~5°C
120mm	Above -18'C~-5°C
150mm	Above -40~-25°C

1, Size: standard width will be 960mm.

2, Material: environmental friendly - CFC FREE.

3, Connection: connected by cam-lock, more stable and good sealing.

4, Panel steel: galvanized steel or stainless steel or just tell us your demand.

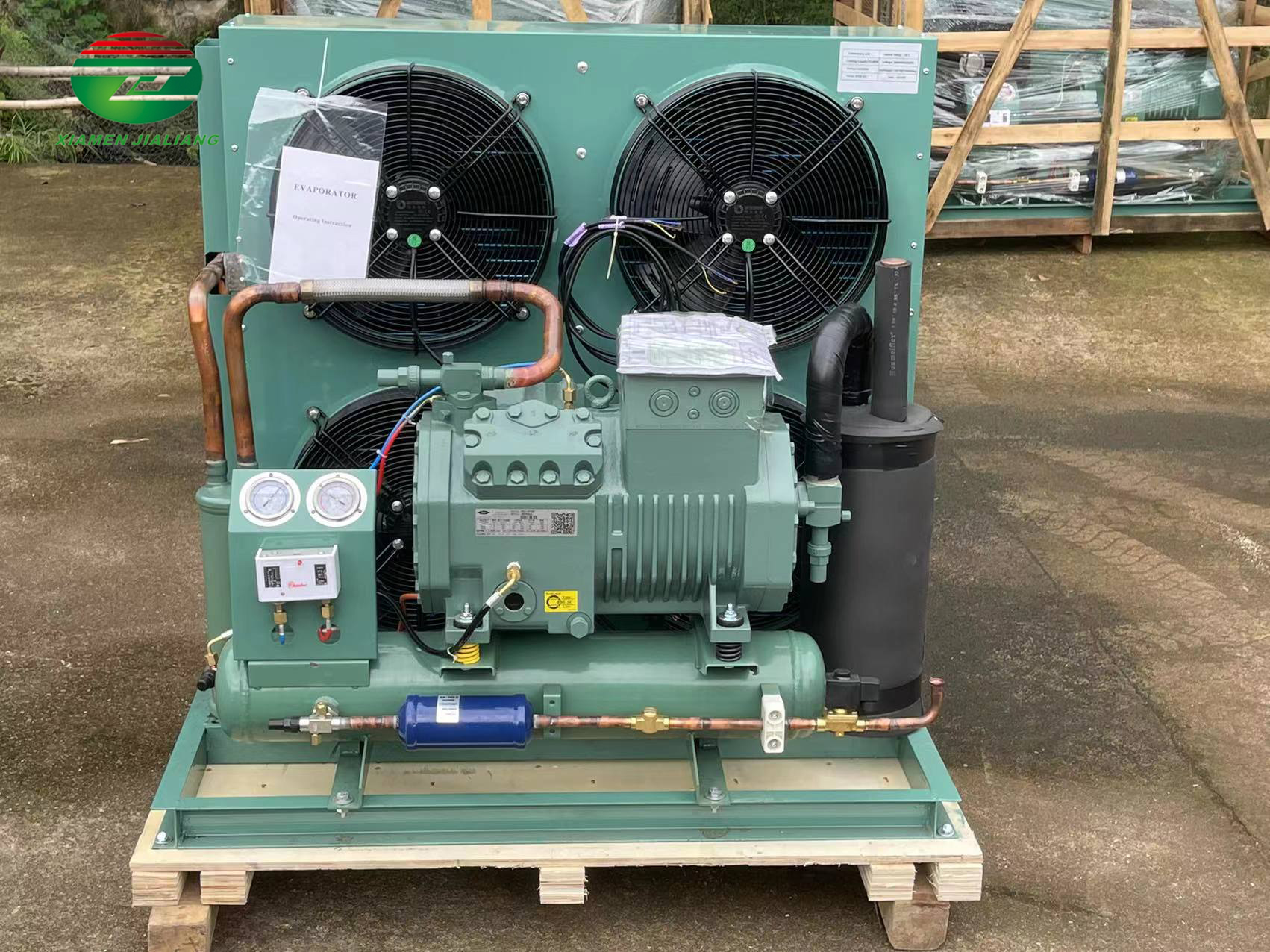

Refrigeration Unit

Jialiang Condensing unit is the optimized combination of efficiency, reliability, easy installation and sound performance. It is optimized designed and manufactured to reduce installation and maintenance costs, more efficient while making your production even more efficient and less noise impact for neighborhood.

1) Compressor: 10hp

2) Voltage: 380V/50HZ/3Phase
3) Refrigerant: R404a

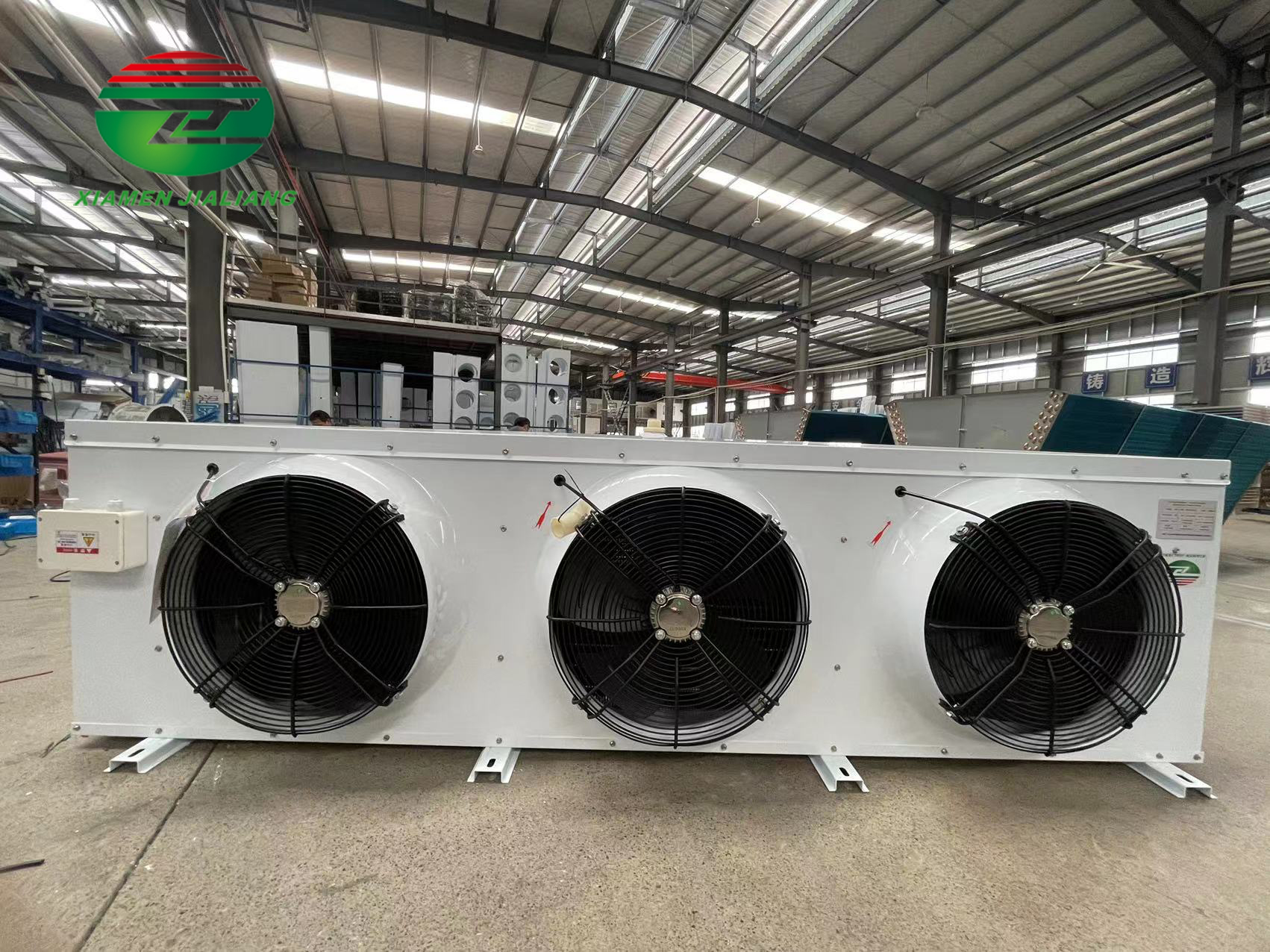

Evaporation

Model	Temperature	Remark
DL	-5~+15°C	Fruit-vegetable-flower-yeast
DD	-18~-10°C	Frozen meat, fish, seafood.
DJ	-25~-20°C	Ice cream, beef.

1) Model： DD
2) Brand: Xiamen Jialiang
3) Voltage: 380V/50HZ/3PH

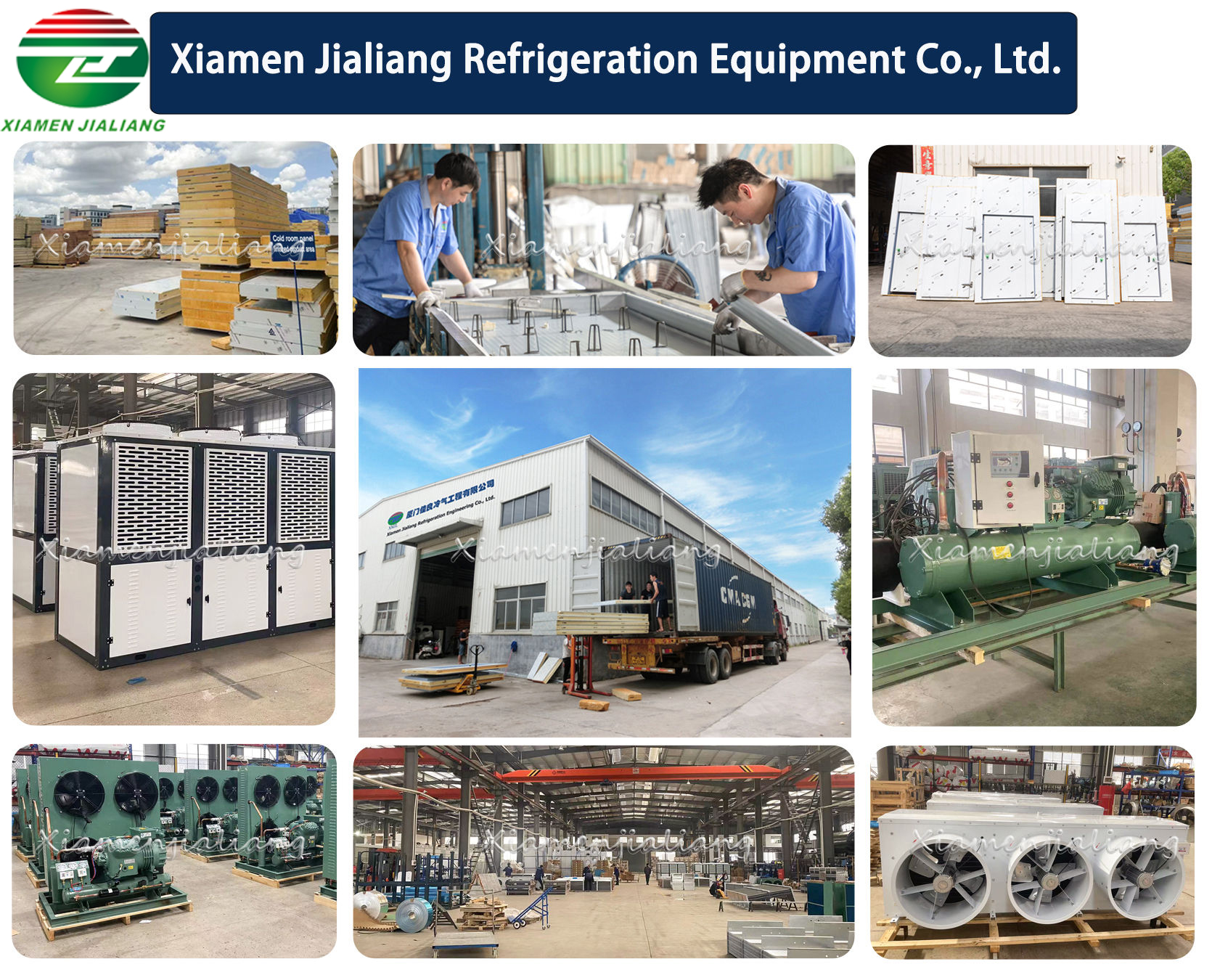

Company Profile

Xiamen Jialiang holds a prominent position as a foremost designer, manufacturer, and exporter of cold rooms and refrigeration units. Our unwavering commitment is to deliver the highest quality cold room solutions to a global clientele. We operate from a 9,690 square meter factory, ensuring top-notch production and service.

Our innovative, high-quality products and solutions include Cold Room, Unit Cooler, Condensing Unit, Cold Room Door, PU Panel, etc. We are willing to become your partners with our high cost-performance cold room, excellent quality, and perfect after-sale service.
