Product Information

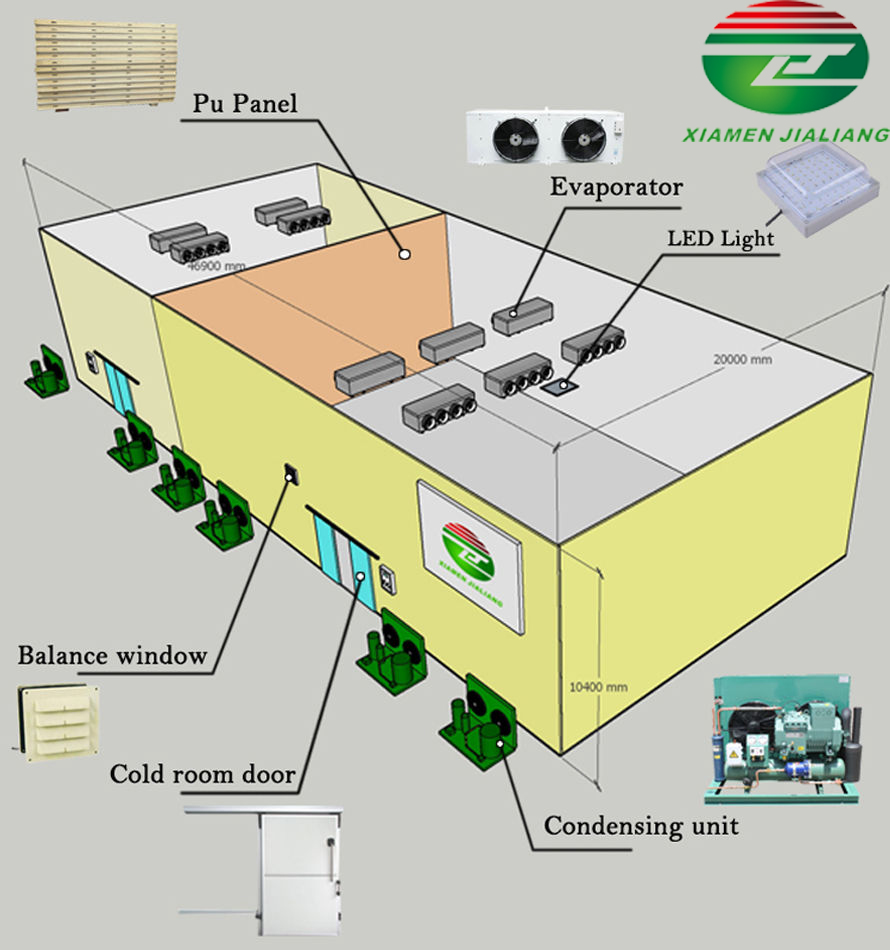

Cold storage facilities are categorized into high-temperature, medium-temperature, low-temperature, and quick-freezing rooms, each comprising essential components such as panels, condensing units, evaporators, doors, electric control boxes, and more.


A walk-in freezer, constructed with PU/PIR panels of increased density, and equipped with a high-efficiency condensing unit, offers substantial power consumption savings, up to 20%. These units play a vital role in various applications, including restaurants, food warehouses, and the food and beverage industry, among others.

Product NameCold Room
MaterialColor Steel/Stainless Steel
Door TypeSwing Door/Sliding Door/Hinged Door/Truck Door
SizeLength(m)*Width(m)*Height(m)
After Warranty ServiceOne Year
Thickness of panel50/75/100/120/150/200mm

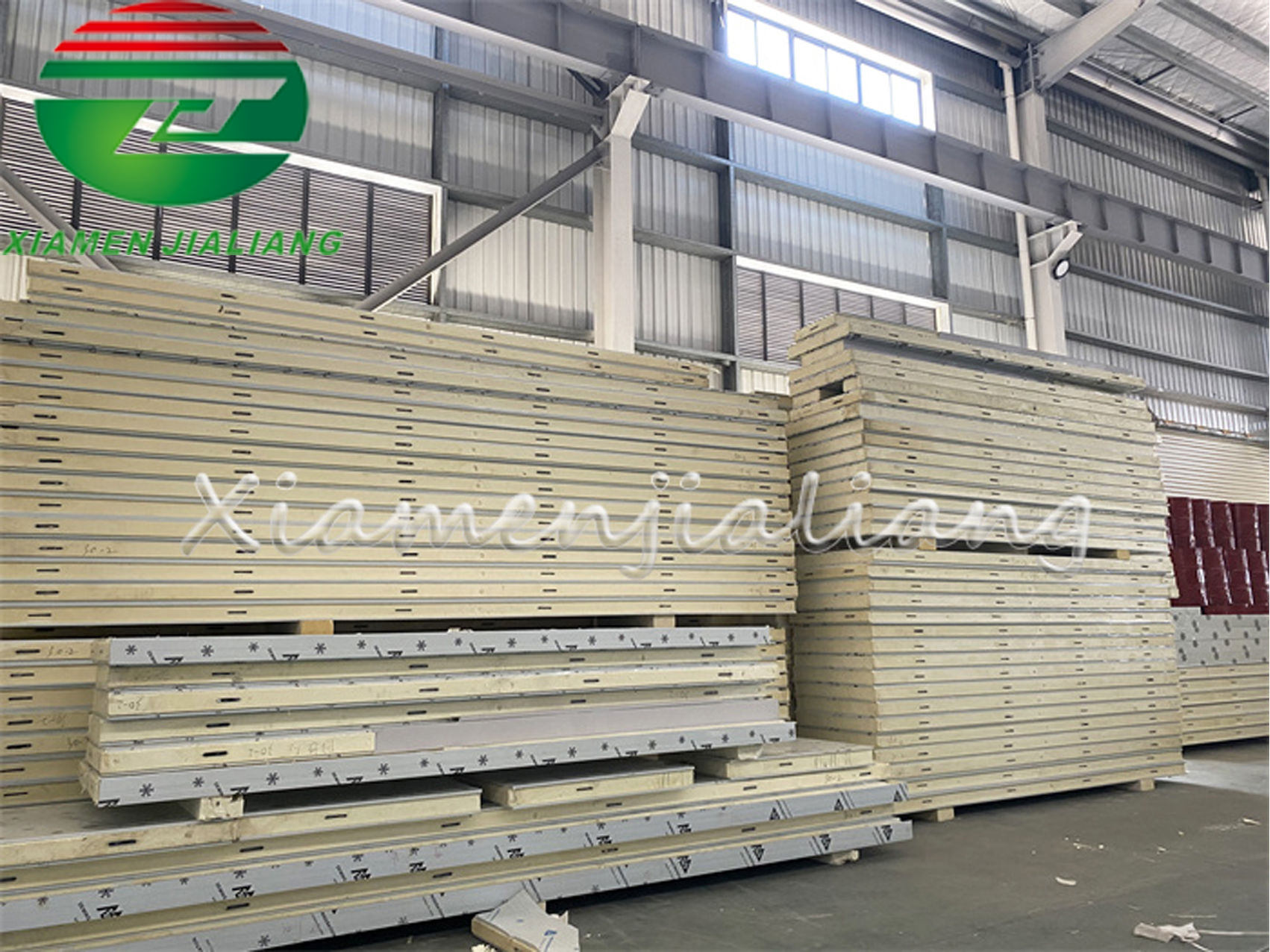

Polyurethane (PU) Panels with Cam-Lock

- Panel Surface: These panels come with surface options including color steel (PPGI), stainless steel, and aluminum.

- Panel Thickness: PU panels are available in various thicknesses, ranging from 50mm to 200mm.

- Panel Density: The density of these panels is approximately 45 KG/m3.

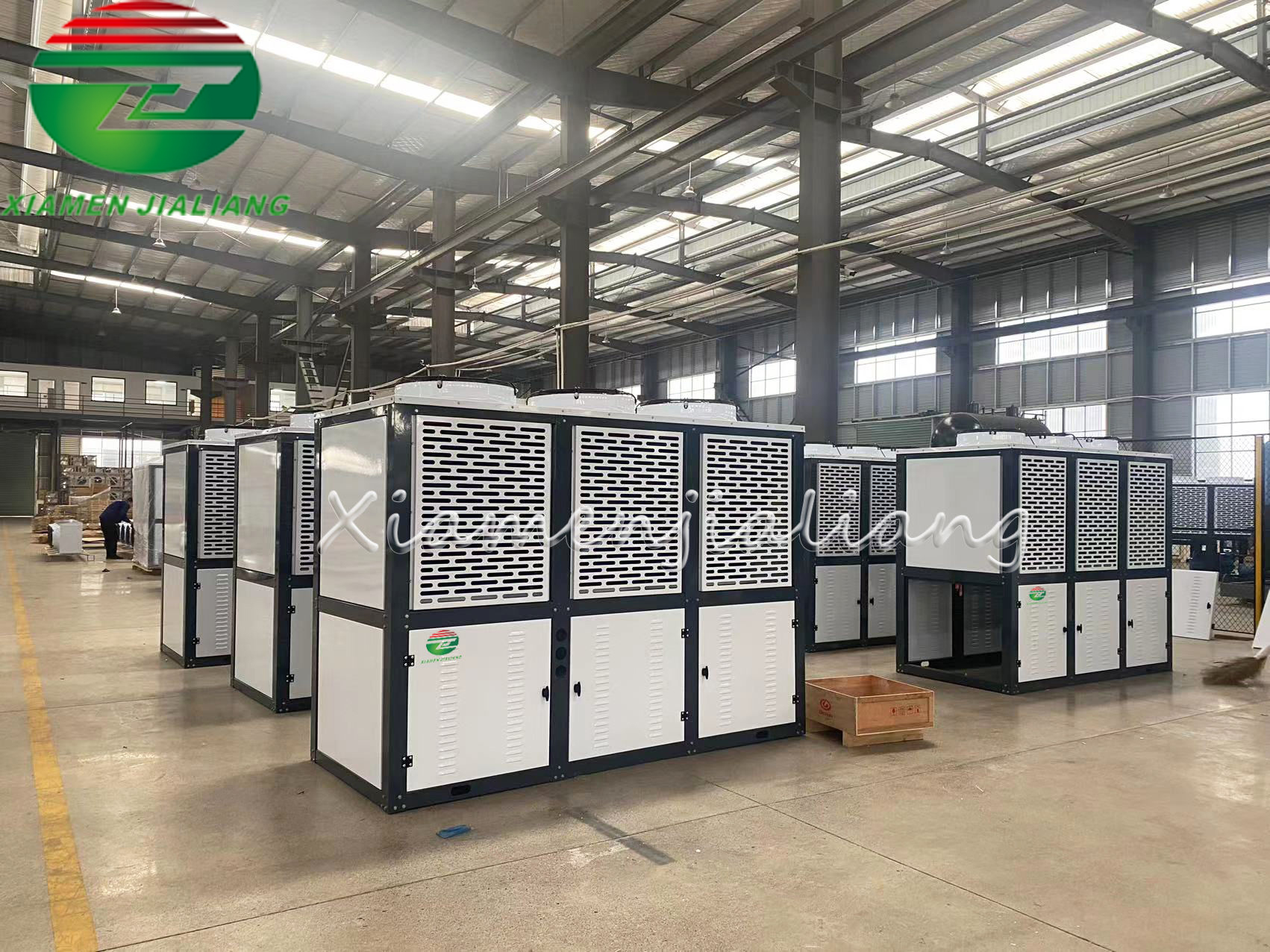

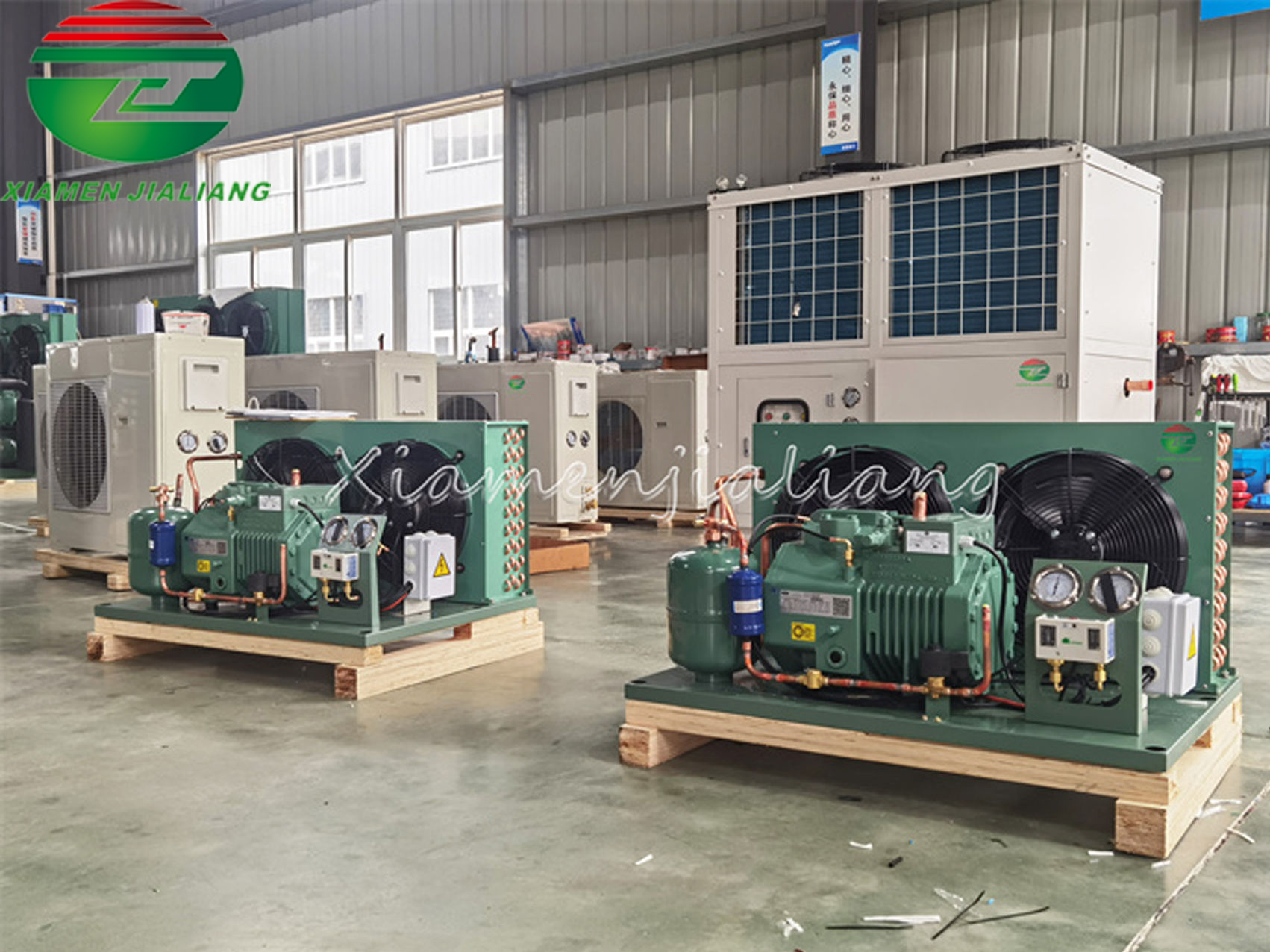

Condensing Unit

- Condenser: The condensing unit can be air-cooled or water-cooled, offering flexibility to meet specific requirements.

- Frame: The unit is encased in a steel shell with spray painting, featuring an open design on a steel frame.

- Refrigerant: You have a choice of refrigerants, including R449a, R404a, and R410a.

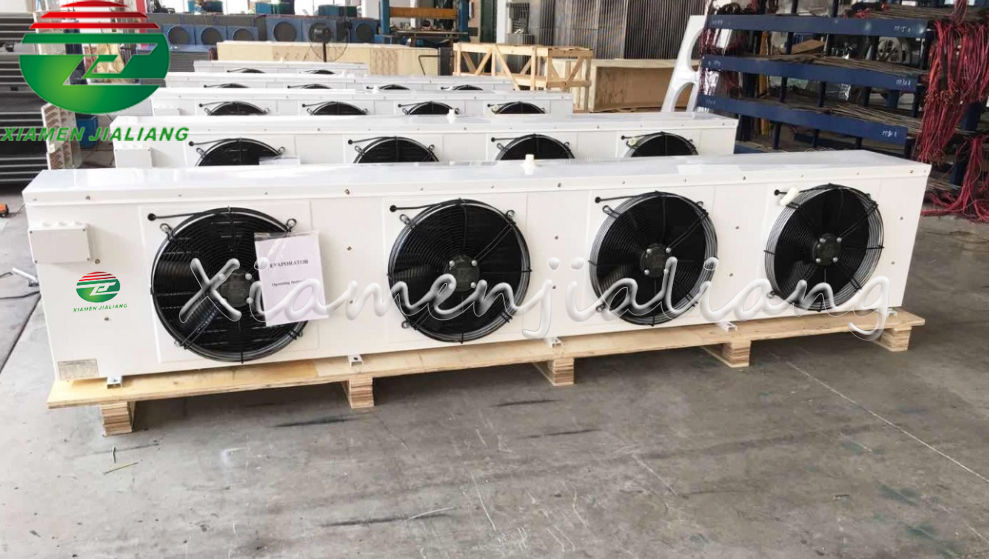

Evaporator

- Shell: The evaporator's shell is constructed with steel and can include materials such as galvanized steel or SS304 (stainless steel).

- Fins: The evaporator is equipped with blue fins that enhance heat exchange efficiency.

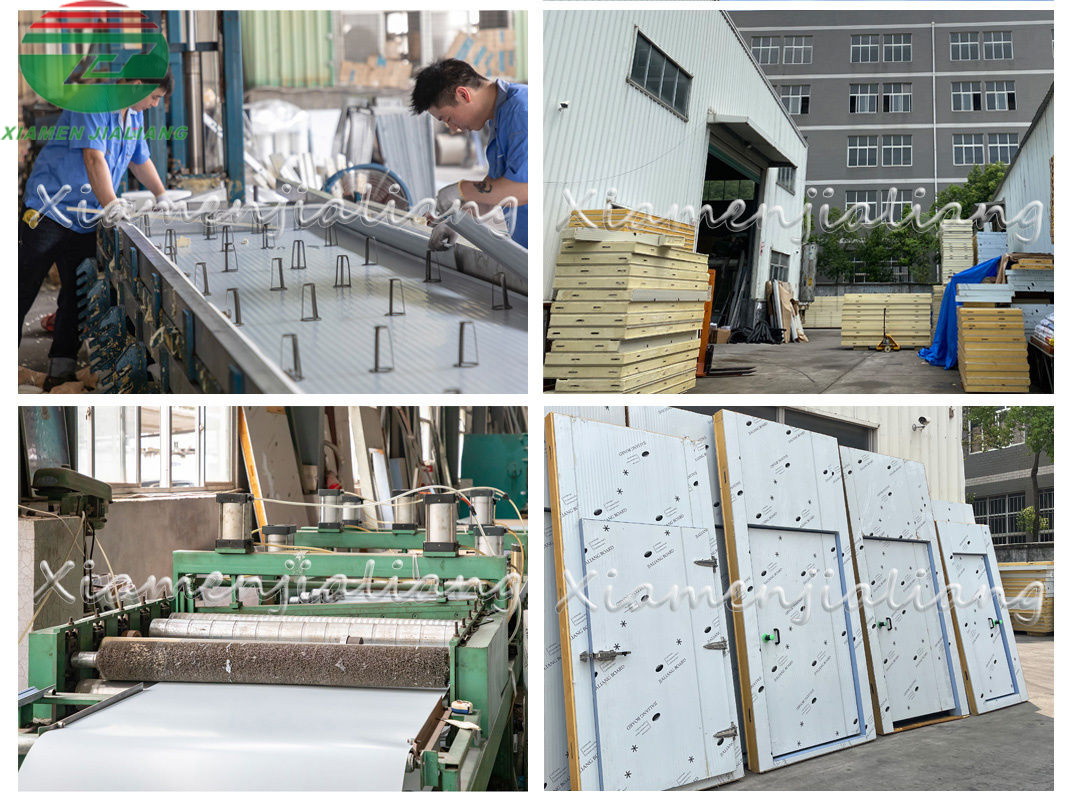

Factory

Our Service

Comprehensive Cold Storage Solutions

We offer a comprehensive range of cold storage solutions tailored to your specific requirements, taking into account factors such as quantity, voltage, and temperature needs. Our goal is to provide clear insights into our products through schematic diagrams and videos.


One-Stop Solution

We bring over 24 years of experience in the cold room industry, offering end-to-end services encompassing cold room design, manufacturing, installation, and ongoing support. Our solutions have reached over 200 countries, with over 10,000 custom-designed cold room solutions delivered.


Customization at Its Best

We offer a range of customization options, including OEM, ODM, 3D imagery, and CAD design, ensuring that you get a cold room that perfectly fits your needs and preferences.


Continuous Innovation

We continuously innovate and optimize our solutions and products to provide our customers with a wider range of choices, ensuring they receive the best possible solutions for their cold storage needs.


Collaborative Partnerships

We work closely with outstanding partners worldwide to deliver exceptional cold room solutions and products, enhancing our ability to meet the diverse needs of our customers.

Project Cases

Success Case

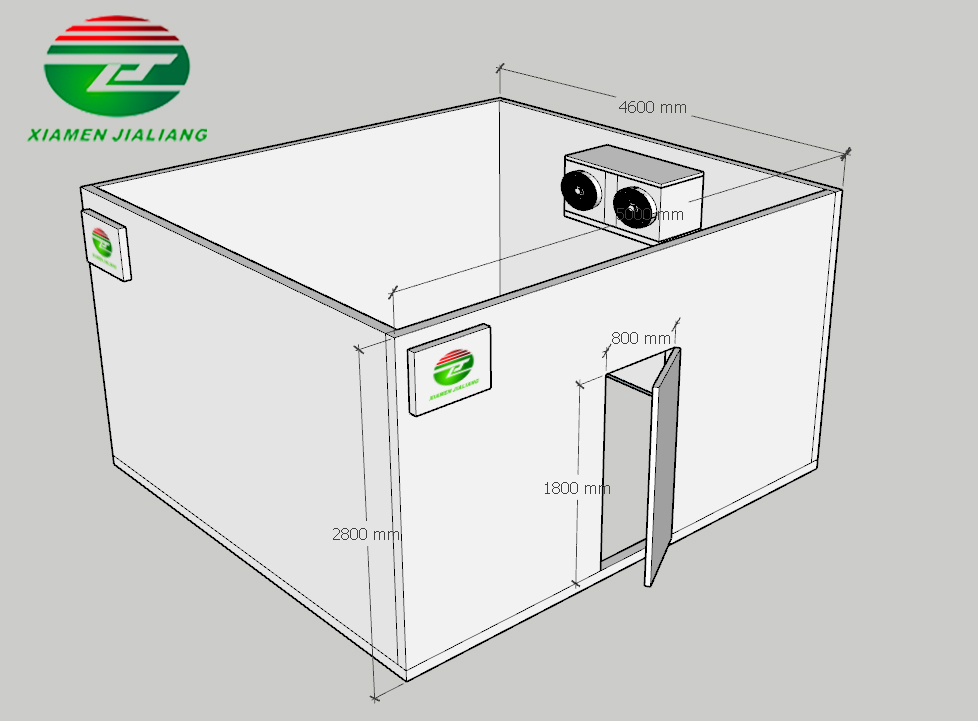

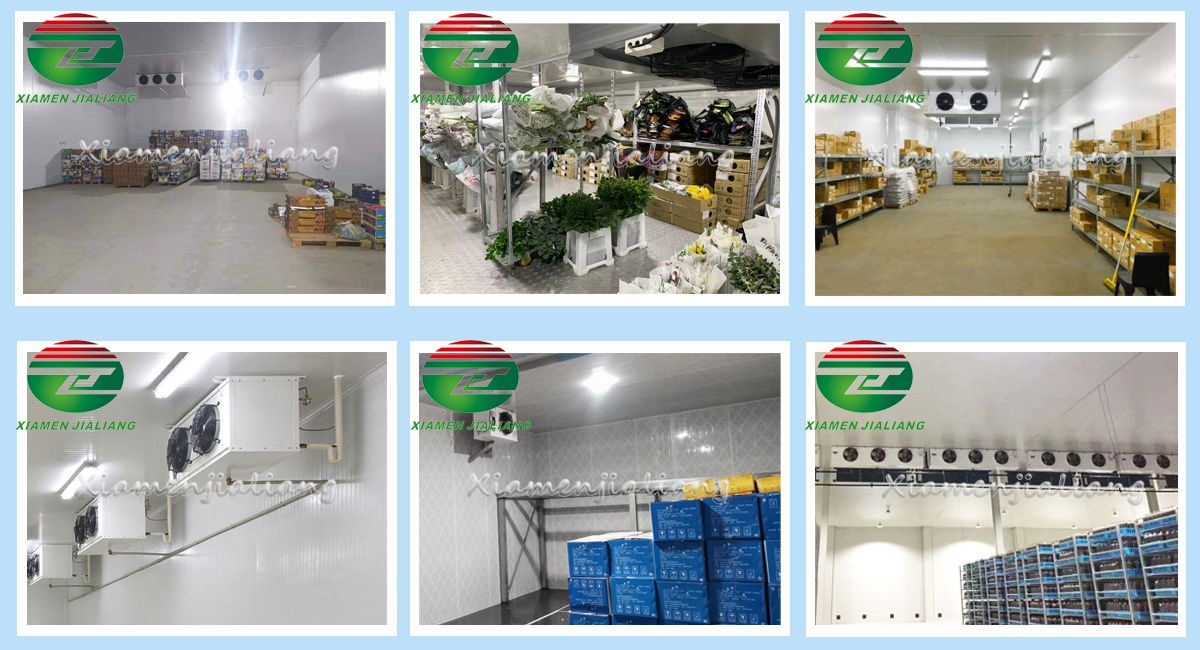

Cold Storage for Fish: Maintaining Optimal Temperatures

For fish cold storage, the typical temperature range is set between -15°C to -25°C (-5°F to -13°F). This specific temperature range ensures that the frozen fish remains well-preserved, preventing thawing or spoilage, and is especially important when transitioning fish from rapid freezing methods like blast freezer rooms or plate freezers.


Key Features of Our Fish Cold Storage Solution

1. Temperature Control: Our fish cold storage maintains a consistent temperature within the range of -15°C to -25°C (-5°F to -13°F) to safeguard the quality of your stored fish.

2. Insulated Paneling: We employ high-quality cold storage panels, which are typically 120-150mm thick and made of PU/PIR material. These panels are not only effective in insulation but also versatile in terms of appearance. You can choose surface steel with color plates for an aesthetically pleasing and cost-effective option, or opt for stainless steel, which offers enhanced resistance to rust and increased durability.

Our solution is designed to ensure your fish remains safely stored at temperatures below 0°C (32°F), preserving its quality and freshness.

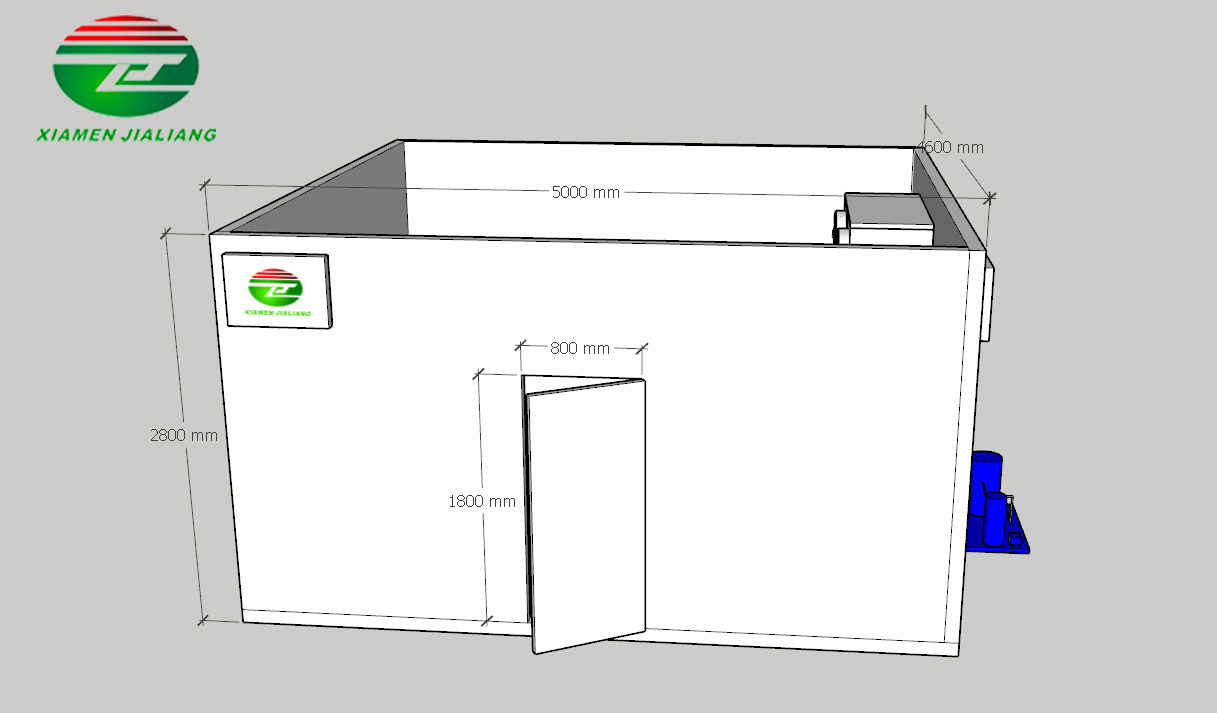

▲Cooling Room:

Cooling room for fruit, vegetable, dairy products storage, 100~200 PU/PIR panel with good insulation, high efficiency condensing unit, power consumption saving cost.


Keep your vegetables/ fruits fresh for long-term!

Best insulation panels to save the operation cost!

Design best solution suited to your storage requirements!

Best brand color plate material to be used for many years!

High efficiency refrigeration unit to meet your operation need!
